829695-00

HL6-9000

Push/Pull Mortise Latch Installation Instructions

1 Mortise Installation

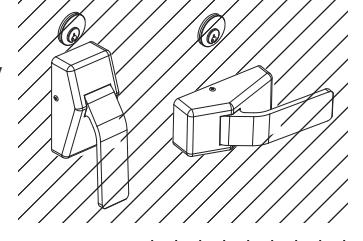

When the cylinder application is used, the paddle on the key side may be mounted in the down or horizontal position.

OR

When the thumbturn application is used, paddles must be mounted in the horizontal position only.

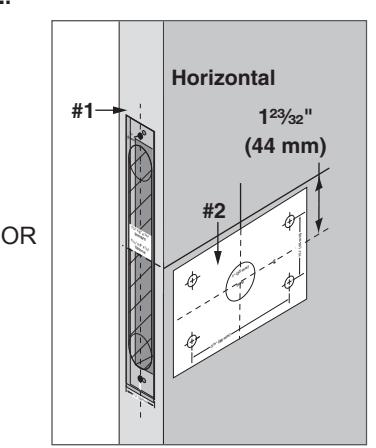

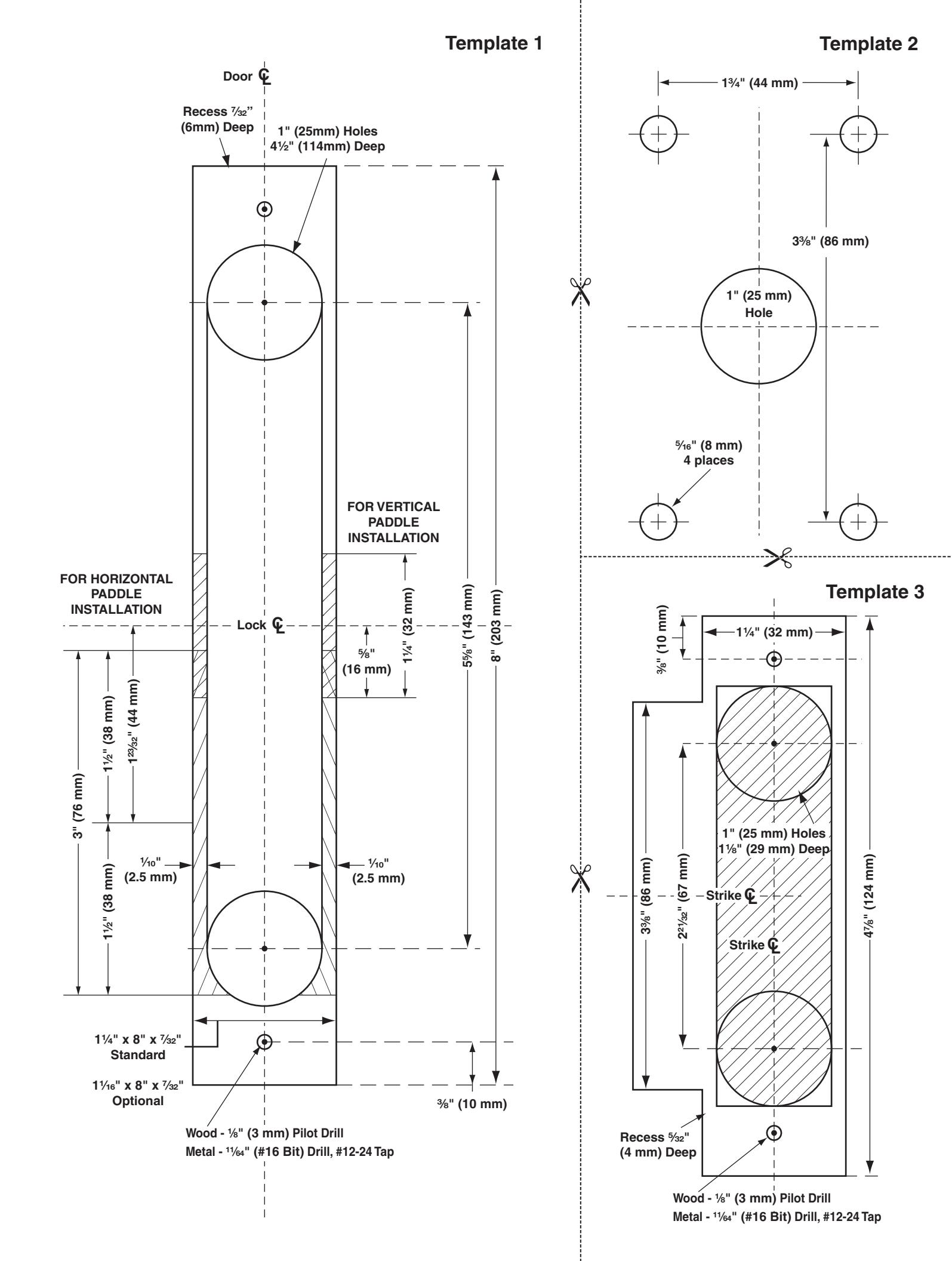

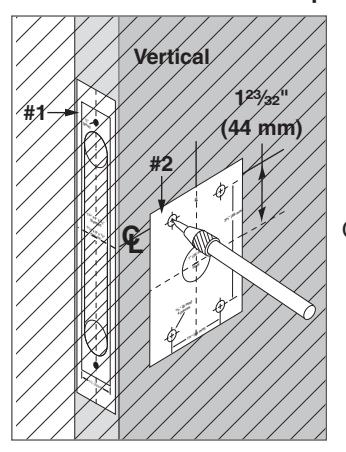

• 1a Use templates #1 and #2 to check holes.
• NOTE: If the door holes do not match the template, see the Door Preparation section.
• NOTE: Use a chisel to make a pocket for the stud plates that are installed in Step 2.

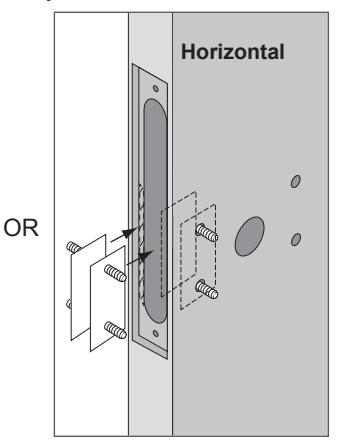

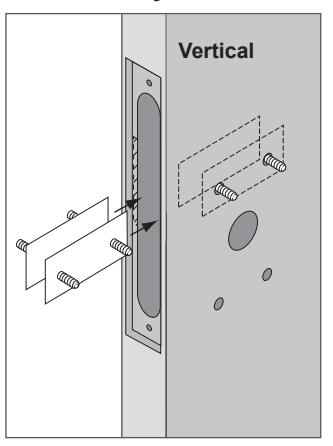

• 1b Install stud plates.
• NOTE: Additional notching to the back of the mortise hole is necessary to install the stud plates.

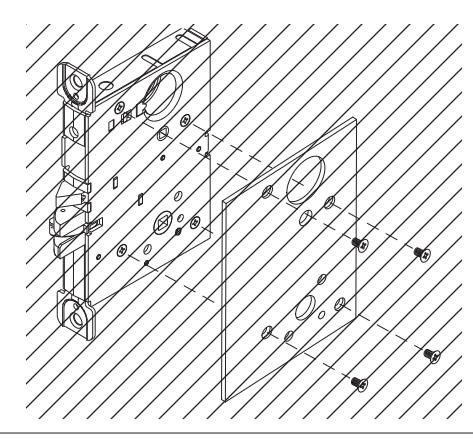

• 1c For HL6ML (lead lined) ONLY, install the lead plate.
• NOTE: Additional door preparation may be needed to install the HL6ML.

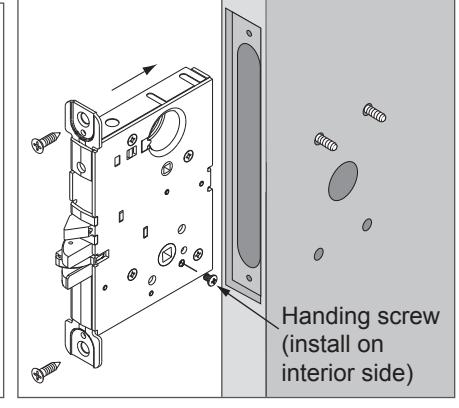

• 1d Install the mortise lock.

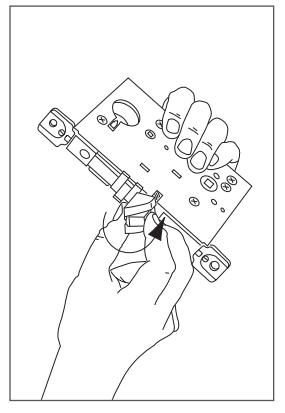

• NOTE: To reverse the latch, pull out and rotate 180°.

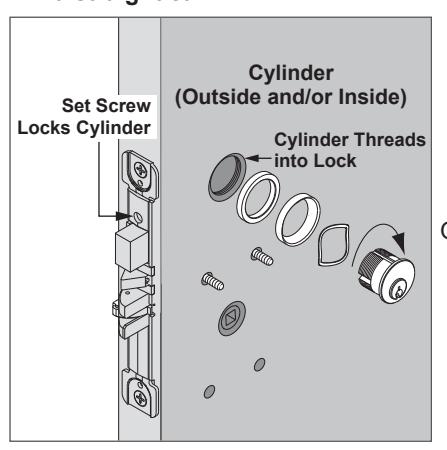

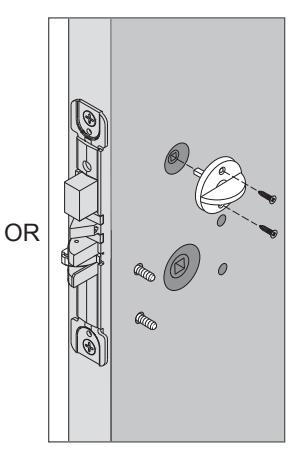

• 1e Install the cylinder or thumbturn, as required.
• NOTE: 1-1/8" mortise cylinder with clover cam to be used on all functions except the L9060 outside, which requires a straight cam.

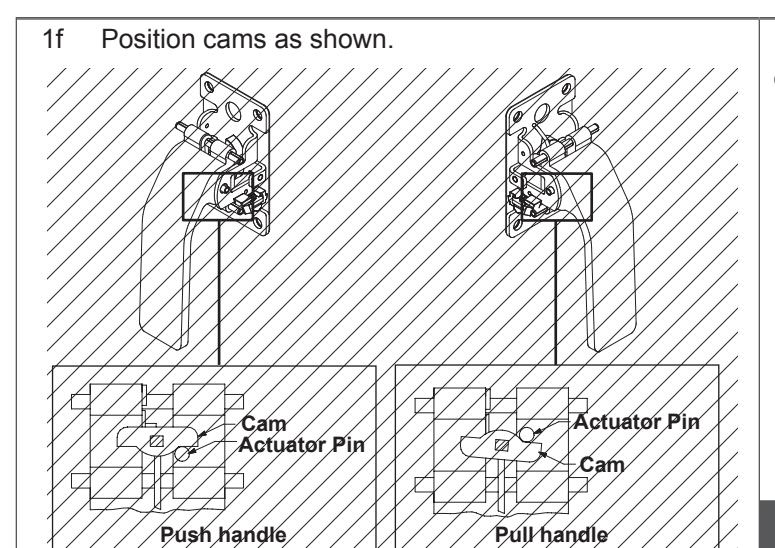

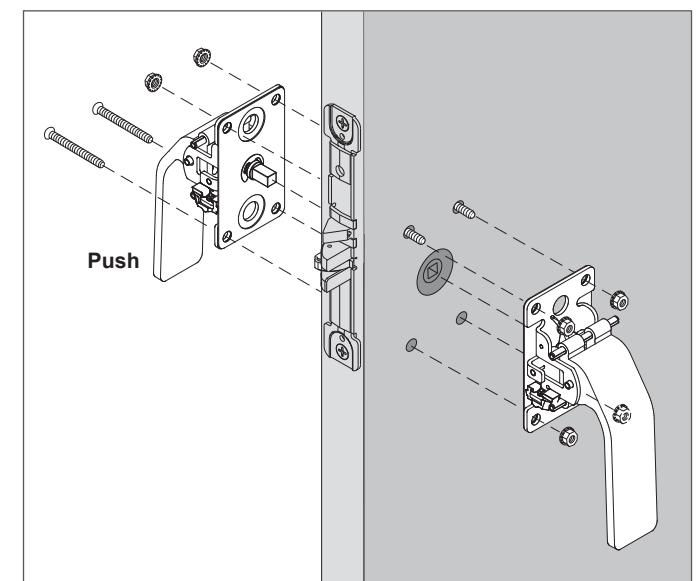

1g Install push and pull levers.

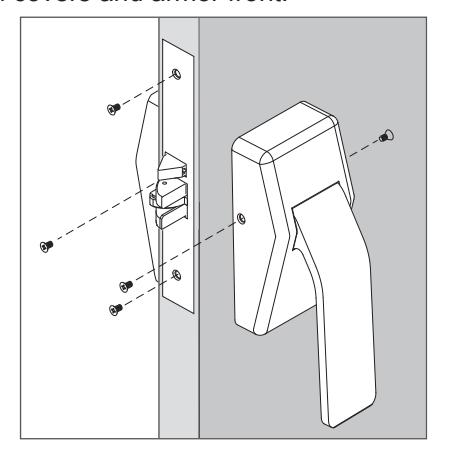

1h Install covers and armor front.

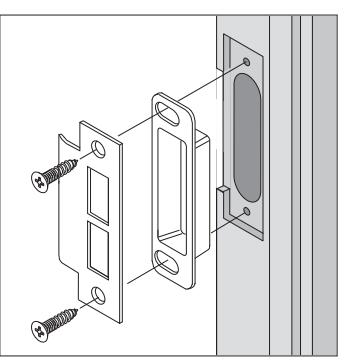

• 1i Install strike.
• L NOTE: If the frame is not prepared, see the Frame Preparation below.

2 Frame Preparation

2a Locate strike center lines (pic) on frame. ³⁄₈"

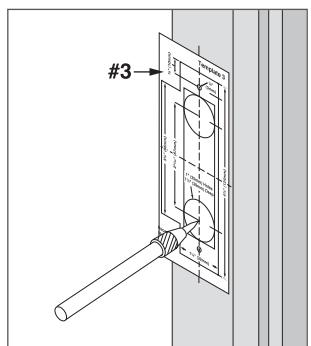

2b Mark the frame using template #3.

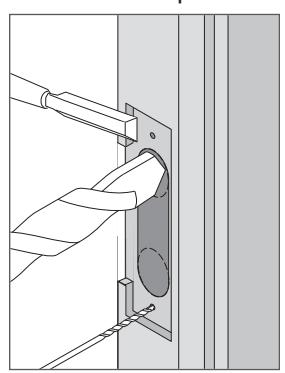

2c Drill and mortise the frame per the template.

3 Door Preparation

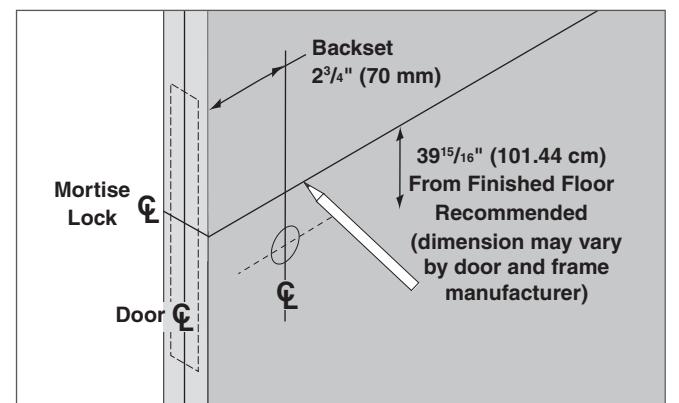

3a Mark center lines ( Q ).

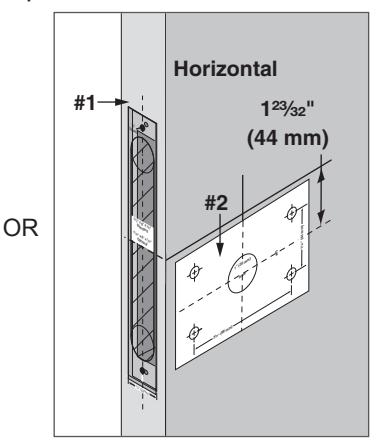

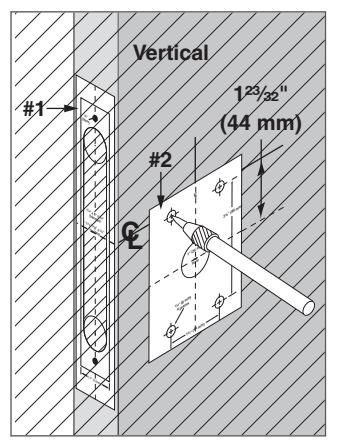

3b Mark the door using Templates #1 and #2.

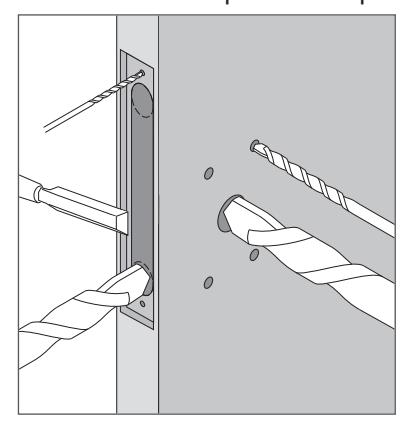

3c Drill and mortise the door per the template.

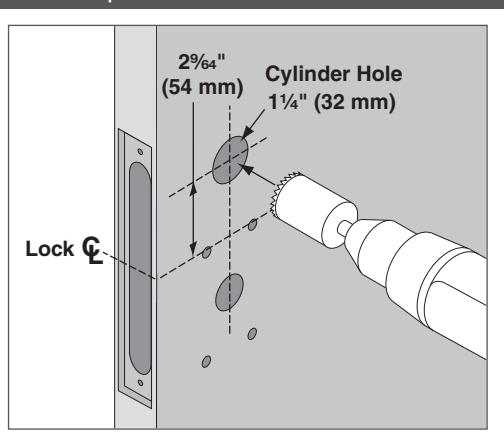

4 Cylinder Preparation

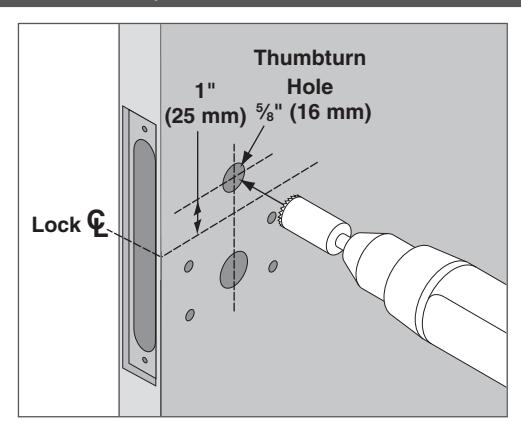

5 Thumbturn Preparation

Additional Notes:
1. None

	Revision History					Revision Description:
В	С	D	E	F	G	G > Revised artwork	work
N/A	N/A	N/A	N/A	075349	XXXXX
Material						Edited By	Approved By	EC Number	Release Date
	White Paper					D. Toppins	M. Sasso	xxxxx	05-11-18

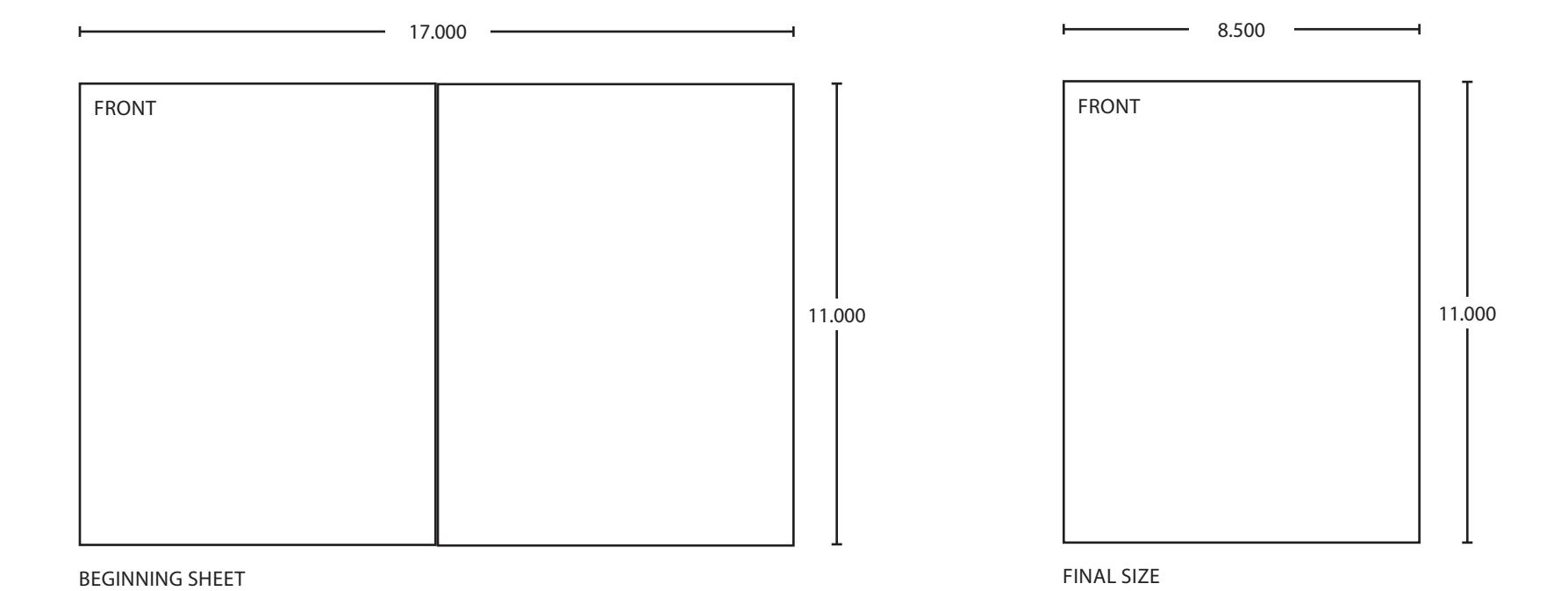

2. printed	Notes 1. printed two sides 2. printed black 3. tolerance ± .13					Title INSTALLATION INSTRUCTIONS HL6-9000 PUSH/PULL MORTISE LATCH
