Schlage FE410 Schlage Control Smart Interconnected Lock Door Prep Template RF122

FE-Series

FE410F

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1B\," (41 mm)–1C\v" (44 mm) Faceplate: Square Corner, 1" (25 mm) wide Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)

Standard backset in

bold.

Dimensions shown in parentheses () are in millimeters.

Customer service: 800-847-1864 We can help you find the correct guide for your product and application!

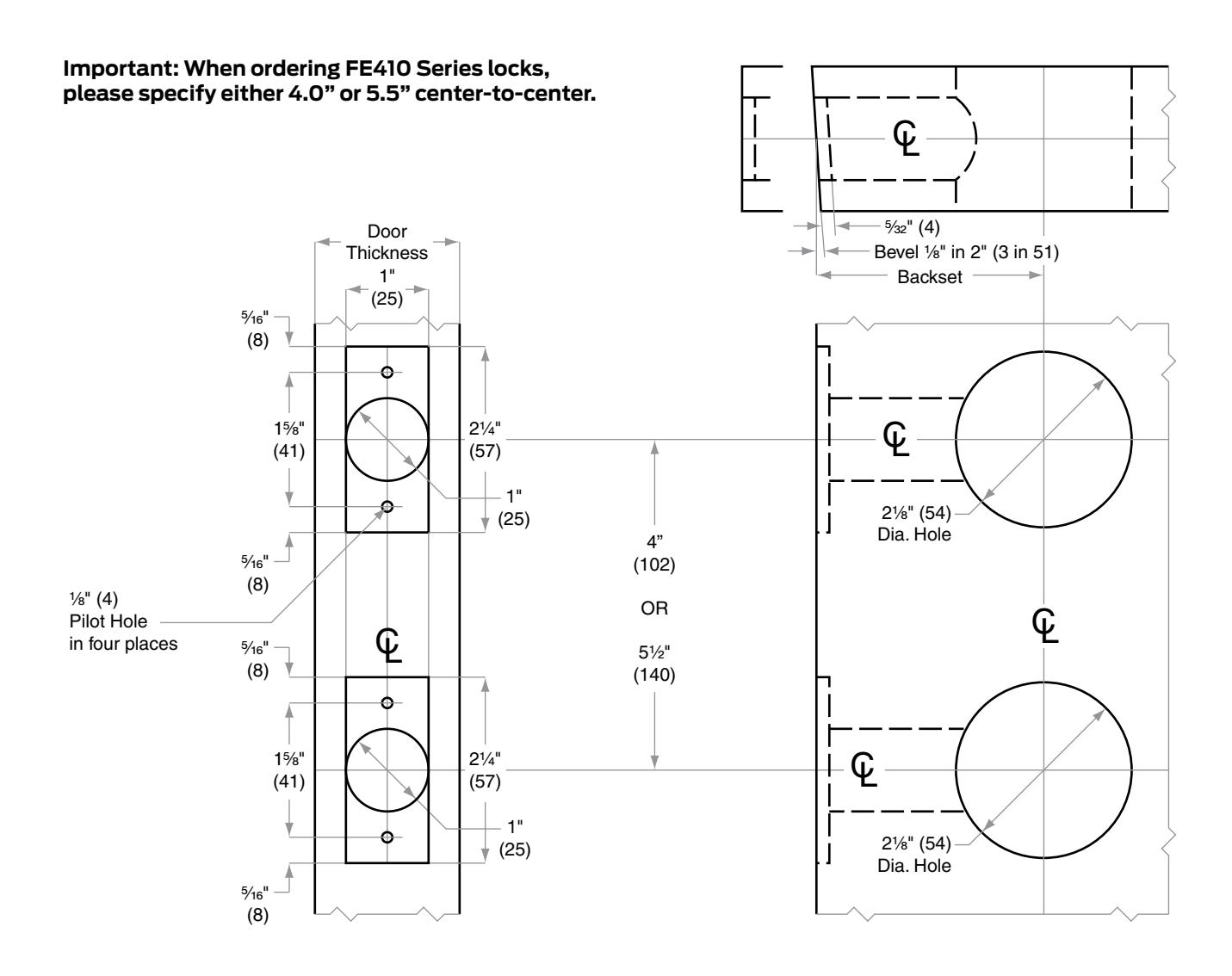

Door preparation template DRAWING IS NOT TO SCALE!

RF122
