Schlage FE410 Control Smart Interconnected Lock Door Prep Template RF124

FE-Series

FF410F

Door Type:Metal, Flat or BeveledDoor Thickness:1%" (41 mm)-1¾" (44 mm)Faceplate:Square Corner, 1" (25 mm) wideBacksets:2¾," (60 mm), 2¾" (70 mm)

Standard backset in bold.

Dimensions shown in parentheses () are in millimeters.

Customer service: 800-847-1864 We can help you find the correct guide for your product and application!

DRAWING IS NOT TO SCALE!

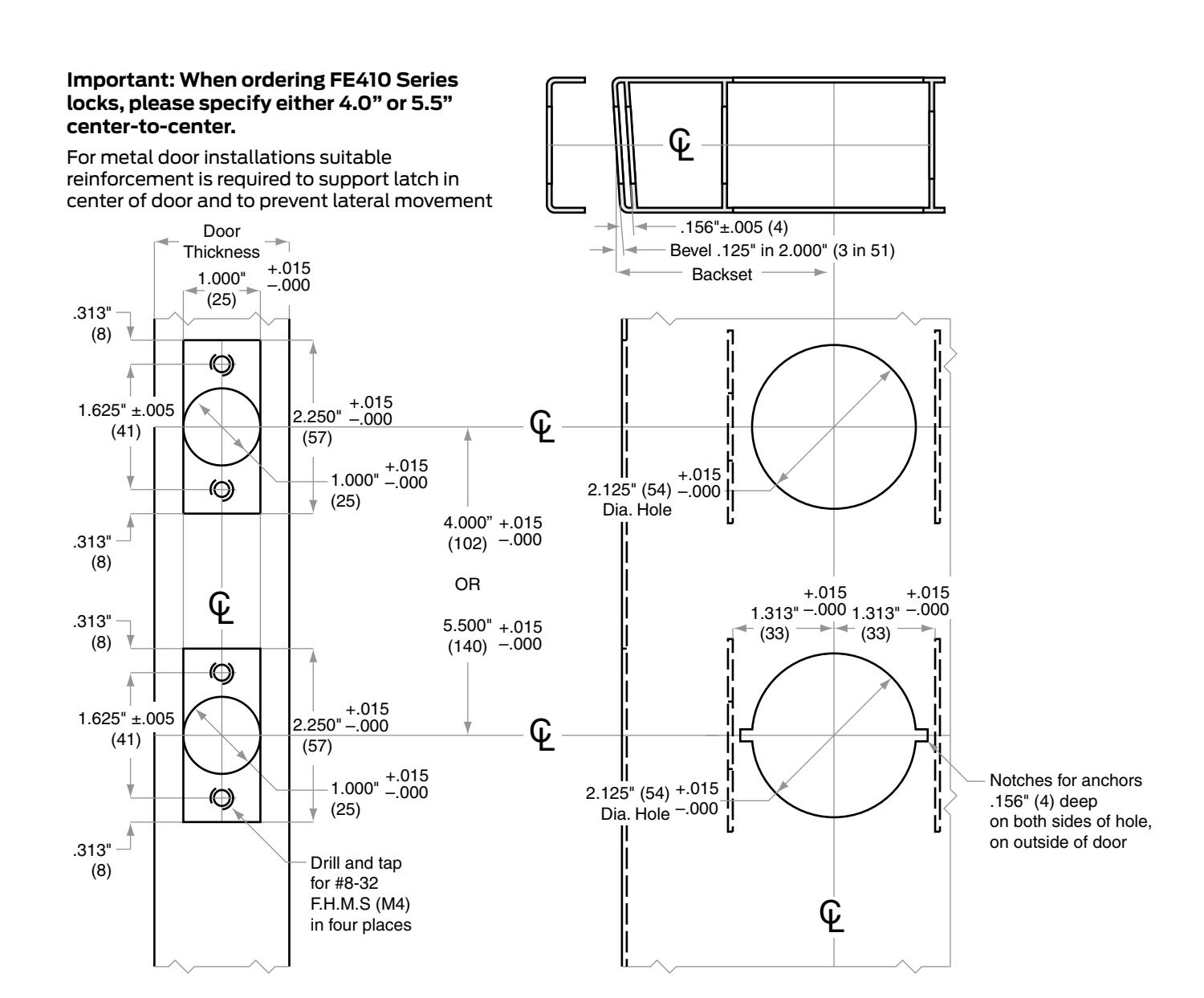

Door preparation template
