Schlage FC21 Template Wood or Composite Flat or Beveled Square Corner Faceplate
Open the original PDF document
View PDF
FC-Series
FC21
Door Type: Wood or Composite, Flat or Beveled
Door Thickness: 1C\," (35 mm)–1C\v" (44 mm) Faceplate: Square Corner, 1" (25 mm) wide Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)
Standard backset in
bold.
Dimensions shown in parentheses () are in millimeters.
© 2018 Allegion RFC100 Rev. 03/18 www.allegion.com/us

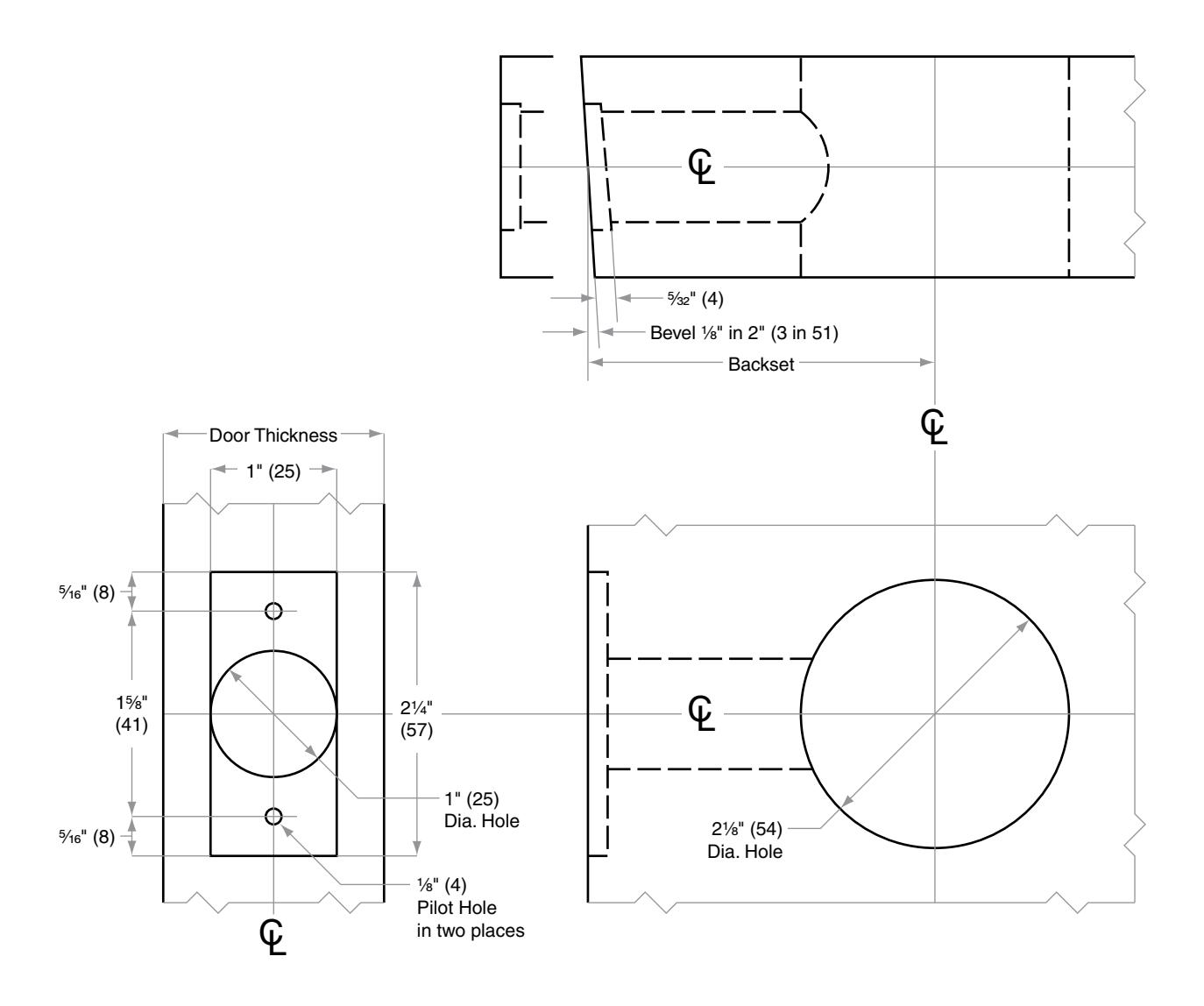

Door preparation guide DRAWING IS NOT TO SCALE! Customer service: 888-805-9837 We can help you find the correct guide for your product and application!
RFC100
