Schlage FC21 Template Wood or Composite Flat Circular Drive In Faceplate

Open the original PDF document

View PDF

FC-Series

FC21

Door Type: Wood or Composite, Flat Door Thickness: 1C\," (35 mm)–1C\v" (44 mm)

Faceplate: Circular Drive-In

Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)

Standard backset in bold.

Dimensions shown in parentheses () are in millimeters.

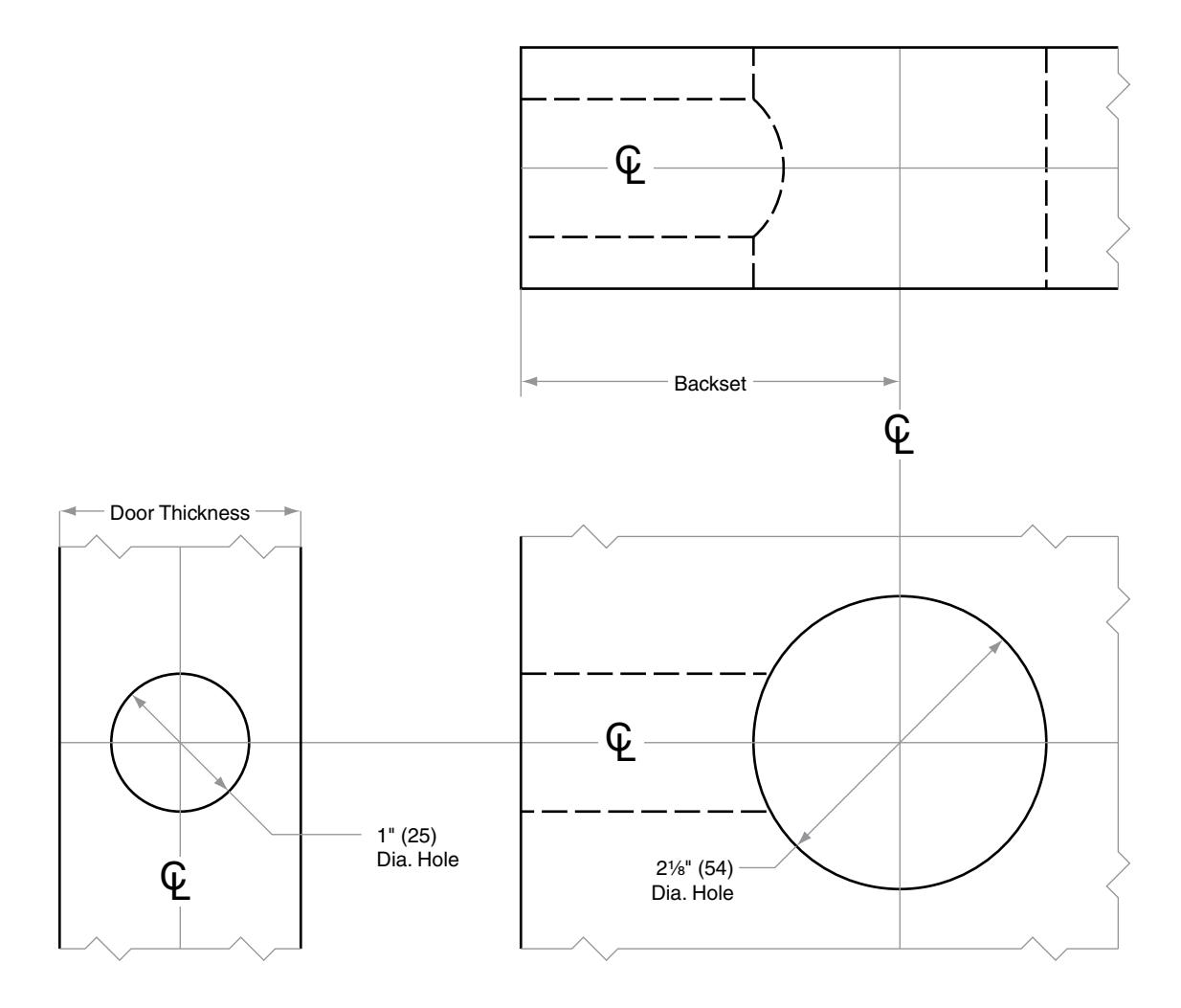

Door preparation guide DRAWING IS NOT TO SCALE! Customer service: 888-805-9837 We can help you find the correct guide for your product and application!

RFC102
