Schlage FC21 Door Prep Template Metal Flat or Beveled Square Corner Faceplate

FC-Series

Door Type: Metal, Flat or Beveled Door Thickness: 1C\," (35 mm)–1C\v" (44 mm) Faceplate: Square Corner, 1" (25 mm) wide Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)

Standard backset in

bold.

For metal door installations suitable reinforcement is required to support latch in center of door and to prevent lateral movement

Dimensions shown in parentheses () are in millimeters.

Customer service: 888-805-9837 We can help you find the correct guide for your product and application!

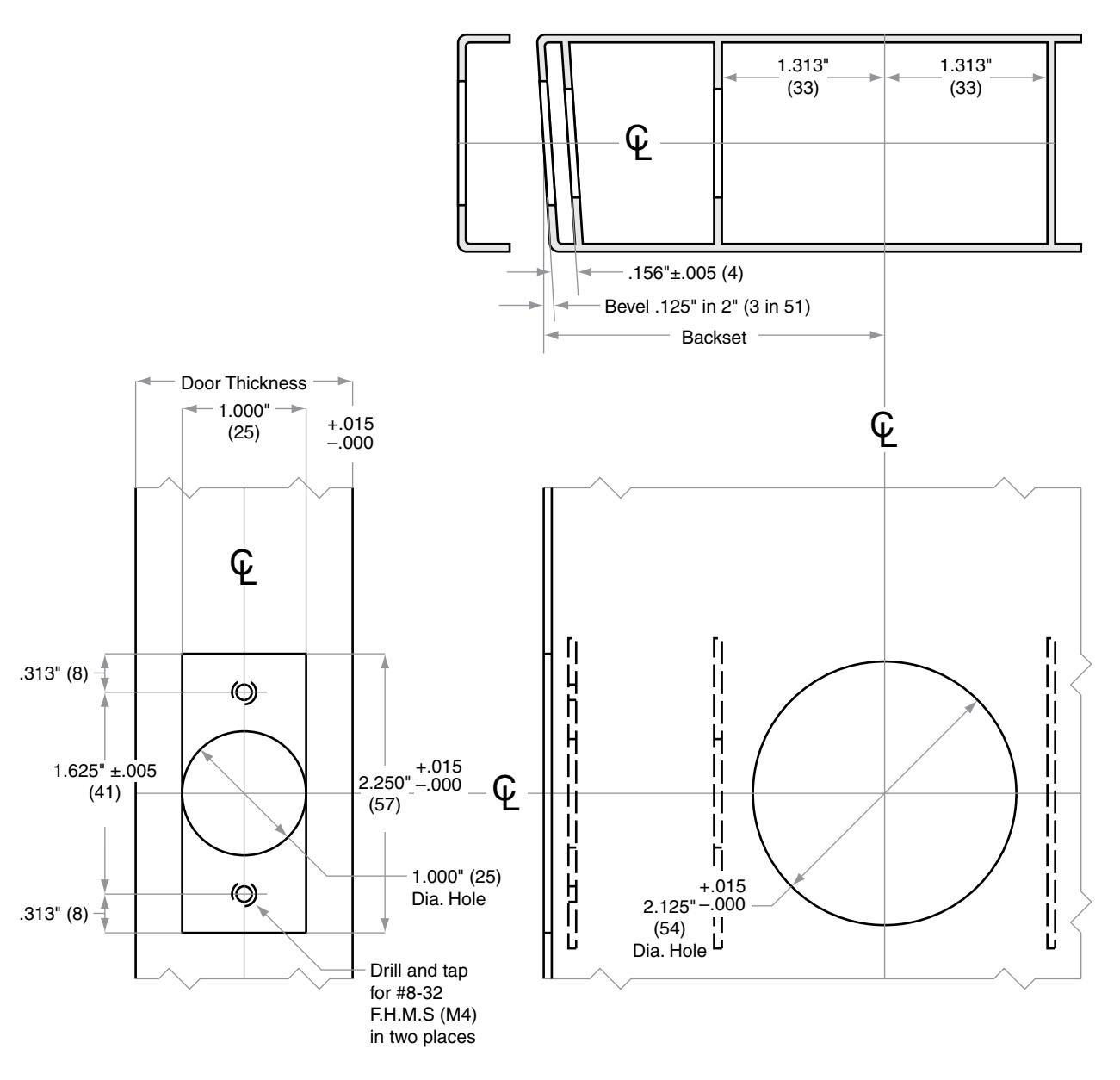

Door preparation guide DRAWING IS NOT TO SCALE!
