Schlage Control™ Smart Deadbolt

with Engage Technology

Model BE467F

Door Preparation Instructions for Door with No Holes

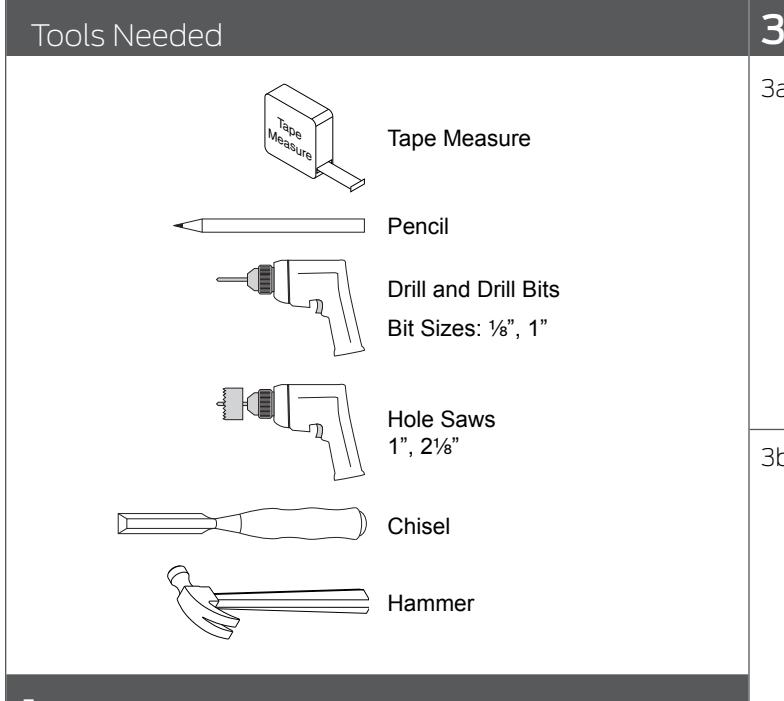

1 Measure door thickness.

If the door is thinner than 1C\," or thicker than 1C\v", then the lock will not fit properly on the door.

• L A thick door kit is available from Product Support at 800-847-1864 .

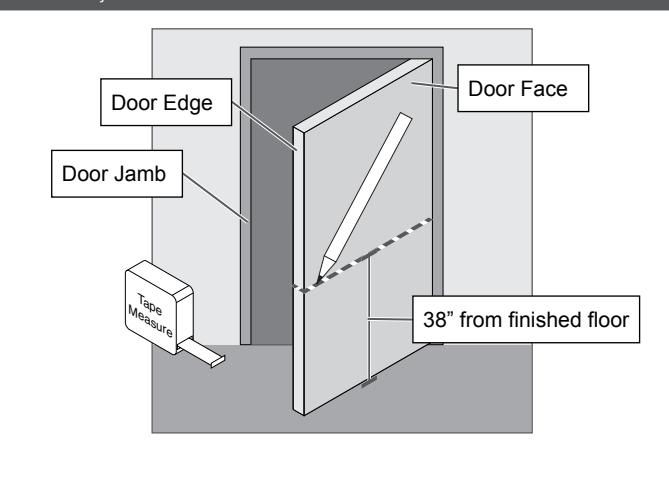

• 2 Mark lock centerline on door face, door edge and door jamb.

3 Prepare cross bore.

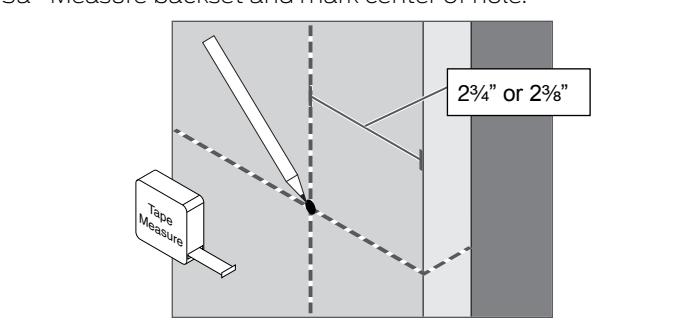

3a Measure backset and mark center of hole.

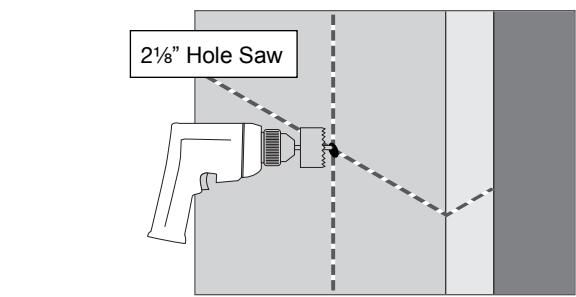

3b Drill hole with hole saw.

4 Prepare door edge hole.

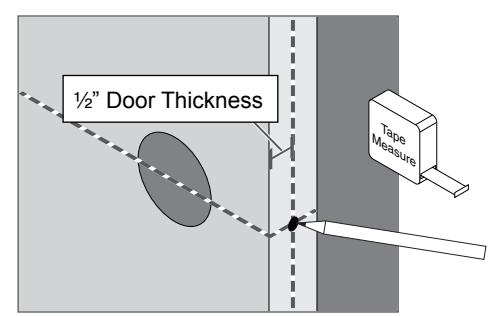

4a Measure and mark Z\x door thickness.

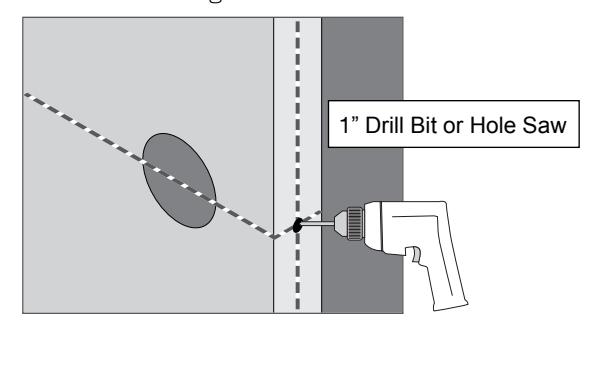

4b Drill hole in door edge.

5 Mortise for bolt.

5a Insert bolt into door edge hole. Trace bolt faceplate and mark holes.

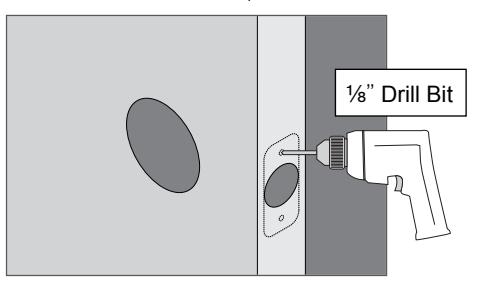

5b Remove bolt and drill two Z\," pilot holes.

5c Use chisel and hammer to create bolt mortise.

6 Measure, mark and drill holes in door jamb for strike.

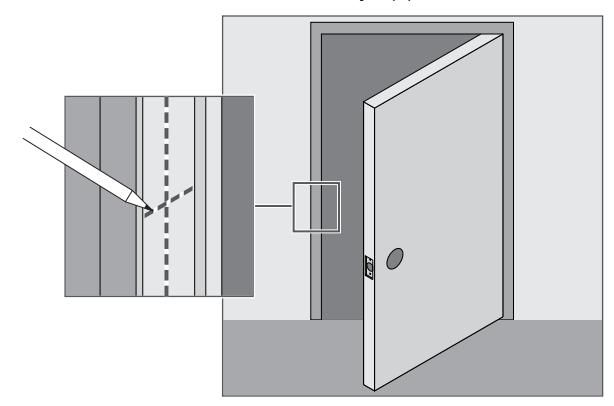

6a Mark center for strike hole exactly opposite latch hole.

Product Support

800-847-1864 www.allegion.com

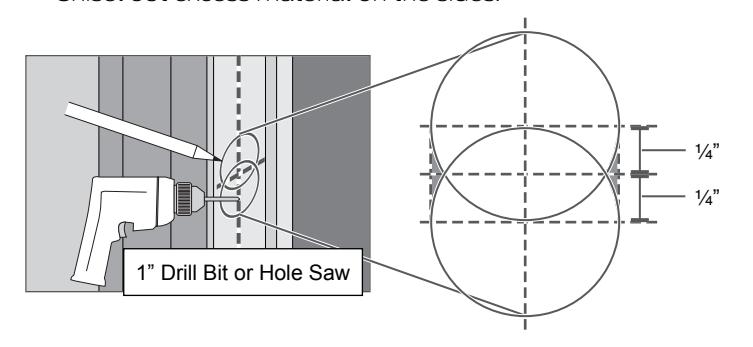

6b Measure, mark and drill two (2) 1" holes, 1Z\v" deep, as shown. Chisel out excess material on the sides.

7 Mortise for strike and reinforcement plate.

7a Trace strike and reinforcement plate and mark holes.

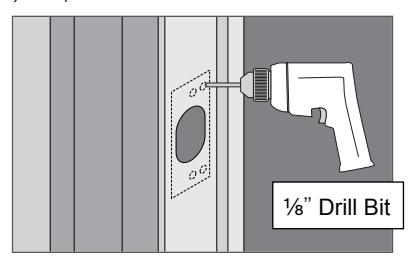

7b Drill four (4) Z\," pilot holes.

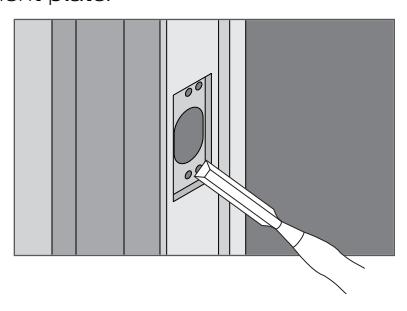

7c Use chisel and hammer to create mortise for strike and reinforcement plate.
