Schlage BE467 Control Smart Deadbolt Door Prep Template RB118

BE-Series

BE467F

Door Type: Metal, Flat or Beveled Door Thickness: 1C\," (35 mm)–1C\v" (44 mm) Faceplate: Square Corner, 1" (25 mm) wide Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)

Standard backset in

bold.

Dimensions shown in parentheses () are in millimeters.

Customer service: 800-847-1864 We can help you find the correct guide for your product and application!

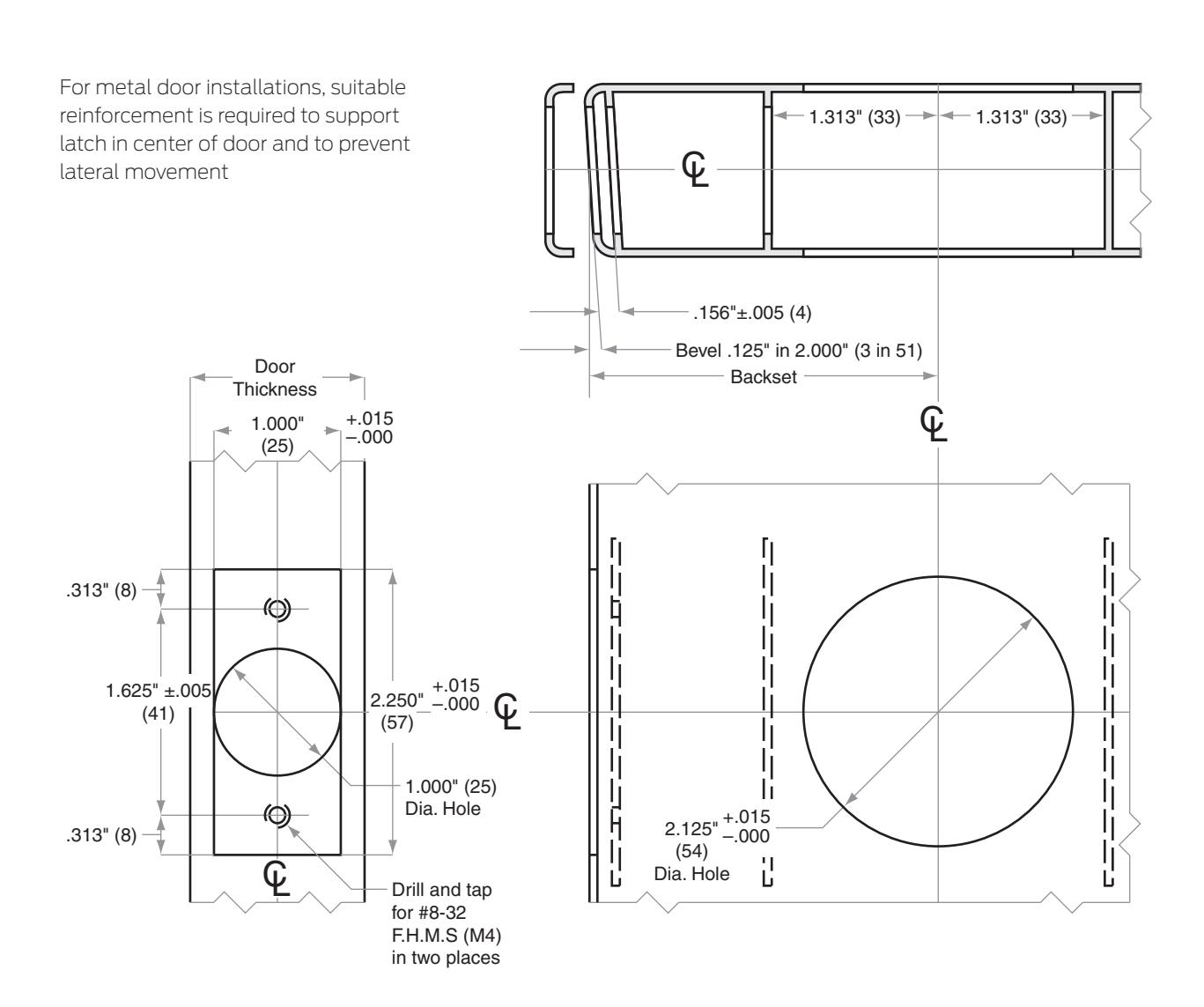

Door preparation template DRAWING IS NOT TO SCALE!
