Schlage BE365 Keypad Deadbolt Door Preparation Instructions for Door with Existing Holes

BE365 Door Preparation Instructions For Door With Existing Holes

Tools Needed

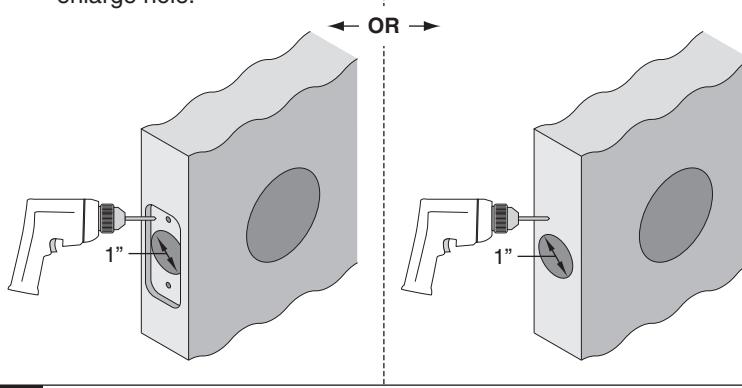

If Needed, Enlarge Hole in Door Edge

Measure Door Width 1

If the door is thinner than 1³⁄₈" or thicker than 1³⁄₄", then the lock will not fit properly on the door.

If hole in door edge is smaller than 1", then use 1" drill bit to enlarge hole.

5

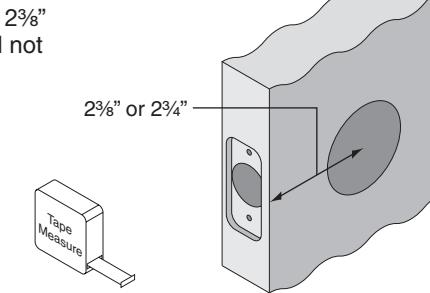

Measure for Backset If existing backset is not 2³⁄₈" or 2³⁄₄", then the lock will not 2

fit properly on the door.

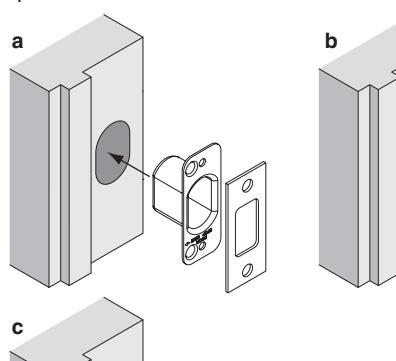

6 Check Strike (Door Jamb) Preparation

• a. Place new strike box and strike against door jamb.
• b. If strike box and strike do not fit properly, use pencil to trace around strike box and strike and mark hole positions.
• c. If needed, use chisel and drill to correct door jamb preparation.

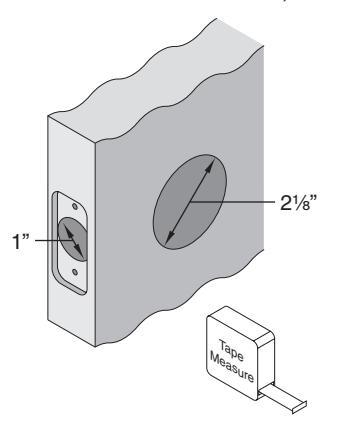

If hole sizes are larger than those shown, then the lock will not fit properly on the door.

If hole sizes are smaller than those shown, see steps 4 and 5.

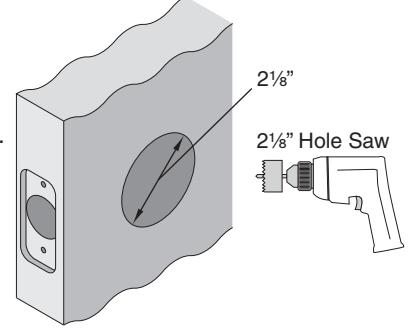

If Needed, Enlarge Hole in Door 4

If hole in door is smaller than 2¹⁄₈", then use 2¹⁄₈" hole saw to enlarge hole.
