You can't predict what will happen tomorrow. But you can be ready for it, thanks to the AD Series from Schlage.

Designed from the ground up to be completely flexible, adaptable and scalable, the AD Series is a perfect fit today and can be upgraded to meet evolving needs in the future.

The innovative, modular design of the AD Series provides the same level of security you've always expected from Schlage, plus the confidence of knowing your investment is every bit as secure as your facility.

About Allegion

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.

For more, visit www.allegion.com

AD Series

Adaptable electronic security

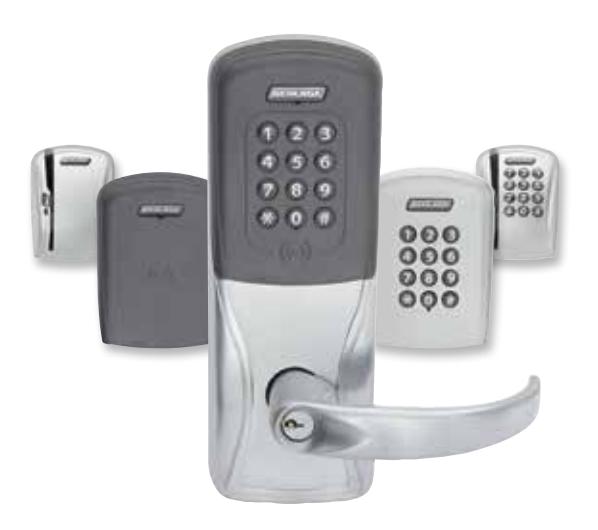

The AD Series electronic lock from Schlage

We started by asking questions

What we heard led us to design a better lock.

You told us you wanted a simpler solution, locks that could evolve to fit your needs, and assurance that your investment would be protected for years to come.

The AD Series is the answer.

It's ready for anything Even the future.

The AD Series was designed to be the right choice for today, and is ready to adapt to whatever the future holds.

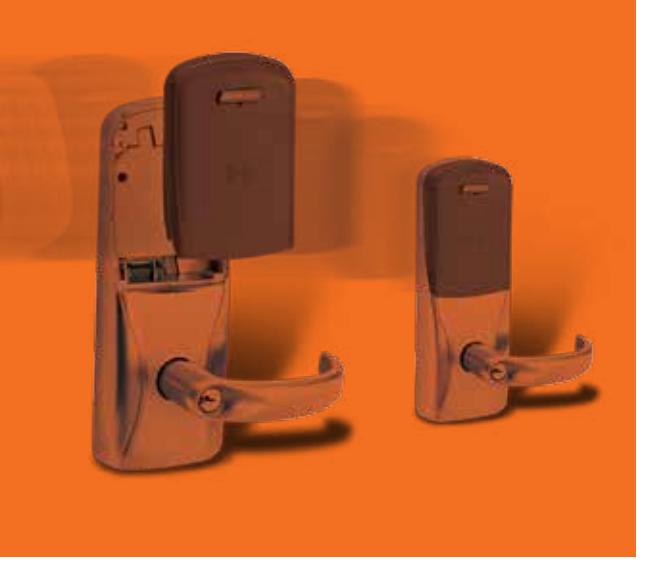

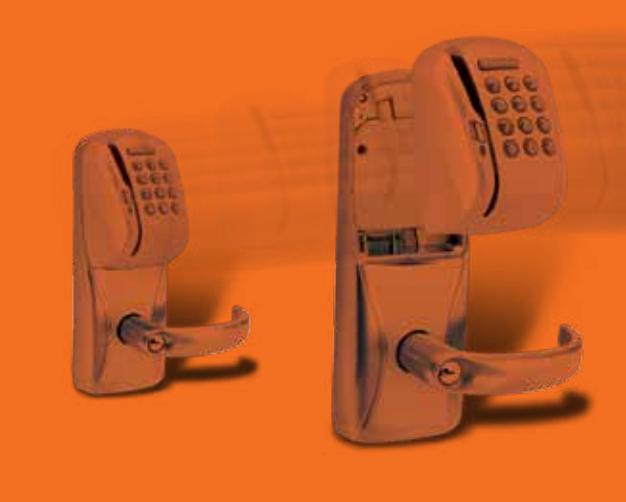

There are a variety of options that allow you to select the AD Series electronic lock that's right for you, and a wide selection of features that can be configured in the field to further customize each opening. When your needs change in the future, the innovative modular design of the AD Series allows you to easily upgrade the credential reader or networking option, and adapt to emerging technologies using your existing chassis – all without taking the lock off the door.

Communication options

Networked

In facilities where increased monitoring and control are needed, a networked solution is essential. The AD Series networked options feature:

• Open Architecture platform
• Real-time monitoring
• Centralized lockdown

The AD Series networked lock is available in either a wireless or hardwired configuration to fit your application needs.

• AD-300 Networked hardwired locks
• AD-301 Networked hardwired FIPS 201-1 compliant locks
• AD-400 Networked wireless locks
• AD-401 Networked wireless FIPS 201-1 compliant locks

Offline

Offline locks are a cost-effective solution for doors that do not require real-time monitoring. The AD Series offline solution provides:

• Upgradability
• Audit trail reports
• Improved credential management

Schlage offers three AD Series offline solutions to fit your environment:

• AD-200 Access rights are stored on the lock
• AD-201 Access rights are stored on the lock; FIPS201-1
• AD-250 Access rights are stored on the magnetic stripe credential

Note: AD-200, 300, and 400 locks can now be upgraded to meet FIPS201-1 compliance with the utilization of the FMK reader module and latest firmware

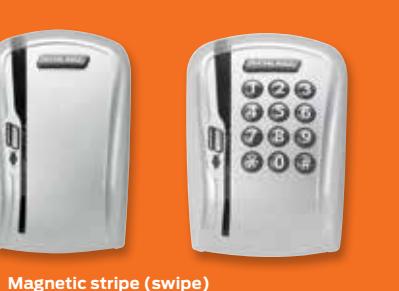

Credential reader options

AD Series electronic locks are compatible with many different brands and technologies of credentials.

+ KEYPAD

+ KEYPAD

wireless accessories.

Keypad

• Multi-technology
• * KEYPAD (FIPS 201-1 compliant)

Chassis

• Cvlindrical
• Mortise deadbolt
• Mortise

Exit Trim

Locking functions

• Classroom/storeroom
• Privacy

Office

Apartment

Certifications

• ANSI/BMHA A156.25
• FCC part 15
• ANSI/BHMA Grade 1
• RoHS
• III 2941 isted
• FIPS 201-1

UL 10C ADA

(AD-201, 301 and 401)

Your facility. Your investment. Your future. They're all protected with the AD Series from Schlage.

Finishes

Cool

tone

finishes

625

Bright chrome

Satin bronze Aged bronze

Satin chrome with

HHD

device

programing

Complete your system

Complete your AD Series system with readers and

components, HHD programming device and other

credentials, biometric hand geometry readers, system

Readers and credentials

WPR400 wireless portable

reader

Lever styles

Athens

626

Satin chrome

Tubular

PIM400 Panel interface module

ANT400-REM Remote antenna

RLBD Dry contact relay board
