Schlage AD-250 Data Sheet

Open the original PDF document

AD-250

Standalone electronic lock

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door.

Factory orderable options include choices of magnetic stripe credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings.

The AD-250 is a unique solution in which the credential, not the lock, carries access rights on a magnetic stripe card. This allows dynamic rights management on the card without reprogramming each lock in the facility. And the lock still maintains an audit trail of events at the door. This makes it a smart and economical solution for campus-like environments with a large number of users and offline openings.

On all AD Series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and request-to-enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features and benefits

§ Security that's more intelligent and convenient than traditional mechanical locking devices
§ Audit trail reports that allow you to track usage
§ Add users and access rights using credentials instead of having to visit each lock
§ The ability to upgrade to a networked solution without removing the lock from the door
§ Available in cylindrical, mortise, mortise deadbolt and exit trim
§ Compatible with major brands of master key systems and exit devices
§ Now available with magnetic swipe reader
§ ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS, FL124001 , FL15911 , FL130131 and FL144821

¹ Applies to cylindrical and mortise chassis only

AD-250 electronic lock specifications
Users	Unlimited, dependent on software
Audits	Up to 10,000
Credential verification time	≤ 1 second
Visual/audible communications	Tri-colored LEDs and audible indicators (field configurable)
System interface	Handheld Device (HHD) or SUS-A Cable used with SUS Android mobile app (available late 2020)
Power supply	4AA, 8AA, 12 VDC or 24 VDC
Voltage range	4 VDC to 26 VDC
Max current requirement	Up to 250 mA
Battery life	Up to 2 yrs with 4AA
Operating temperature - exterior	-31° to 151°F (-35° to 66°C)
Operating temperature - interior	32° to 120°F (0° to 49°C) (battery)
Operating humidity	0 - 100% non-condensing
Certifications	ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, U L10C, FCC Part 15, ADA, RoHS
Accessories	Handheld Device (HHD), SUS-A Cable used with SUS Android mobile app (available late 2020), magnetic stripe credential encoder (CL-Encoder 2)

Functions

§ Classroom/storeroom1
§ Office1
§ Privacy
§ Apartment

Standard status signals

§ Lock/unlock status
§ Mechanical key override
§ Battery status

Schlage Utility Software

The Schlage Utility Software (SUS) on the Handheld Device (HHD) or compatible Android mobile devices (available late 2020) provides an easy way to manage people, audits and locks for simple access control management.

Schlage Utility Software

§ Initialize lock and accessories
§ Field configure devices
- Credential reader formats
- Lock function
Unlock period
Failure mode
Audible alarm on/off
§ Service and diagnostics
- Battery status
- Validate hardware and software revision
- Troubleshooting status signals
§ New device template simplifies configuration

For replacement HHD devices with a serial cable connection, please contact Technical Support at 877.671.7011.

¹ Classroom/storeroom and office function not available with mortise deadbolt option. To ensure safety, all functions always allow for free egress.

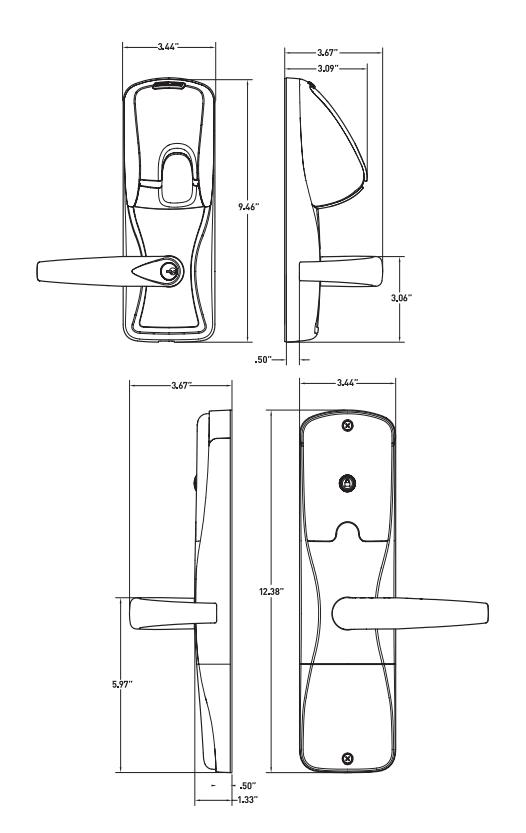

Mechanical specifications Chassis Cylindrical Mortise Exit trim Handing Handed to order, field reversible ANSI standard (Meets or exceeds) A156.25 A156.2 Series 4000 Grade 1 A156.25 A156.13 Series 1000 Grade 1 A156.25 A156.3 Door thickness 1 3⁄4" standard, 1 3⁄8" to 2 3⁄4" optional (available in 1 ⁄8" increments) Backset Standard: 2 3⁄4" Optional: 2 3⁄8", 3 3⁄4", 5" 2 3⁄4" only Defined by exit device Latch bolt Standard: ¹ ⁄2" throw Optional: 3⁄4" throw Standard: 3⁄4" throw Optional: 1" throw on mortise deadbolt Provided by exit device Levers Pressure cast zinc, plated Strike Standard: 1 3⁄16" lip, ANSI, 1 1 ⁄4" x 4 7 ⁄8" Optional: Additional configurations available please see price book Provided by exit device Cylinder and keys Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard. Additional options available including SFIC, FSIC and competitor brands. See lever and cylinder compatibility data sheet (010432)

AD Series exit trim

Installed with a universal mounting plate, the AD Series exit trim is compatible with the following exit devices:

§ Von Duprin 98/99 & 98/99XP1 Rim, surface vertical rod, mortise. Concealed vertical cable and concealed vertical rod on metal doors only.
§ Von Duprin 22/22F1 Rim, surface vertical rod
§ Falcon 251 - Rim
§ Sargent® 802 Series Rim
§ PrecisionTM 21 Rim 2100 converts to 21 with Precision's BP21 kit
§ Corbin Russwin® 5000 Series Rim
§ Yale® 7000 Rim
§ Dorma® 9300 Rim

Available AD-250 reader options

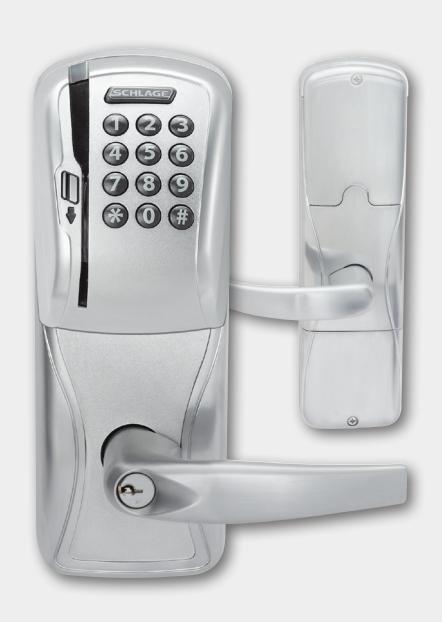

Magnetic stripe (swipe)

+ KEYPAD
§ Triple track reader (1, 2 or 3), field configurable
§ ABA, ISO76XX Standard
§ Reader can be cleaned without removing lock from door
§ 12 button, 3x4 matrix backlit keypad

Magnetic stripe (swipe)

§ Triple track reader (1, 2 or 3), field configurable
§ ABA, ISO76XX Standard
§ Reader can be cleaned without removing lock from door
§ 12 button, 3x4 matrix backlit keypad

Magnetic stripe (insertion)

+ KEYPAD
§ Triple track reader (1, 2 or 3), field configurable
§ ABA, ISO76XX standard

Magnetic stripe (insertion)

§ Triple track reader (1, 2 or 3), field configurable
§ ABA, ISO76XX standard

¹ Request-to-exit switch optional for future network migration

² Narrow design and reversible rim exits not compatible

Ordering information

Available through one of our GSA schedule 84 approved distributions; BAA options available

AD-250-CY-70-MG-SPA-626-PD-S123-RH-4B-13-049-10-025-13/4

Series	Class	Chassis	Function	Reader	Lever	Finish	Lever	Keying type	Handing	Battery	Backset and latch	Strike	Door
1	2	3	4	5	6	7	8	9	10	11	12	13	14

Selections correspond with the numbers above

Standard options are indicated in bold. See price book for specific configuration options


3	Chassis
CY	Cylindrical
MS	Mortise
MD	Mortise deadbolt
993R	Exit trim – Rim/CVC/CVR
993S	Exit trim – SVR
993M	Exit trim – mortise
993DT	Non-functioning dummy
	trim for exit
4	Function
70	Classroom/storeroom
50	Office
40	Privacy
60	Apartment
5	Reader
MG	Magnetic stripe (insertion)
MGK	Magnetic stripe + keypad (insertion)
MS	Magnetic stripe (swipe)
MSK	Magnetic stripe + keypad (swipe)
DT	Dummy trim
6	Lever
ATH	Athens
BRK	Boardwalk
BRW	Broadway
LAT	Latitude
LON	Longitude
RHO	Rhodes
SPA TLR	Sparta Tubular
	vith tactile warning options


7	Finish
626	Satin chrome
605	Bright brass
606	Satin brass
612	Satin bronze
619	Satin nickel
625	Bright chrome
643e	Aged bronze
626AM	Satin chrome antimicrobial
8	Lever cylinder type
PD	Schlage 6-pin Conventional cylinder

See price book for other SFIC, FSIC and less cylinder options available. Compatible with Schlage, Sargent, Corbin, Medeco and Yale.

9	Keyway type
S123	Everest 29

See price book for other available keyway options including restricted keyways in Primus XP high security cylinders and master keying

4B	4AA
11	Battery
Field reversible
LH	Left handed
RH	Right handed
10	Handing

Backset and latch or armor front 12 Cylindrical 13-049 23/4" backset, deadlatch,

square corner, 1 1/8" x 2 1/4" Mortise

09-663 Armor front, 11/4" wide, square corner

See price book for mortise deadbolt and other backset and latch options or armor front options

13 Strike

Cylindrical

10-025 13/16" lip, ANSI, no box,

11/4" x 47/8"

Mortise

13/16" lip, 11/4" x 47/8" 10-072 square corner, box

See price book for other available strikes

Door thickness 14

13/4"

Other thicknesses available between 13/8" and 23/4"

See price book for detail

Finishes

Warm tone finishes

Cool tone finishes

Satin nickel

619

Bright brass

Bright chrome

625

Satin chrome

626

626AM Satin chrome with

Lever styles

SFIC and FSIC also available

Rhodes

AA8

Longitude

Tubular
