Sargent and Greenleaf's Model 6120 delivers simple, one-touch operation that makes protecting residential gun safes or commercial safes easy and intuitive. With a heritage of excellence built on more than 160 years of trust, Sargent and Greenleaf delivers security you can rely on.

FEATURES

• RELIABLE SECURITY. Built-in features including boltblocking application and a hardened disc in the lock body deliver structural integrity and protect against punch and drilling attacks. A motor-driven lock bolt prevents vibration and bouncing attacks.
• EASY OPERATION. Operate the lock in one step—simply enter the code and the lock opens.
• PEACE OF MIND. Model 6120 automatically relocks when the door is closed and boltwork is extended, protecting assets even if the user forgets to engage the lock.
• BEST-IN-CLASS WARRANTY. Sargent and Greenleaf backs Model 6120 locks with a leading two-year warranty and exceptional service.

Learn more at www.sargentandgreenleaf.com.

Protecting assets from high-security government sites to banks to businesses for more than 160 years, Sargent and Greenleaf continues to set the standard for innovation, security, quality, and trust.

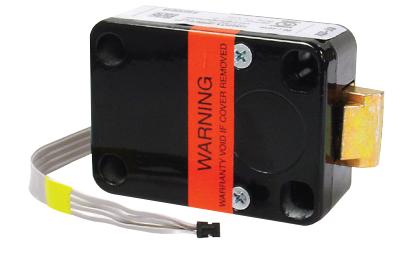

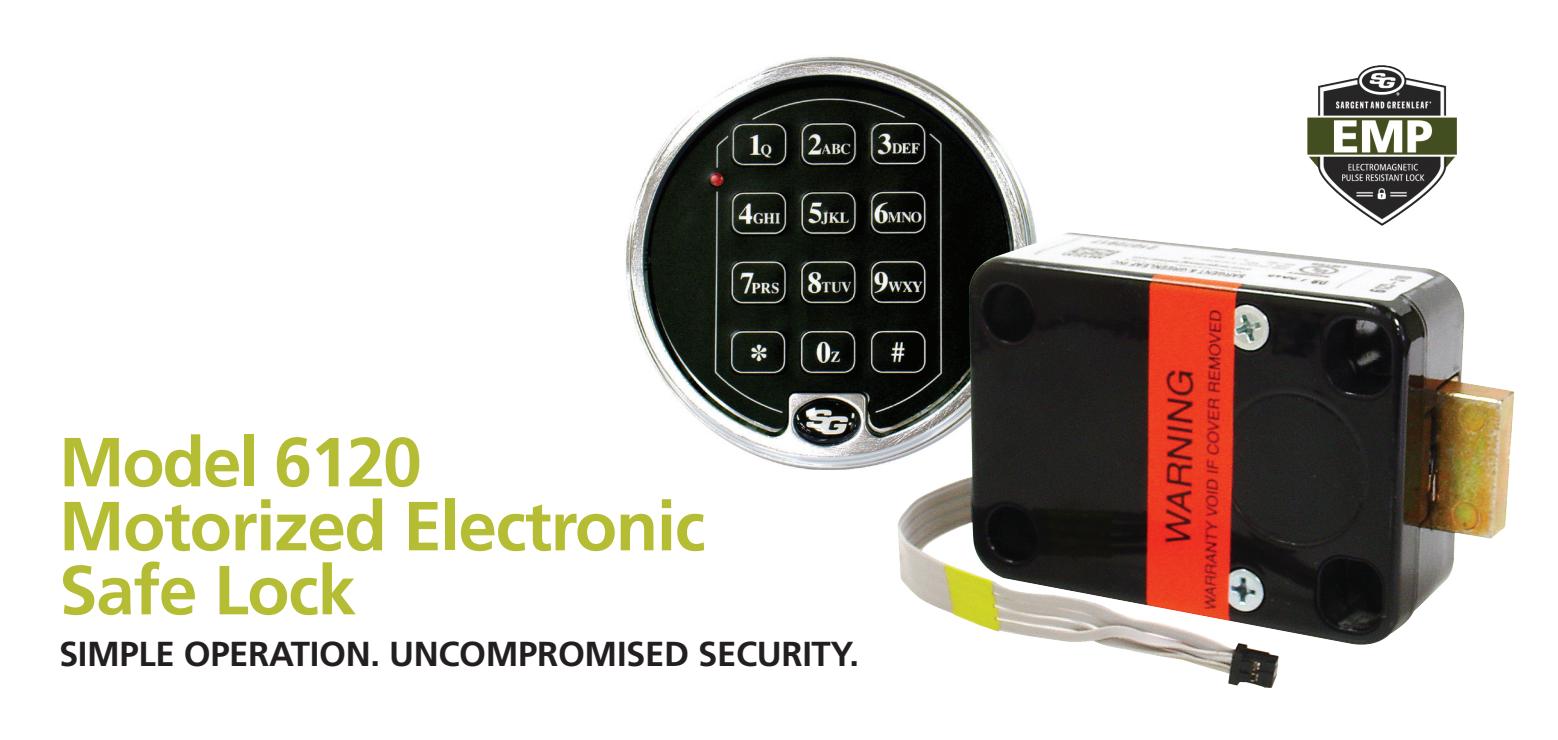

Model 6120

CONTROL AND CONVENIENCE FOR GREATER SECURITY.

Keypad control combined with easy one-step operation makes the 6120 Safe Lock Series convenient to use and manage and also highly secure.

DEADLOCKING SQUARE BOLT

• Withstands up to 225 lbs. of bolt end pressure for security and durability in boltwork blocking applications

NON-DEADLOCKING SPRING BOLT

• Designed for lightweight and inner compartment doors that require the lock to latch and secure the door

SPECIFICATIONS

CERTIFICATIONS

• UL Type 1
• RoHS Compliant

CODE MANAGEMENT

• One master code, eight user codes
• Management reset code
• Field programmable from keypad
• One million codes available

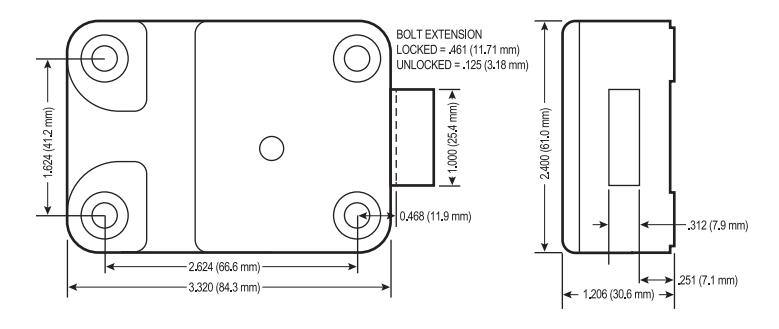

INSTALLATION

• Standard S&G Magic Module footprint
• Universally handed: left hand, right hand, vertical up, or vertical down mounting

OPERATION

• Motor-driven bolt operation
• Penalty lockout after four failed attempts
• Time delay up to nine minutes
• Automatic relocking when door is closed and boltwork is thrown
• Tested up to 8,000 openings on two 9V alkaline batteries
• Low battery signal

KEYPAD OPTIONS

• Two-battery keypad
• One-battery keypad
• Low profile keypad
• Choose from a variety of finishes details available online

WARRANTY

• Two-year limited warranty

For more information, to find part numbers, or to place an order, visit us online or contact your Sargent and Greenleaf sales representative.

Corporate Headquarters: One Security Drive • Nicholasville, Kentucky 40356 • USA • Tel. 859-885-9411, Fax 859-887-2057
