Sargent 480 Series Parts List
Open the original PDF document
View PDF
)-%HZg^ZhParts Manual
For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

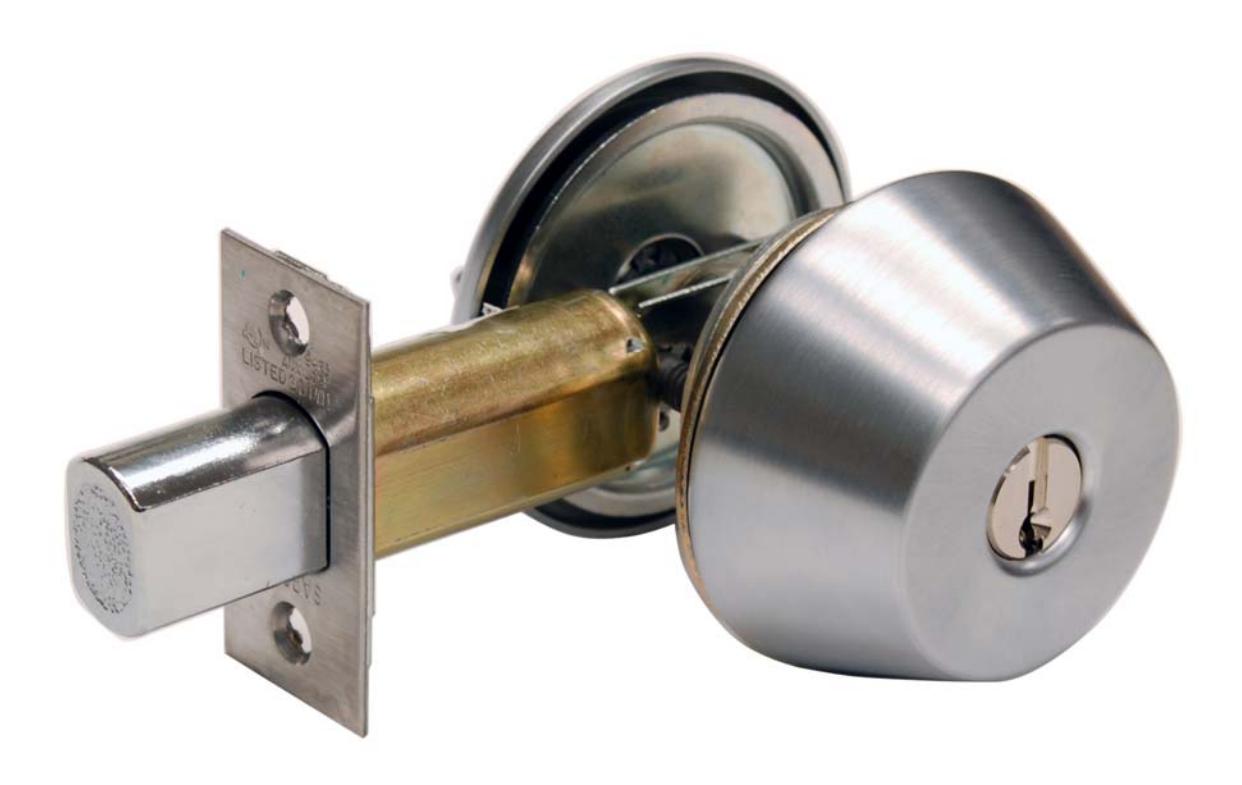

480 Jine
| NO. |
PART
NO. |
DESCRIPTION | QTY. |
|---|---|---|---|

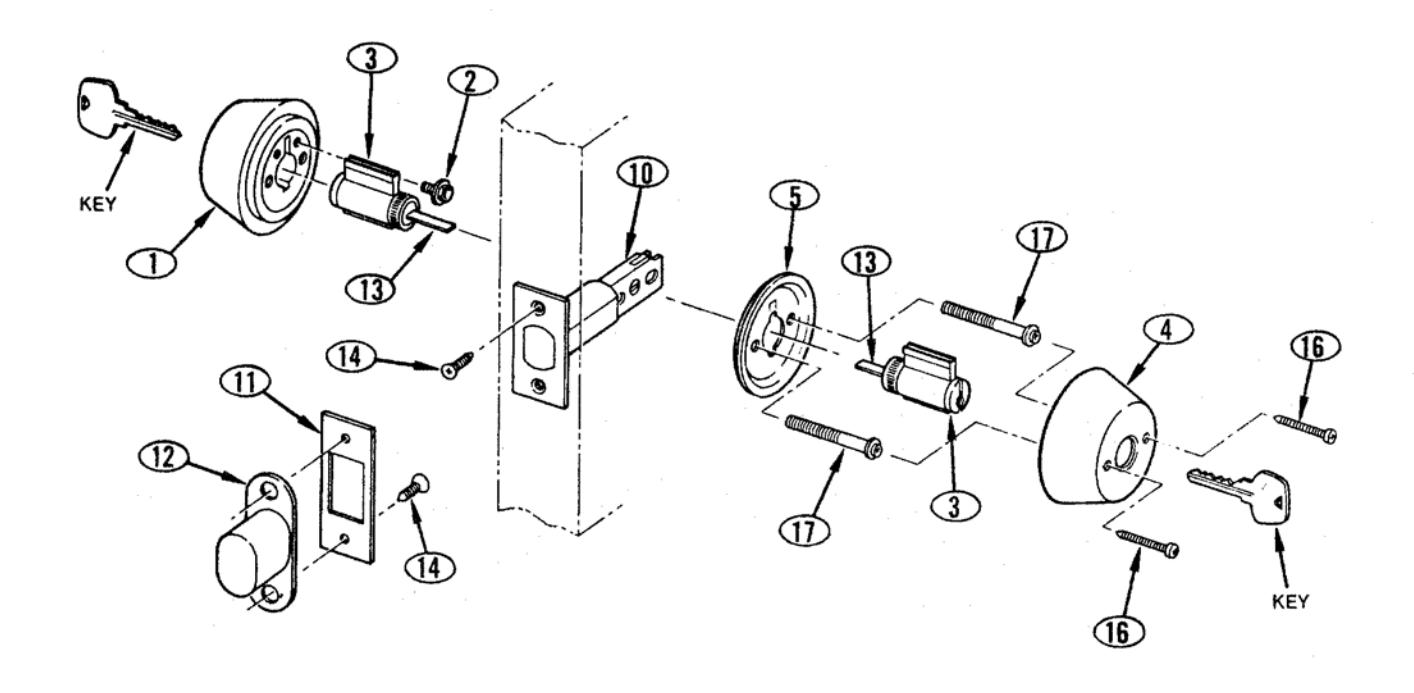

| 1 | 16-2175 | Outside Cyl. Housing | 1 |
| 2 | 01-1162 | Cyl. Clamp Screw & Washer | 1 |
|
3
3 |
13-3472
13-3456 |
Cylinder 5-Pin
Cylinder 6-Pin |
1 |
| 4 | 16-2177 | Inside Cyl. Housing Assy. | 1 |
| 5 | 16-0301 | Mounting Plate | 1 |
| 10 | 16-2149 | Dead Bolt Assy. 2%" backset | 1 |
| 11 | 404 | Strike | 1 |
| . 12 | 16-0277 | Strike Box | 1 |
| 13 | 13-0878 | 1%" Door D/C Tailpiece | 1 |
SCREW PACK 16-2201
|
ITEM
NO. |
DESCRIPTION | QTY |
|---|---|---|
| 14 | #8-32 x ¾" | 4 |
| 16 | #8-32 x 11/4" | 2 |
| 17 | 14-20 x 2" Mtg. Screw | 2 |
| Parts List | |||
|---|---|---|---|
| Page No. | Rev. | ||
| 48.2 | Α | ||
