Safepath ID20 Long Range Industrial Motion Sensor

Open the original PDF document

MONITORING CAPABILITY

The SafePath™ ID20 is a long range microwave motion sensor designed to provide activation for industrial doors.

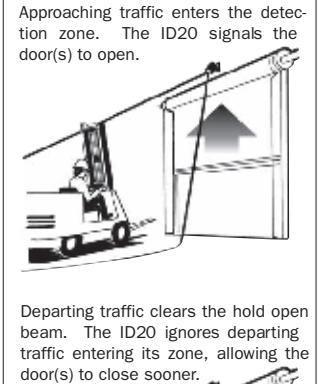

Microwave technology allows the ID20 to only detect motion in one direction (approach-only or depart-only) resulting in more efficient and economical door operation. It is capable of detecting larger objects, such as fork trucks up to 60 ft. away. The ID20 can be mounted up to 20 ft. off the floor and has a maximum pattern size approximately 18 ft. wide at 60 ft. from the unit. The pattern is adjustable by turning a range potentiometer and aiming the unit. A speed selection switch makes the ID20 capable of detecting pedestrians (at 25 to 30 feet) and/or vehicles.

The ID20 is unaffected by air motion, temperature, humidity, color or background variations. It is less expensive to install than loop detectors and is not susceptible to damage or malfunction from ice, salt and heavy vehicular traffic.

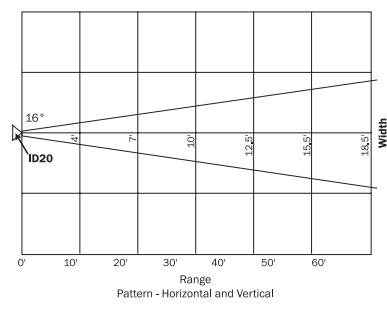

COVERAGE PATTERN

TECHNICAL DATA

Hands-free door activation
Replaces loop detectors
Heavy-duty, weather-proof aluminum enclosure
Easy to set-up and install
Long range small vehicle detection (up to 60 feet)
Outdoor/indoor use
Responds to motion in only one direction—approach only or depart only
Mounts up to 20 ft. high
Use Safety Beams or Safety
Sensors Where Appropriate
Hold-open
Rain Cover Available (DHRC)

International Door Closers, Inc.

SAFEPATH ID20

MICROWAVE MOTION SENSOR

SPECIFICATIONS

Model	ID20
Operating Frequency	10.525 GHz
Detection Method	Doppler Shift Microwave
Detection Pattern	Adjustable
Detection Angle	Adjustable
Directionality	Switch Selectable—Approach Only or Depart Only
Response Time	0.25 seconds
Speed Detection	Switch Selectable >1 mph or >3 mph
Hold Time	0.5 to 5 seconds, adjustable
Power	12V to 24V AC or DC
Current Consumption	0.10 amps
Relay Contacts	Form C, rated at 3 amps
Mounting	Heavy-duty metal bracket with lockset
Enclosure/Finish	Black powder coated aluminum
Temperature	-35°F to 165°F (-37°C to 74°C)
Physical Dimensions	4"H x 4"W x 7"D
Weight	4 lbs.

West: 800-544-4422 • East: 800-225-6737
