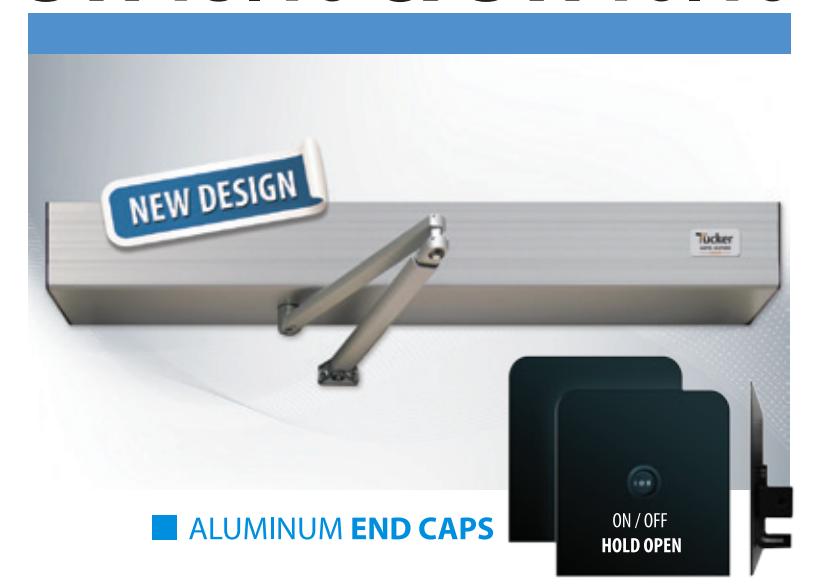

POWER PEDESTRIAN SWINGING DOORS

SW19.10 & SW10.10

FEATURES

ARCHITECTS AND BUILDING OWNERS ALL AGREE THEY NEED TO FIND WAYS TO:

• ELIMINATE
• FRIVOLOUS LAWSUITS
• GUARANTEE SUSTAINABILITY
• HIRE A DEPENDABLE NETWORK OF DOOR PROFESSIONALS
• UNCOVER HIDDEN COSTS
• GATHER MORE BUSINESS INTELLIGENCE LIKE STORE TRAFFIC OR BUILDING MAINTENANCE COST
• PROVIDE A SECURE AND MONITORED FACILITY
• COMPLY WITH THE LATEST BUILDING CODES UL / CUL, AND ACCESSIBILITY GUIDELINES MANDATED BY THE LAW

THEY REALIZE A DOOR IS NOT... "JUST A DOOR" BUT:

• A POINT OF ENTRY/EXIT
• A STRATEGIC AREA FULL OF PROMISING DATA
• AN AREA WHERE ALL TRAFFIC CONVERGES
• A SPACE WHERE YOU CAN CAPTURE ALL IMAGES

THE ALL IN ONE ENTRANCE SOLUTION

• NON-HANDED
• SELF-TUNING, SELF-LEARNING
• EXTREMELY SILENT
• COMPLIES WITH ANSI A156.19 & A156.10
• UL CERTIFIED FOR USE AS FIRE DOOR OPERATORS (3 HOUR RATING)
• COMPLIES WITH ALL US AND CANADIAN ADA REQUIREMENTS

SW19 .10

LOW ENERGY

• MIN 5 SEC FROM CLOSE TO OPEN
• STAY OPEN FOR 5 SEC
• FORCE: 15 lbs 6.8 kg
• PUSH OR PULL (IN DOOR OUT SWING)
• ACTIVATION: KNOWING ACT
• SAFETY DEVICE: OPTIONAL

SW10 .10

FULL ENERGY

• MIN 1.5 SEC FROM CLOSE TO OPEN
• STAY OPEN 1.5 SEC
• FORCE: 30 lbs 13.6 kg
• PUSH OR PULL (ARM APPLICATION)
• ACTIVATION: MOTION DETECTOR OR KNOWING ACT
• SAFETY DEVICE: DOOR-MOUNTED SENSOR OR OVERHEAD PRESENCE SENSOR

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC

West: 800-544-4422 • East: 800-225-6737 www.intldoorclosers.com
