Fan Heater 400-650W CR 027

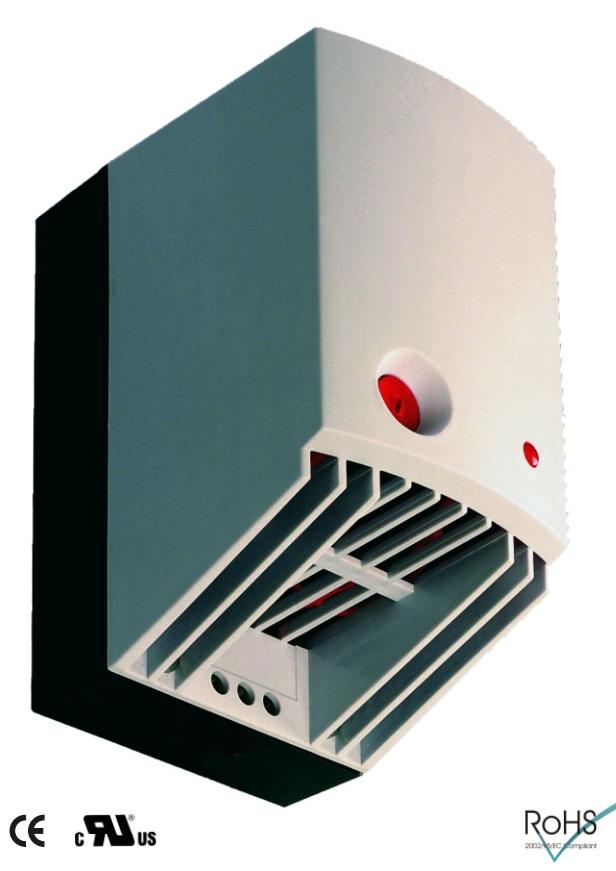

• Compact fan heater in PTC technology
  • Maintains minimum operating temperatures in enclosures
  • Helps to prevent failure of electronic components caused by condensation and corrosion
• Heating power adjusts to ambient temperature
• Integrated adjustable thermostat and control light
• DIN rail mountable

Technical Data CR 027
			Max. current	Axial Fan
Part No.	Voltage	Power 1)	(inrush)	(ball bearing)	Thermostat range	Weight
02700.0-00	220-240 VAC	400W (50 Hz)	11A	20 cfm (35 m 3 /h)	0 - 60°C	2 lbs/0.9 kg
02701.0-00	220-240 VAC	550W (50 Hz)	13A	26 cfm (45 m³/h)	0 - 60°C	2.4 lbs/1.1 kg
02700.9-00	100-120 VAC	550W (60 Hz)	14A	20 cfm (35 m 3 /h)	32 - 140°F	2 lbs/0.9 kg
02701.9-00	100-120 VAC	650W (60 Hz)	15A	26 cfm (45 m³/h)	32 - 140°F	2.4 lbs/1.1 kg

1) at 68°F (20°C) ambient temperature. Also, power will vary when frequency other than listed is applied.

at 68°F (20°C) ambient tempe	erature. Also, power will vary when frequency other i

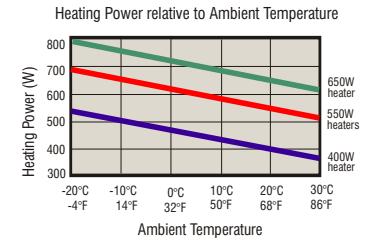

Heating element:	PTC-semiconductor/resistor, self-regulating with
	changing ambient temperature (see graph below)
Overheat protection:	Built-in temperature limiter in case of fan failure
Function control light:	LED
Housing:	Plastic, UL94V-0

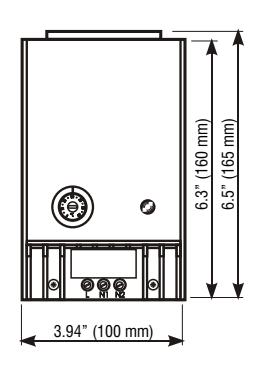

Dimensions (H x W x D):	6.5 x 3.94 x 5" (165 x 100 x 128mm)
Connection:	2-pole terminal, AWG 14 max. (2.5 mm 2 )
Mounting:	Clip for 35 mm DIN rail (EN 50022)
Protection class:	II (double insulated)
Protection type:	IP 20
Agency approvals:	UL

Wiring note:

Heater includes 3 terminals: L, N1, and N2. The power supply Line is connected to "L" and the Neutral to "N1" - Terminal N2 is not used. Also, a Ground wire is not required as the heater is made of double-insulated plastic.

Determining the required heater size:

$$P\_\{H\}\; =\; (A\; \backslash times\; T\; \backslash times\; k)\; -\; P\_\{V\}$$

P_H = Required heating power for your application in Watts (W)

$P\_\{\backslash nu\}$ = Heating power generated by existing components (e.g. a transformer) in Watts (W)

A $\backslash ,=\backslash ,$ Exposed enclosure surface area in square meters (m2)

$T=\backslash mbox\{Temperature\; differential\; between\; the\; desired\; minimum\; interior\; temperature\; and\; the\; Lowest\; possible\; external\; temperature\; of\; the\; enclosure\; in\; Kelvin\; (K),\; 1.8°F\; =\; 1°C\; =\; 1K$

Heat transmission coefficient of the enclosure material used:

Painted steel: 5.5W/m²K Stainless steel: 3.7W/m²K Aluminum: 12W/m²K Polyester/Plastic: 3.5W/m²K

For outdoor applications it is recommended to double the heating power.

For spacing, add 2" clearance to heat sensitive parts.

CR027/03-07/US

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
