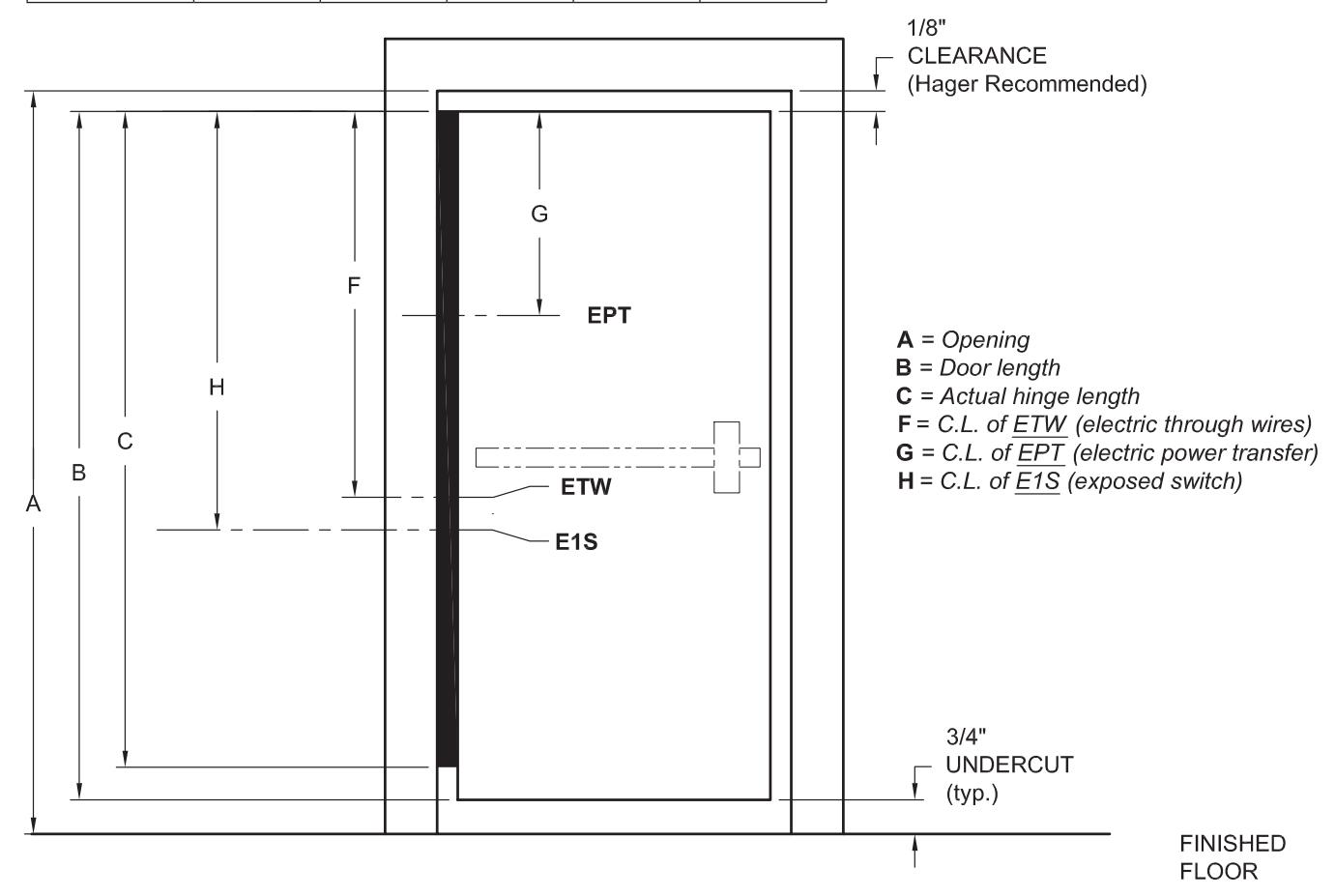

STANDARD LOCATIONS FOR ALL STAINLESS STEEL CONTINUOUS ELECTRICAL MODIFICATIONS
| 79" | 83" | 85" | 95" | 119" | |
|---|---|---|---|---|---|
| Opening | 80" | 84" | 86" | 96" | 120" |
| Door Height | 79-1/8" | 83-1/8" | 85-1/8" | 95-1/8" | 119-1/8" |
| Hinge Length | 79-3/16" | 83-1/8" | 85-1/8" | 95" | 118-3/4" |
| ETW | 41-1/2" | 43-1/2" | 45-1/2" | 55-3/8" | 79-1/8" |
| EPT | 24-1/2" | 28-7/16" | 30-7/16" | 40-1/2" | 64-7/16" |
| E1S | 41-1/2" | 43-1/2" | 45-1/2" | 55-3/8" | 79-1/8" |
