STAINLESS STEEL CONTINUOUS HINGES

IDC stainless steel hinges are full height piano hinges that provide support for the full height of the door.

• For doors up to 600 lbs.
• 4'0" maximum door width
• Hinge leafs are 14 Ga., 304 stainless steel
• Pin is 1/4 diameter 304 stainless steel, barrel .438 diameter
• Knuckles are 2" long with Delrin TM bearings between each
• Hinges -Nominal Sizes 7' (83-1/8"), 8' (95") & 10' (118-3/4") are non-handed. 6'8" (78-3/4") & 7'2" (85") are handed
• Special lengths available
• Standard finish-US32D

All dimensions in () are actual hinge lenghts.

• Self-drilling screws standard, security screws available (wood or machine)
• Fire Rating-UL and ULC fire Listed
  • 3 hours-hollow metal door
  • 90 min.-hollow metal and composite core wood fire door
  • 20 min.-wood door
• Custom Cutouts available

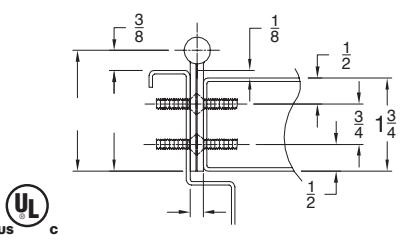

IDCA500

EDGE MOUNT CONCEALED

• For beveled or square edged doors
• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• No exposed fasteners when door is closed
• Self drilling screws
• Supports door weights up to 600 lbs. 4'0" Maximum door width
• Electrical modifications available
• UL & ULC fire listed

IDCA500 Full Concealed Edge Mount

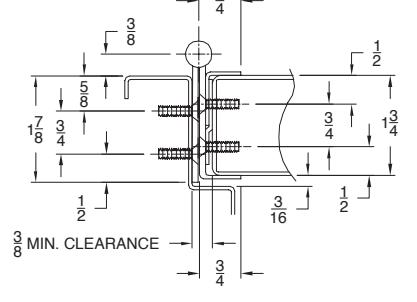

IDCA505

EDGE GUARD

• Concealed
• For square edged doors
• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• No exposed fasteners when door is closed
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• Door edge lip on both faces of door
• Protects door edge
• Adjustable to accommodate slight variances in door thickness

• For specialty door Use with A538CS or A538CB
• Electrical modifications available
• UL & ULC fire listed

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737 www.intldoorclosers.com

IDCA505 Full Concealed Edge Guard

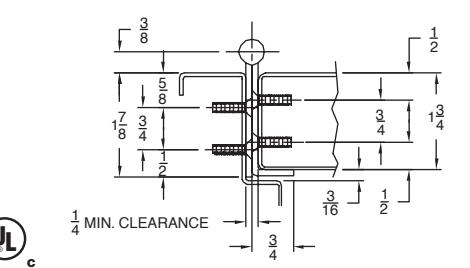

IDCA511

SWING CLEAR WITH EDGE GUARD

• Concealed
• Flush mount
• For square edged doors
• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• Door edge lip on stop side only
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• No exposed fasteners when door is closed
• Meets ADA requirements
• UL & ULC fire listed

IDCA511 Full Concealed Swing Clear With Edge Guard

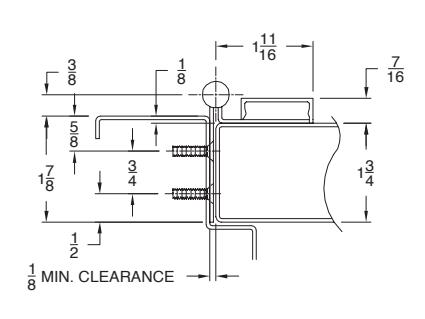

IDCA515

WITH EDGE GUARD

• Concealed
• F or square edged doors
• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• Door edge lip on stop side only
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• No exposed fasteners when door is closed
• UL & ULC fire listed

SURFACE MOUNTED DOOR LEAF

IDCA515 Full Concealed With Edge Guard

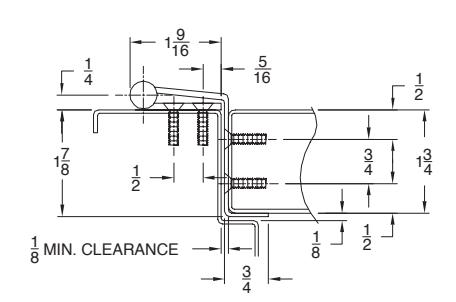

HALF SURFACE IDCA503

• For beveled or square edged doors

• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• Decorative fastener cover
• Current transfer prep available (frame leaf only)
• UL & ULC fire listed

IDCA503 Half Surface

IDCA504

SURFACE MOUNTED FRAME LEAF

• For beveled or square edged doors
• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• Decorative fastener cover
• Current transfer prep available (door leaf only)
• UL & ULC fire listed

IDCA504 Surface Mounted

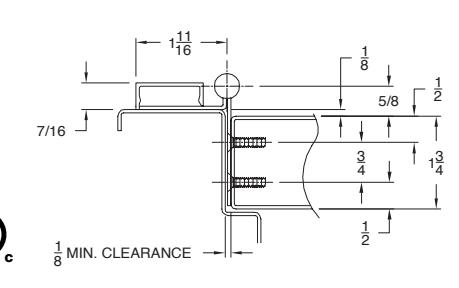

IDCA506

WITH EDGE GUARD

• For square edged doors
• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• No exposed fasteners when door is closed
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• Door edge lip on stop side
• Protects door edge
• Decorative fastener cover
• Current transfer prep available (door leaf only)
• UL & ULC fire listed

1 MIN. CLEARANCE

IDCA506 Half Surface With Edge Guard

FULL SURFACE IDCA502

FULL SURFACE/FLUSH MOUNT

• For 1-3/4" doors
• For high traffic, high abuse doors
• Heavy-Duty 14 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• No exposed fasteners when door is closed
• Self drilling screws
• Supports door weights up to 600 lbs.
• 4'0" Maximum door width
• Decorative Fastener Covers
• UL & ULC fire listed

IDCA502 Full Surface Flush Mount

International Door Closers, Inc.

www.intldoorclosers.com

West: 800-544-4422 • East: 800-225-6737

151

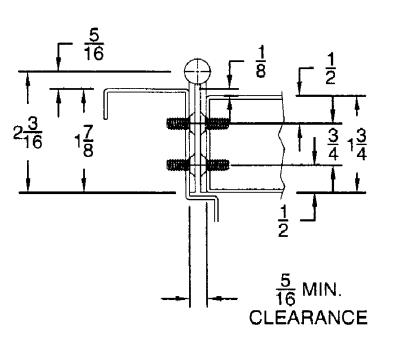

PIN AND BARREL CONTINUOUS HINGES IDCA5500

12 GAUGE STAINLESS STEEL

• Full Mortise Edge Mount
• Used on high-traffic, high-abuse doors
• Heavy-Duty 12 Gauge 304 Stainless Steel
• US32D Satin Stainless Steel
• No exposed Fasteners when door is closed
• Supplied with 12-24x1/2 Phillips Undercut Flat Head Machine Screw S.S.
• Supports door weights up to 900 lbs.
• 4'-0" Maximum door width
• Nominal Sizes 7', 8' & 10' are non-handed
• 6'8" & 7'2" are handed hinges
• 1/4" diameter stainless steel pin
• Electrical modifications available

STAINLESS STEEL POWER TRANSFER HINGES

CONCEALED THRU WIRE MOVEABLE

• For all full concealed models (except A511)
• TW2 (2) 18ga. wire 1 location
• TW4 (4) 28ga. wire 1 location
• TW8 (8) 28ga. wire (2) 4 wire locations
• For all full concealed models add suffix TW2, TW4 or TW8
• Call factory or go on-line for order form

• Cut to allow access for TW, CT, ES and AMS wiring between hinge and frame or door
• For all full concealed models (except A511)
• Add suffix M

CONTINUOUS HINGE MODIFICATIONS

• Special Lengths-Indicate Handing
• Hospital Tip-Suffix HT
• Dutch Door Prep-Suffix DD, indicate handing, clearances, door and frame heights
• Blank-No holes for special applications
• Standard Edge Guard Cutout 4-7/8' ASA Strike 161 Latch 86 Mortise Manual Flush Bolt Automatic Flush Bolt
• Security Stud-Suffix SS, stainless steel studs mounted to frame leaf. Corresponding holes drilled in door leaf. Special prep required for frame and. door
• Sheared Leaf-Suffix SL for narrow door thickness. Specify distance from pin centerline to heel edge of hinge.
• Custom Hole Pattern-Suffix CH, any hole dimension or pattern other than IDC standard. Indicate hole size and dimensions.

ELECTRICAL MODIFICATIONS

• Concealed Power Tansfer-Suffix TW2, TW4 or TW8
• Power Transfer Contact Switch- uffix CT-4 or CT-8, for 16 amp surge current, 1/4 -20 screws posts to accommodate any gauge wire, no wire furnished.
• Lead-Lined Cover-Suffix LL for surface mount only.
• Current Transfer Prep-Suffix PT, indicate position and handing
• Electric Power Transfer-PT105 (11.5") or PT180 (20.0"). Does not include hinge, hinge power transfer prep or Security bracket (PTS).
• Exposed Monitoring Switch-Suffix ES available in A500, A503, A504, A505 & A515.
• Adjustable Monitoring Switch-Suffix AMS.

Contact factory or go on-line for order forms for electrical modifications or standard/custom cutouts.
