SP-DS5281 9.125 X 2.750
Open the original PDF document
View PDFSP-DS5281 CUSTOM DOUBLE LIPPED STRIKE

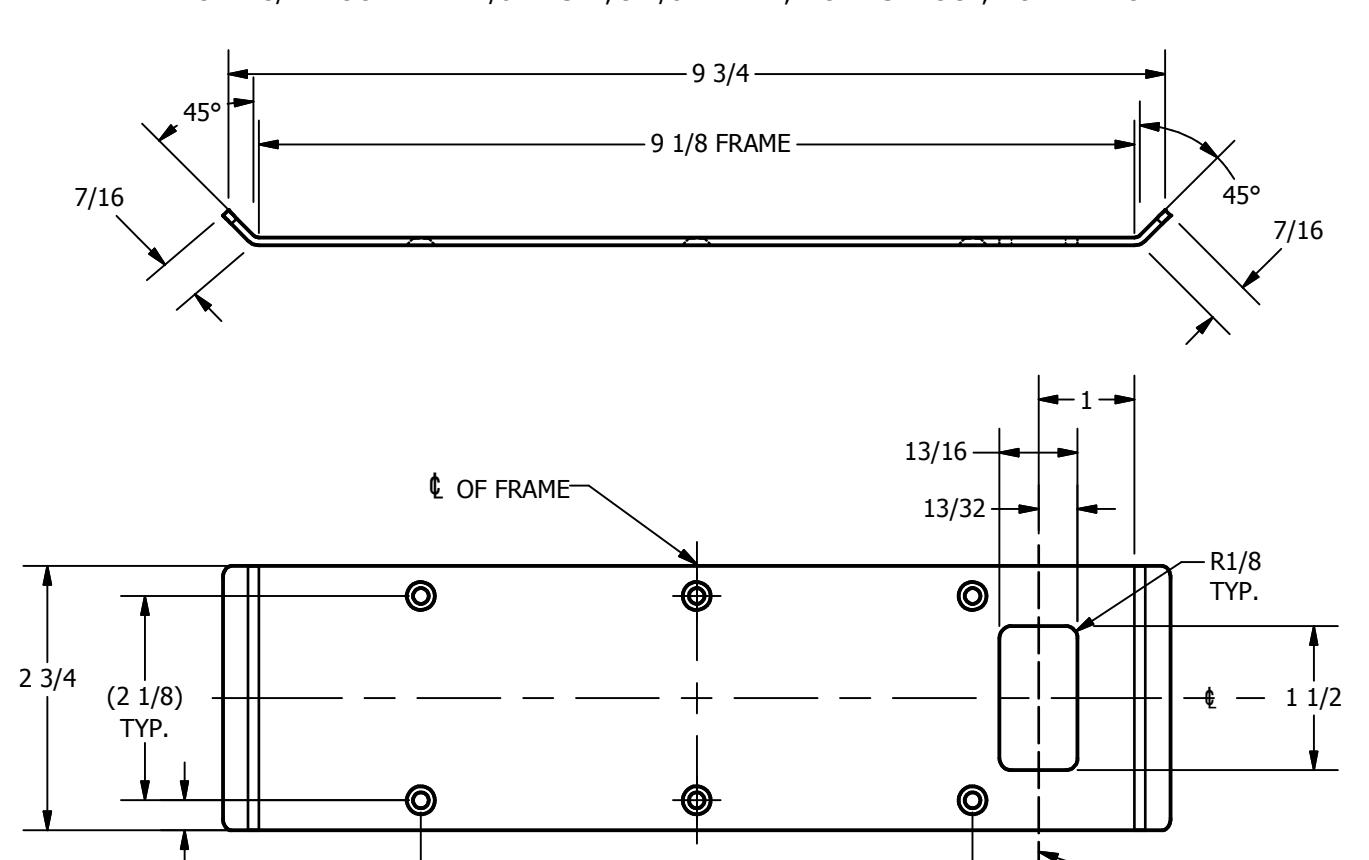

FOR 1-3/4" DOOR WITH 1/8" INSET, 9-1/8" FRAME, MORTISE LOCK, NO DEADBOLT
2 7/8 2 7/8
5/16 TYP.
ORDER DATE:_______________________ CUSTOMER:________________________ CUSTOMER PO#:____________________ MATERIAL:_________________________ QUANTITY:_________________________
METAL JAMB
Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) www.abhmfg.com Email: abhinfo@abhmfg.com

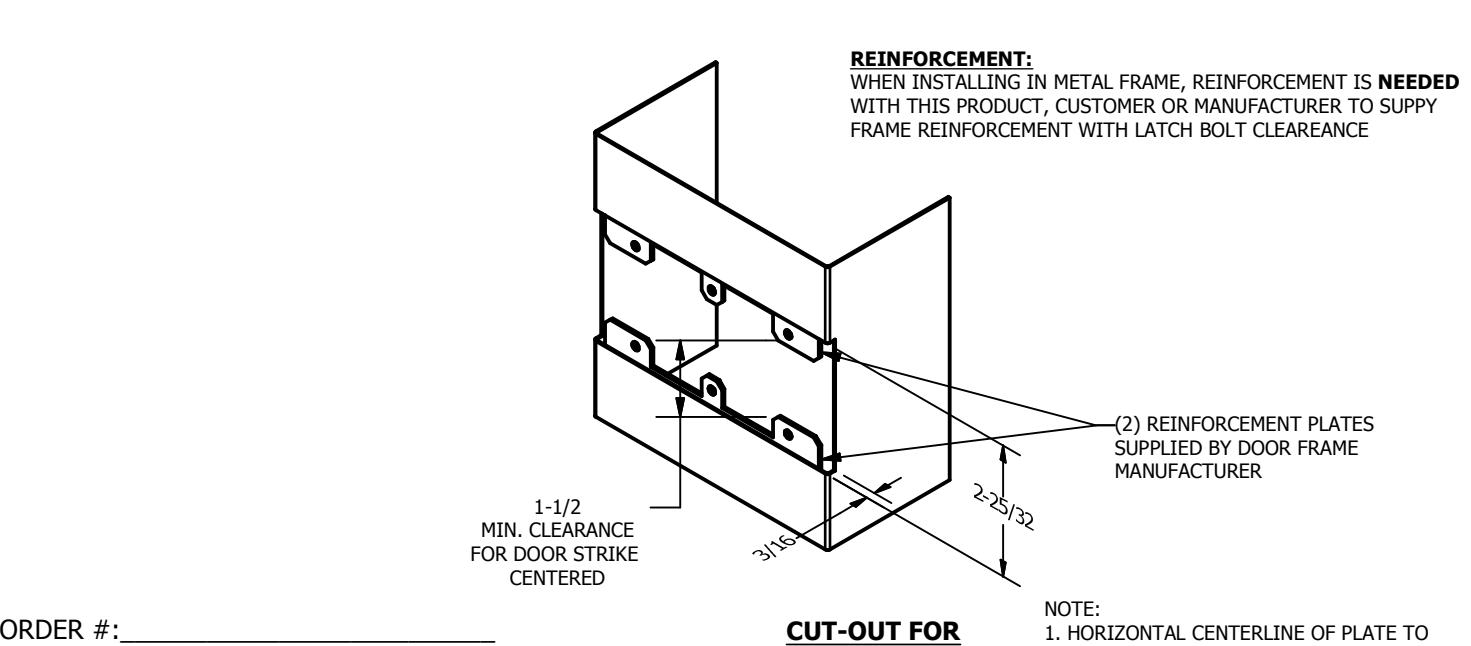

MATCH HORIZONTAL CENTERLINE OF CUTOUT. 2. SCREWS 8-32 X 3/8" UNDERCUT F.H.M.S. 3. R.H. DOOR SHOWN, L.H. OPPOSITE
q OF DOOR
