SP-DS5270 7.750 X 2.750

SP-DS5270 CUSTOM DOUBLE LIPPED STRIKE

FOR 1-3/4" DOOR WITH 1/8" INSET, 7-3/4" FRAME, MORTISE LOCK, NO DEADBOLT

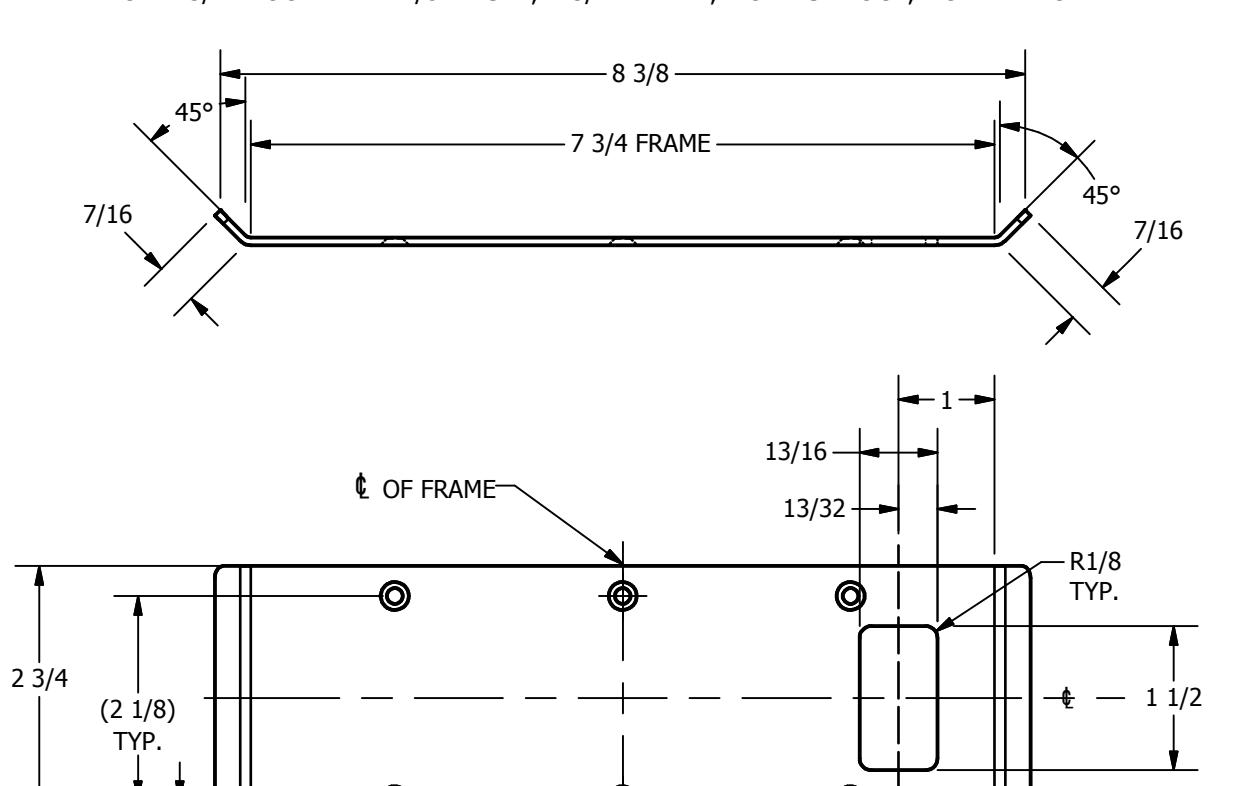

2 3/8 2 3/8

5/16 TYP.

ORDER DATE:_______________________ CUSTOMER:________________________ CUSTOMER PO#:____________________ MATERIAL:_________________________ QUANTITY:_________________________

METAL JAMB

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) www.abhmfg.com Email: abhinfo@abhmfg.com

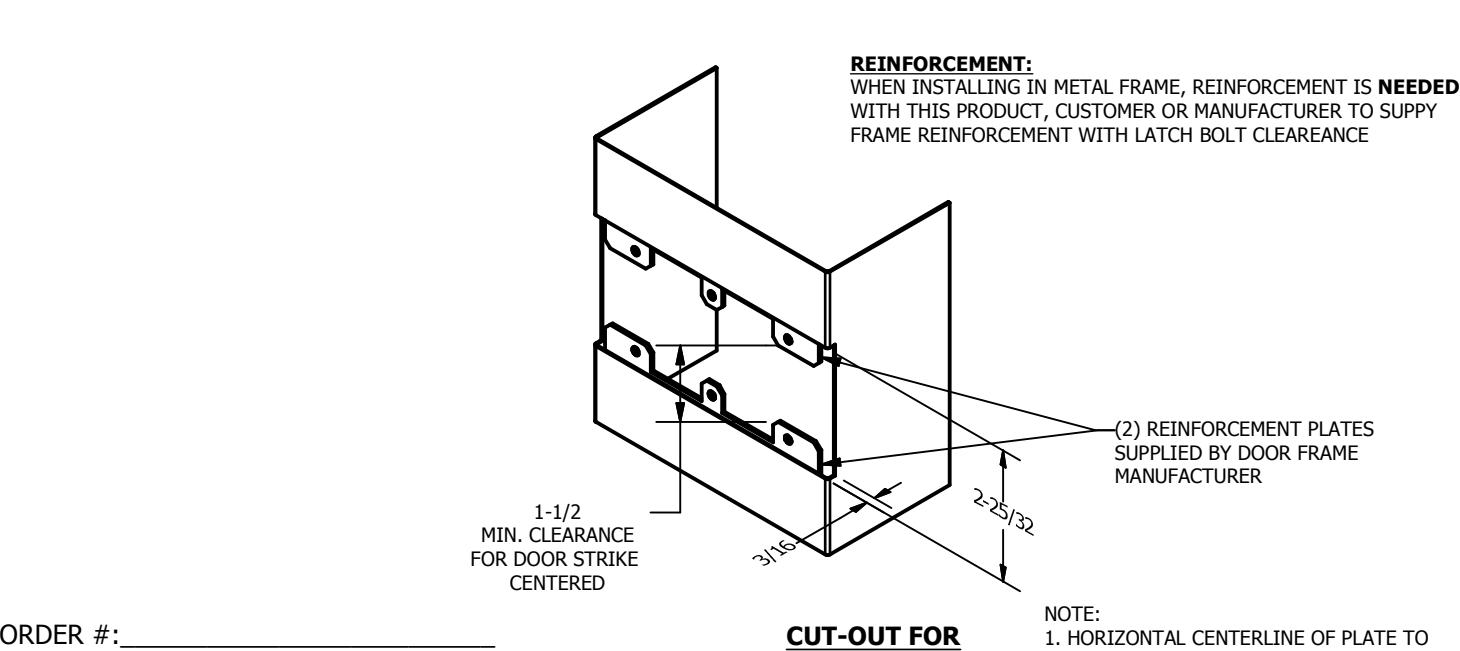

MATCH HORIZONTAL CENTERLINE OF CUTOUT. 2. SCREWS 8-32 X 3/8" UNDERCUT F.H.M.S. 3. R.H. DOOR SHOWN, L.H. OPPOSITE

q OF DOOR
