SP-DS5260 6.500 X 2.750

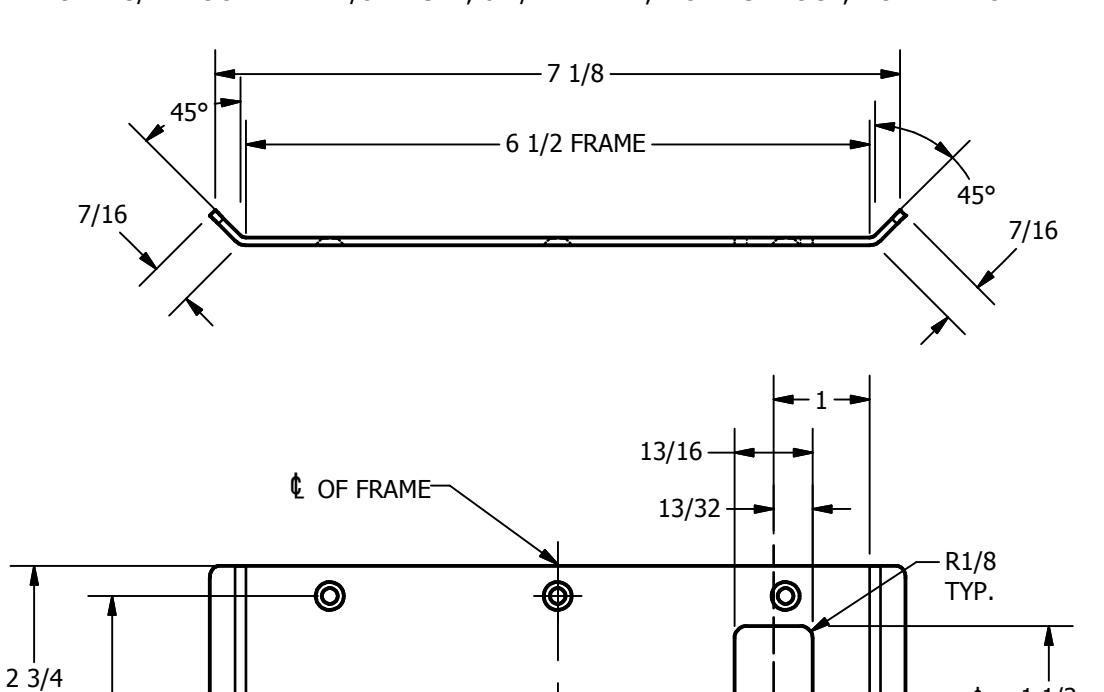

SP-DS5260 CUSTOM DOUBLE LIPPED STRIKE

FOR 1-3/4" DOOR WITH 1/8" INSET, 6-1/2" FRAME, MORTISE LOCK, NO DEADBOLT

ORDER #:__________________________ ORDER DATE:_______________________ CUSTOMER:________________________ CUSTOMER PO#:____________________ MATERIAL:_________________________ QUANTITY:_________________________

(2 1/8)

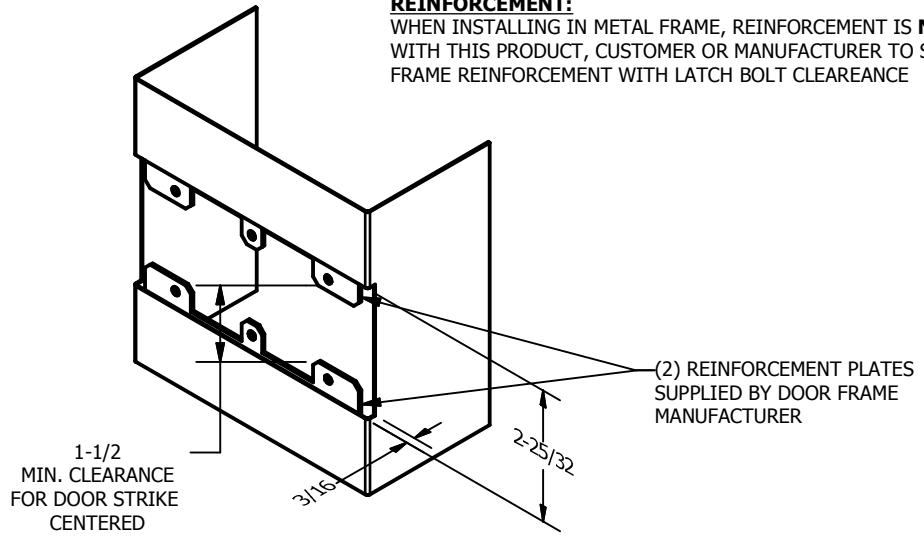

CUT-OUT FOR METAL JAMB

• NOTE:

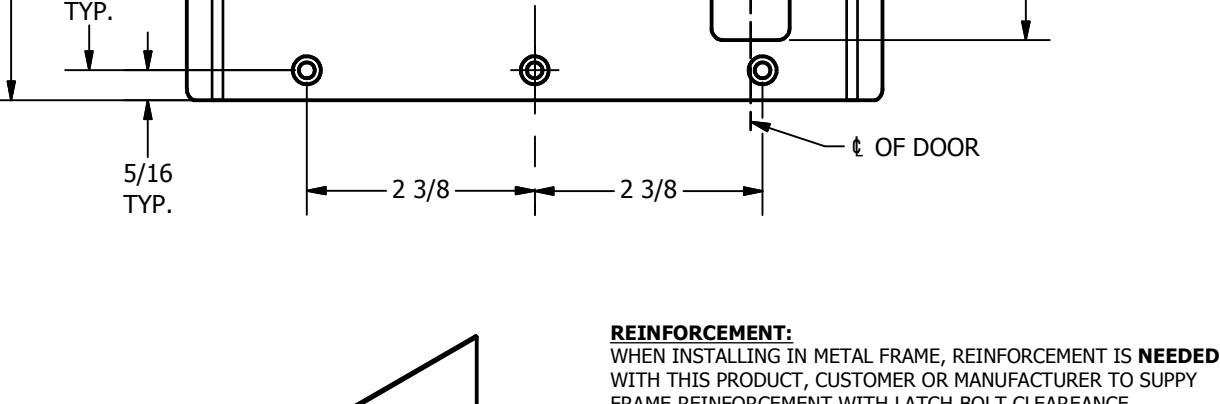

• 1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUTOUT.

1 1/2

q

• 2. SCREWS 8-32 X 3/8" UNDERCUT F.H.M.S.
• 3. R.H. DOOR SHOWN, L.H. OPPOSITE
