SP-DS5254 5.750 X 2.750

Open the original PDF document

View PDF

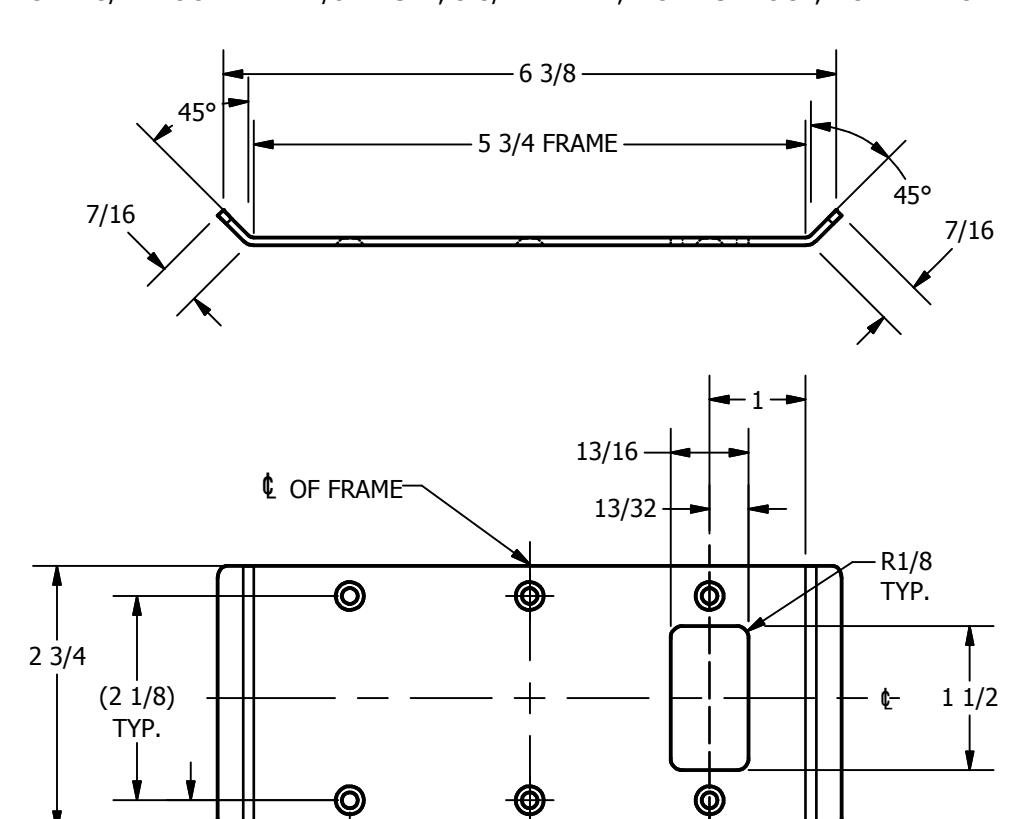

SP-DS5254 CUSTOM DOUBLE LIPPED STRIKE

FOR 1-3/4" DOOR WITH 1/8" INSET, 5-3/4" FRAME, MORTISE LOCK, NO DEADBOLT

1 7/8 1 7/8

ORDER #:__________________________ ORDER DATE:_______________________ CUSTOMER:________________________ CUSTOMER PO#:____________________ MATERIAL:_________________________ QUANTITY:_________________________

5/16 TYP.

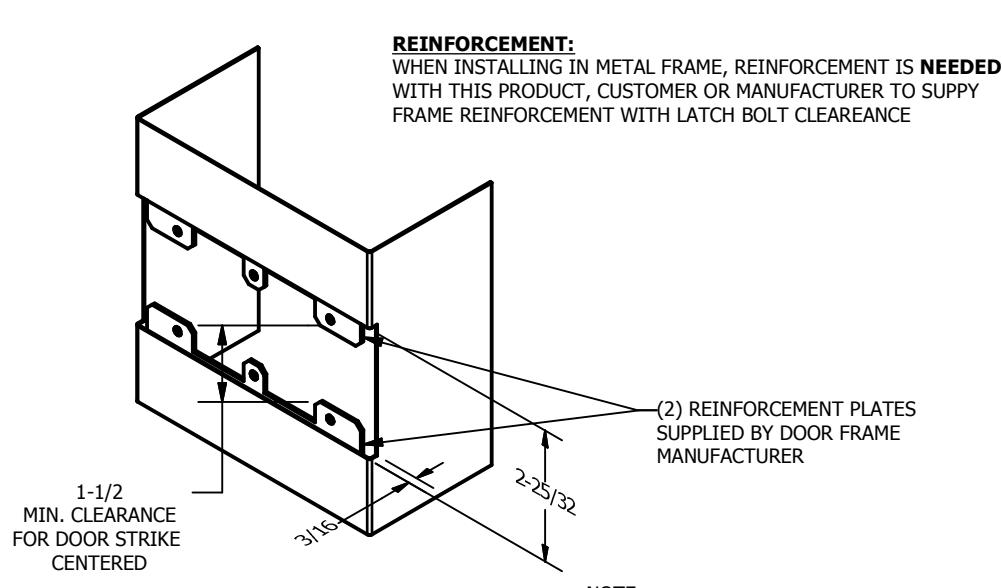

CUT-OUT FOR METAL JAMB

  • NOTE: 1. HORIZONTAL CENTERLINE OF PLATE TO
  • MATCH HORIZONTAL CENTERLINE OF CUTOUT.
  • 2. SCREWS 8-32 X 3/8" UNDERCUT F.H.M.S.
  • 3. R.H. DOOR SHOWN, L.H. OPPOSITE

Architectural Builders Hardware Mfg., Inc.

q OF DOOR

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) www.abhmfg.com Email: abhinfo@abhmfg.com
