SP-DS5246 4.750 X 2.750

SP-DS5246 CUSTOM DOUBLE LIPPED STRIKE

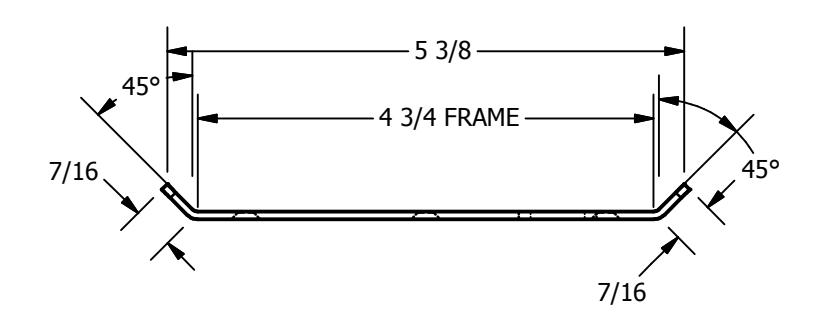

FOR 1-3/4" DOOR WITH 1/8" INSET, 4-3/4" FRAME, MORTISE LOCK, NO DEADBOLT

ORDER #:__________________________ ORDER DATE:_______________________ CUSTOMER:________________________ CUSTOMER PO#:____________________ MATERIAL:_________________________ QUANTITY:_________________________

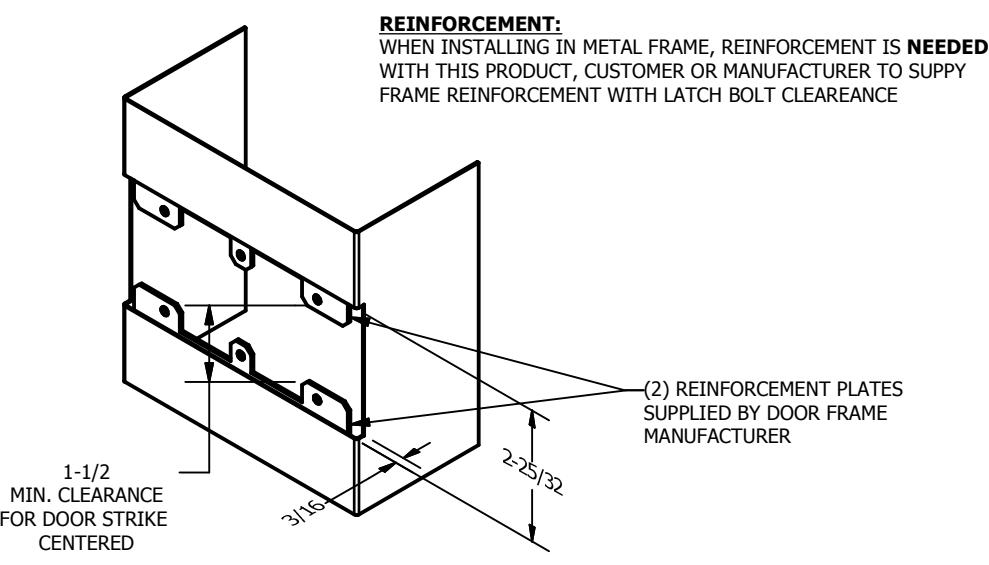

CUT-OUT FOR METAL JAMB

NOTE:

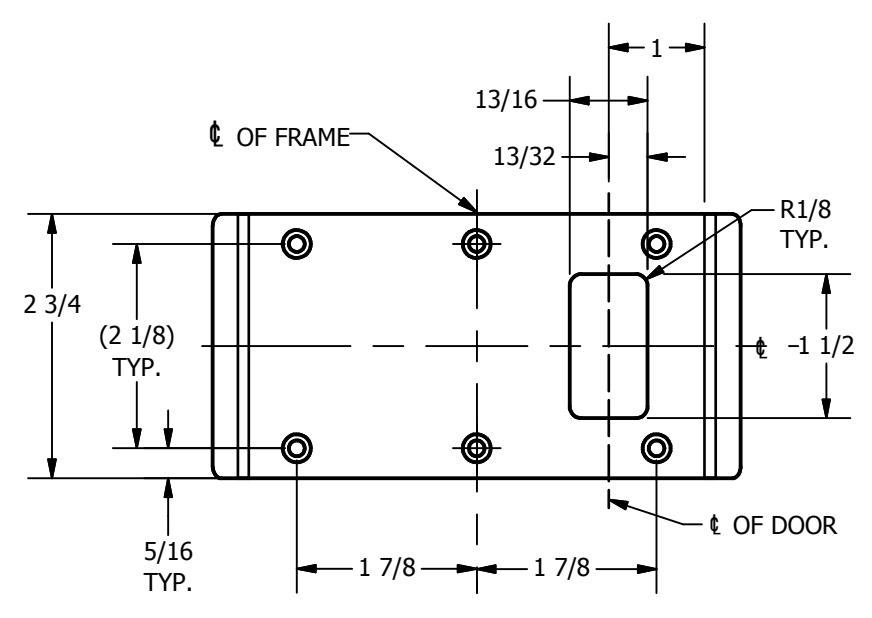

• 1. HORIZONTAL CENTERLINE OF PLATE TO
• MATCH HORIZONTAL CENTERLINE OF CUTOUT.
• 2. SCREWS 8-32 X 3/8" UNDERCUT F.H.M.S.
• 3. R.H. DOOR SHOWN, L.H. OPPOSITE

Architectural Builders Hardware Mfg., Inc.

1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) www.abhmfg.com Email: abhinfo@abhmfg.com
