SP-DS5082 CUSTOM DOUBLE LIPPED STRIKE

FOR 1-3/4" CENTER HUNG DOOR, MORTISE LOCK, NO DEADBOLT, 7-1/4" FRAME

ORDER #:
ORDER DATE:
CUSTOMER:
CUSTOMER PO#:
MATERIAL:
QUANTITY:

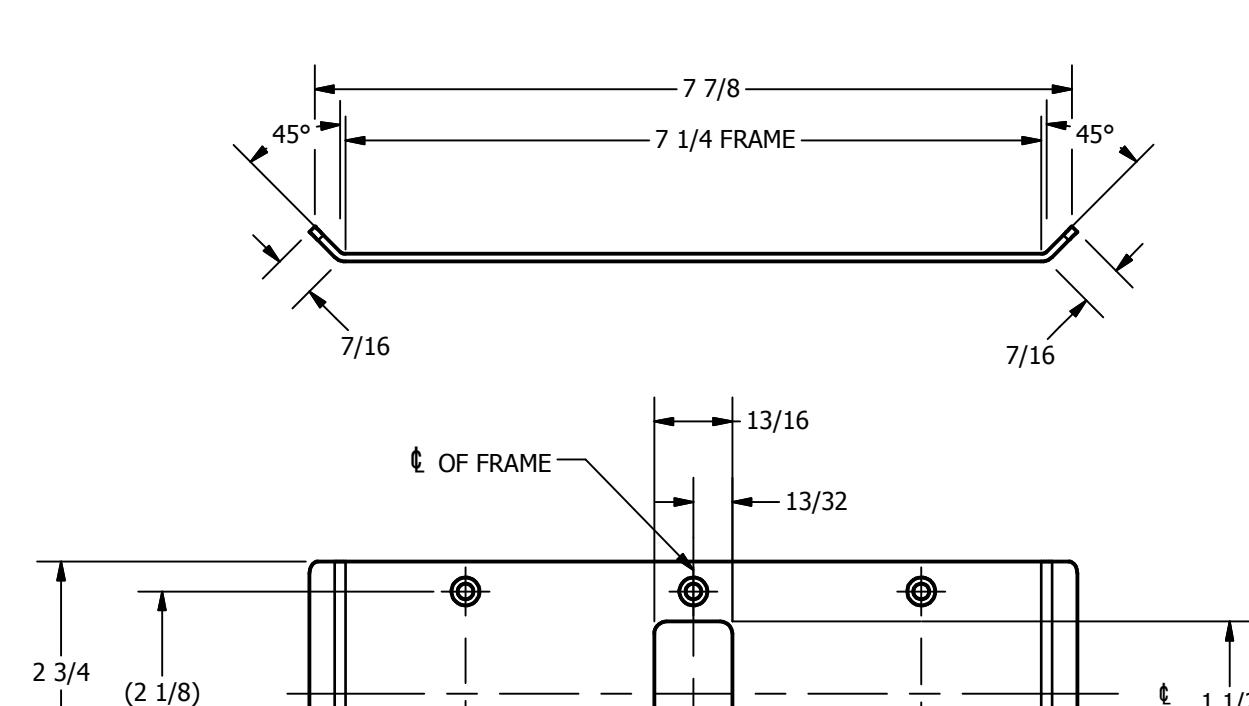

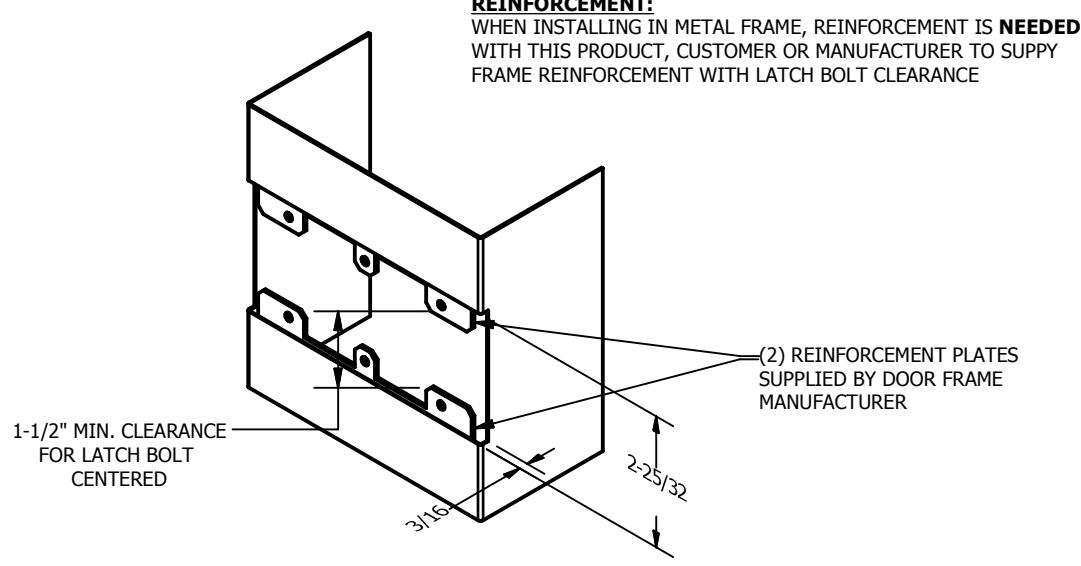

CUT-OUT FOR METAL JAMB

NOTE:

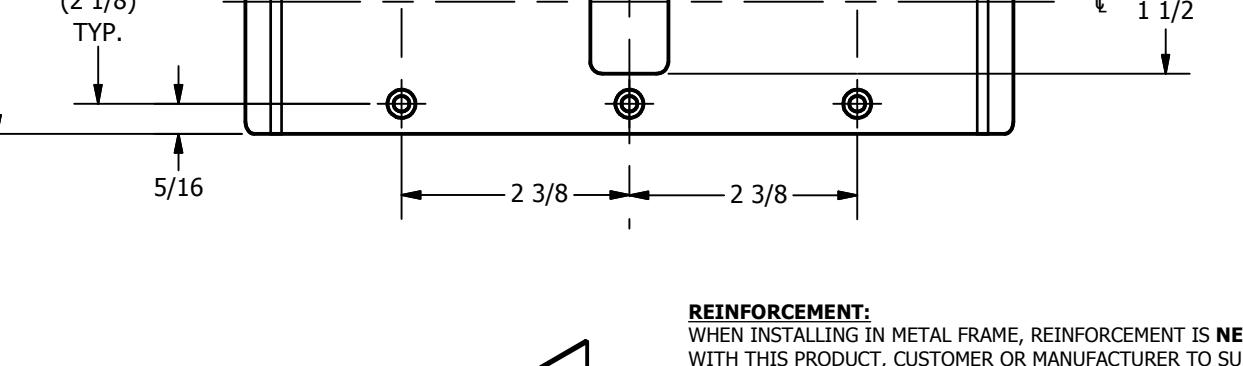

  • 1. HORIZONTAL CENTERLINE OF PLATE TO MATCH HORIZONTAL CENTERLINE OF CUTOUT.
  • 2. SCREWS 8-32 X 3/8" UNDERCUT F.H.M.S.
  • 3. R.H. DOOR SHOWN, L.H. OPPOSITE
