SP-CR588 800 X 275

Open the original PDF document

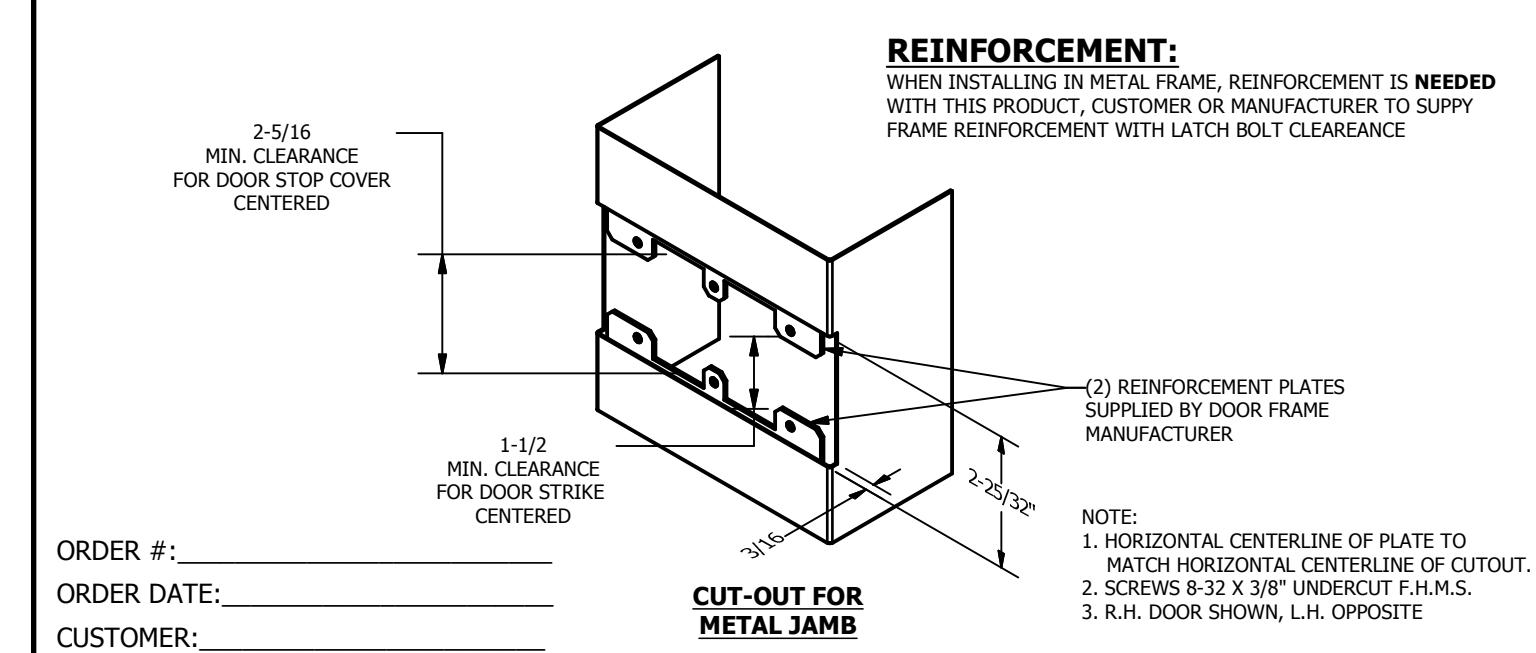

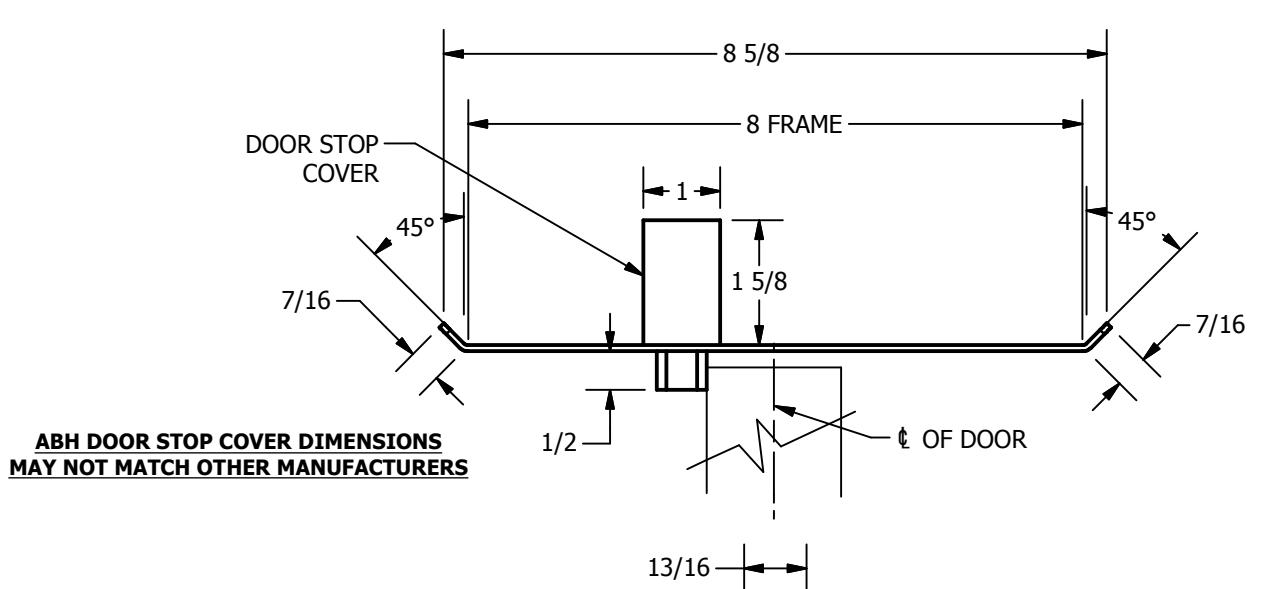

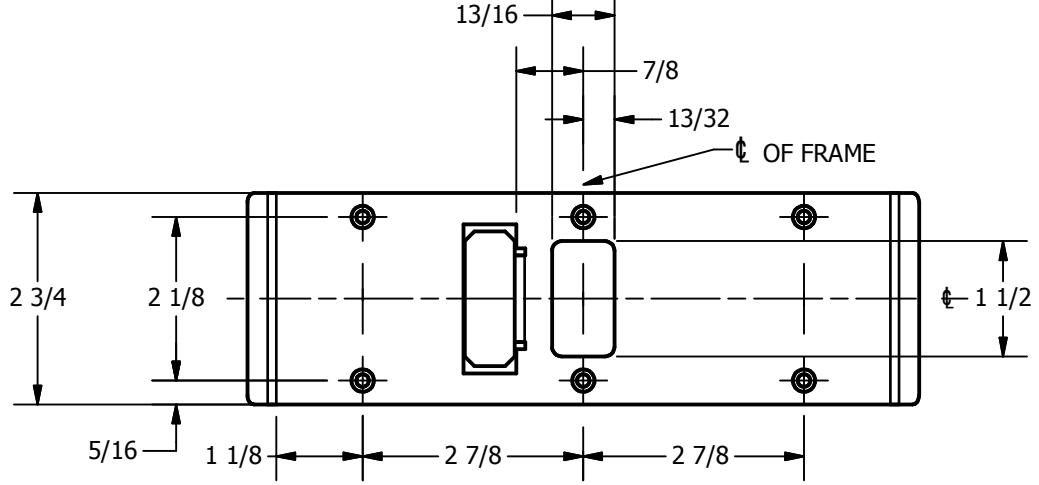

SP-CR588 CUSTOM DOUBLE LIPPED STRIKE AND RESCUE STOP

FOR 1-3/4" CENTER HUNG DOOR W/ MORTISE LOCK, NO DEADBOLT, 8" FRAME

CUSTOMER PO#:_____

MATERIAL:

QUANTITY:

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) 10-24-11
