SP-CR587 7875 X 275
Open the original PDF document

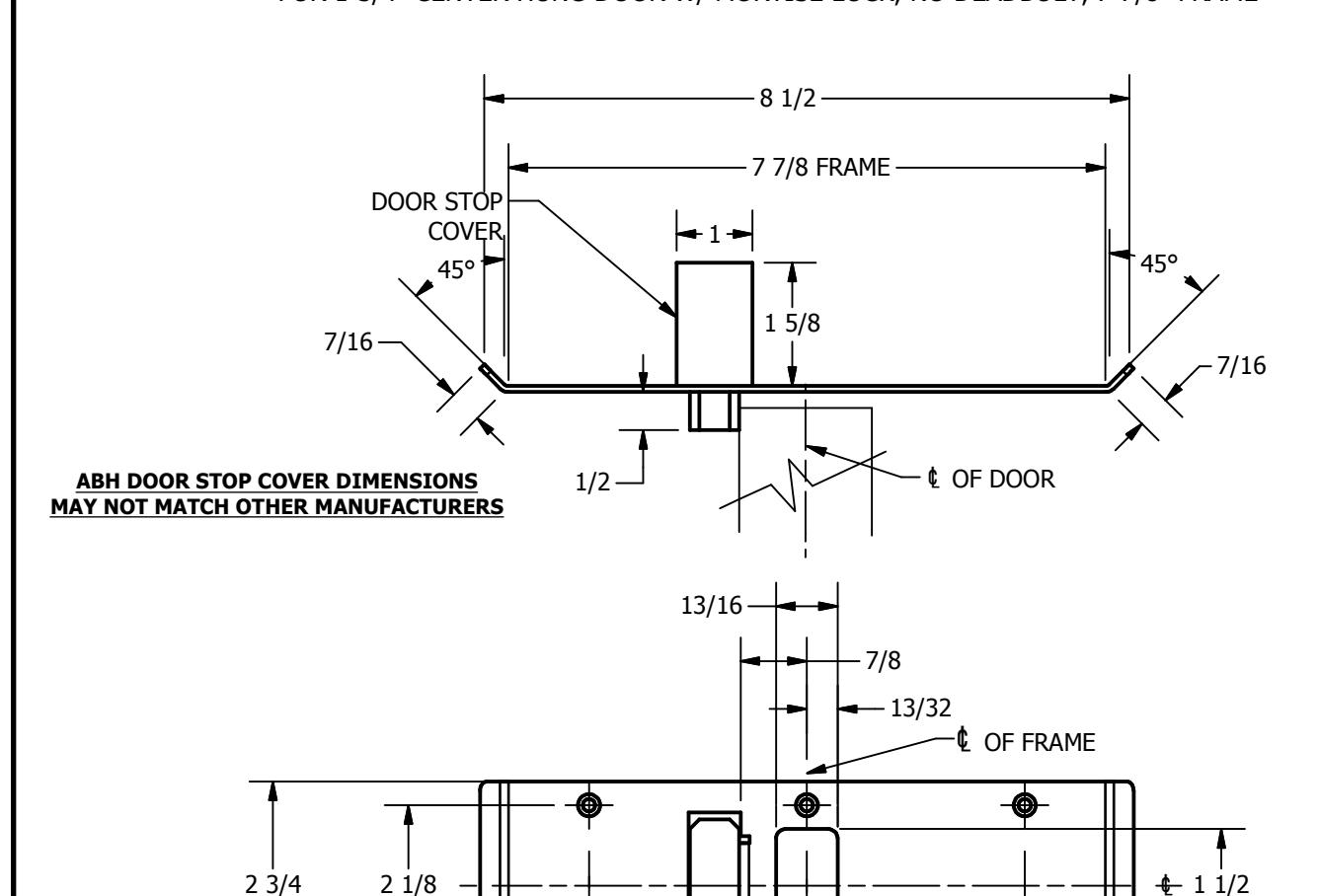

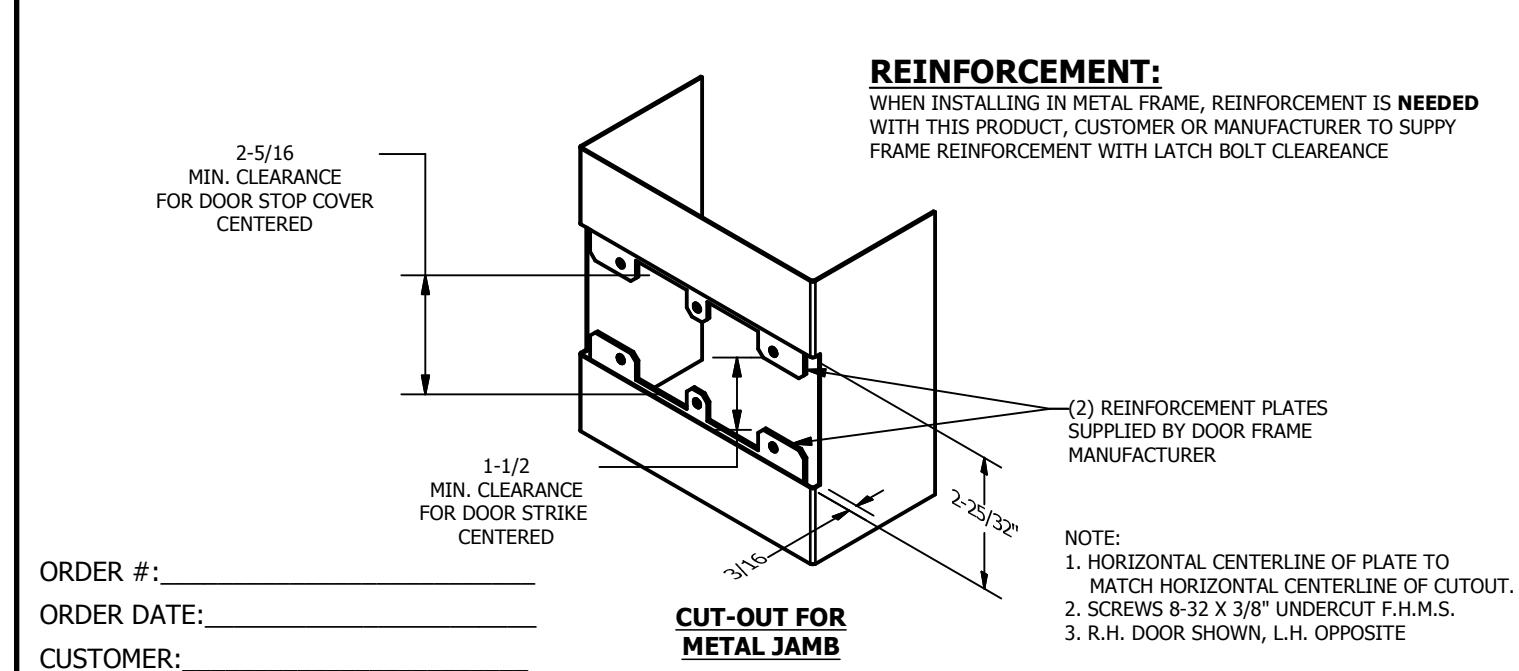

View PDFSP-CR587 CUSTOM DOUBLE LIPPED STRIKE AND RESCUE STOP
FOR 1-3/4" CENTER HUNG DOOR W/ MORTISE LOCK, NO DEADBOLT, 7-7/8" FRAME
5/16-
CUSTOMER PO#:_____
MATERIAL:
QUANTITY:
Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143
630.875.9900; FAX 800.9FAXABH (932.9224)
www.abhmfg.com
Email: abhinfo@abhmfg.com
10-24-11
2 7/8
