SP-CR586 775 X 275

Open the original PDF document

View PDF

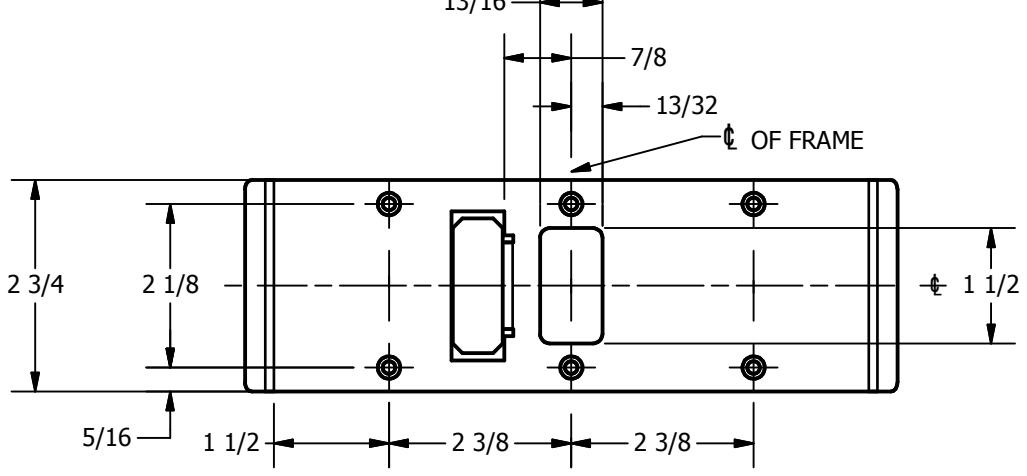

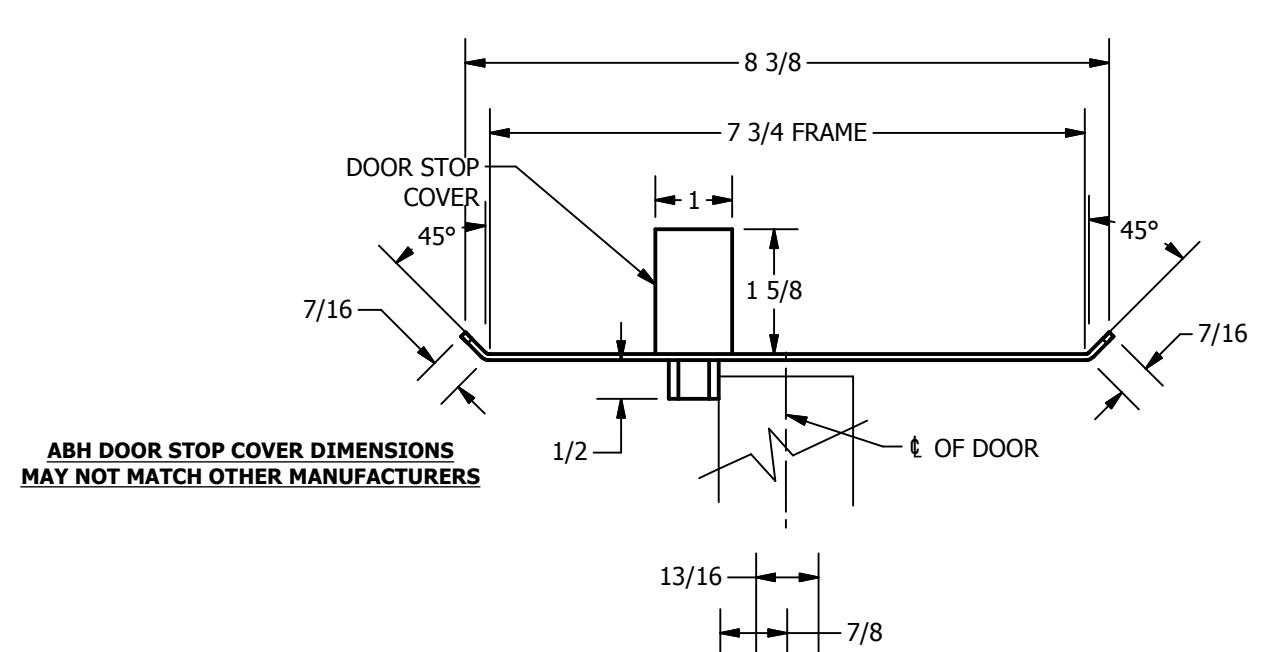

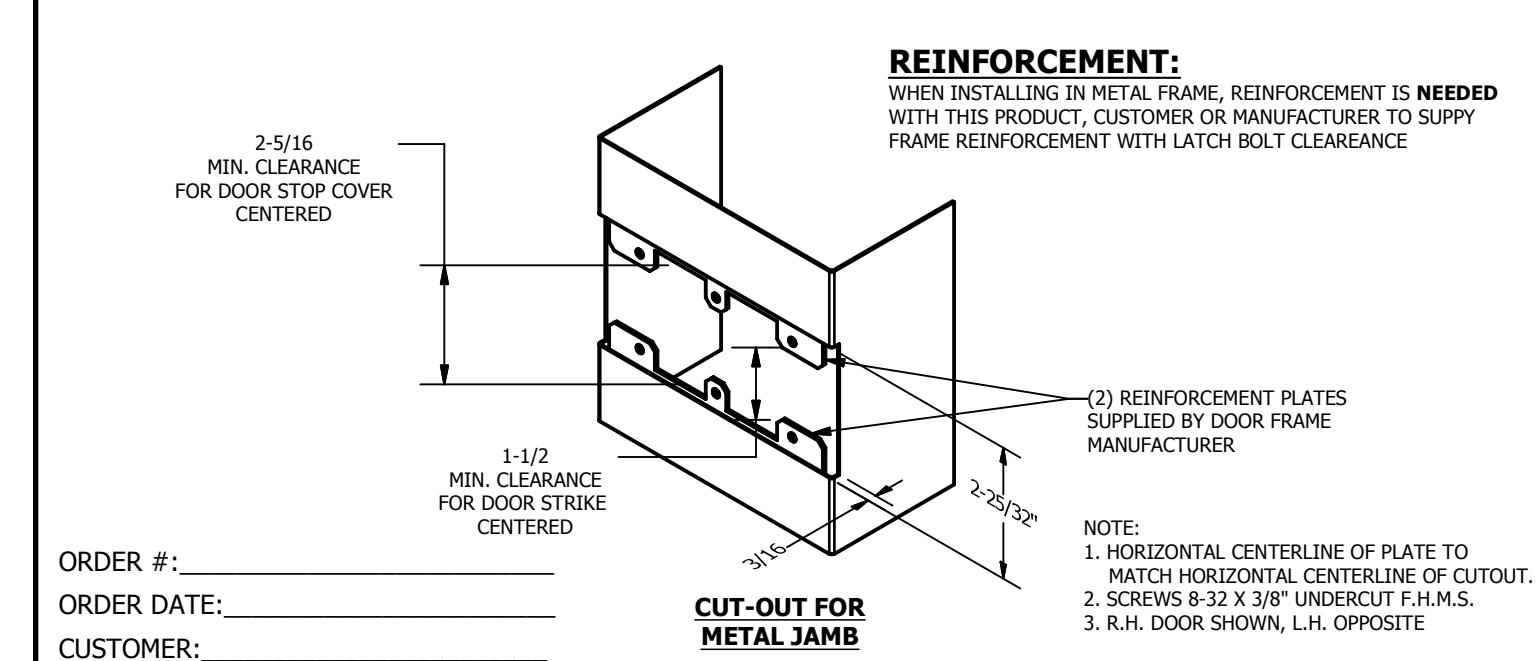

SP-CR586 CUSTOM DOUBLE LIPPED STRIKE AND RESCUE STOP

FOR 1-3/4" CENTER HUNG DOOR W/ MORTISE LOCK, NO DEADBOLT, 7-3/4" FRAME

CUSTOMER PO#:_____

MATERIAL:

QUANTITY:

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224) www.abhmfg.com 10-24-11

Email: abhinfo@abhmfg.com
