SP-CR584 750 X 275
Open the original PDF document

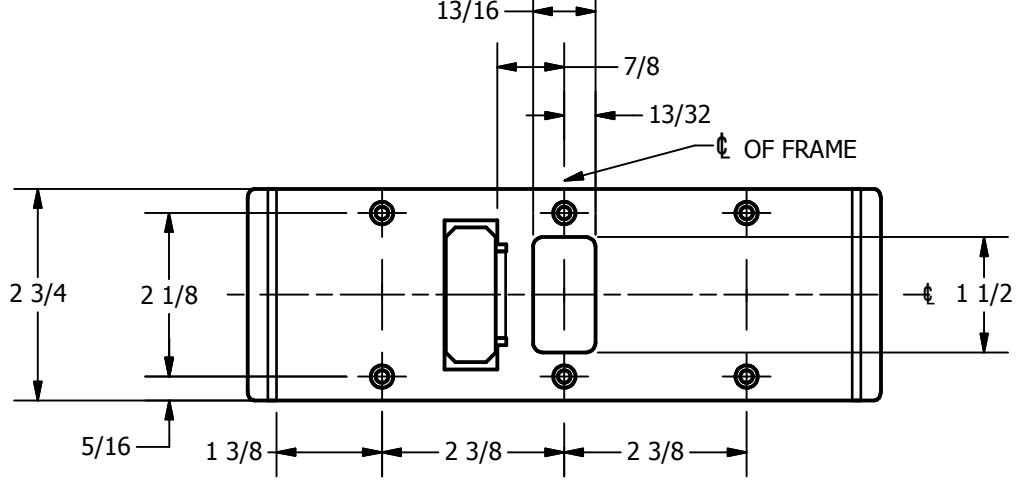

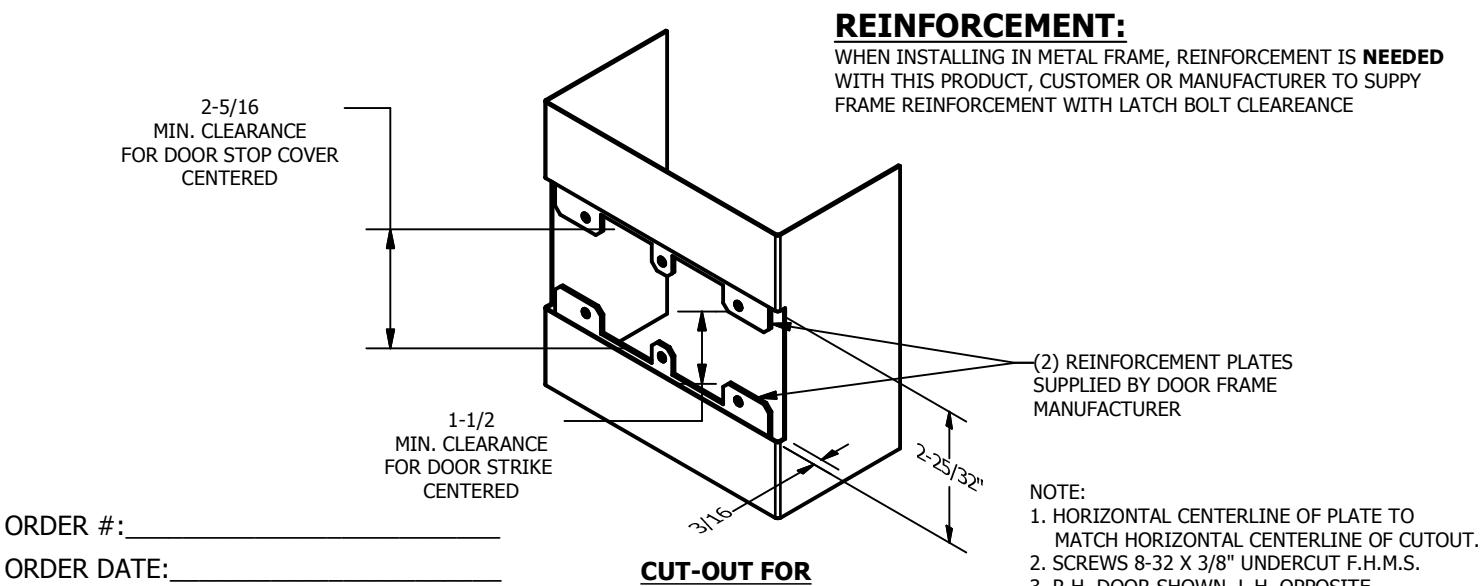

View PDFSP-CR584 CUSTOM DOUBLE LIPPED STRIKE AND RESCUE STOP

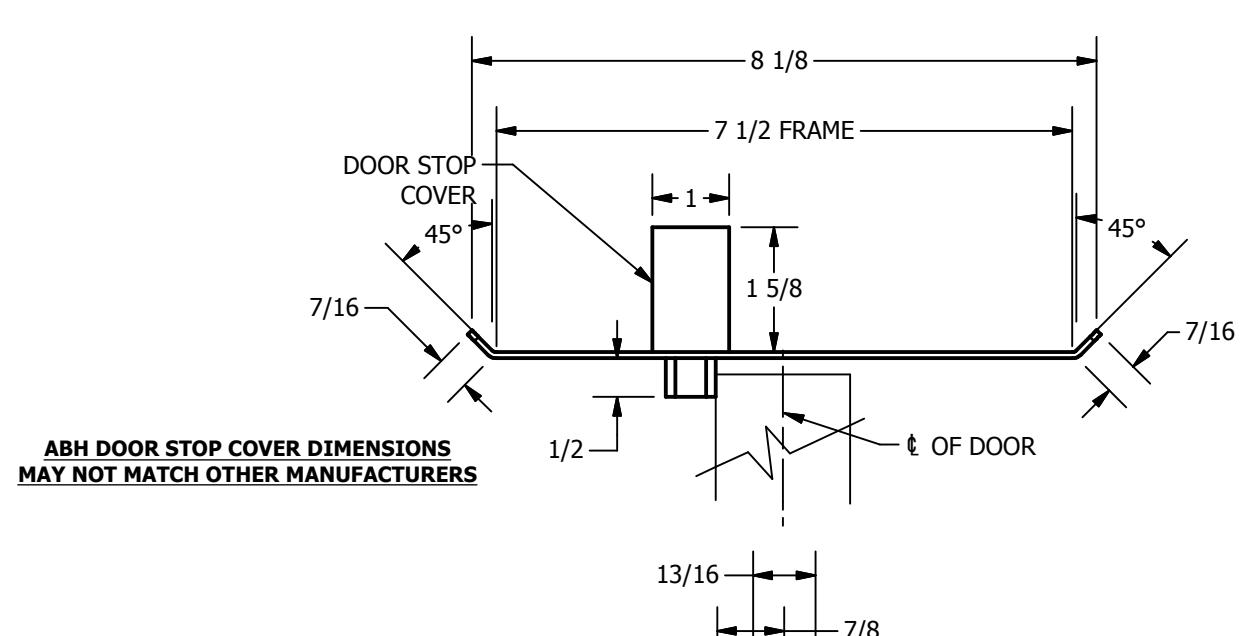

FOR 1-3/4" CENTER HUNG DOOR W/ MORTISE LOCK, NO DEADBOLT, 7-1/2" FRAME
CUSTOMER:__
CUSTOMER PO#:_____
MATERIAL:
QUANTITY:
3. R.H. DOOR SHOWN, L.H. OPPOSITE METAL JAMB
Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143
630.875.9900; FAX 800.9FAXABH (932.9224) www.abhmfg.com Email: abhinfo@abhmfg.com
10-24-11
