SOSS Door Hardware Hercules Hinge Data Sheet 2018-1

New! SOSS Hercules Hinge®

The new SOSS Hercules Hinges® are ideal for doors of extreme weight or size. They can be used in place of standard model #218 or #220 invisible hinges when the use of fewer hinges is needed.

For example, a standard 80" tall, 36" wide, 1-3/4" door that weighs 150 lbs. normally needs four model #218 SOSS Invisible Hinges. With the SOSS Hercules Hinge® model #218H on this size door, only two hinges are required.

correct number of SOSS Hercules Hinges, please consult the factory.

SOSS Hercules Hinges are currently available in three popular finishes; Satin Chrome (US26D), Satin Brass	Hinge #	Description	Door Material	Fire Rating*	Min. Door Thickness
(US4), and Satin Nickel (US15).	218H	Solid alloy steel body & links, similar to model #218	Wood/Metal	2 Hour	1¾"
For assistance with choosing the correct number of SOSS Hercules	220H	Solid alloy steel body & links,	Wood/Metal	2 Hour	2"

similar to model #220

*Rating is in accordance with BS EN 1634-1 standards. These hinges are not UL fire rated.

Invisible Hinge

This sizing chart is intended for doors that exceed sizing chart on page 51.

Door Width in Inches and Millimeters
in mm
4	100
5
	200
10	300
15	400
20	500
30	700
	900
40
50	1,250
60 70	1,750
	2,000

Example:
A 60" wide door weighing 300 lbs.
would require four #218H or three #220H
Hercules Hinges. The red line shows how
the sizing and selection were determined
from the sizing chart.

Hinge Number	218H	220H
Number of Hinges Required Hercules Hinge Door Weight in Pounds and Kilograms	12 10
kg lb 495 1089	11	9
440 450 990 968	10	8
405 891 847 385	9
360 792 726 330 315 693	8	7
275 605 270 594	7	6
225 495 484 220	6	5
180 396 363 165 135 297	5	4
110 242 90 198	4
	3	3
	2	2
Hinge Number	218H	220H

	Dimension	218H	220H
	A	1⅛" (28.58 mm)	1⅜" (34.93 mm)
	B	55/64" (21.83 mm)	11/16" (26.99 mm)
	C	439/64" (117.08 mm)	51/2" (139.70 mm)
	D	23/64" (9.13 mm)	1/2" (12.70 mm)
	E	1/4" (6.35 mm)	9/32" (7.14 mm)
	F	27/16" (61.91 mm)	231/32" (75.41 mm)
	G	1/16" (1.59 mm)	3/32" (2.38 mm)
	H	141/64" (41.67 mm)	163/64" (50.40 mm)
	I	13/32" (10.32 mm)	15/32" (11.91 mm)
	Minimum Material Thickness	13/4" (44.45 mm)	2" (50.80 mm)
	Wood Screw Sizes	#10 x 21/2"	#12 x 21/2"
	Soft Wood Pilot Hole	No.43	No. 38
	Hard Wood Pilot Hole	No. 31	No. 25
	Machine Screw Size	#10-24 x 3/4"	#12-24 x 1"
	Hinge Weight	2.15 lbs	3.80 lbs.

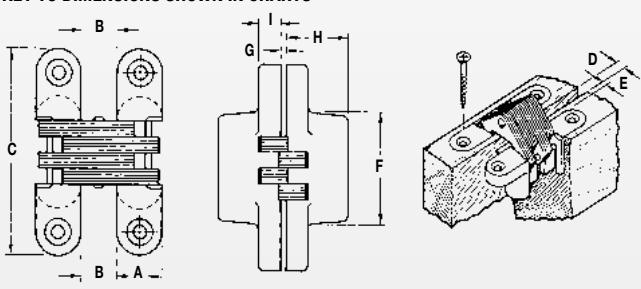

KEY TO DIMENSIONS SHOWN IN CHARTS

All SOSS Hercules Hinges are shipped with the proper size wood and machine screws unless ordered without. Do not exceed "E" dimension.
