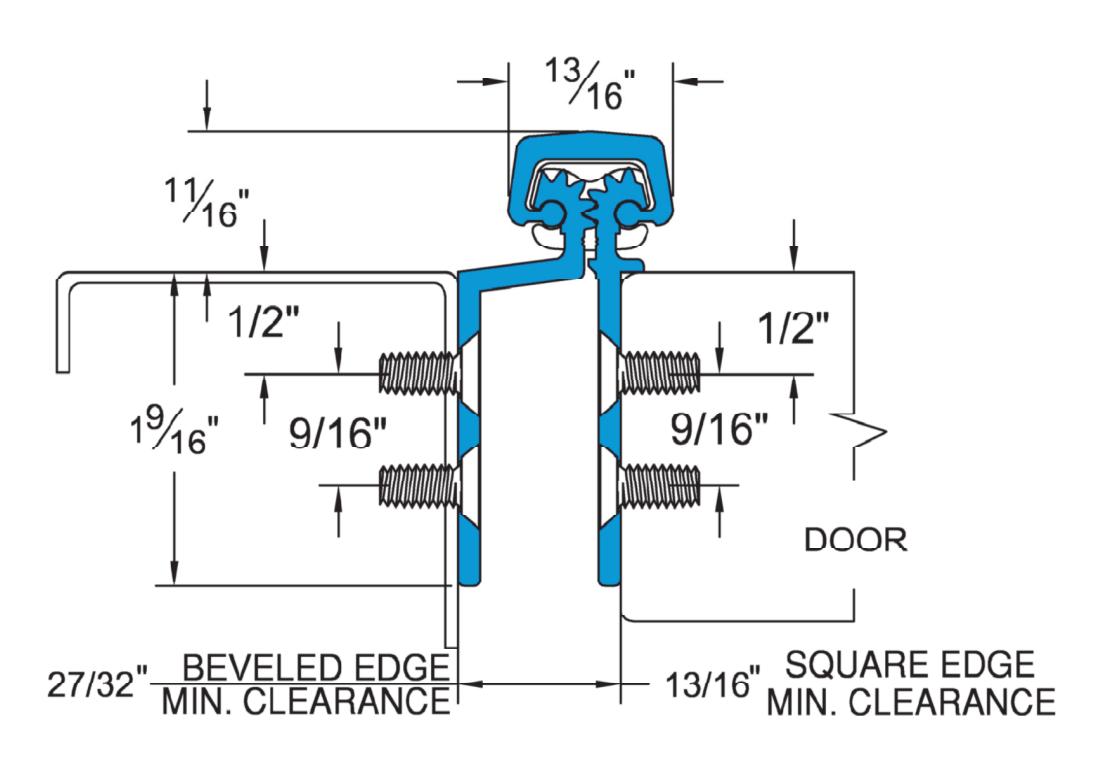

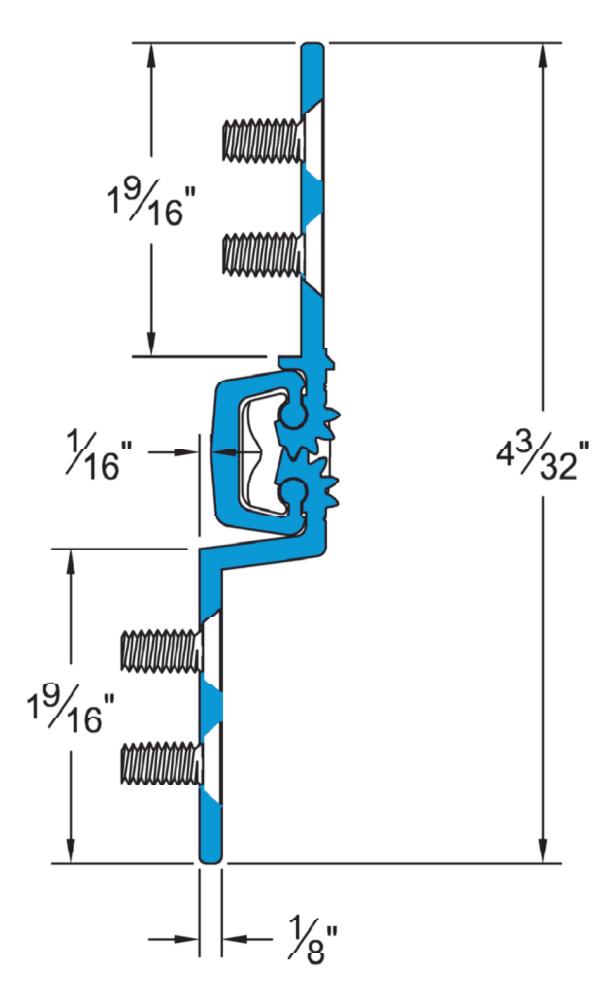

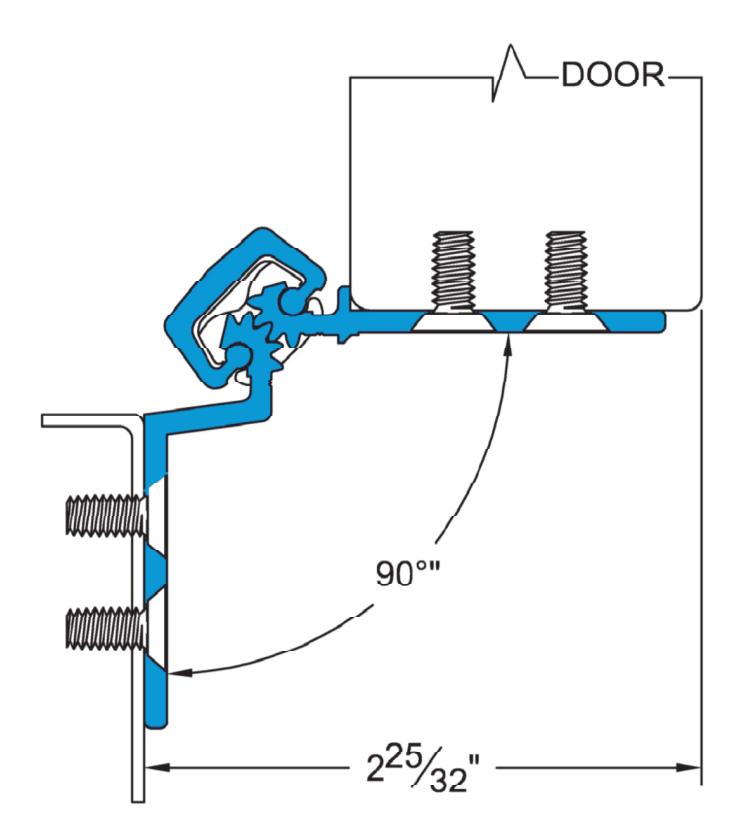

SL71 Profile
Open the original PDF document
View PDF
A FRAME WITHOUT A STOP ON THE HINGE MOUNTING SIDE OF THE JAMB MUST BE USED IN CONJUNCTION WITH THE SL71 FOR THE SAFETY FEATURE TO BE EFFECTIVE.
3258 Stadium Park Way Kalamazoo, MI 49009 Ph: 800-423-1174 Fax: 800-423-7107 www.select-hinges.com
SL71 SAFETY HINGE
