SK-L90 Installation Instructions

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS SK-L90 FIELD ELECTRIFICATION KIT SCHLAGE L9000 MORTISE LOCKSET

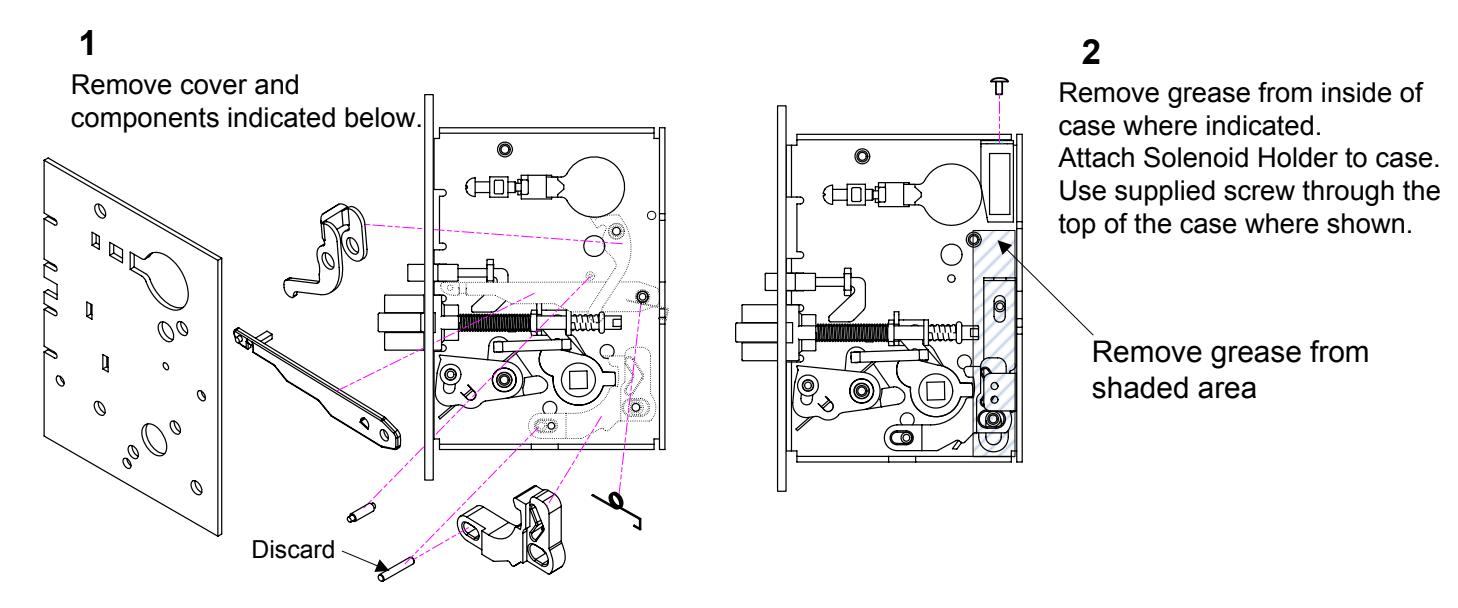

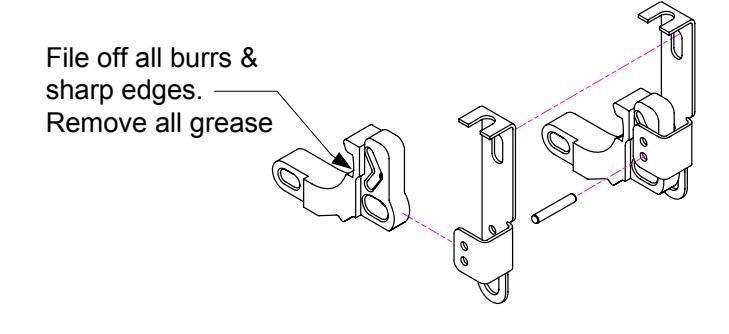

3 Remove burrs and sharp edges where indicated. Assemble and install Locking Slide Components as shown. Set the Solenoid assembly inside the Solenoid holder.

4

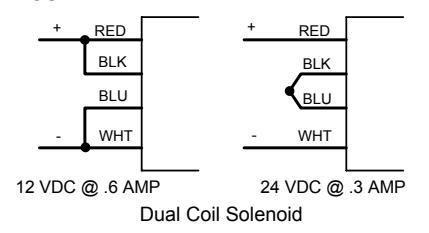

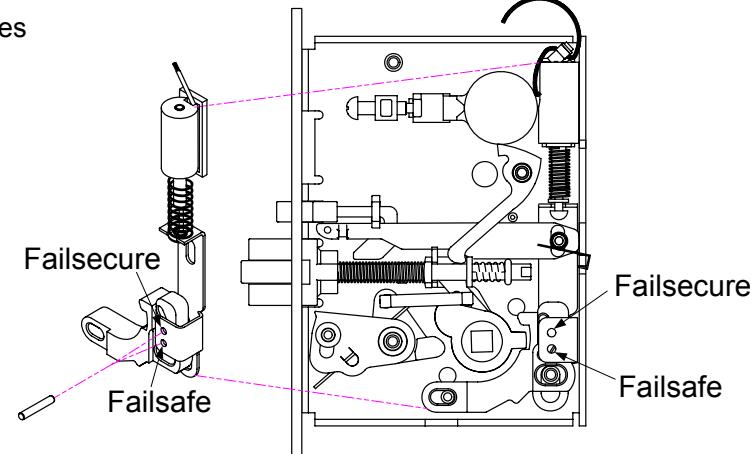

Attach Solenoid to Slide Arm and route wires as shown. Use cable tie for strain relief. Re-attach components from Step Two (except the pin). Re-install cover and test Lock.

NOTE: L9080 requires spring cage for outside lever

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com
