SK Field Kit Datasheet

SK Field Kit

Electrify Mechanical Mortise Locks

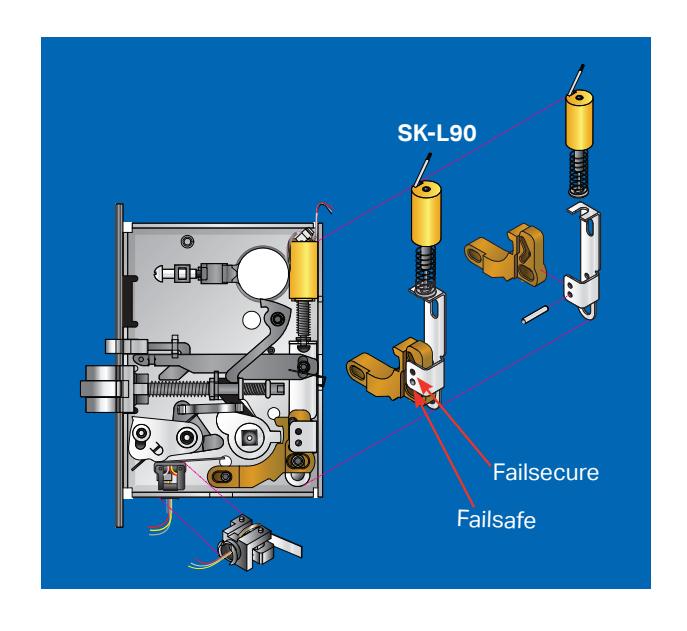

Convert Mechanical Lock into Electric Access Controlled Lock. SDC SK Field Electrification Kit for Schlage L9000, mortise locks allows for fast electrification of existing locks in the field. Failsafe and Failsecure options are easily selected and can be changed in the field to suit any need. Optional Request-To-Exit kit provides indication of inside lever operation for alarm shunt, remote annunciation or CCTV activation.

FEATURES

• · Reversible Failsafe or Failsecure
• 12VDC or 24VDC Input
• Installs Quick & Easy
• Available for Schalge, Yale and Sargent

SPECIFICATIONS

Voltage For Electrification Kits	600/300 mA @ 12/24VDC
Votage For REX and Latch Kits	SPDT 5 AMP @ 30VDC

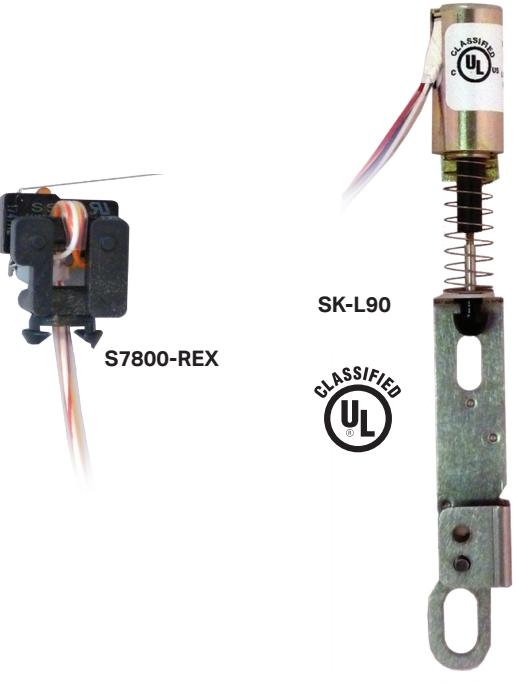

SK-L90 Kit for Schlage L9070 Mechanical

Mortise Lockset

SK-L90-SC Kit, including Springcage

for Schlage L9080 Mechanical

Mortise Lockset

REX kit for Schlage L9070 and L9080 (indicates inside lever operation for access control input, alarm shunt, remote annunciation or CCTV auxiliary device activation)
