SDSM4500 - Special Double-Lipped Strikes Center Hung for Mortise Lock (With Dead Bolt)

Customer Service...

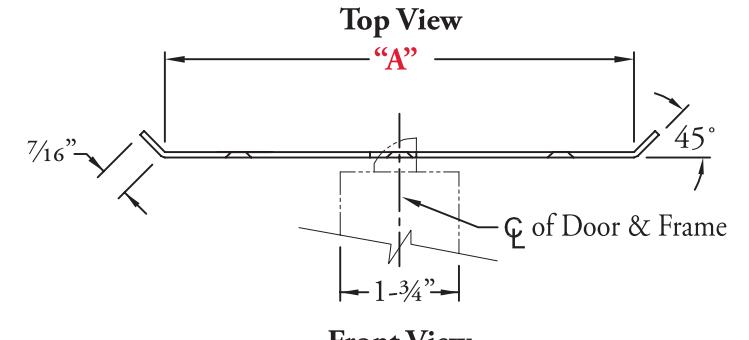

The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:

  • Center hung door
  • Mortise lock application (with dead bolt)

ABH has the capability to custom manufacture thousands every application.

e hctam ot deen uoy fi su tcatnoc esaelP x ro sperp gnitsi if additional customizations are required and we will gladly assist.

How to Order
Example SDSM4500 x US32D x SP-DS5250
Part Number Finish Custom Layout Number Quantity
SDSM4500

Please specify mortise lock body manufacturer when placing order.

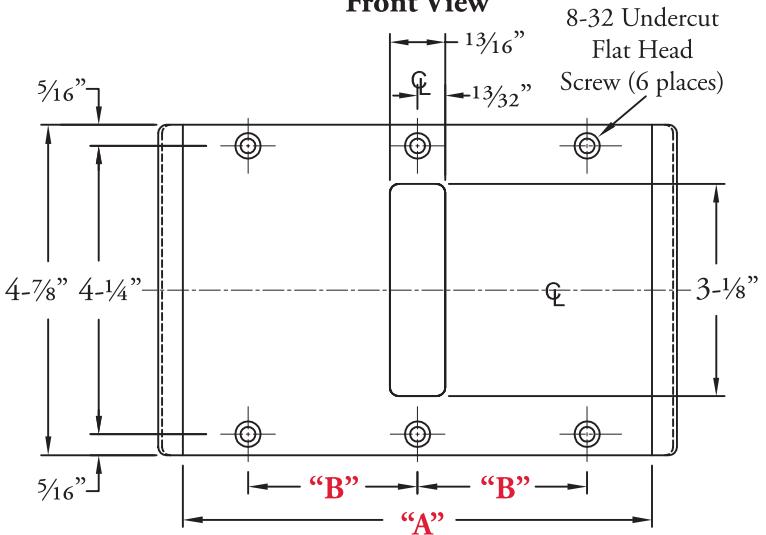

Custom Layout
Number 		Frame Size Center to Center
Mounting Holes
"A" "B"
SP-DS5128 5-¼" 1-⅞"
SP-DS5129 5-⅜" 1-⅞"
SP-DS5130 5-½" 1-⅞"
SP-DS5131 5-⅝" 1-⅞"
SP-DS5132 5-¾" 1-⅞"
SP-DS5133 5-⅞" 2-⅜"
SP-DS5134 6" 2-⅜"
SP-DS5135 6-⅛" 2-⅜"
SP-DS5136 6-¼" 2-⅜"
SP-DS5137 6-⅜" 2-⅜"
SP-DS5138 6-½" 2-⅜"
SP-DS5139 6-⅝" 2-⅜"
SP-DS5140 6-¾" 2-⅜"
SP-DS5141 6-⅞" 2-⅜"
SP-DS5142 7" 2-⅜"
SP-DS5143 7-⅛" 2-⅜"
SP-DS5144 7-¼" 2-⅜"
SP-DS5145 7-⅜" 2-⅜"
SP-DS5146 7-½" 2-⅜"
SP-DS5147 7-⅝" 2-⅜"
SP-DS5148 7-¾" 2-⅜"
SP-DS5149 7-⅞" 2-⅞"
SP-DS5150 8" 2-⅞"
SP-DS5151 8-⅛" 2-⅞"
SP-DS5152 8-¼" 2-⅞"
SP-DS5153 8-⅜" 2-⅞"
SP-DS5154 8-½" 2-⅞"
SP-DS5155 8-⅝" 2-⅞"
SP-DS5156 8-¾" 2-⅞"
SP-DS5157 8-⅞" 2-⅞"
SP-DS5158 9" 2-⅞"
