SDSM4500 - Special Double-Lipped Strikes Center Hung for Mortise Lock (No Dead Bolt)

Innovation, Quality, Customer Service...

The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:

• Center hung door
• Mortise lock application (no dead bolt)

ABH has the capability to custom manufacture thousands every application.

Please contact us if you need to match existing preps or if additional customizations are required and we will gladly assist.

How to Order
Example SDSM4500 x US32D x SP-DS5066
Part Number	Finish	Custom Layout Number	Quantity
SDSM4500
SDSM4500

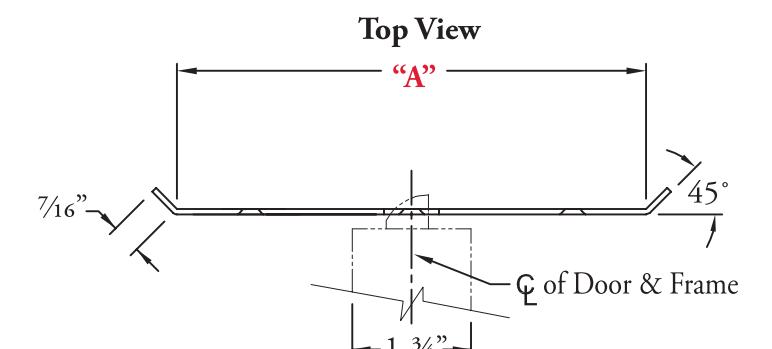

Custom Layout Number	Frame Size	Center to Center Mounting Holes
	"A"	"B"
SP-DS5066	5-¼"	1-⅞"
SP-DS5067	5-⅜"	1-⅞"
SP-DS5068	5-½"	1-⅞"
SP-DS5069	5-⅝"	1-⅞"
SP-DS5070	5-¾"	1-⅞"
SP-DS5071	5-⅞"	2-⅜"
SP-DS5072	6"	2-⅜"
SP-DS5073	6-⅛"	2-⅜"
SP-DS5074	6-¼"	2-⅜"
SP-DS5075	6-⅜"	2-⅜"
SP-DS5076	6-½"	2-⅜"
SP-DS5077	6-⅝"	2-⅜"
SP-DS5078	6-¾"	2-⅜"
SP-DS5079	6-⅞"	2-⅜"
SP-DS5080	7"	2-⅜"
SP-DS5081	7-⅛"	2-⅜"
SP-DS5082	7-¼"	2-⅜"
SP-DS5083	7-⅜"	2-⅜"
SP-DS5084	7-½"	2-⅜"
SP-DS5085	7-⅝"	2-⅜"
SP-DS5086	7-¾"	2-⅜"
SP-DS5087	7-⅞"	2-⅞"
SP-DS5088	8"	2-⅞"
SP-DS5089	8-⅛"	2-⅞"
SP-DS5090	8-¼"	2-⅞"
SP-DS5091	8-⅜"	2-⅞"
SP-DS5092	8-½"	2-⅞"
SP-DS5093	8-⅝"	2-⅞"
SP-DS5094	8-¾"	2-⅞"
SP-DS5095	8-⅞"	2-⅞"
SP-DS5096	9"	2-⅞"
