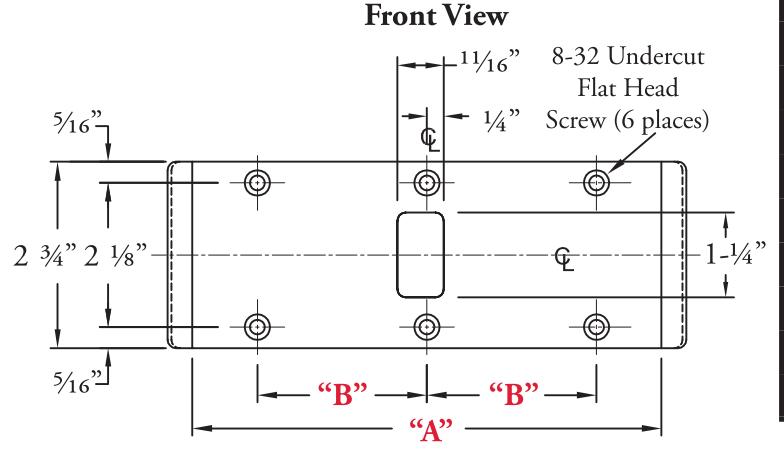

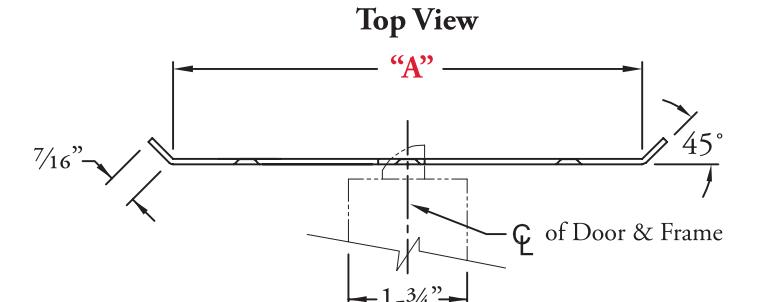

SDS4500 - Special Double-Lipped Strikes Center Hung for Cylindrical Latch
The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:
- Center hung door
- Cylindrical latch application
ABH has the capability to custom manufacture thousands every application.
Please contact us if you need to match existing preps or if additional customizations are required and we will gladly assist.
| How to Order | ||||
|---|---|---|---|---|
| Example SDS4500 x US32D x SP-DS5006 | ||||
| Part Number | Finish | Custom Layout Number | Quantity | |
| SDS4500 | ||||
| SDS4500 | ||||
|
Custom Layout
Number |
Frame Size |
Center to Center
Mounting Holes |
|---|---|---|
| "A" | "B" | |
| SP-DS5006 | 5-¼" | 1-⅞" |
| SP-DS5007 | 5-⅜" | 1-⅞" |
| SP-DS5008 | 5-½" | 1-⅞" |
| SP-DS5009 | 5-⅝" | 1-⅞" |
| DS4510 | 5-¾" | 1-⅞" |
| SP-DS5010 | 5-⅞" | 2-⅜" |
| SP-DS5011 | 6" | 2-⅜" |
| SP-DS5012 | 6-⅛" | 2-⅜" |
| SP-DS5013 | 6-¼" | 2-⅜" |
| SP-DS5014 | 6-⅜" | 2-⅜" |
| SP-DS5015 | 6-½" | 2-⅜" |
| SP-DS5016 | 6-⅝" | 2-⅜" |
| DS4520 | 6-¾" | 2-⅜" |
| SP-DS5017 | 6-⅞" | 2-⅜" |
| SP-DS5018 | 7" | 2-⅜" |
| SP-DS5019 | 7-⅛" | 2-⅜" |
| SP-DS5020 | 7-¼" | 2-⅜" |
| SP-DS5021 | 7-⅜" | 2-⅜" |
| SP-DS5022 | 7-½" | 2-⅜" |
| SP-DS5023 | 7-⅝" | 2-⅜" |
| SP-DS5024 | 7-¾" | 2-⅜" |
| SP-DS5025 | 7-⅞" | 2-⅞" |
| SP-DS5026 | 8" | 2-⅞" |
| SP-DS5027 | 8-⅛" | 2-⅞" |
| SP-DS5028 | 8-¼" | 2-⅞" |
| SP-DS5029 | 8-⅜" | 2-⅞" |
| SP-DS5030 | 8-½" | 2-⅞" |
| SP-DS5031 | 8-⅝" | 2-⅞" |
| SP-DS5032 | 8-¾" | 2-⅞" |
| SP-DS5033 | 8-⅞" | 2-⅞" |
| SP-DS5034 | 9" | 2-⅞" |
