SD Series 211 Dummy Trim

Door Type: Hollow Metal, Wood or Composite- Square or Beveled Edge Door

Door Thickness: 1 3/8" [34.9] - 1 3/4" [44.5] Backset: 2 3/8" [60.3] - 2 3/4" [70]

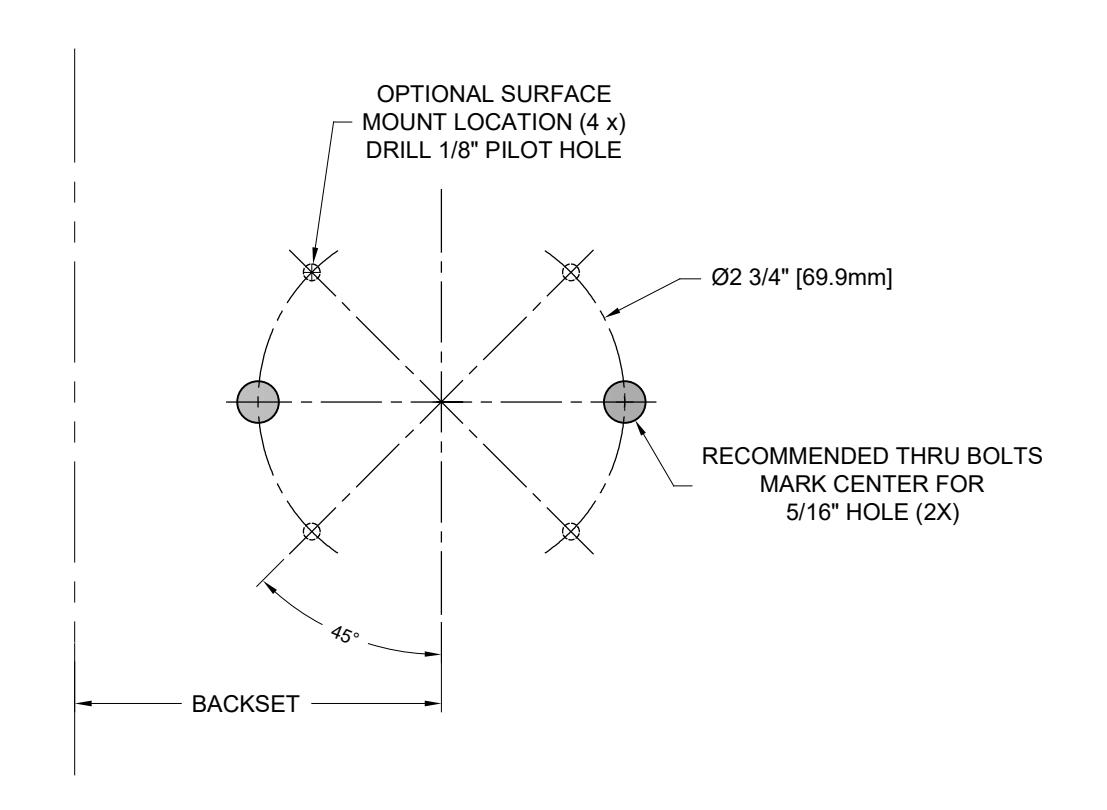

1. DIMENSIONS IN INCHES .
2. ADJUST BACKSET TO COMPENSATE FOR DOOR BEVEL AS NEEDED.
3. DO NOT DRILL 5/16" HOLES IF NOT USING OPTIONAL THRU BOLTS.
4. PDQ RECOMMENDS THRU BOLT INSTALLATIONS FOR INCREASED DURABILITY.
5. ALWAYS CHECK PDQ WEBSITE FOR THE MOST RECENT TEMPLATE REVISION AT WWW.PDQLOCKS.COM

TEMPLATE: SD21001

REV. 0 6-14-19
