SCRM4590 Double-Lipped Strike & Rescue Stop Combo – Center Hung for Mortise Lock No Dead Bolt – Cut Sheet
Open the original PDF document
View PDFRescue Hardware

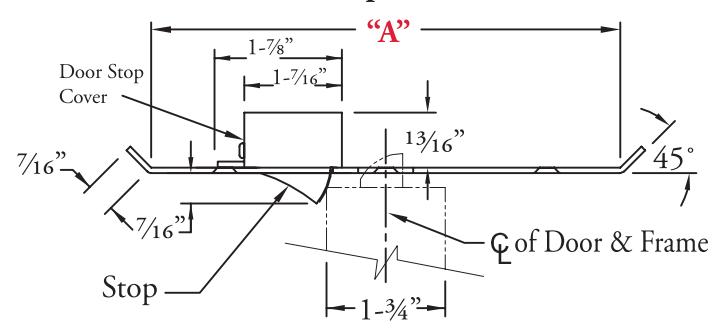

Special Double-Lipped Strike & Rescue Stop Combo Center Hung for Mortise Lock (No Dead Bolt)
Innovation, Quality, Customer Service...
The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:
- Center hung door
- Mortise lock application (no dead bolt)
ABH has the capability to custom manufacture thousands of different custom double-lipped strike and rescue stop
Please contact us if you need to match existing preps or if additional customizations are required and we will gladly assist.
| How to Order | ||||
|---|---|---|---|---|
| Example SCRM4590 x US32D x SP-CR922 | ||||
| Part Number | Finish | Custom Layout Number | Quantity | |
| SCRM4590 | ||||
| SCRM4590 | ||||
|

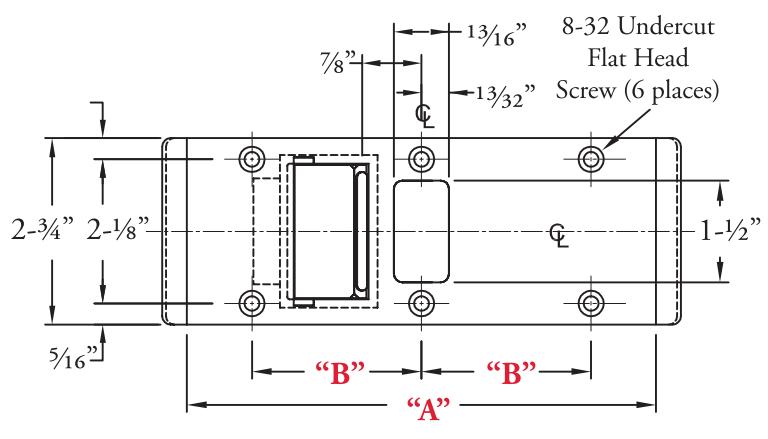

Custom Layout
Number |
Frame Size |
Center to Center
Mounting Holes |
|---|---|---|
| "A" | "B" | |
| SP-CR922 | 5-¼" | 2-⅜" |
| SP-CR923 | 5-⅜" | 2-⅜" |
| SP-CR924 | 5-½" | 2-⅜" |
| SP-CR925 | 5-⅝" | 2-⅜" |
| SP-CR926 | 5-¾" | 2-⅜" |
| SP-CR927 | 5-⅞" | 2-⅜" |
| SP-CR928 | 6" | 2-⅜" |
| SP-CR929 | 6-⅛" | 2-⅜" |
| SP-CR930 | 6-¼" | 2-⅜" |
| SP-CR931 | 6-⅜" | 2-⅜" |
| SP-CR932 | 6-½" | 2-⅜" |
| SP-CR933 | 6-⅝" | 2-⅜" |
| SP-CR934 | 6-¾" | 2-⅜" |
| SP-CR935 | 6-⅞" | 2-⅜" |
| SP-CR936 | 7" | 2-⅜" |
| SP-CR937 | 7-⅛" | 2-⅜" |
| SP-CR938 | 7-¼" | 2-⅜" |
| SP-CR939 | 7-⅜" | 2-⅜" |
| SP-CR940 | 7-½" | 2-⅜" |
| SP-CR941 | 7-⅝" | 3-⅜" |
| SP-CR942 | 7-¾" | 3-⅜" |
| SP-CR943 | 7-⅞" | 3-⅜" |
| SP-CR944 | 8" | 3-⅜" |
| SP-CR945 | 8-⅛" | 3-⅜" |
| SP-CR946 | 8-¼" | 3-⅜" |
| SP-CR947 | 8-⅜" | 3-⅜" |
| SP-CR948 | 8-½" | 3-⅜" |
| SP-CR949 | 8-⅝" | 3-⅜" |
| SP-CR950 | 8-¾" | 3-⅜" |
| SP-CR951 | 8-⅞" | 3-⅜" |
| SP-CR952 | 9" | 3-⅜" |
