SCRM4590 Double-Lipped Strike & Rescue Stop Combo – 1by8 Inset for Mortise Lock with Dead Bolt – Cut Sheet
Open the original PDF document
View PDFRescue Hardware
SCRM4590
Special Double-Lipped Strike & Rescue Stop Combo ⅛" Inset for Mortise Lock (With Dead Bolt)

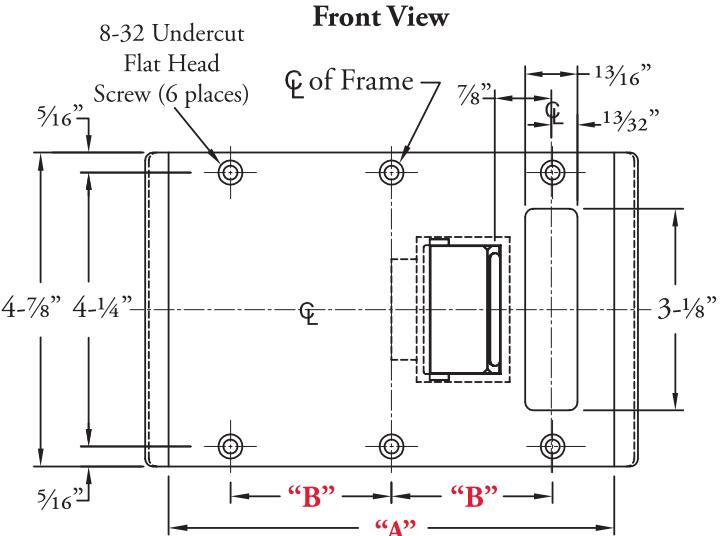

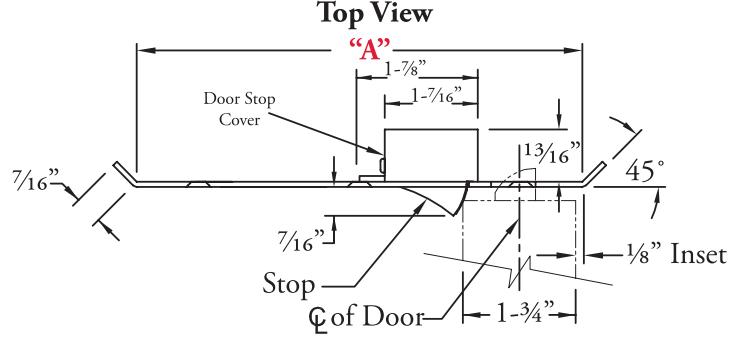

The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:
- ⅛" inset
- Mortise lock application (with dead bolt)
ABH has the capability to custom manufacture thousands of different custom double-lipped strike, and rescue stop
e hctam ot deen uoy fi su tcatnoc esaelP x ro sperp gnitsi if additional customizations are required and we will gladly assist.
| How to Order | ||||
|---|---|---|---|---|
| Example SCRM4590 x US32D x SP-CR1162 | ||||
| Part Number | Finish | Custom Layout Number | Quantity | |
| SCRM4590 | ||||
|
Custom Layout
Number |
Frame Size |
Center to Center
Mounting Holes |
|---|---|---|
| "A" | "B" | |
| SP-CR1162 | 5-¼" | 2-⅜" |
| SP-CR1163 | 5-⅜" | 2-⅜" |
| SP-CR1164 | 5-½" | 2-⅜" |
| SP-CR1165 | 5-⅝" | 2-⅜" |
| SP-CR1166 | 5-¾" | 2-⅜" |
| SP-CR1167 | 5-⅞" | 2-⅜" |
| SP-CR1168 | 6" | 2-⅜" |
| SP-CR1169 | 6-⅛" | 2-⅜" |
| SP-CR1170 | 6-¼" | 2-⅜" |
| SP-CR1171 | 6-⅜" | 2-⅜" |
| SP-CR1172 | 6-½" | 2-⅜" |
| SP-CR1173 | 6-⅝" | 2-⅜" |
| SP-CR1174 | 6-¾" | 2-⅜" |
| SP-CR1175 | 6-⅞" | 2-⅜" |
| SP-CR1176 | 7" | 2-⅜" |
| SP-CR1177 | 7-⅛" | 2-⅜" |
| SP-CR1178 | 7-¼" | 2-⅜" |
| SP-CR1179 | 7-⅜" | 2-⅜" |
| SP-CR1180 | 7-½" | 2-⅜" |
| SP-CR1181 | 7-⅝" | 3-⅜" |
| SP-CR1182 | 7-¾" | 3-⅜" |
| SP-CR1183 | 7-⅞" | 3-⅜" |
| SP-CR1184 | 8" | 3-⅜" |
| SP-CR1185 | 8-⅛" | 3-⅜" |
| SP-CR1186 | 8-¼" | 3-⅜" |
| SP-CR1187 | 8-⅜" | 3-⅜" |
| SP-CR1188 | 8-½" | 3-⅜" |
| SP-CR1189 | 8-⅝" | 3-⅜" |
| SP-CR1190 | 8-¾" | 3-⅜" |
| SP-CR1191 | 8-⅞" | 3-⅜" |
| SP-CR1192 | 9" | 3-⅜" |
Architectural Builders Hardware Manufacturing, Inc. 1222 Ardmore Avenue, Itasca, IL 60143 Tel: 630-875-9900 • Fax: 630-875-9918 / 800-932-9224 Web: www.abhmfg.com • Email: abhinfo@abhmfg.com
