SCRM4590

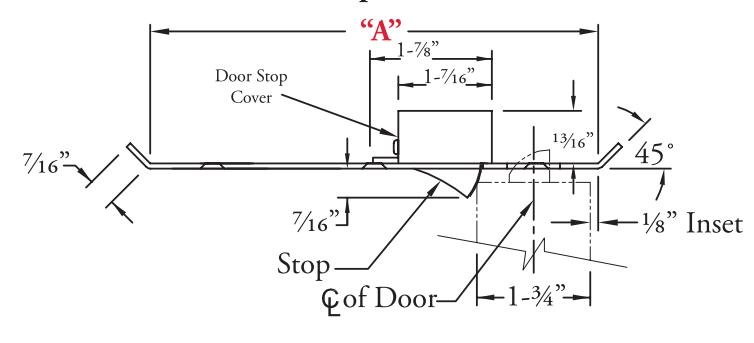

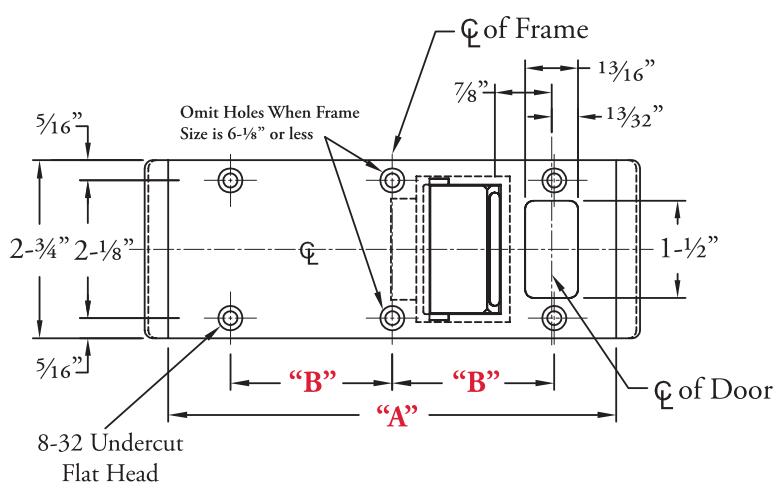

Special Double-Lipped Strike & Rescue Stop Combo ⅛" Inset for Mortise Lock (No Dead Bolt)
The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:
- ⅛" inset door
- Mortise lock application (no dead bolt)
ABH has the capability to custom manufacture thousands of different custom double-lipped strike and rescue stop
Please contact us if you need to match existing preps or if additional customizations are required and we will gladly assist.
| How to Order | ||||
|---|---|---|---|---|
| Example SCRM4590 x US32D x SP-CR1100 | ||||
| Part Number | Finish | Custom Layout Number | Quantity | |
| SCRM4590 | ||||
| SCRM4590 | ||||
|
Custom Layout
Number |
Frame Size |
Center to Center
Mounting Holes |
|---|---|---|
| "A" | "B" | |
| SP-CR1100 | 5-¼" | 2-⅜" |
| SP-CR1101 | 5-⅜" | 2-⅜" |
| SP-CR1102 | 5-½" | 2-⅜" |
| SP-CR1103 | 5-⅝" | 2-⅜" |
| SP-CR1104 | 5-¾" | 2-⅜" |
| SP-CR1105 | 5-⅞" | 2-⅜" |
| SP-CR1106 | 6" | 2-⅜" |
| SP-CR1107 | 6-⅛" | 2-⅜" |
| SP-CR1108 | 6-¼" | 2-⅜" |
| SP-CR1109 | 6-⅜" | 2-⅜" |
| SP-CR1110 | 6-½" | 2-⅜" |
| SP-CR1111 | 6-⅝" | 2-⅜" |
| SP-CR1112 | 6-¾" | 2-⅜" |
| SP-CR1113 | 6-⅞" | 2-⅜" |
| SP-CR1114 | 7" | 2-⅜" |
| SP-CR1115 | 7-⅛" | 2-⅜" |
| SP-CR1116 | 7-¼" | 2-⅜" |
| SP-CR1117 | 7-⅜" | 2-⅜" |
| SP-CR1118 | 7-½" | 2-⅜" |
| SP-CR1119 | 7-⅝" | 3-⅜" |
| SP-CR1120 | 7-¾" | 3-⅜" |
| SP-CR1121 | 7-⅞" | 3-⅜" |
| SP-CR1122 | 8" | 3-⅜" |
| SP-CR1123 | 8-⅛" | 3-⅜" |
| SP-CR1124 | 8-¼" | 3-⅜" |
| SP-CR1125 | 8-⅜" | 3-⅜" |
| SP-CR1126 | 8-½" | 3-⅜" |
| SP-CR1127 | 8-⅝" | 3-⅜" |
| SP-CR1128 | 8-¾" | 3-⅜" |
| SP-CR1129 | 8-⅞" | 3-⅜" |
| SP-CR1130 | 9" | 3-⅜" |
