Special Double-Lipped Strike & Rescue Stop Combo ⅛" Inset for Mortise Lock (No Dead Bolt)
The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:
- ⅛" inset door
- Mortise lock application (no dead bolt)
ABH has the capability to custom manufacture thousands of different custom double-lipped strike and rescue stop
Please contact us if you need to match existing preps or if additional customizations are required and we will gladly assist.
| How to Order | ||||
|---|---|---|---|---|
| Example SCRM4550 x US32D x SP-CR750 | ||||
| Part Number | Finish | Custom Layout Number | Quantity | |
| SCRM4550 | ||||
| SCRM4550 | ||||
|

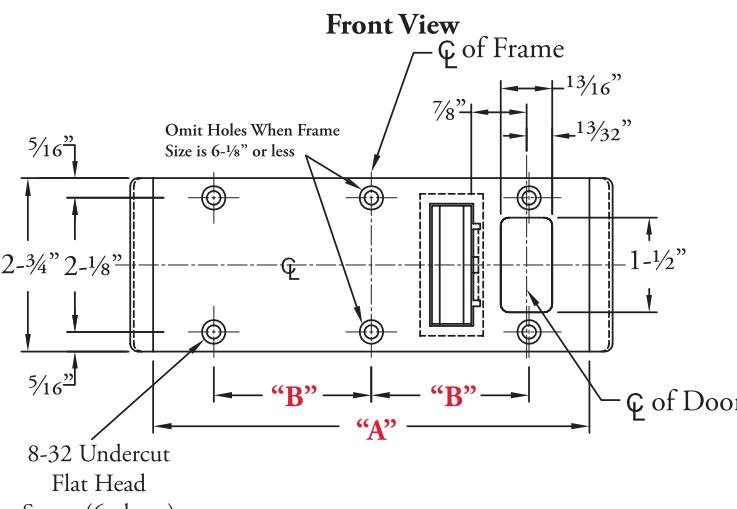

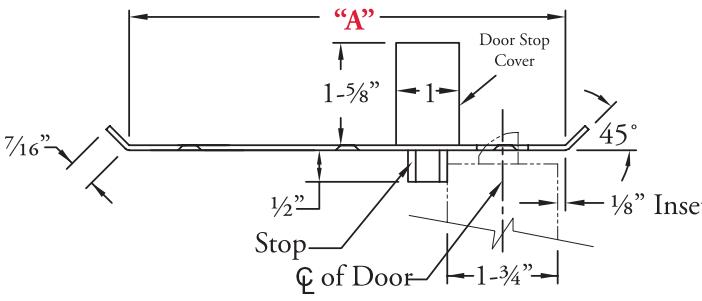

Custom Layout
Number |
Frame Size |
Center to Center
Mounting Holes |
|---|---|---|
| "A" | "B" | |
| SP-CR750 | 5-¼" | 1-⅞" |
| SP-CR751 | 5-⅜" | 1-⅞" |
| SP-CR752 | 5-½" | 1-⅞" |
| SP-CR753 | 5-⅝" | 1-⅞" |
| SP-CR754 | 5-¾" | 1-⅞" |
| SP-CR755 | 5-⅞" | 2-⅜" |
| SP-CR756 | 6" | 2-⅜" |
| SP-CR757 | 6-⅛" | 2-⅜" |
| SP-CR758 | 6-¼" | 2-⅜" |
| SP-CR759 | 6-⅜" | 2-⅜" |
| SP-CR760 | 6-½" | 2-⅜" |
| SP-CR761 | 6-⅝" | 2-⅜" |
| SP-CR762 | 6-¾" | 2-⅜" |
| SP-CR763 | 6-⅞" | 2-⅜" |
| SP-CR764 | 7" | 2-⅜" |
| SP-CR765 | 7-⅛" | 2-⅜" |
| SP-CR766 | 7-¼" | 2-⅜" |
| SP-CR767 | 7-⅜" | 2-⅜" |
| SP-CR768 | 7-½" | 2-⅜" |
| SP-CR769 | 7-⅝" | 2-⅜" |
| SP-CR770 | 7-¾" | 2-⅜" |
| SP-CR771 | 7-⅞" | 2-⅞" |
| SP-CR772 | 8" | 2-⅞" |
| SP-CR773 | 8-⅛" | 2-⅞" |
| SP-CR774 | 8-¼" | 2-⅞" |
| SP-CR775 | 8-⅜" | 2-⅞" |
| SP-CR776 | 8-½" | 2-⅞" |
| SP-CR777 | 8-⅝" | 3-⅜" |
| SP-CR778 | 8-¾" | 3-⅜" |
| SP-CR779 | 8-⅞" | 3-⅜" |
| SP-CR780 | 9" | 3-⅜" |
