SCRM4550 Double-Lipped Strike & Rescue Stop Combo – Center Hung for Mortise Lock with Dead Bolt – Cut Sheet
Open the original PDF document
View PDFRescue Hardware

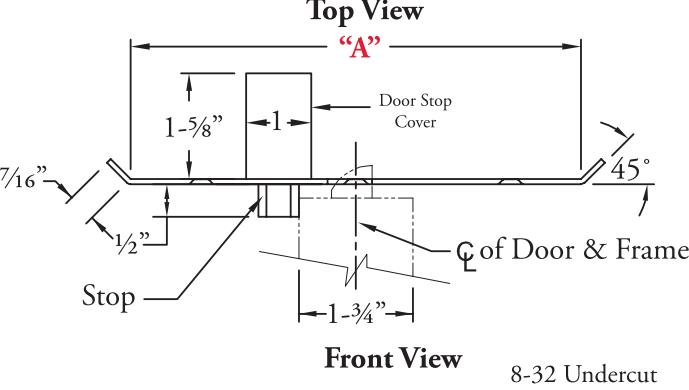

Special Double-Lipped Strike & Rescue Stop Combo Center Hung for Mortise Lock (With Dead Bolt)
The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:
- Center hung door
- Mortise lock application (with dead bolt)
ABH has the capability to custom manufacture thousands of different custom double-lipped strike and rescue stop
e hctam ot deen uoy fi su tcatnoc esaelP x ro sperp gnitsi if additional customizations are required and we will gladly assist.
| Example SCRM4550 x US32D x SP-CR628 | How to Order | |||||
|---|---|---|---|---|---|---|
| Part Number | Finish | Custom Layout Number | Quantity | |||
| SCRM4550 | ||||||
Please specify mortise lock body manufacturer when placing order.
|

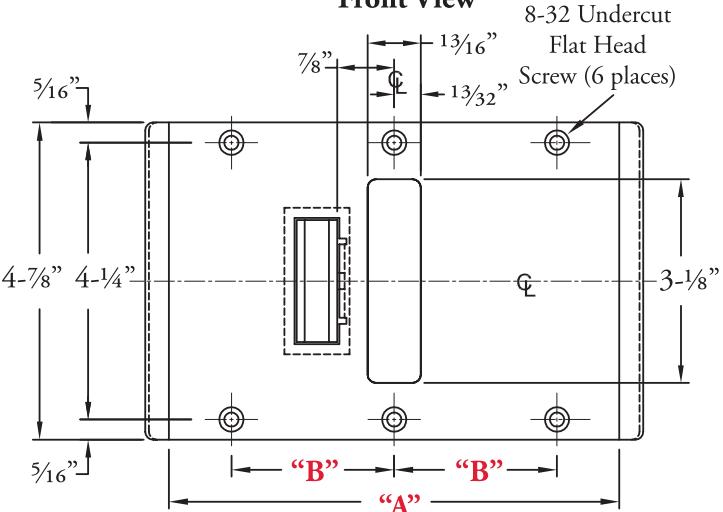

Custom Layout
Number |
Frame Size |
Center to Center
Mounting Holes |
|---|---|---|
| "A" | "B" | |
| SP-CR628 | 5-¼" | 1-⅞" |
| SP-CR629 | 5-⅜" | 1-⅞" |
| SP-CR630 | 5-½" | 1-⅞" |
| SP-CR631 | 5-⅝" | 1-⅞" |
| SP-CR632 | 5-¾" | 1-⅞" |
| SP-CR633 | 5-⅞" | 2-⅜" |
| SP-CR634 | 6" | 2-⅜" |
| SP-CR635 | 6-⅛" | 2-⅜" |
| SP-CR636 | 6-¼" | 2-⅜" |
| SP-CR637 | 6-⅜" | 2-⅜" |
| SP-CR638 | 6-½" | 2-⅜" |
| SP-CR639 | 6-⅝" | 2-⅜" |
| SP-CR640 | 6-¾" | 2-⅜" |
| SP-CR641 | 6-⅞" | 2-⅜" |
| SP-CR642 | 7" | 2-⅜" |
| SP-CR643 | 7-⅛" | 2-⅜" |
| SP-CR644 | 7-¼" | 2-⅜" |
| SP-CR645 | 7-⅜" | 2-⅜" |
| SP-CR646 | 7-½" | 2-⅜" |
| SP-CR647 | 7-⅝" | 2-⅜" |
| SP-CR648 | 7-¾" | 2-⅜" |
| SP-CR649 | 7-⅞" | 2-⅞" |
| SP-CR650 | 8" | 2-⅞" |
| SP-CR651 | 8-⅛" | 2-⅞" |
| SP-CR652 | 8-¼" | 2-⅞" |
| SP-CR653 | 8-⅜" | 2-⅞" |
| SP-CR654 | 8-½" | 2-⅞" |
| SP-CR655 | 8-⅝" | 2-⅞" |
| SP-CR656 | 8-¾" | 2-⅞" |
| SP-CR657 | 8-⅞" | 2-⅞" |
| SP-CR658 | 9" | 2-⅞" |
Architectural Builders Hardware Manufacturing, Inc. 1222 Ardmore Avenue, Itasca, IL 60143 Tel: 630-875-9900 • Fax: 630-875-9918 / 800-932-9224 Web: www.abhmfg.com • Email: abhinfo@abhmfg.com
