Rescue Hardware

SCRM4550

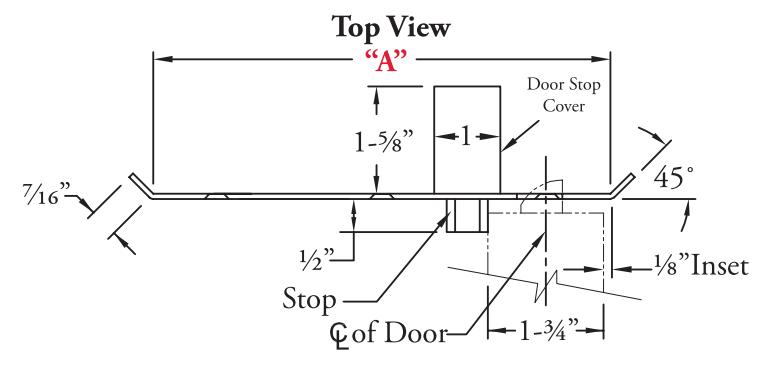

Special Double-Lipped Strike & Rescue Stop Combo ⅛" Inset for Mortise Lock (With Dead Bolt)

The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:

  • ⅛" inset door
  • Mortise lock application (with dead bolt)

ABH has the capability to custom manufacture thousands of different custom double-lipped strike and rescue stop

e hctam ot deen uoy fi su tcatnoc esaelP x ro sperp gnitsi if additional customizations are required and we will gladly assist.

How to Order
Example SCRM4550 x US32D x SP-CR812
Part Number Finish Custom Layout Number Quantity
SCRM4550
Please specify mortise lock body manufacturer when placing order.

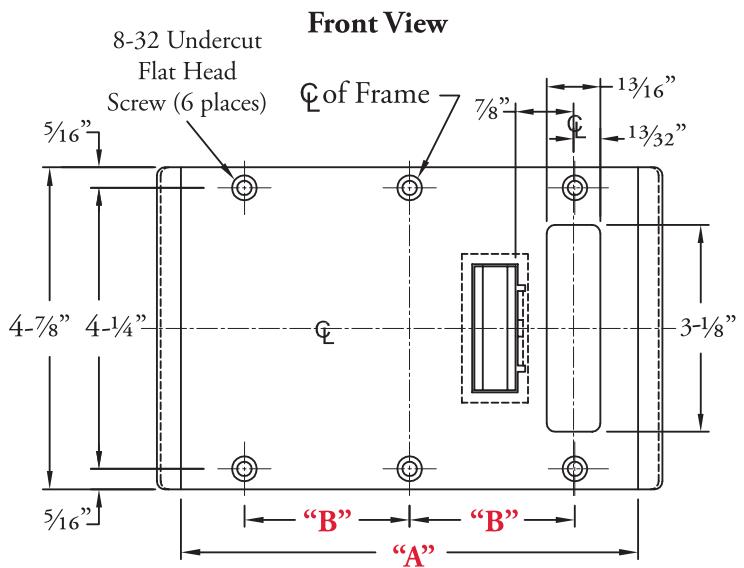

Custom Layout
Number 		Frame Size Center to Center
Mounting Holes
"A" "B"
SP-CR812 5-¼" 1-⅞"
SP-CR813 5-⅜" 1-⅞"
SP-CR814 5-½" 1-⅞"
SP-CR815 5-⅝" 1-⅞"
SP-CR816 5-¾" 1-⅞"
SP-CR817 5-⅞" 2-⅜"
SP-CR818 6" 2-⅜"
SP-CR819 6-⅛" 2-⅜"
SP-CR820 6-¼" 2-⅜"
SP-CR821 6-⅜" 2-⅜"
SP-CR822 6-½" 2-⅜"
SP-CR823 6-⅝" 2-⅜"
SP-CR824 6-¾" 2-⅜"
SP-CR825 6-⅞" 2-⅜"
SP-CR826 7" 2-⅜"
SP-CR827 7-⅛" 2-⅜"
SP-CR828 7-¼" 2-⅜"
SP-CR829 7-⅜" 2-⅜"
SP-CR830 7-½" 2-⅜"
SP-CR831 7-⅝" 2-⅜"
SP-CR832 7-¼" 2-⅜"
SP-CR833 7-⅞" 2-⅞"
SP-CR834 8" 2-⅞"
SP-CR835 8-⅛" 2-⅞"
SP-CR836 8-¼" 2-⅞"
SP-CR837 8-⅜" 2-⅞"
SP-CR838 8-½" 2-⅞"
SP-CR839 8-⅝" 2-⅞"
SP-CR840 8-¾" 2-⅞"
SP-CR841 8-⅞" 2-⅞"
SP-CR842 9" 2-⅞"
