Rescue Hardware

SCRM4550

Special Double-Lipped Strike & Rescue Stop Combo Center Hung for Mortise Lock (No Dead Bolt)

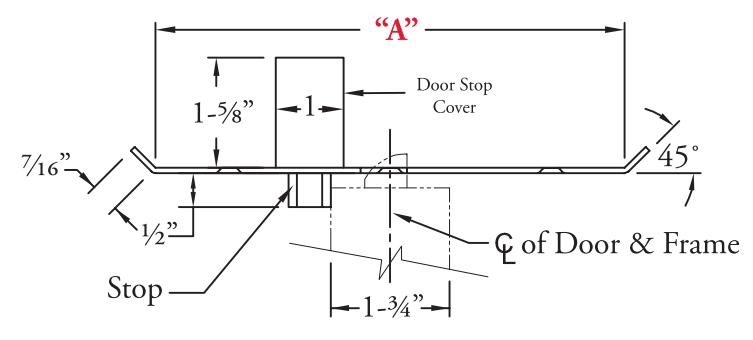

The sizing chart on the right lists custom layout numbers for all frame sizes from 5-¼" to 9" for:

  • Center hung door
  • Mortise lock application (no dead bolt)

ABH has the capability to custom manufacture thousands of different custom double-lipped strike and rescue stop

Please contact us if you need to match existing preps or if additional customizations are required and we will gladly assist.

How to Order
Example SCRM4550 x US32D x SP-CR566
Part Number Finish Custom Layout Number Quantity
SCRM4550
SCRM4550

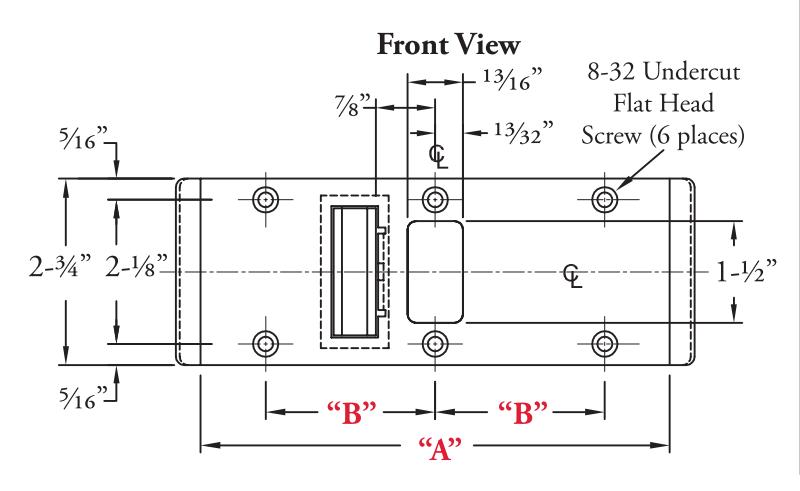

Custom Layout Frame Size Center to Center
Mounting Holes
Number "A" "B"
SP-CR566 5-¼" 1-⅞"
SP-CR567 5-⅜" 1-⅞"
SP-CR568 5-½" 1-⅞"
SP-CR569 5-⅝" 1-⅞"
SP-CR570 5-¾" 1-⅞"
SP-CR571 5-⅞" 2-⅜"
SP-CR572 6" 2-⅜"
SP-CR573 6-⅛" 2-⅜"
SP-CR574 6-¼" 2-⅜"
SP-CR575 6-⅜" 2-⅜"
SP-CR576 6-½" 2-⅜"
SP-CR577 6-⅝" 2-⅜"
SP-CR578 6-¾" 2-⅜"
SP-CR579 6-⅞" 2-⅜"
SP-CR580 7" 2-⅜"
SP-CR581 7-⅛" 2-⅜"
SP-CR582 7-¼" 2-⅜"
SP-CR583 7-⅜" 2-⅜"
SP-CR584 7-½" 2-⅜"
SP-CR585 7-⅝" 2-⅜"
SP-CR586 7-¾" 2-⅜"
SP-CR587 7-⅞" 2-⅞"
SP-CR588 8" 2-⅞"
SP-CR589 8-⅛" 2-⅞"
SP-CR590 8-¼" 2-⅞"
SP-CR591 8-⅜" 2-⅞"
SP-CR592 8-½" 2-⅞"
SP-CR593 8-⅝" 2-⅞"
SP-CR594 8-¾" 2-⅞"
SP-CR595 8-⅞" 2-⅞"
SP-CR596 9" 2-⅞"
