SCHREXKIT-fe-ML

I N S E R T I n s t r u c t i o n s

The Command Access SCHREXKIT-FE-ML is a field-installable Request to Exit switch for the Factory Electrified Schlage Mortise Lock.

B. C.

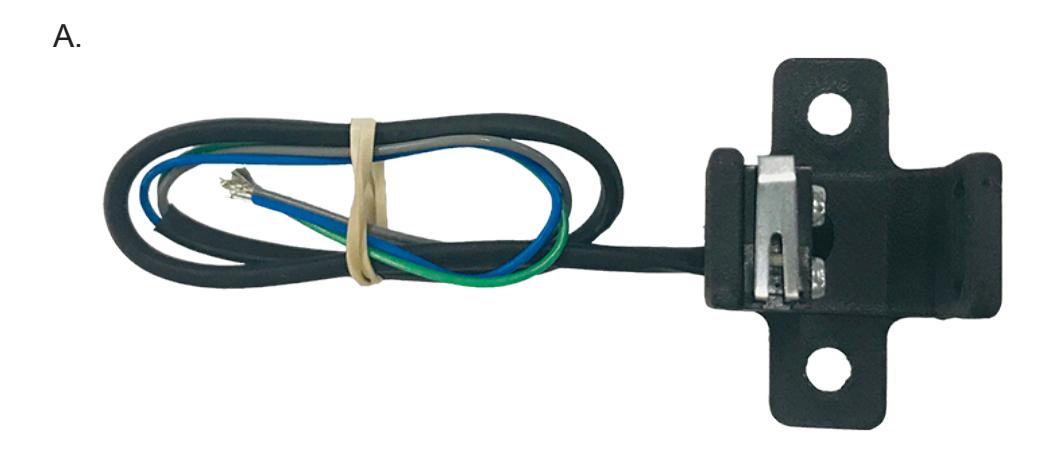

a. 60336 - sCHREXKIT-Fe-ml #2 phillips screwdriver

b. 40177 - machine screw m2 x 8 (x2)

c. 20015 - rex sticker

Kit Includes Tools Required

installation instructions

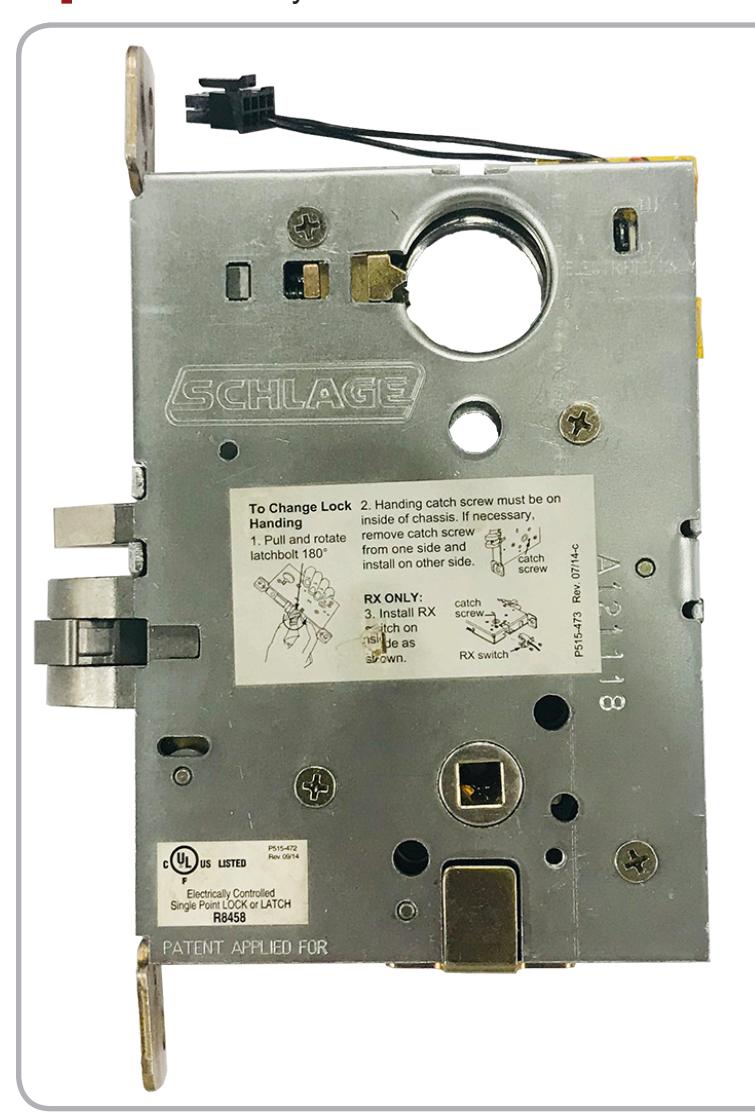

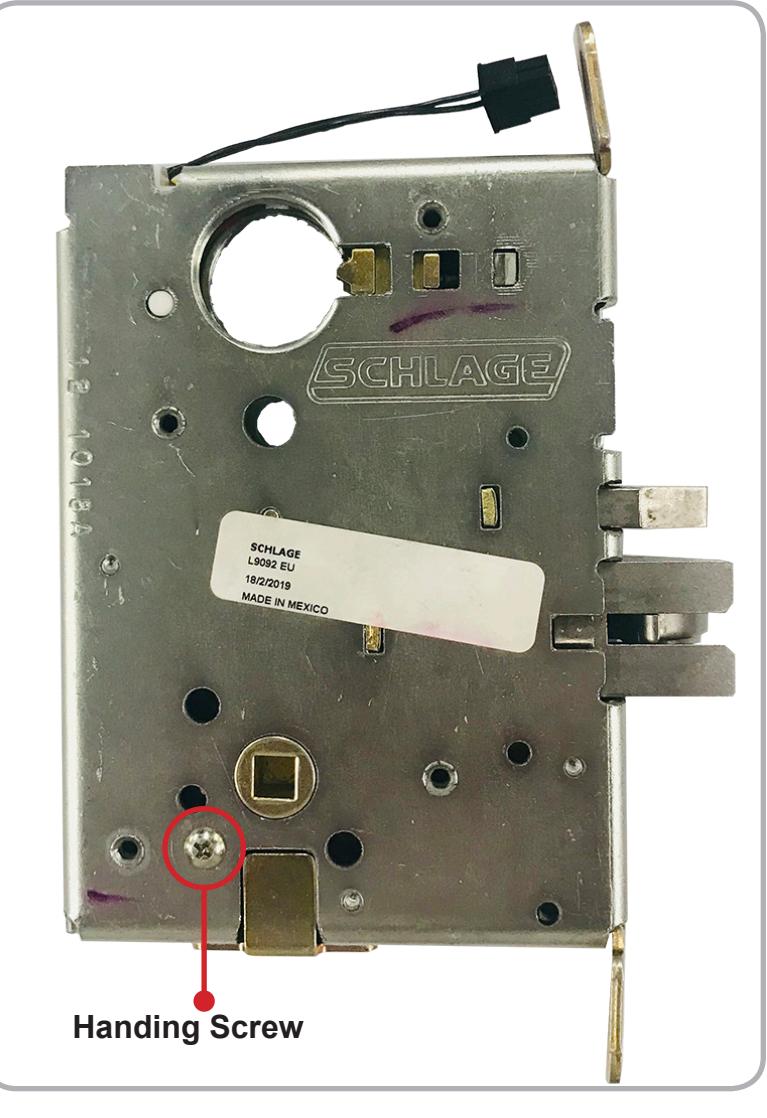

1 Determine what will be the inside lever of your lock body by locating the Handing Screw . This will be the side that your REX Switch will need to be installed on.

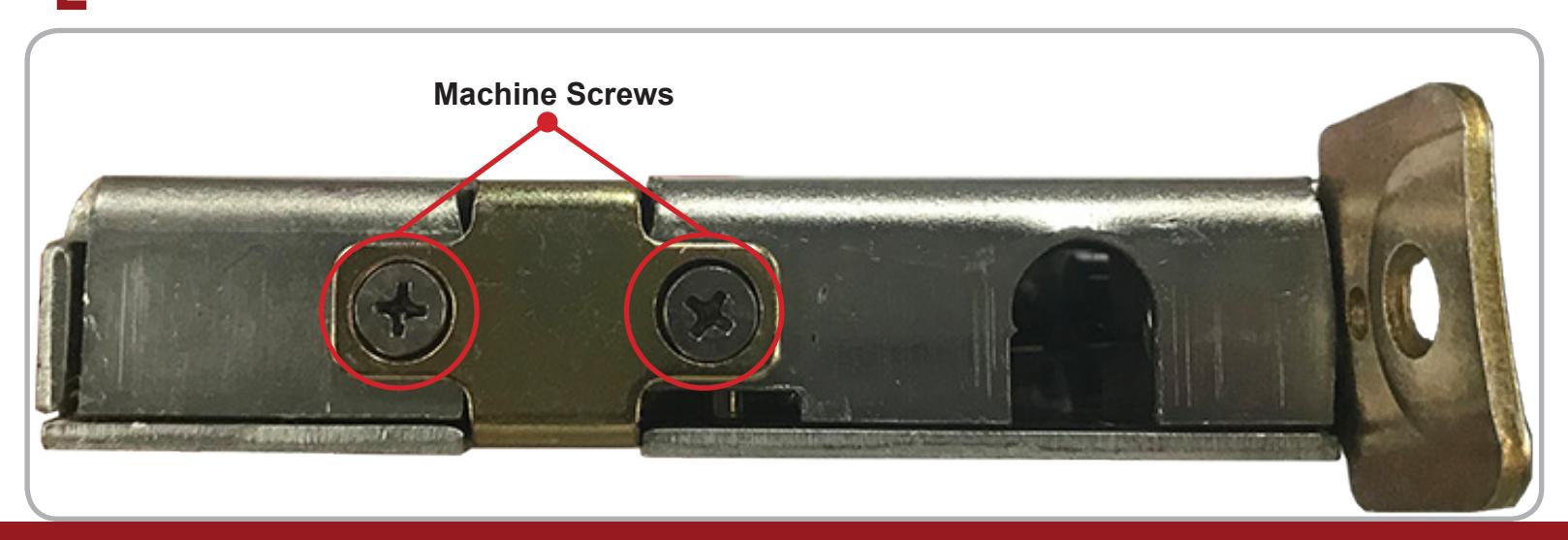

2 Remove the two Machine Screws on the underside of the lock body.

installation instructions

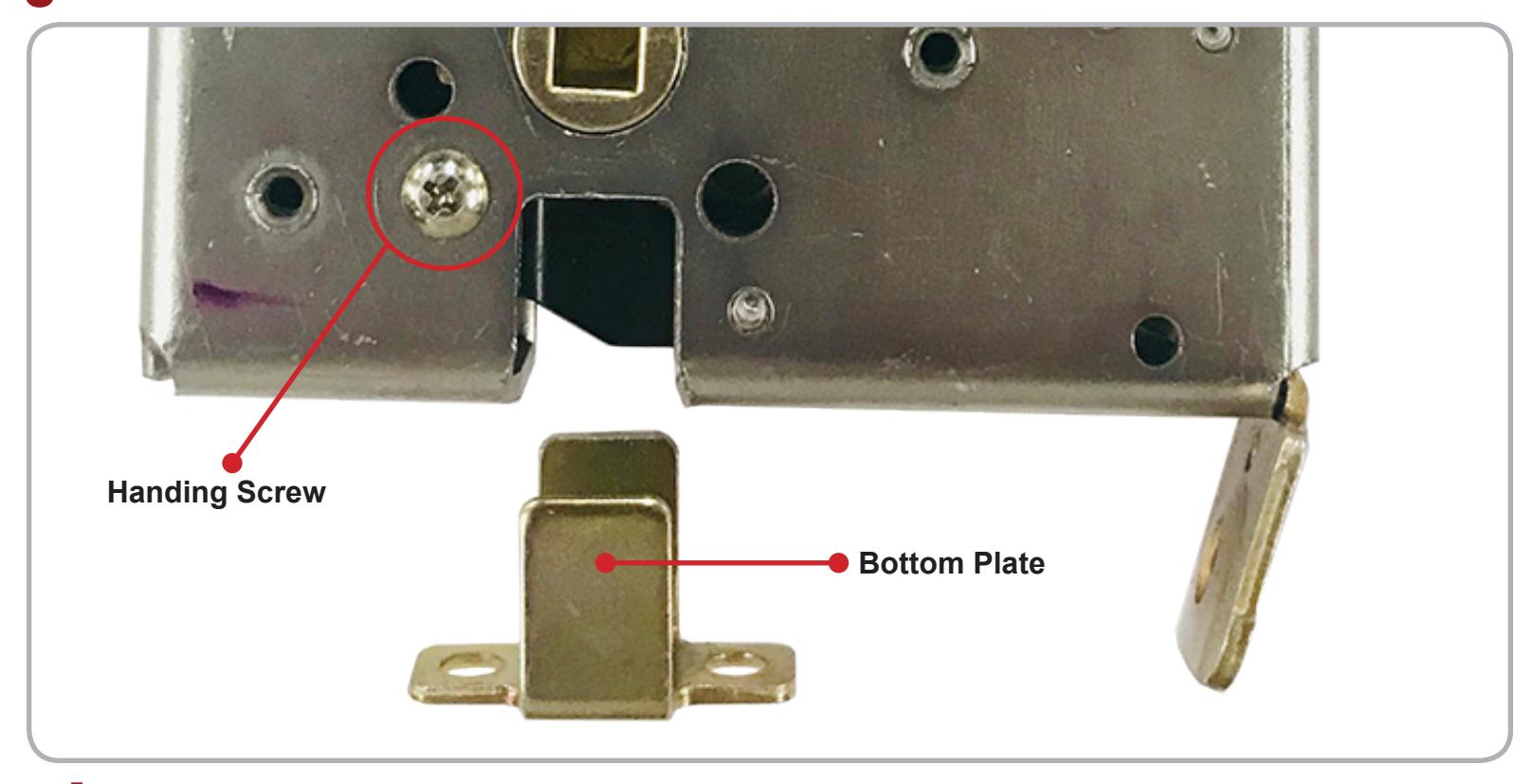

3 Remove the Bottom Plate from the lock body and ensure that you have the Handing Screw facing up.

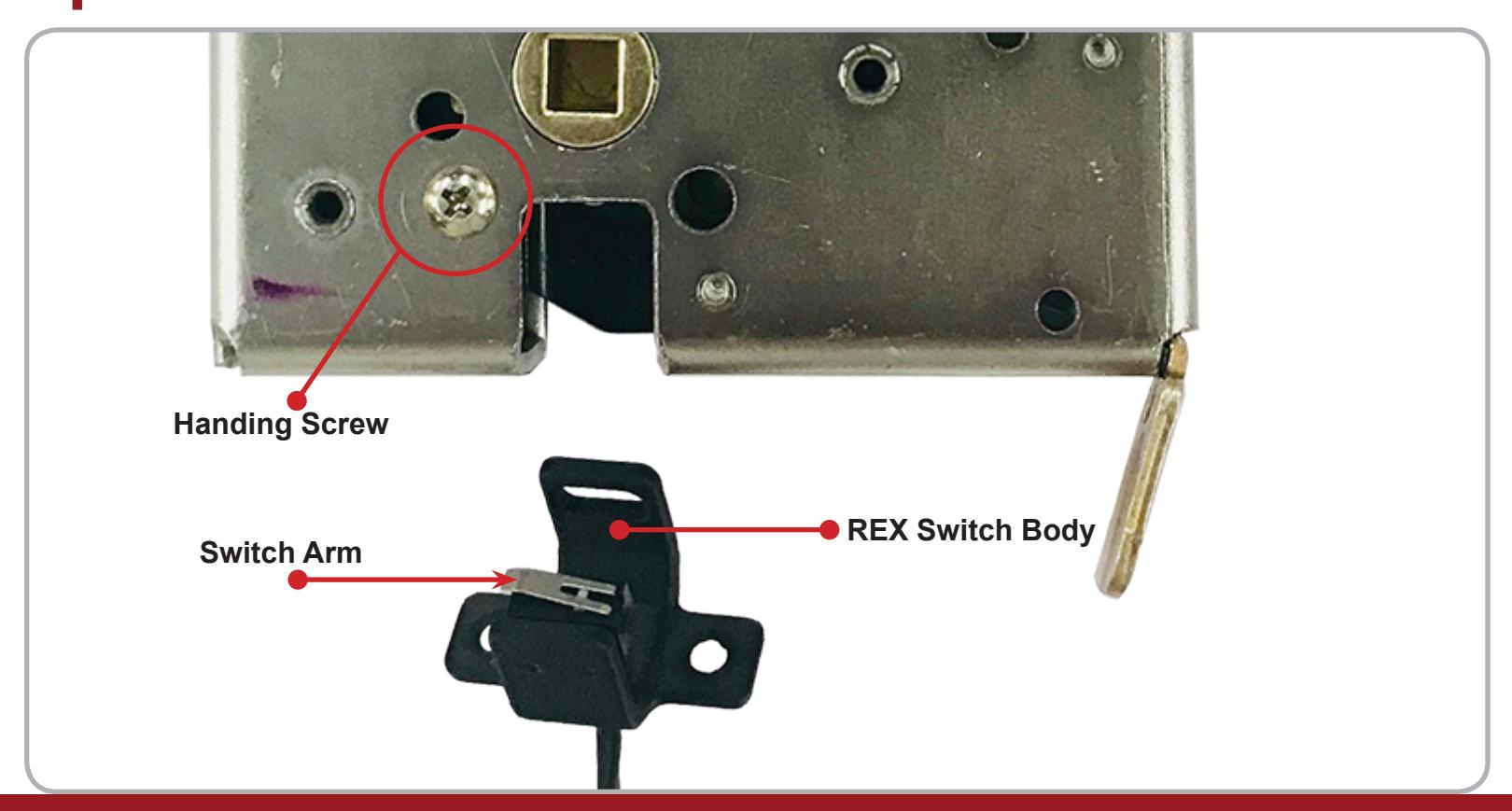

4 Install the REX Switch Body, with the REX Switch Arm on the same side of the Handing Screw .

installation instructions

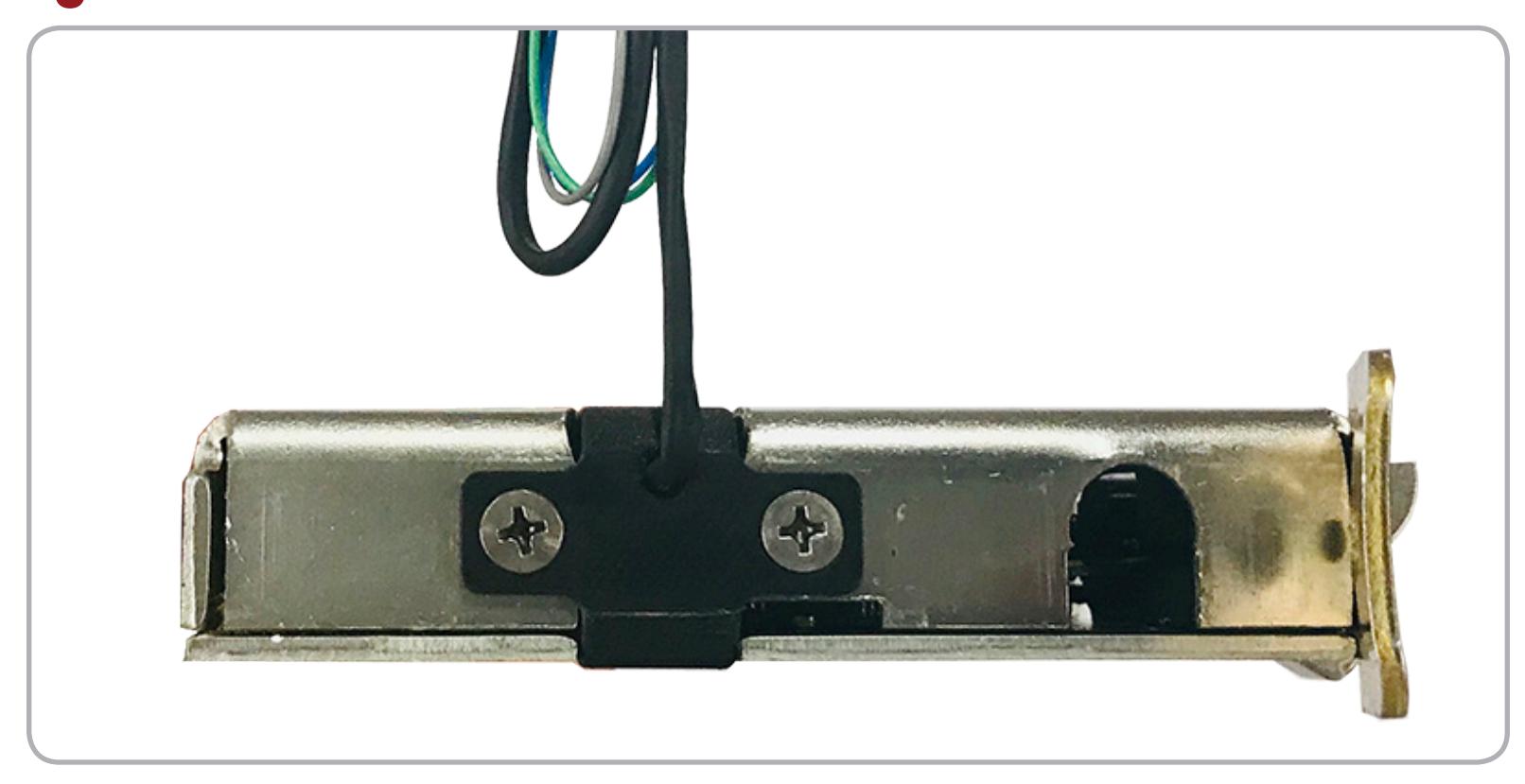

5 Reinstall the two Machine Screws on the underside of the lock body.

Link to Command Access

website and instructions SPECIFICATIONS:

• • Single Pole Double Throw (SPDT)
• • Rating: .5A @24VAC
• • Configuration: Green Common (C)

Blue - Normally Open (NO) Gray - Normally Closed (NC)
