SCHREXKIT-ML

I N S E R T I n s t r u c t i o n s

Field Installable Request to Exit switch for Schlage L9000 series mortise locks. The kit's easy "drop-in" installation adds a signal to alert the control panel that the door is about to be opened by someone exiting from within the secured area. This switch is SPDT (single pull, double throw).

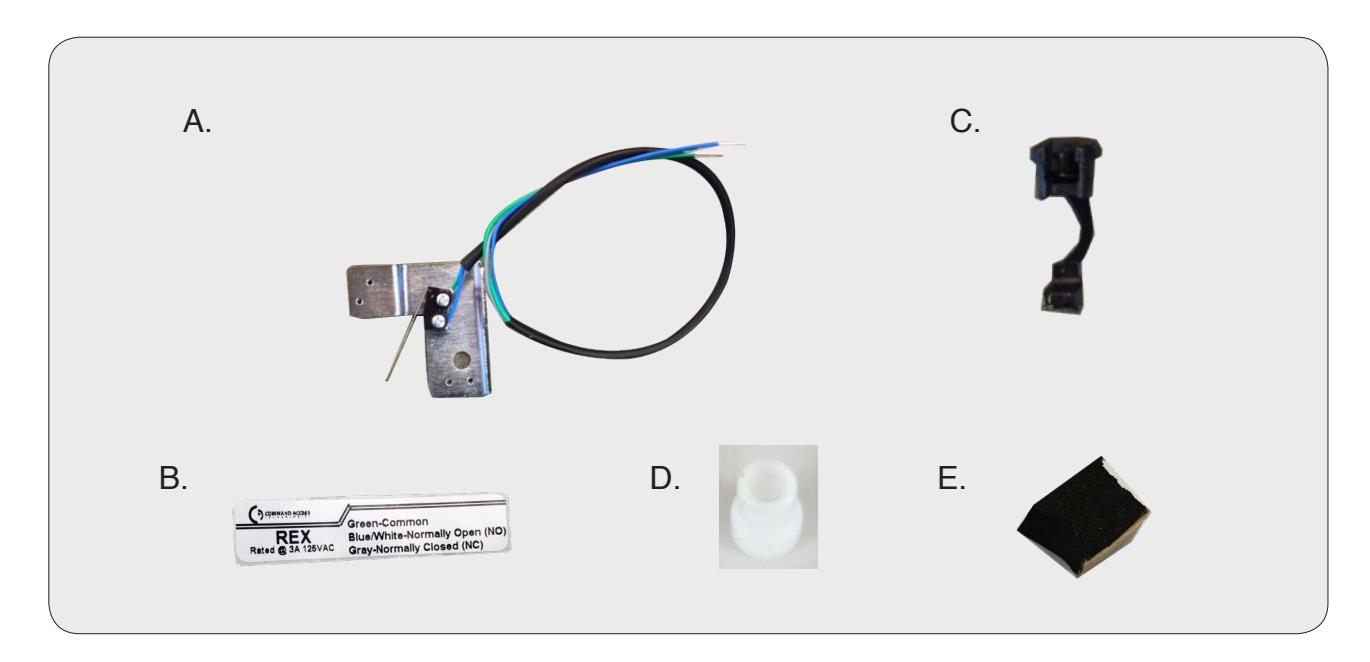

• A. 1 REX Bracket
• B. 1 REX Sticker
• C. 1 Strain Relief (40243)
• D. 1 Fire Door Fuse
• E. 1 Foam Pad (40495)

Kit Includes Tools Required

Schlage L9000 Schlage L909x

1

INSTALLATION INSTRUCTIONS

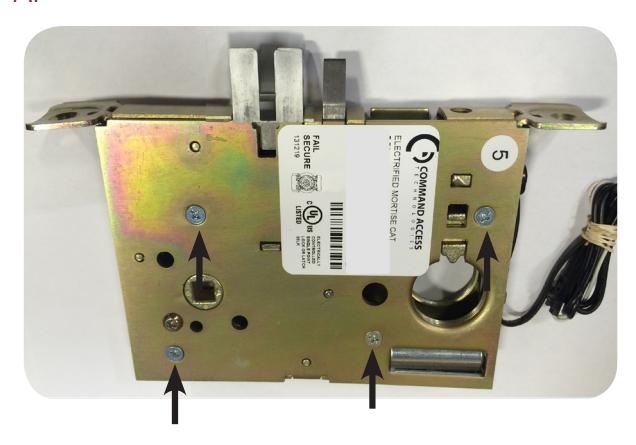

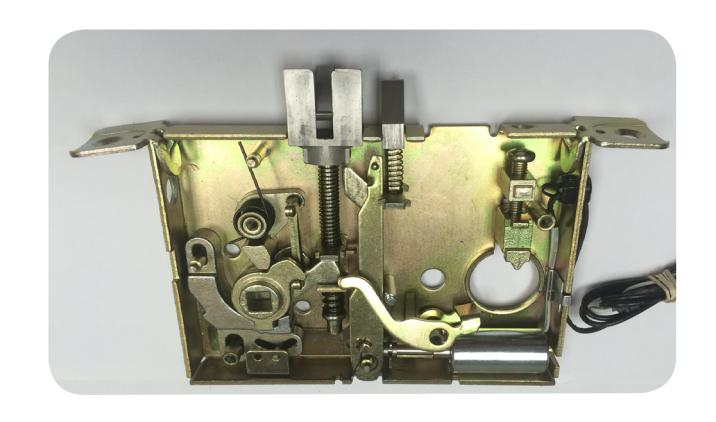

A. REMOVE COVER PLATE (4 SCREWS).

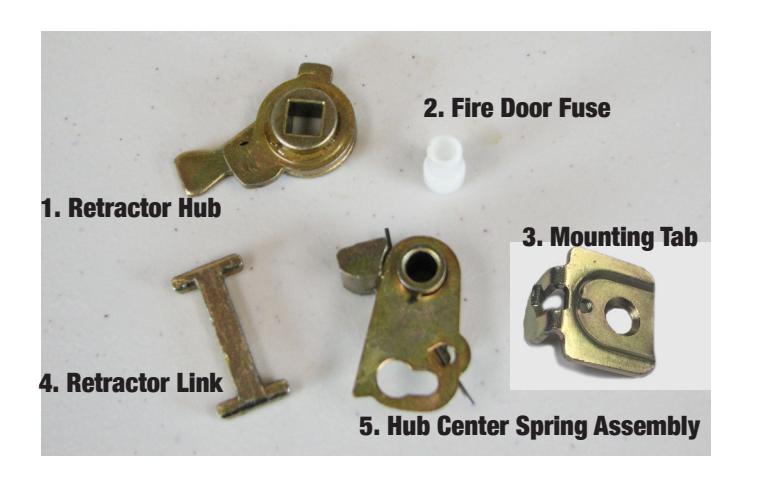

REMOVE THE FOLLOWING ITEMS:

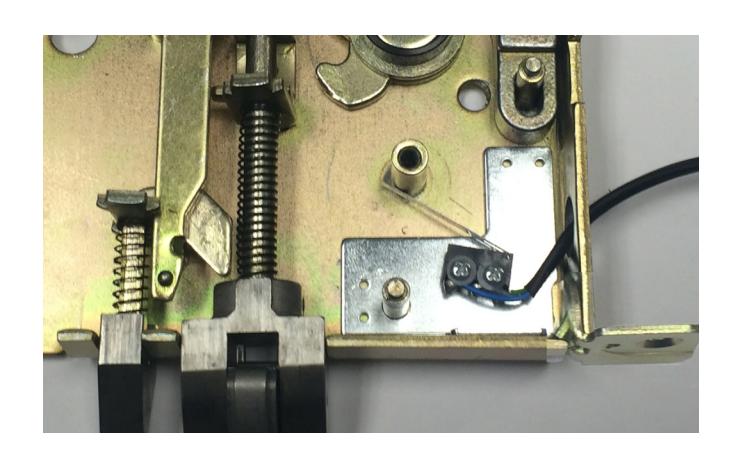

G. PLACE REX BRACKET OVER POST & REPLACE MOUNTING TAB (3) TO SECURE BRACKET.

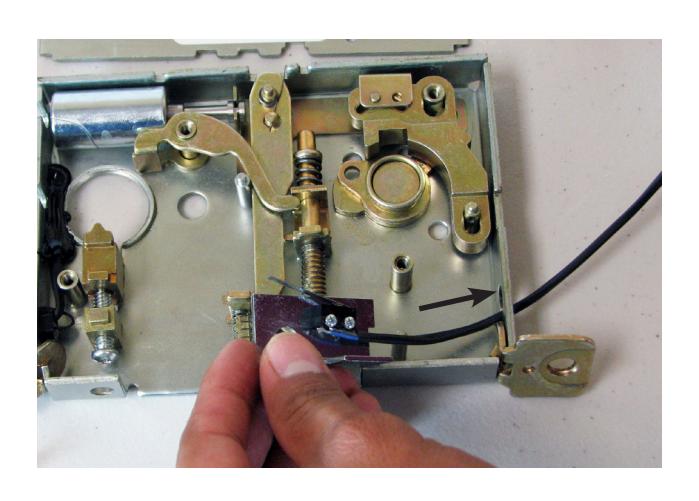

$\backslash ensuremath\{\backslash mathsf\{D\}\}\_\{\backslash ensuremath\{\backslash mathsf\{I\}\}\}$ FISH WIRES THROUGH THE BOTTOM HOLE IN THE LOCK BODY.

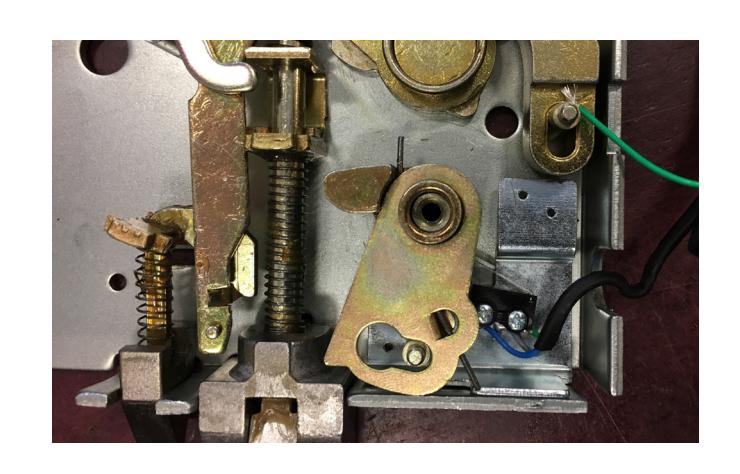

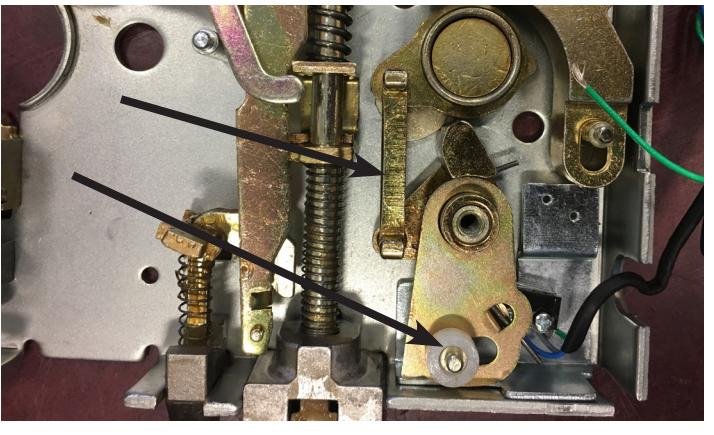

G. REPLACE HUB CENTER SPRING ASSEMBLY (5). LINE UP & PLACE OVER POSTS SO (5) LIGHTLY RESTS ON SWITCH

INSTALLATION INSTRUCTIONS

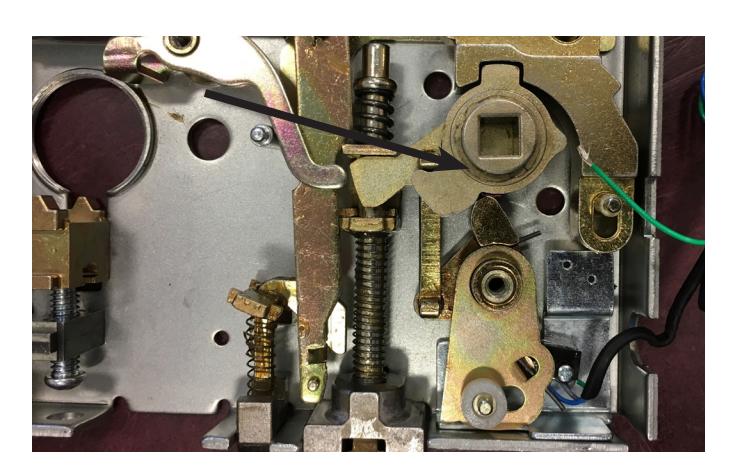

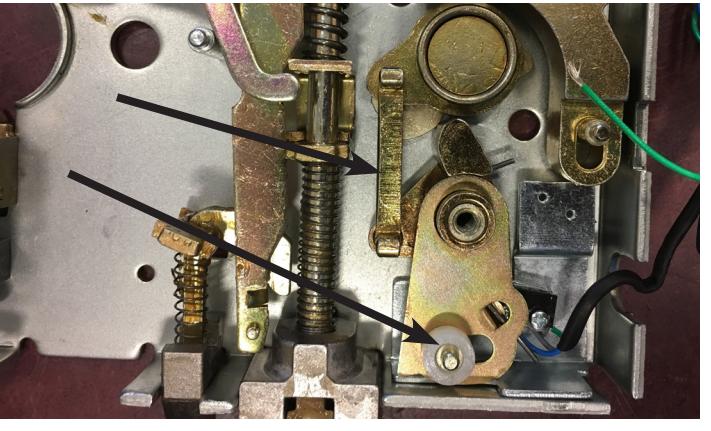

COMBINE FIRE LINK & NEW FIRE DOOR FUSE (B) TOGETHER LINE UP & PLACE OVER POSTS SO IT LIGHTLY REST ON SWITCH ROTATE FIRE LINK BY PUSHING TAB CLOCKWISE

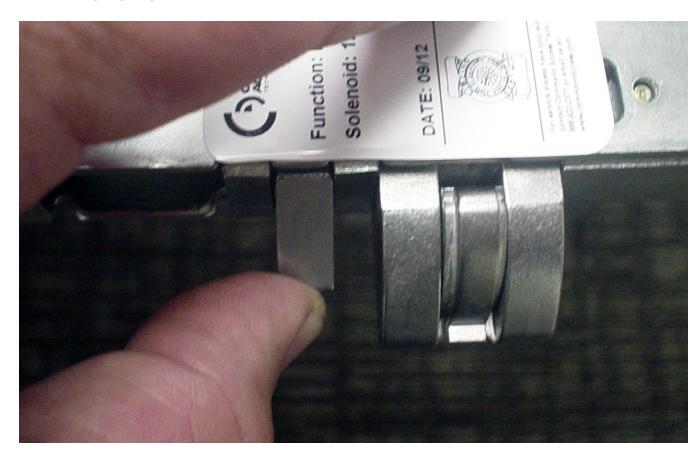

REPLACE COVER. IF NEEDED PULL ON ANTI-PIC & PUSH LATCHBOLT TO HELP CASE SLIP TOGETHER. TEST THAT LATCHBOLT & ANTI-PICK FUNCTION

RE-INSTALL COVER & TIGHTEN 4 SCREWS. PLEASE WIRING CODE STICKER ON CASE.

H. ADD RETRACTOR HUB (1)

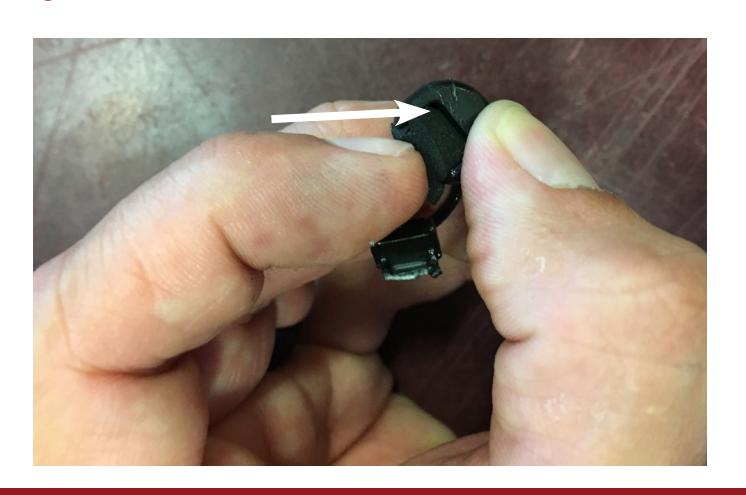

$\{\backslash sf\; G\}.$ INSTALL STICKY SIDE OF FOAM INTO OPENING OF THE STRAIN RELIEF.

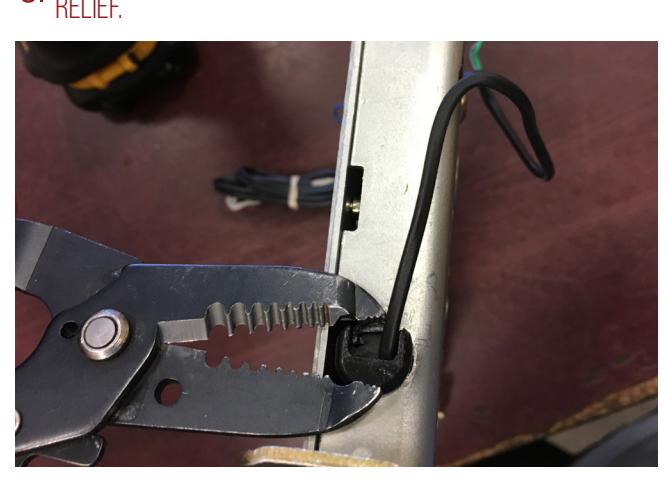

PULL SLACK OUT OF THE SWITCH WIRES AND INSTALL STRAIN RFI IFF.

Green-Common Blue-Normally Open (NO) Gray-Normally Closed (NC)
