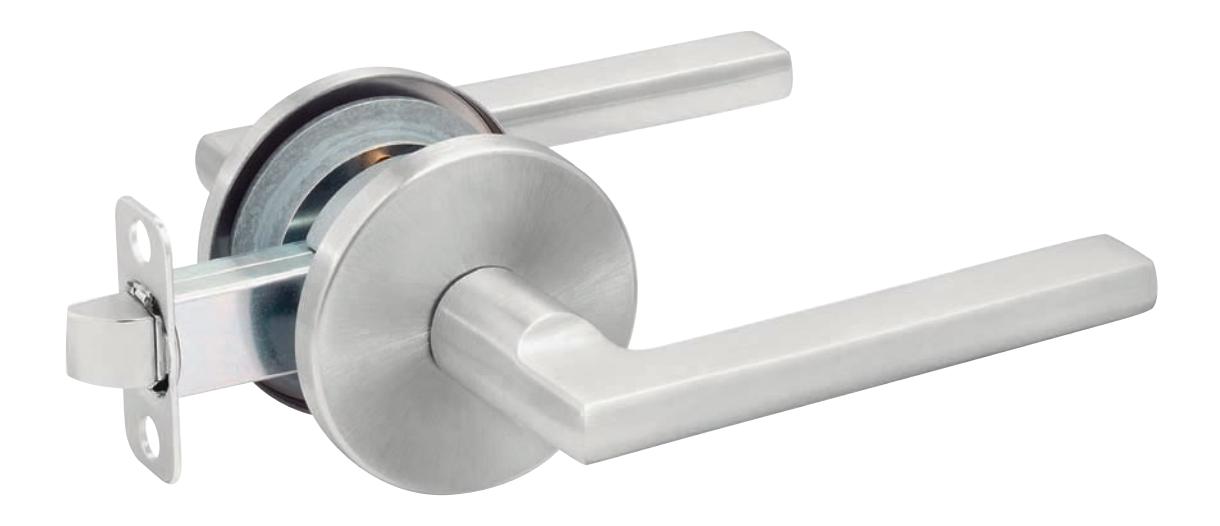

DL Series Parts Manual

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

SARGENT

ASSA ABLOY

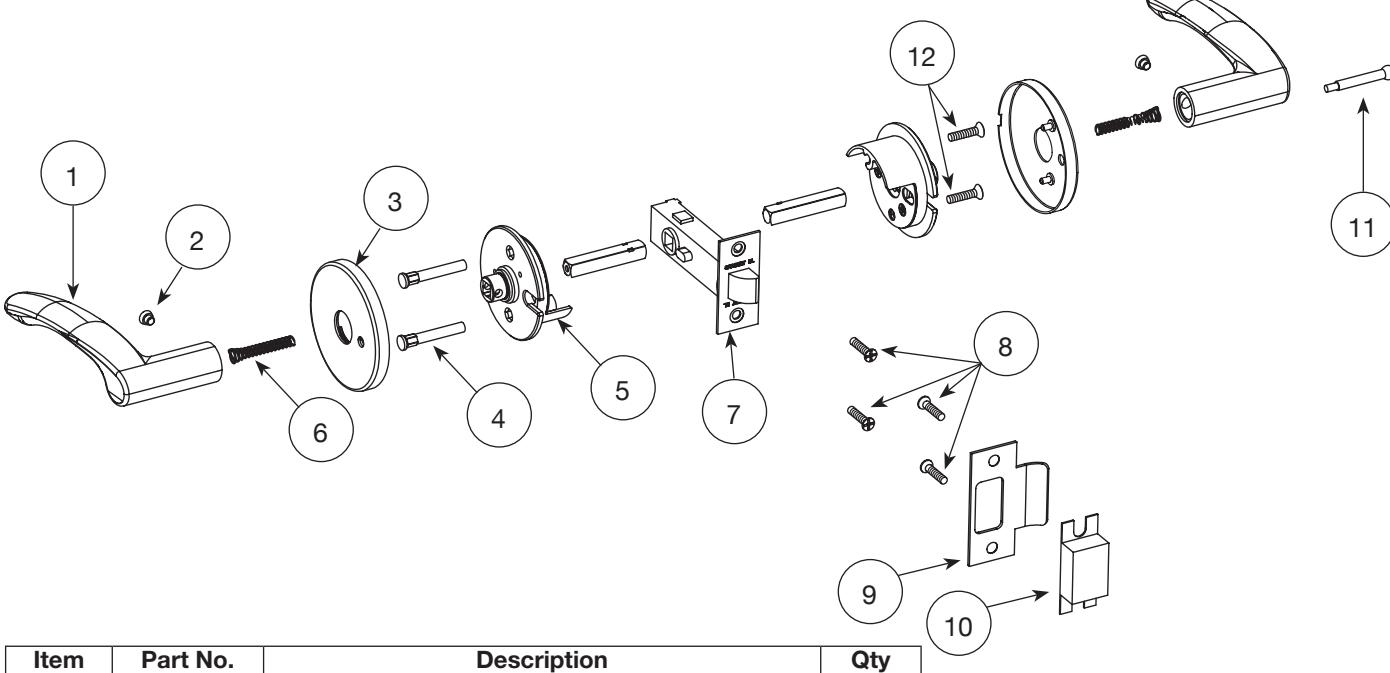

Item	Part No.	Description Lever (see page 3)
1	_
2	82-1038	Set Screw	2
	DL-2053*	Rose Assembly CO Design (15 Function)
	DL-2054*	Rose AssemblyCO Design (65 Function)
	DL-2055*	Rose Assembly TO Design (15 Function)
	DL-2056*	Rose Assembly TO Design (65 Function)
	DL-2057*	Rose Assembly O Design (15 Function)
0	DL-2058*	Rose Assembly O Design (65 Function)
3	DL-2059*	Rose Assembly LN Design (93 & 94 Functions Only)	_
	DL-2060*	Rose Assembly CR Design (93 & 94 Functions Only)	_
	DL-2061*	Rose Assembly TR Design (94 & 94 Functions Only)	_
	DL-2113*	Rose Assembly E2 Design (15 Function)	2
	DL-2114*	Rose Assembly E2 Design (65 Function)	2
	DL-2115*	Rose Assembly E2 Design (93 & 94 Functions Only)	2
4	82-0017	Mounting Post
	DL-2005	Spring Housing	2
5	DL-0091	Mounting Plate (93 & 94 Functions Only)	_
5	DL-2006*	Mounting Assembly/Blank Rose (15-3 Function)
	82-4022*	Thru-bolt Plate Assembly (TB-93 Function)
6	82-0347	Lever Springs
	DL-5007*	Latch 2-3/4" Backset (15 Function)	1
7	DL-5008*	Latch 2-3/4" Backset (65 Function)	1
1	DL-5009*	Latch 2-3/8" Backset (15 Function)	1
	DL-5010*	Latch 2-3/8" Backset (65 Function)	1
8	08-3788*	T-Strike Screw Pack	1
	08-2853	28- Prefix Screw Pack (not shown)	1
	800*	Standard T-Strike	1
9	808*	28- Prefix ANSI Strike (not shown)	1
	505*	13- or 14- Prefix Full Lip Strike (not shown)
10	AM-0044	Wrought Box Strike 1
11	DL-0023*	Push Button (65 Function Only)
12	DL-2020	Mounting Post Screw Pack 1

^* Specify Finish

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine SARGENT product. Copyright © 2019-2020, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express written permission of SARGENT Manufacturing Company is prohibited.

03/20

Studio Collection® and Standard Levers Non-Handed Levers w/o Returns

Design	Hand	Inside and/or Outside Lever
MA	N/A	82-0802
MB	N/A	82-0805
MC	N/A	82-0808
MD	N/A	82-0811
ME	N/A	82-0814
MF	N/A	82-0817
MI	N/A	82-0829
MJ	N/A	82-0832
MO	N/A	82-0859
MP	N/A	82-0862
B	N/A	DL-0042
E	N/A	DL-0043
F	N/A	DL-0044
J	N/A	DL-0045
L	N/A	DL-0046
P	N/A	DL-0047
W	N/A	DL-0048
R	N/A	DL-0049

Gramercy

Design	Hand	Inside and/or Outside Lever
REM	N/A	RW-2001
RGM	N/A	RW-2025
RCM	N/A	RW-2005
RAL	N/A	RW-2021
RAM	N/A	RW-2009
RAS	N/A	RW-2017
RAW	N/A	RW-2013
RAG	N/A	RW-2029

Handed Levers

Design	Hand	Inside and/or Outside Lever
	RH	82-0823
MH	LH	82-0826
	RH	82-0835
MK	LH	82-0838
	RH	82-0847
MM	LH	82-0850
	RH	82-0853
MN	LH	82-0856
	RH	82-0865
MQ	LH	82-0868
	RH	82-1242
MS	LH	82-1241
	RH	82-0880
MT	LH	82-0883
	RH	82-1250
MU	LH	82-1249
	RH	82-0892
MV	LH	82-0895
	RH	DL-0040
A	LH	DL-0041
	RH	DL-0051
S	LH	DL-0052
	RH	DL-0053
G	LH	DL-0054
	RH	DL-0055
Y	LH	DL-0056

Levers with Returns

Design	Hand	Inside and/or Outside Lever
MG	N/A	82-0820
MW	N/A	82-0898
	RH	82-1089
MX	LH	82-1086
	RH	82-1077
MY	LH	82-1074
	RH	82-1083
MZ	LH	82-1080
ND	N/A	82-0908
NF	N/A	82-1276
NJ	N/A	82-0914
	RH	82-0905
NS	LH	82-0902
	RH	82-1068
NU	LH	82-1065

Wooster Square and Grant Park

Design	Hand	Inside and/or Outside Lever
H001	N/A	82-1581
H002	N/A	82-1584
H003	N/A	82-1587
H004	N/A	82-1587
H005	N/A	82-1590
H006	N/A	82-1590
H007	N/A	82-1593
	RH	82-1597
H008	LH	82-1598
H009	N/A	82-1602
H010	N/A	82-1605
H011	N/A	82-1608

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
