For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

	PARTS	LIST

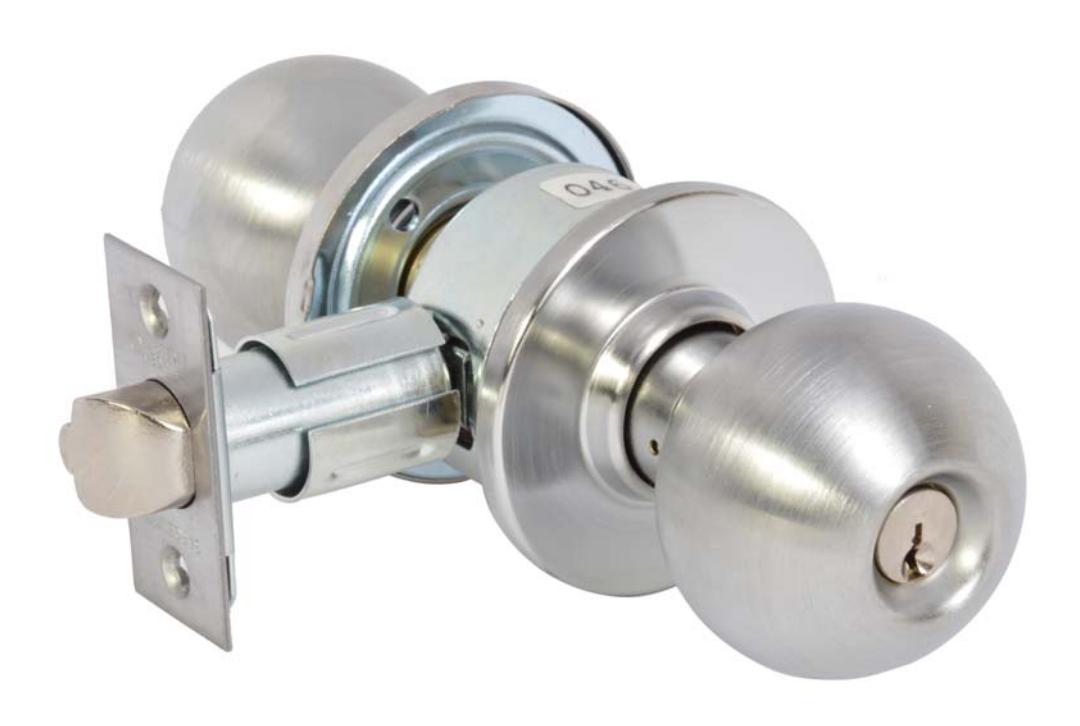

6 Line Knob/Lever Lock	PAGE NO. 6.0	REV. C 8/1/03

SHADED KNOB MEANS RIGID AT ALL TIMES HALF SHADED KNOB MEANS RIGID WHEN LOCKED SPECIFIED SIDE MAY BE FURNISHED WITH SL LEVER HANDLE

PARTS LIST

PAGE NO. REV. C 6.1 8/1/03

6 G 04

STOREROOM, CLOSET

6 G 24

ENTRY, OFFICE

6U65

PRIVACY, BATHROOM

6 G 05

ENTRANCE, OFFICE

6 G 37

CLASSROOM

6G75-2

TWIN COMMUNICATING

6U15

PASSAGE

6G38-2

TWIN COMMUNICATING EXIT

6U93

SINGLE KNOB PULL

6G15-3

TWIN COMMUNICATING

6 G 50

HOTEL

6U94

DOUBLE KNOB PULL

6 Line Knob/Lever Lock Parts List Page No. 6.3 Rev. D 6/01/12

	Item	Part No.	Description
1	Key	Varies
2	Push Pin	See Screw Packs
3	Outside Knob	06-0500	B Design cylinder – Standard
		06-0501	B Design Push Button
		06-0502	B Design Plain/Passage
		06-0503	S Design Cylinder – Standard
		06-0603 (LH) 06-0604 (RH)	S Design Cylinder – Removable Core
		06-0504	S Design Push Button
		06-0505	S Design Plain/Passage
	Outside Lever	06-5181	SL Design Plain/Passage
		06-5182	SL Design Push Button
4	Cylinder	Varies
5	Knob Ferrule	06-0512	B Design
		06-0528	S Design
6	Outside Rose	06-5005	B Design
	Assembly	06-5006	O Design
7	Lockbodies	06-5039	6G04 Lockbody
	B Knob	06-5040	6G05 Lockbody
		06-5011	6U15 Lockbody
		06-5017	6G15-3 Lockbody
		06-5041	6G24 Lockbody
		06-5240	6G37 Lockbody
		06-5241	6G38-2 Lockbody
		06-5043	6G50 Lockbody
		06-5044	6U65 Lockbody
		06-5045	6G75-2 Lockbody
	Lockbodies	06-5016	6G04 Lockbody
	S Knob/SL Lever	06-5012	6G05 Lockbody
		06-5011	6U15 Lockbody
		06-5017	6G15-3 Lockbody
		06-5013	6G24 Lockbody
		06-5215	6G37 Lockbody
		06-5018	6G38-2 Lockbody
		06-5189	6G50 Lockbody
		06-5019	6U65 Lockbody
		06-5020	6G75-2 Lockbody
	Lockbodies	06-5149 (LH) 06-5150 (RH)	6G04 Lockbody
	Removeable Core	06-5151 (LH) 065152- (RH)	6G05 Lockbody
	(S Knob)	06-5153 (LH) 06-5154 (RH)	6G24 Lockbody
		06-5217 (LH) 06-5218 (RH)	6G37 Lockbody
		06-5188 (LH) 06-5189 (RH)	6G50 Lockbody

6 Line Knob/Lever Lock Parts List Page No. 6.3 Rev. D 6/01/12

	Item	Part No.	Description
8	Latchbolts	06-5083 Guarded 06-5225 Unguarded	2-3/8" Backset – 2-1/4" x 1"
		06-5085 Guarded 06-5227 Unguarded	2-3/8" Radius Corner – 2-1/4" x 1"
		06-5094 Guarded 06-5231 Unguarded	2-3/4" Backset – 2-1/4" x 1-1/8"
		06-5102 Guarded 06-5234 Unguarded	2-3/4" Backset – 2-1/4" x 1"
		06-5096 Guarded 06-5232 Unguarded	3-3/4" Backset – 2-1/4" x 1"
		06-5100 Guarded Drive-in Latchbolt
9	Flat Head Screws	See Screw Packs
10	Strikes	600 Kit	Standard Strike
		506 Kit	Full Lip Strike
		808 Kit	4-7/8" Strike
11	Strike Box	Provided with Screw Pack	Standard Strike Box
		77-1141	4-7/8" Strike Box
12	Mounting Plate	06-5003	B&O Rose
13	Mounting Screws	See Screw Pack
14	Inside Rose	06-0532	B Design
		06-0533	O Design
15	Inside Knob	06-0500	B Design cylinder – Standard
		06-0501	B Design Push Button
		06-0502	B Design Plain/Passage
		06-0503	S Design Cylinder – Standard
		06-0603 (LH) 06-0604 (RH)	S Design Cylinder – Removable Core
		06-0504	S Design Push Button
		06-0505	S Design Plain/Passage
	Inside Lever	06-5182	SL Design Push Button
		06-5181	SL Design Plain/Passage
