SARGENT 2900 Series Parts Manual

2900 Series Parts Manual

For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

Table of Contents

2960, 2970, 29803
2991, 2992, 2993, 2994, 29954
80-Prefix Hold Open By-Pass Switch5

whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

Copyright © 2022 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in

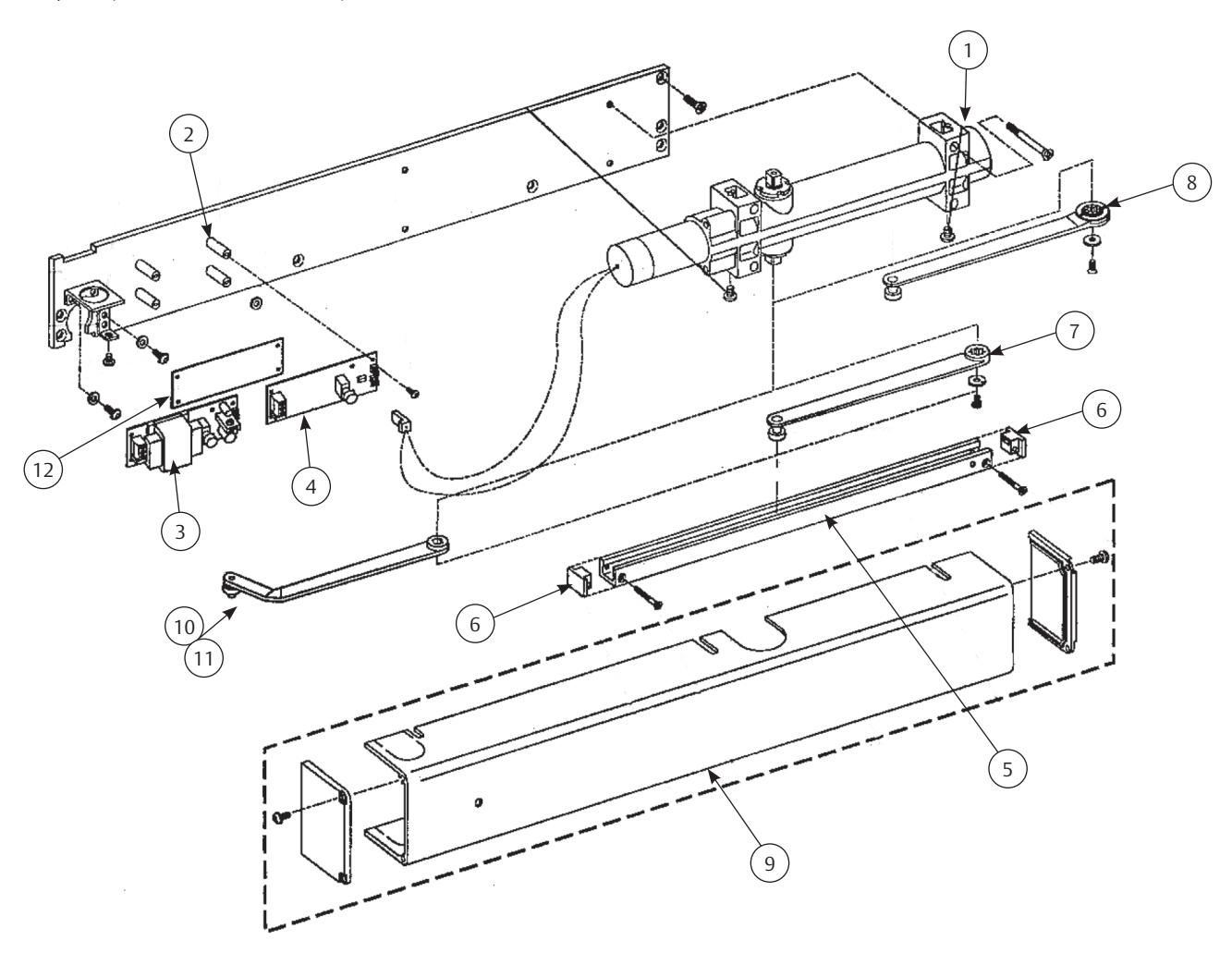

Item	Part No.	Description
1	63-3719	Closer body assembly
2	63-0228	Mounting post
3	63-4215	Circuit board (120 VAC)
4	63-4216	Circuit board (24 VAC/DC)
5	63-0156*	Channel package
6	63-0682*	End cap package
7	63-3688*	Rigid arm assembly (2960)
8	63-3689*	Swing-free arm assembly (2980)
9	63-3717*	Cover assembly
10	63-3653*	Double egress arm assy. LH (2970)
11	63-3654*	Double egress arm assy. RH (2970)
12	63-0303	Barrier
	63-3700*	Screw pack

^* Finish required (Finishes: EB, ED, EN, EP, EAB)

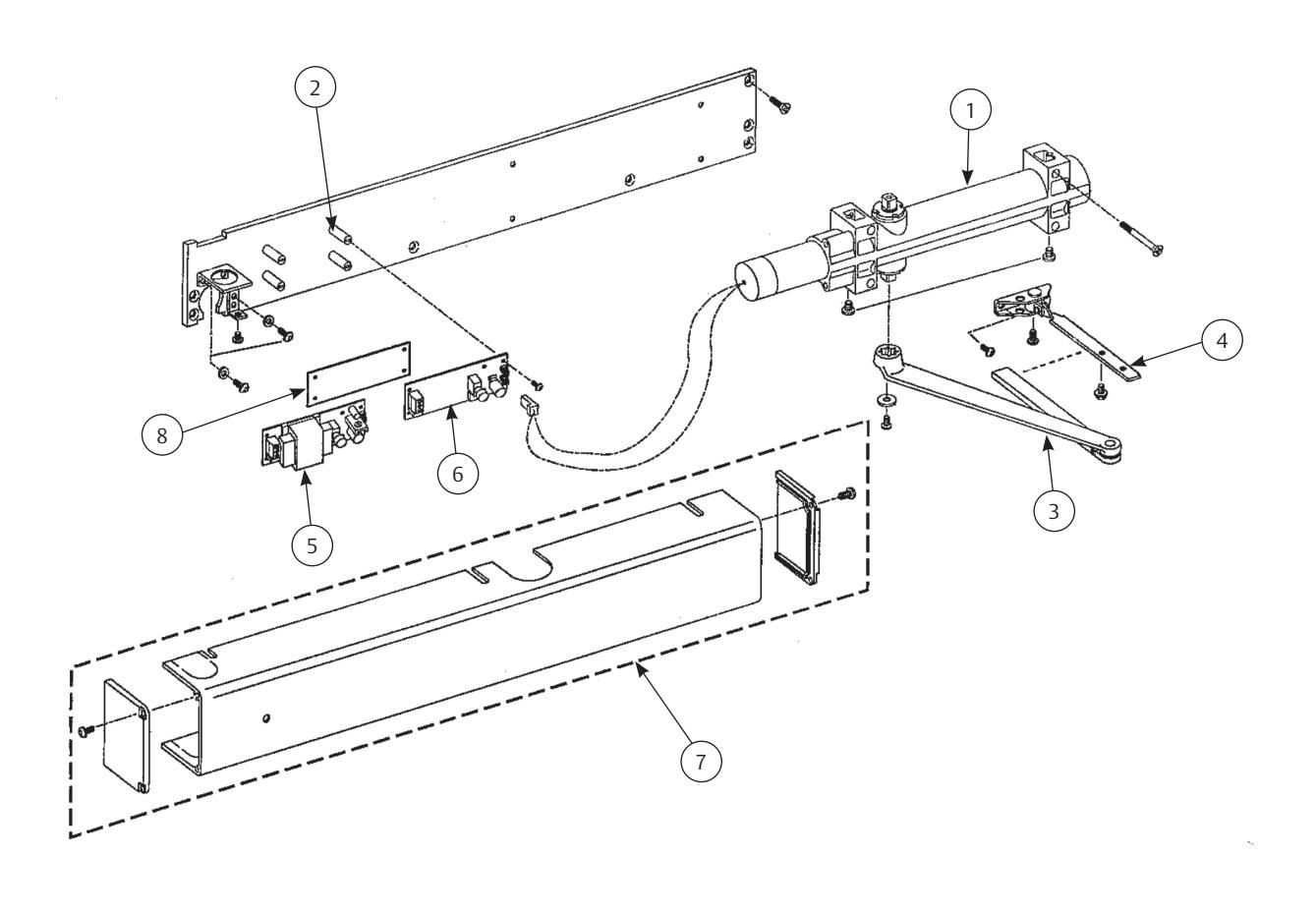

Item	Part No.	Description
1	63-3719	Closer body assembly
2	63-0228	Mounting post
	63-2607*	Main arm & link assembly (2991, 2992, 2993)
3	63-3314*	Arm assembly (2994)
	63-3315*	Arm assembly (2995)
4	63-2216*	Foot assembly (2991)
	63-2217*	Foot assembly (2992)
	63-2218*	Foot assembly (2993)
5	63-4215	Circuit board (120 VAC)
6	63-4216	Circuit board (24 VAC/DC)
7	63-3717*	Cover assembly
8	63-0303	Barrier
	63-3899*	Screw Pack

^* Finish required (Finishes: EB, ED, EN, EP, EAB)

2900 Fire Guard

80-Prefix Hold Open By-Pass Switch (Available on 2960, 2970 and 2990 Series)

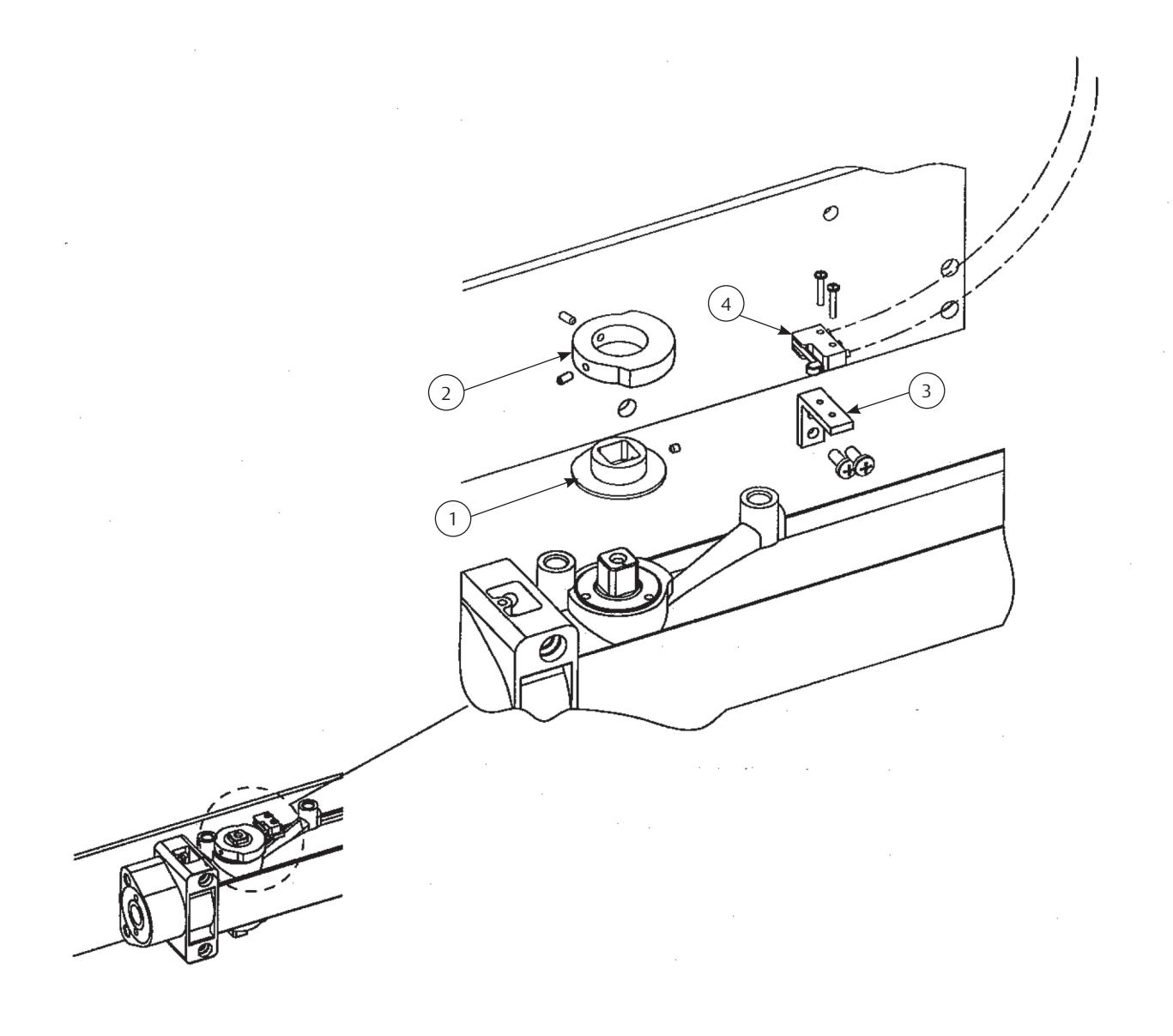

Item	Part No.	Description
1		Cam positioner
2		Cam
3		Switch bracket
4	63-3226	Cam switch & wire assembly package
	63-3787	Kit includes (1, 2, 3, 4)
