SARGENT 281 351 and 1431 Series Parts Manual
Open the original PDF document
View PDF

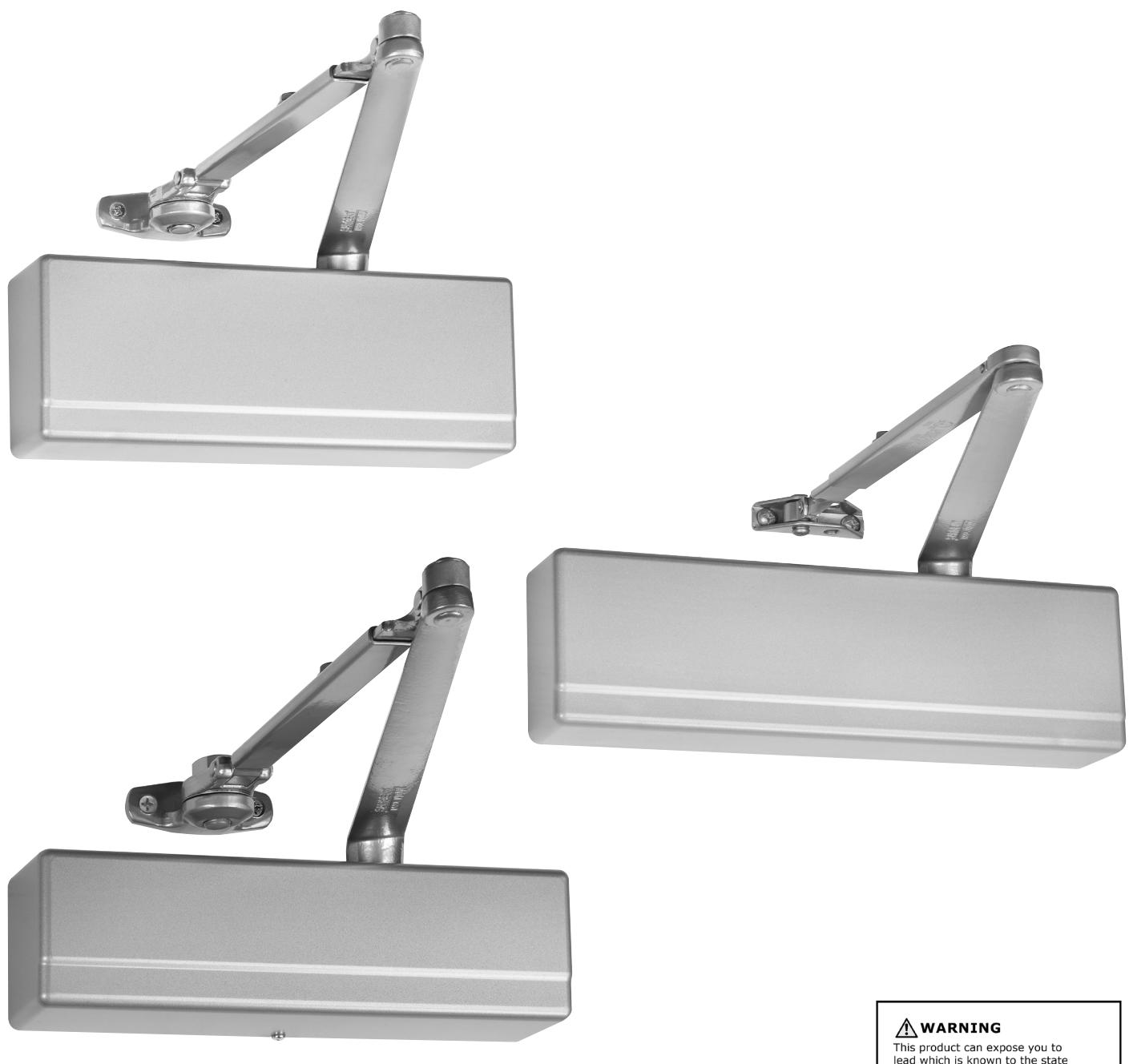

281, 351 and 1431 Series Parts Manual
For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com
Table of Contents
SARGENT ASSA ABLOY
| 281 Series Door Closer Body Assembly & Cover | 3 |
|---|---|
| 351 Series Door Closer Body Assembly & Cover | 4 |
| 1431 Series Door Closer Body Assembly & Cover | 5 |
| 25-O/OZ/OZA Regular Arm | 6 |
| 25-H / PH9 "UH" Holder Arm | 7 |
| 25-P9 Parallel Arm | 8 |
| 25-P10 Heavy Duty Parallel Arm | 9 |
| 25-CPS Heavy Duty Parallel Arm with Compression Stop | 10 |
| 25-CPSH Heavy Duty Parallel Arm with Hold Open and Compression StopStop | 11 |
| 25-PS Heavy Duty Parallel Arm with Stop | 12 |
| 25-PSH Heavy Duty Parallel Arm with Hold Open and Stop | 13 |
| 25-OT Track Type Arm, Pull Side | 14 |
| 25-OTB Track Type Arm With Bumper, Pull Side | 15 |
| 25-HT Track Type Arm With Hold Open, Pull Side | 16 |
| 25-HTB Track Type, Hold Open With Bumper, Pull Side | 17 |
| 25-POT Track Type Arm, Push Side | 18 |
| 25-POTB Track Type Arm With Bumper, Push Side | 19 |
| 25-PHT Track Type Arm With Hold Open, Push Side | 20 |
| 25-PHTB Track Type Arm, Hold Open With Bumper, Push Side | 21 |
| 25-OD Track Type Arm, Double Egress | 22 |
| 25-ODB Track Type Arm with Bumper, Double Egress | 23 |
| 25-HD Track Type Arm With Hold Open, Double Egress | 24 |
| 25-HDB Arm And Track Assembly | 25 |
| 25-OD Arm And Track Assembly | 26 |
| 25- ODB Arm And Track Assembly | 27 |
| 25- HDS Arm And Track Assembly | 28 |
| 25- HDSB Arm And Track Assembly | 29 |
| 25-OTP Pocket Application Arm & Track Assembly | 30 |
| 25-OP Pocket Arm Assembly | 31 |

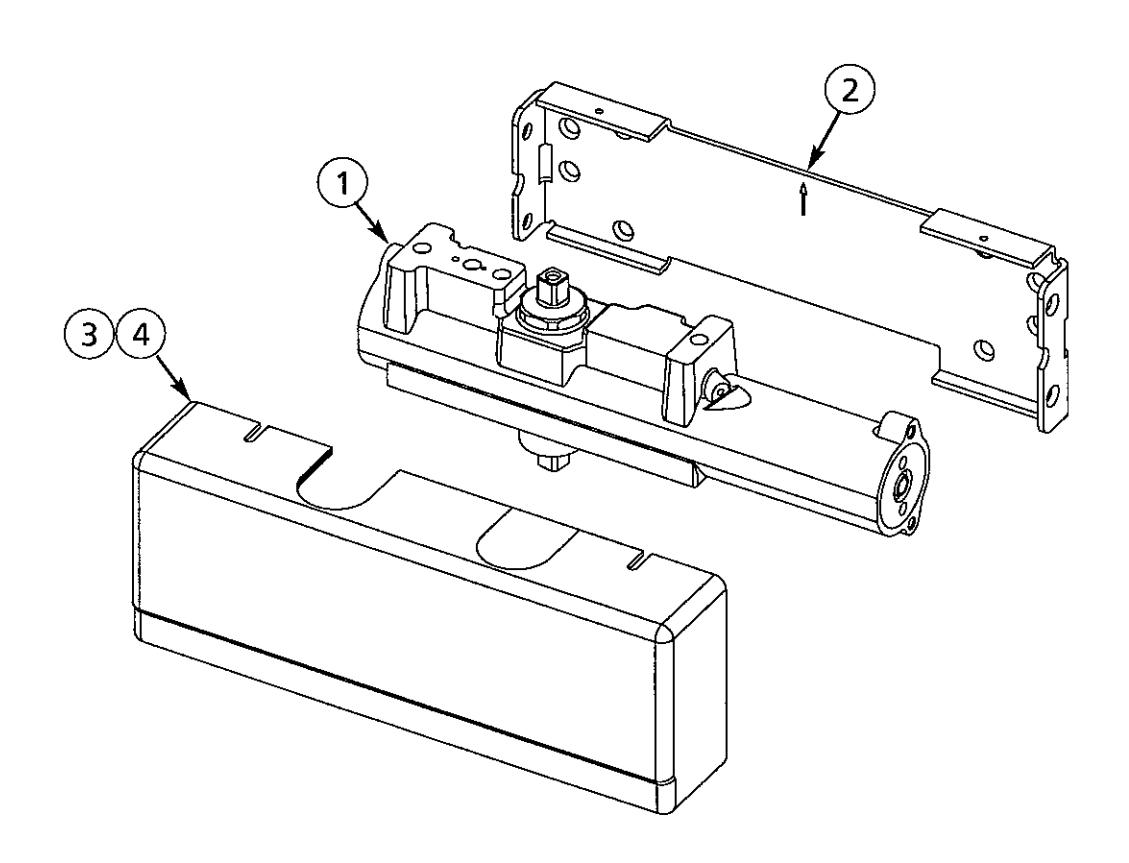

| Item | Part No. | Description |
|---|---|---|
| 281-CB* | Closer body | |
| 1 | 281DA-CB* | Delayed action closer body |
| 281-ABC-CB* | Advanced backcheck closer body | |
| 2 | 63-0555 | Mounting bracket pk |
| 3 | 281-C** | Plastic cover (non-handed) |
| 4 | 281-CMC* | Metal cover - specify LH or RH when ordering (see note) |
| 63-3481* | Screw pack |
* Finish required
** Powder coat finishes only Note: specify arm being used

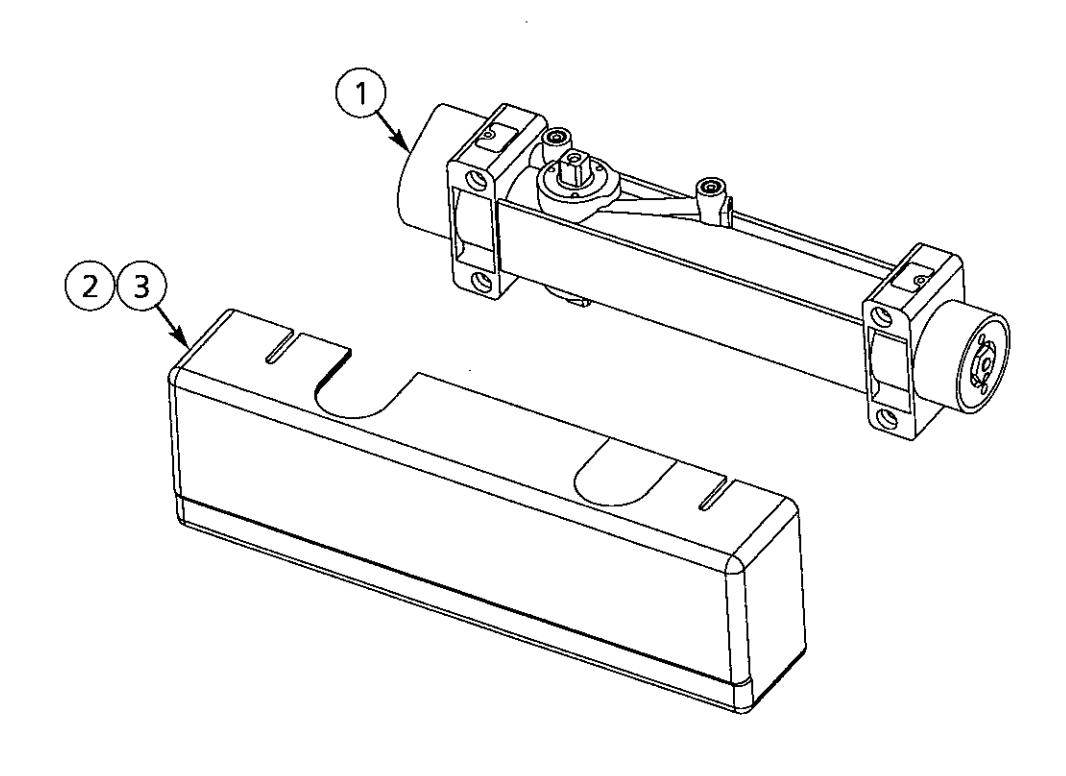

| Item | Part No. | Description |
|---|---|---|
| 351-CB* | Closer body | |
| 1 | 351DA-CB* | Delayed action closer body |
| 2 | 351-C** | Plastic cover (non-handed) |
| 3 | 351-CMC* | Metal cover - specify LH or RH when ordering (see note) |
| 63-3684* | Screw pack |
* Finish required
** Powder coat finishes only Note: specify arm being used

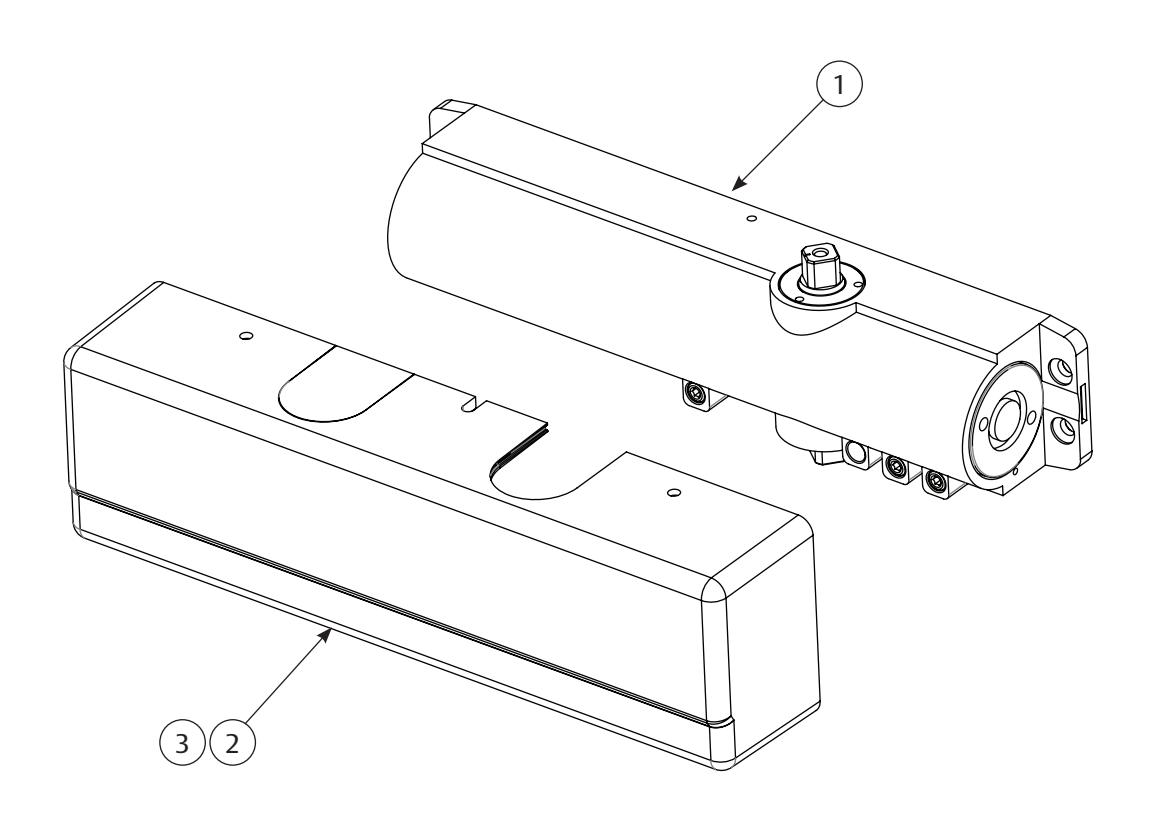

| Item | Part No. | Description |
|---|---|---|
| 1431-CB* | Closer body | |
| 1 | 1431DA-CB* | Delayed action closer body |
| 2 | 1431-C** | Plastic cover (non-handed) |
| 3 | 1431-CMC* | Metal cover - specify LH or RH when ordering (see note) |
| 64-0180 | Metal cover support | |
| 64-0175 | Plastic cover support | |
| 64-2407* | Screw pack (includes 64-0175) |
* Finish required
** Powder coat finishes only Note: specify arm being used

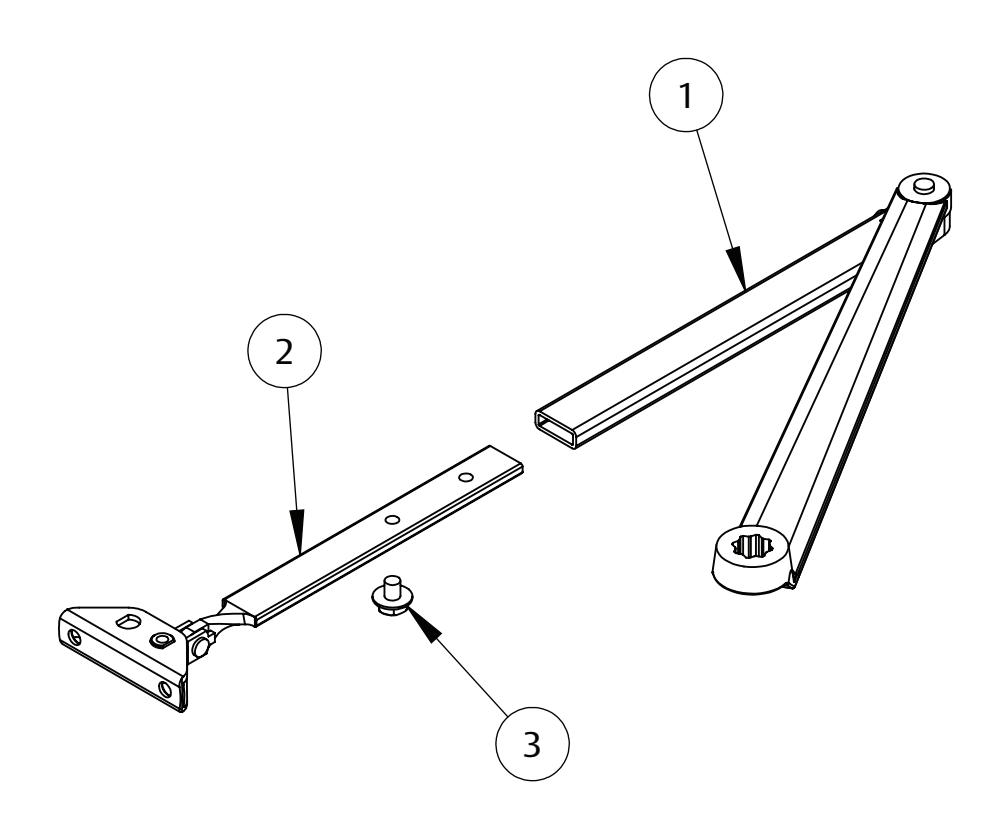

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-2607* | Main arm & link assembly |
| 63-2216* | O foot assembly (standard) | |
| 2 | 63-2217* | OZ foot assembly |
| 63-2218* | OZA foot assembly | |
| 3 | 61-0308* | Swivel arm screw |
| 63-3481* | Screw pack |
* Finish required

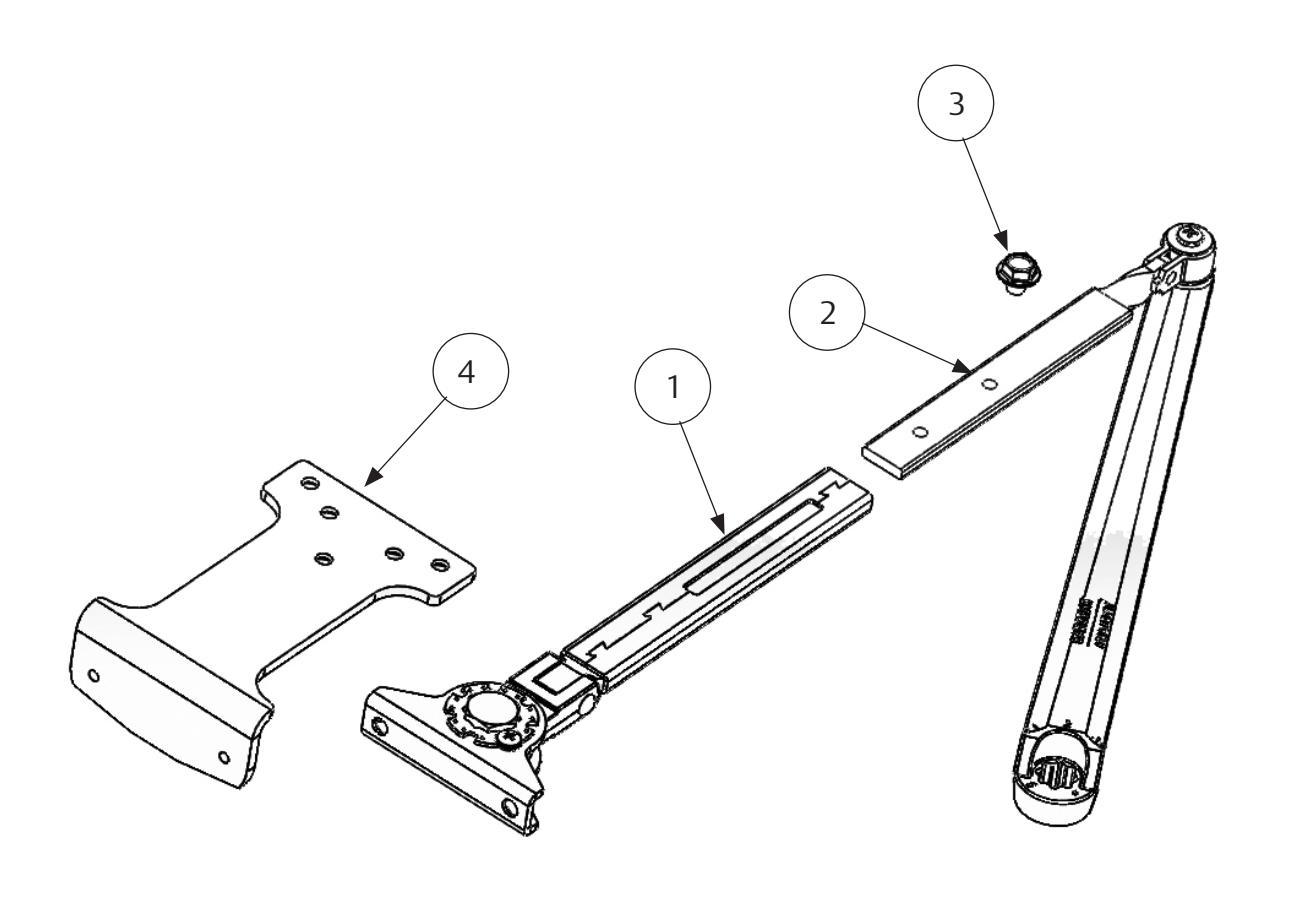

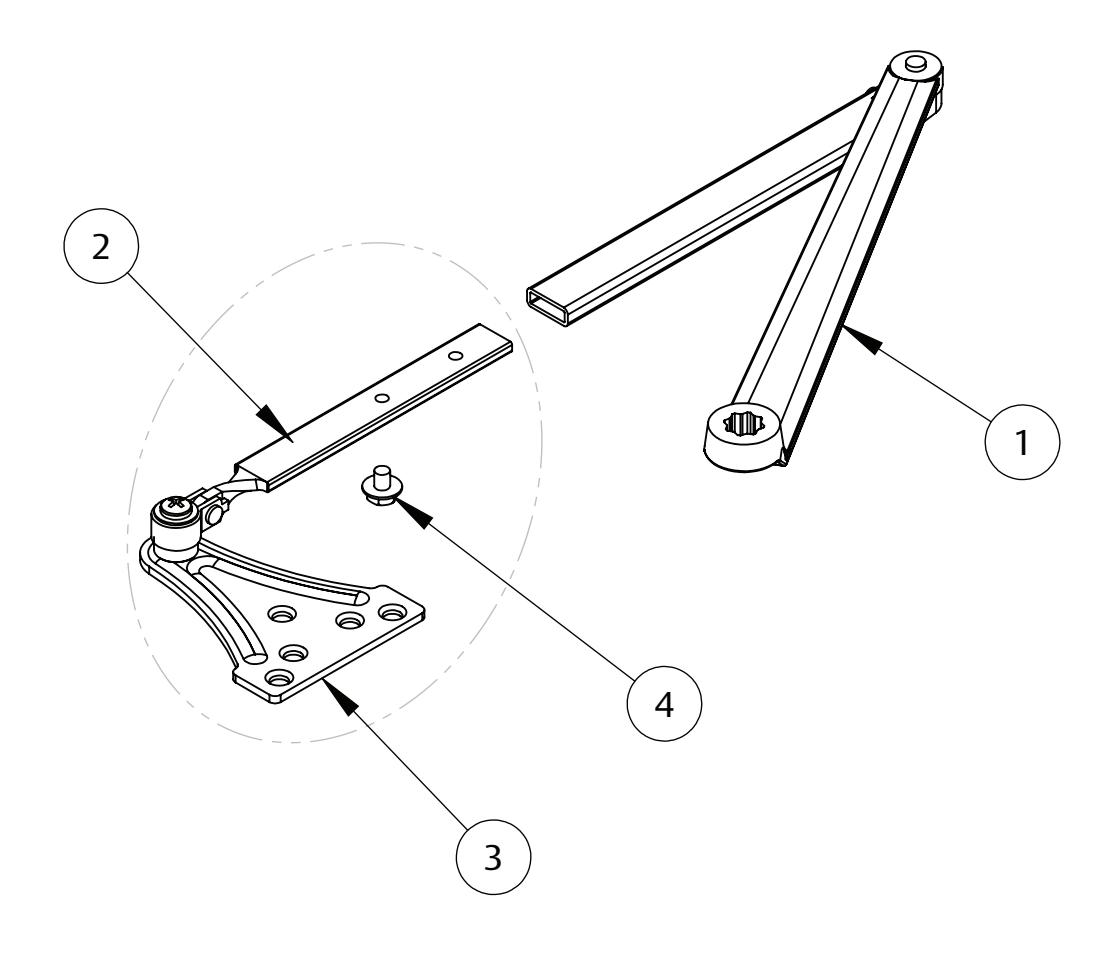

| Item | Part No. | Description |
|---|---|---|
| 1 | 61-2303* | Foot assembly |
| 2 | 63-3070* | Main arm & swivel assembly |
| 3 | 61-0308* | Swivel arm screw |
| 4 | 125-PH9* | Bracket assembly |
| 64-2407* | Screw pack |
* Finish required
| Item | Part No. | Description |
|---|---|---|
| 1 | 63-2607* | Main arm & link assembly |
| 2 | 63-2271* | Foot assembly |
| 3 | 125-P9* | Foot bracket |
| 4 | 61-0308* | Swivel arm screw |
| 64-2407* | Screw pack |
* Finish required

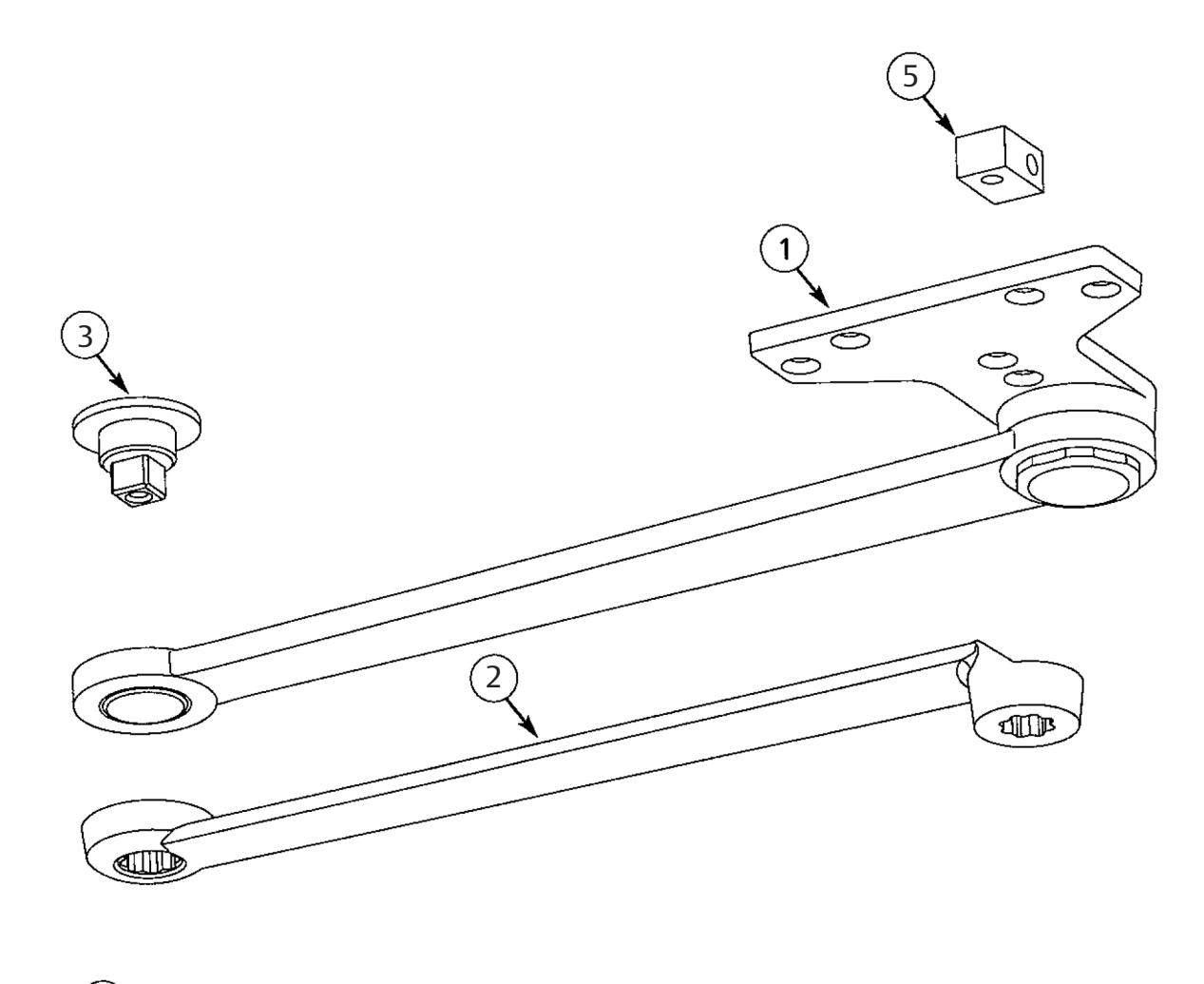

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-3727* | Arm and bracket assembly |
| 2 | 63-0641* | Main arm |
| 3 | Pivot | |
| 4 | Screw (pivot) | |
| 5 | Spacer | |
| 63-2392* | Screw pack (includes items 3, 4 & 5) |
* Finish required

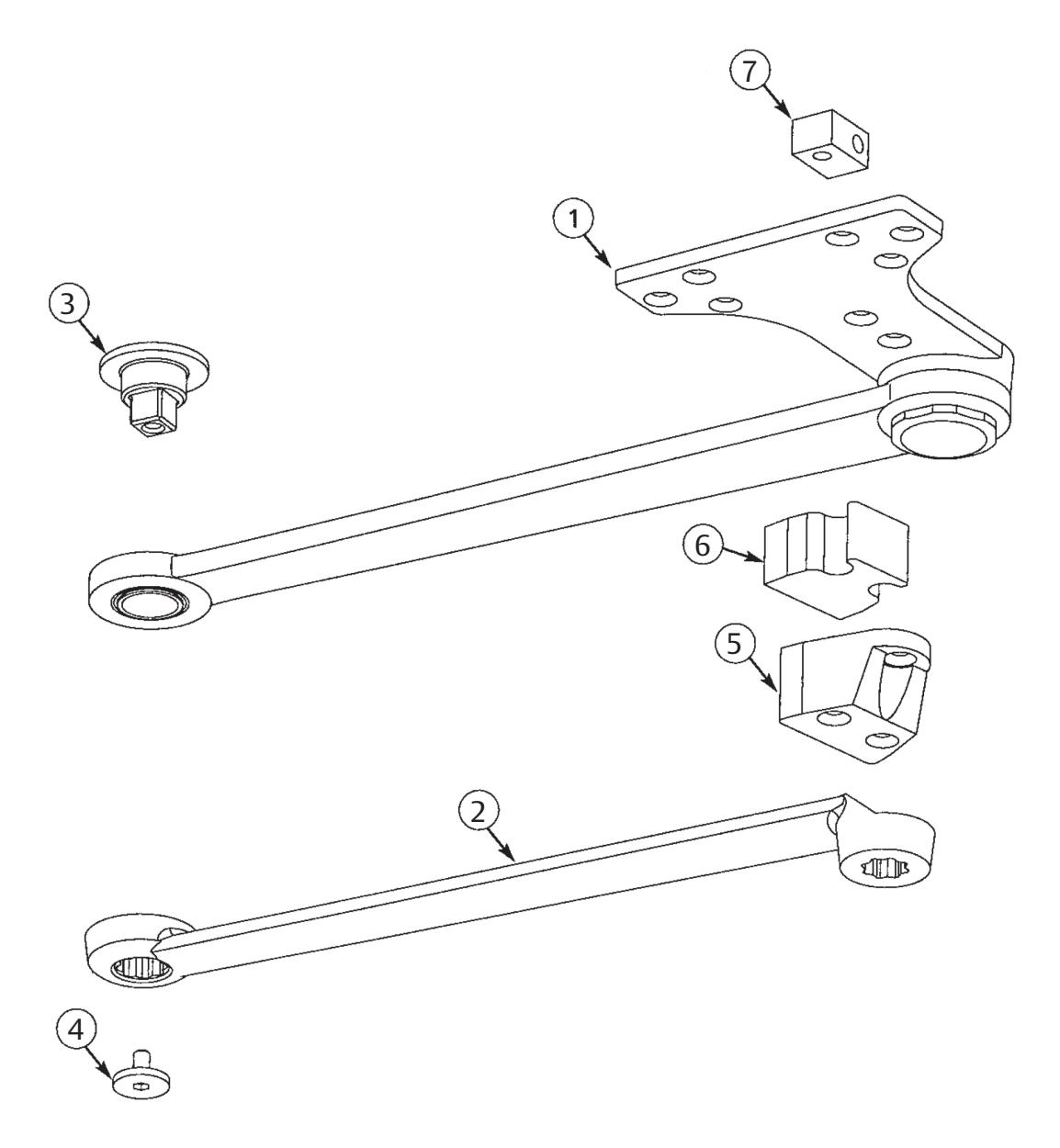

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-3830* | Bracket assembly pk |
| 2 | 63-0641* | Main arm |
| 3 | Pivot | |
| 4 | Screw (pivot) | |
| 5 | Bumper holder | |
| 6 | Bumper | |
| 7 | Spacer | |
| 63-2398* | Screw pack (includes items 3, 4, 5, 6, 7) |
* Finish required
90902:B 02/22

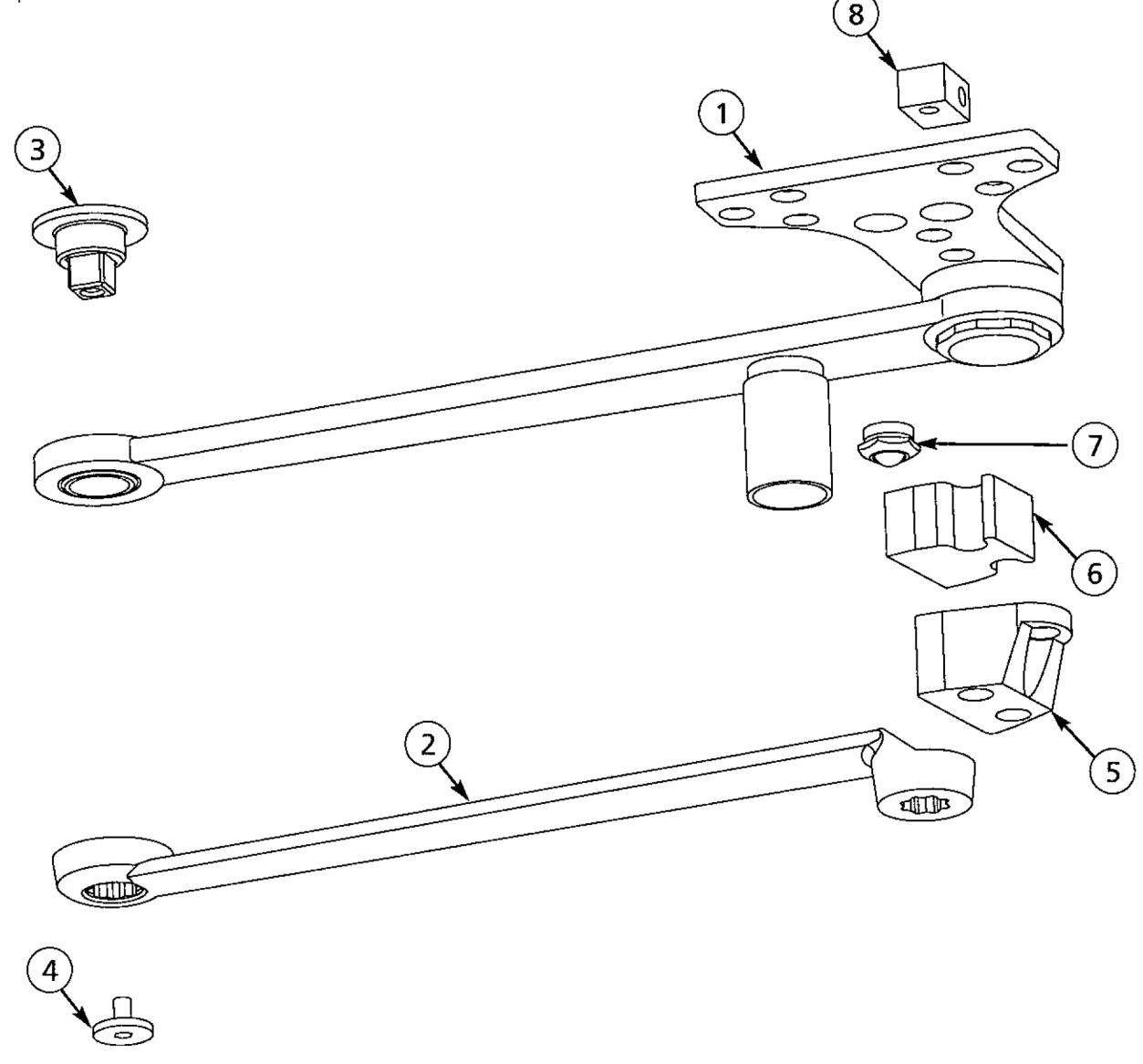

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-3836* | Bracket assembly pk |
| 2 | 63-0641* | Main arm |
| 3 | Pivot | |
| 4 | Screw (pivot) | |
| 5 | Bumper holder | |
| 6 | Bumper | |
| 7 | Insert | |
| 8 | Spacer | |
| 63-3487* | Screw pack (includes items 3, 4, 5, 6, 7, 8) |
*Finish required

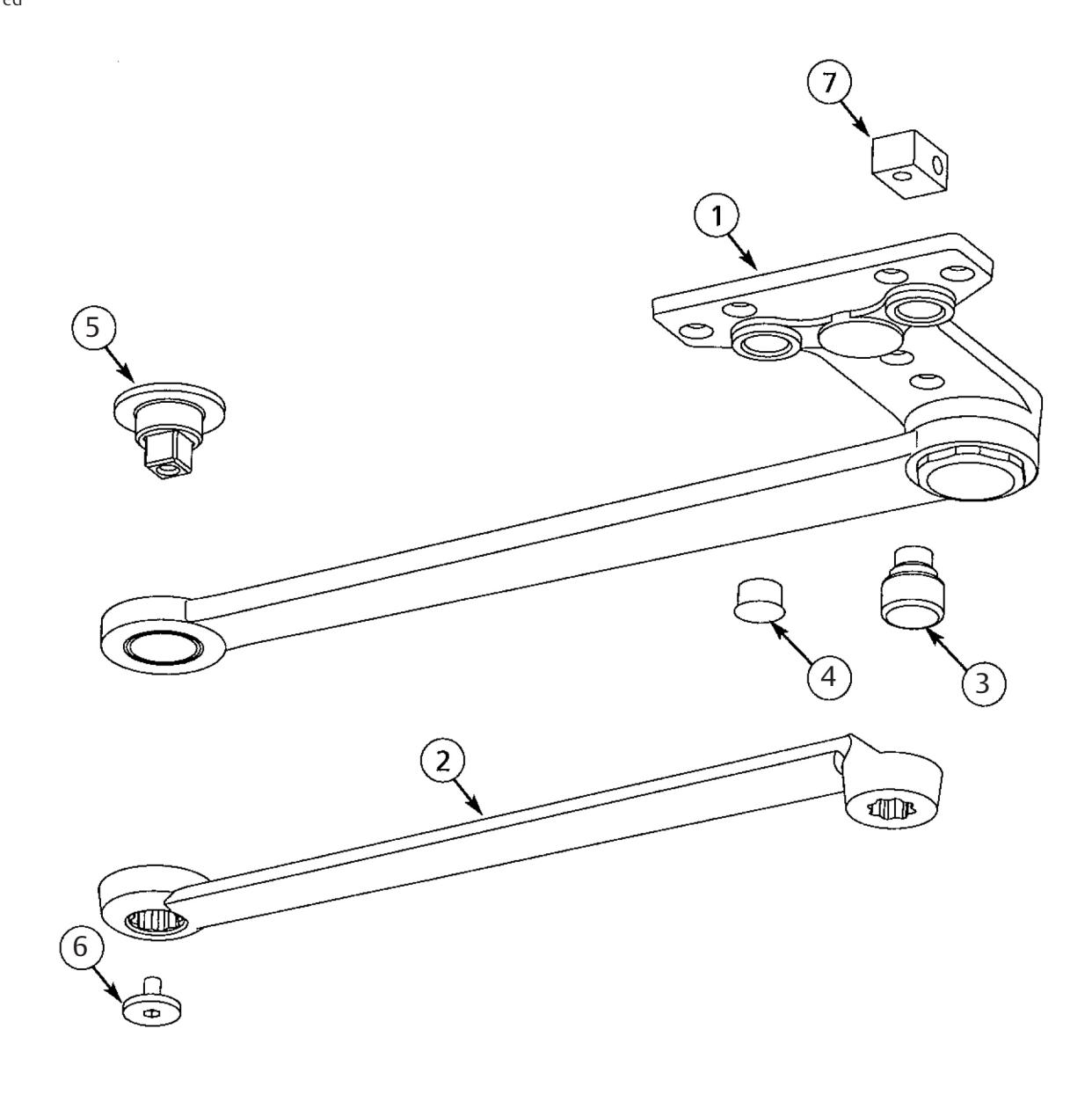

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-3837* | Arm and bracket assembly |
| 2 | 63-0641* | Main arm |
| 3 | 63-0211* | Stop |
| 4 | 01-0864* | Hole plug |
| 5 | Pivot | |
| 6 | Screw (pivot) | |
| 7 | Spacer | |
| 63-2392* | Screw pack (includes items 5, 6, 7) |
* Finish required

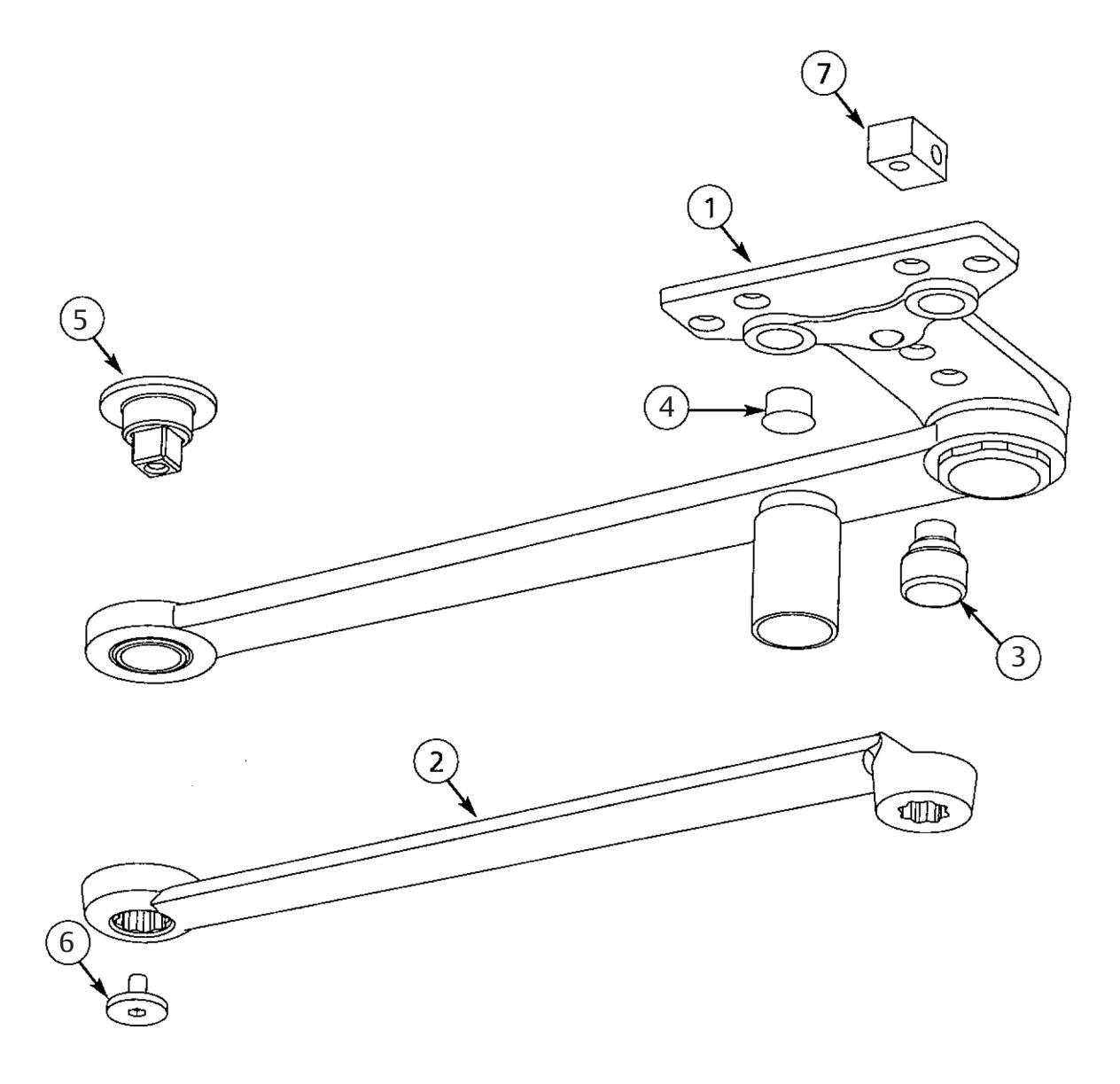

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-3833* | Arm and bracket assembly |
| 2 | 63-0641* | Main arm |
| 3 | 63-0211* | Stop |
| 4 | 01-0864* | Hole plug |
| 5 | Pivot | |
| 6 | Screw (pivot) | |
| 7 | Spacer | |
| 63-2392* | Screw pack (includes items 5, 6, 7) |
* Finish required

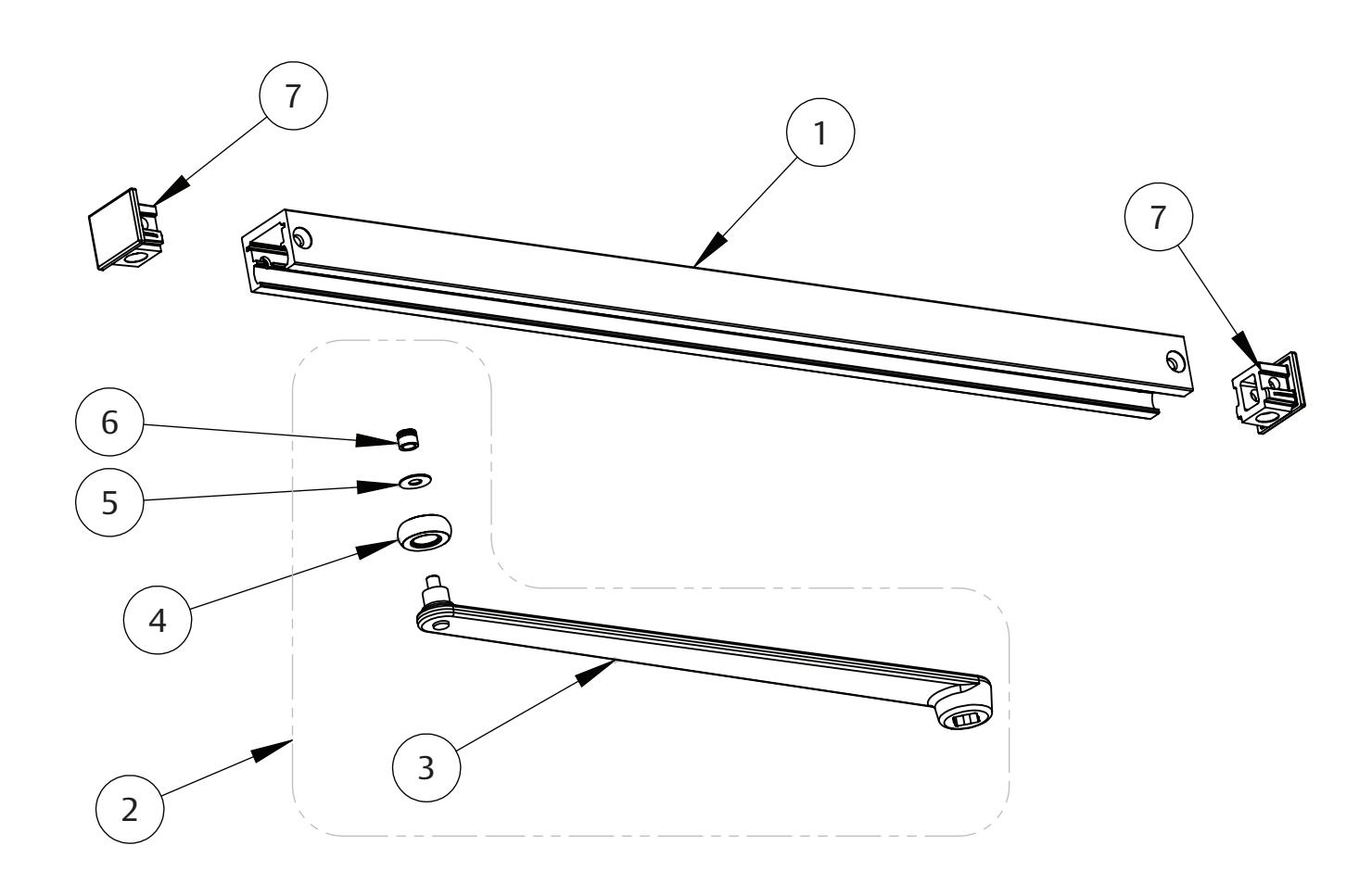

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-3901* | Main arm assembly (includes 3, 4, 5, 6) |
| 3 | 63-0629* | Main arm |
| 4 | Roller assembly | |
| 5 | Washer | |
| 6 | Roller bushing | |
| 7 | 63-0682* | End cap |
| 63-3901* | Screw pack (includes items 4, 5, 6) |
* Finish required

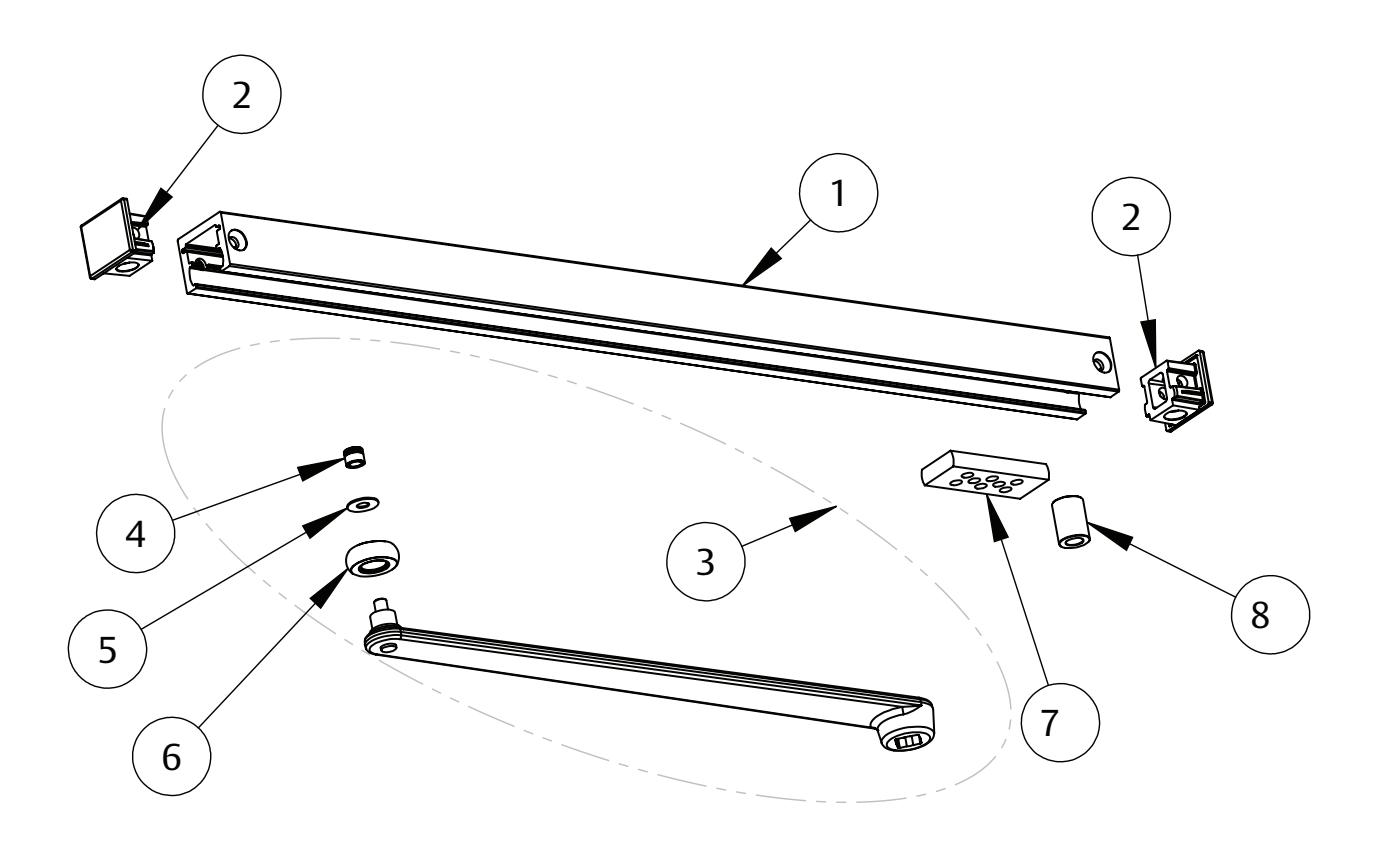

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing assembly | |
| 7 | 63-0377 | Bumper |
| 8 | 63-0396 | Bumper stop |
| 63-3482* | Screw pack |
* Finish required

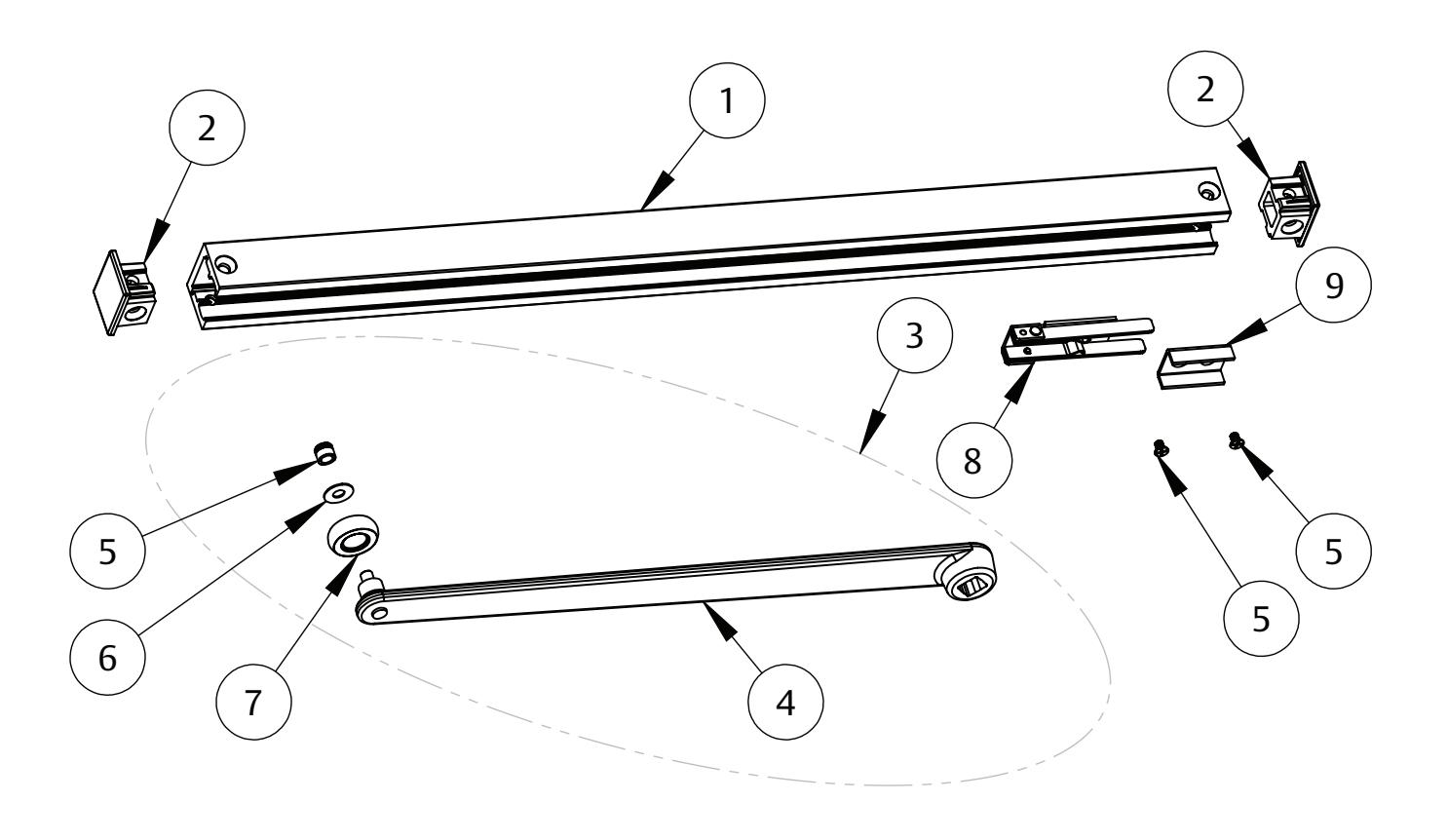

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 5, 6, 7) |
| 4 | 63-0629* | Main arm |
| 5 | Roller bushing | |
| 6 | Washer | |
| 7 | Roller & bearing assembly | |
| 8 | 63-2063 | Spring slide assembly |
| 9 | 63-0678 | Spring support |
| 63-3482* | Screw pack |
* Finish required

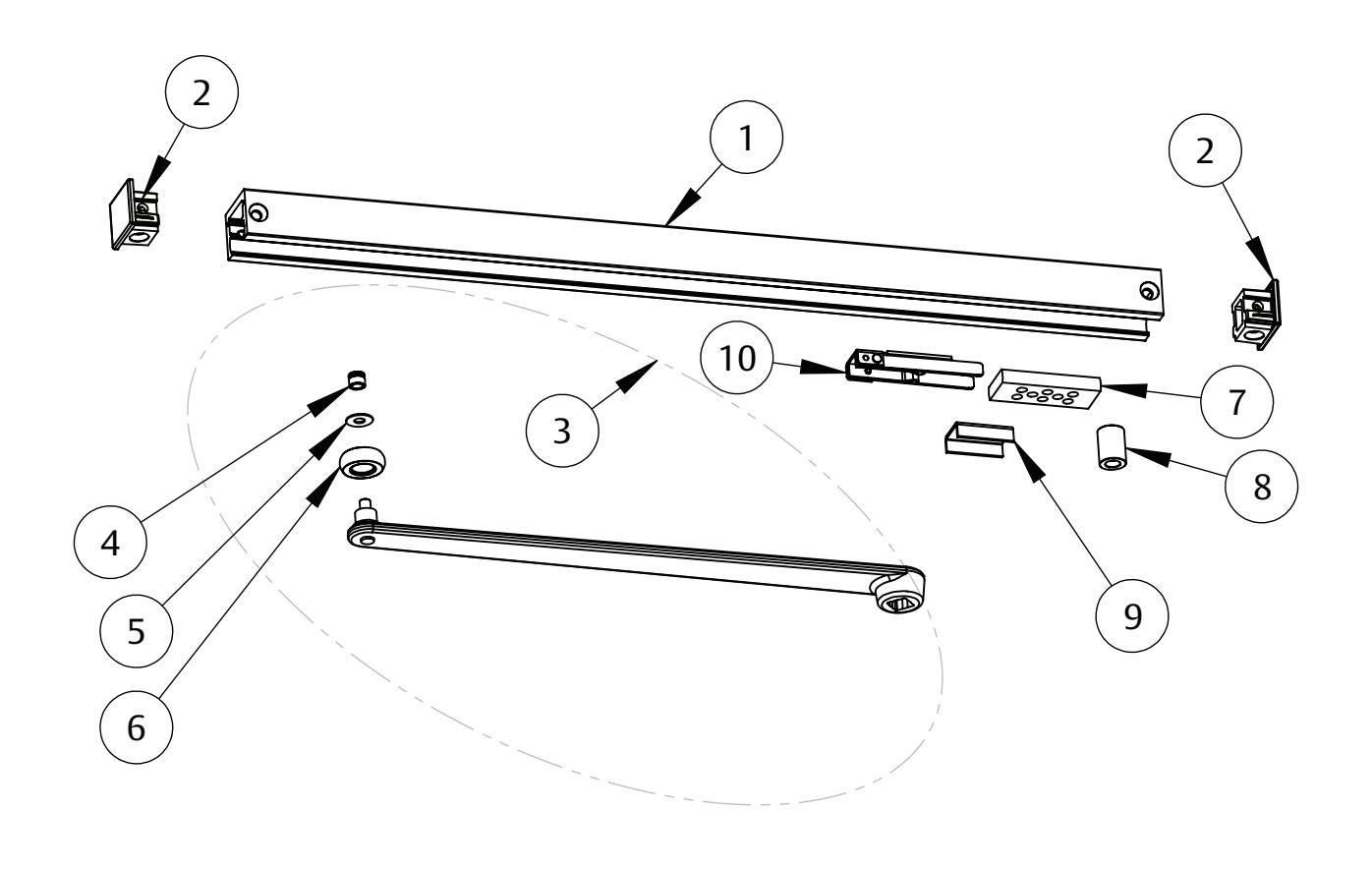

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing asssembly | |
| 7 | 63-0377 | Bumper |
| 8 | 63-0396 | Bumper stop |
| 9 | 63-0678 | Spring support |
| 10 | 63-2063 | Spring slide assembly |
| 63-3482* | Screw pack |
* Finish required

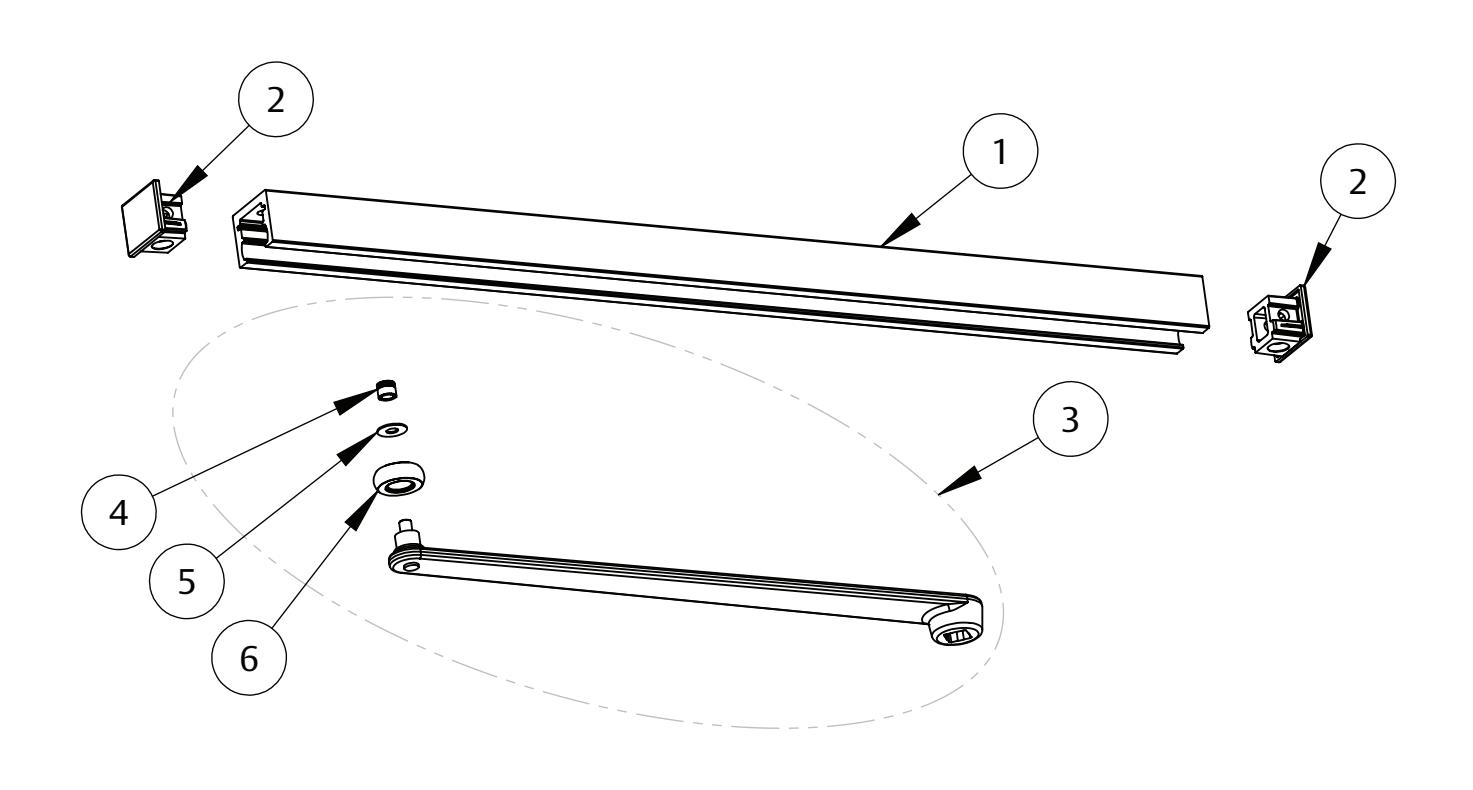

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0159* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing asssembly | |
| 63-3482* | Screw pack |
* Finish required
| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0159* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing asssembly | |
| 7 | Bumper | |
| 8 | Bumper stop | |
| 63-3482* | Screw pack |
* Finish required

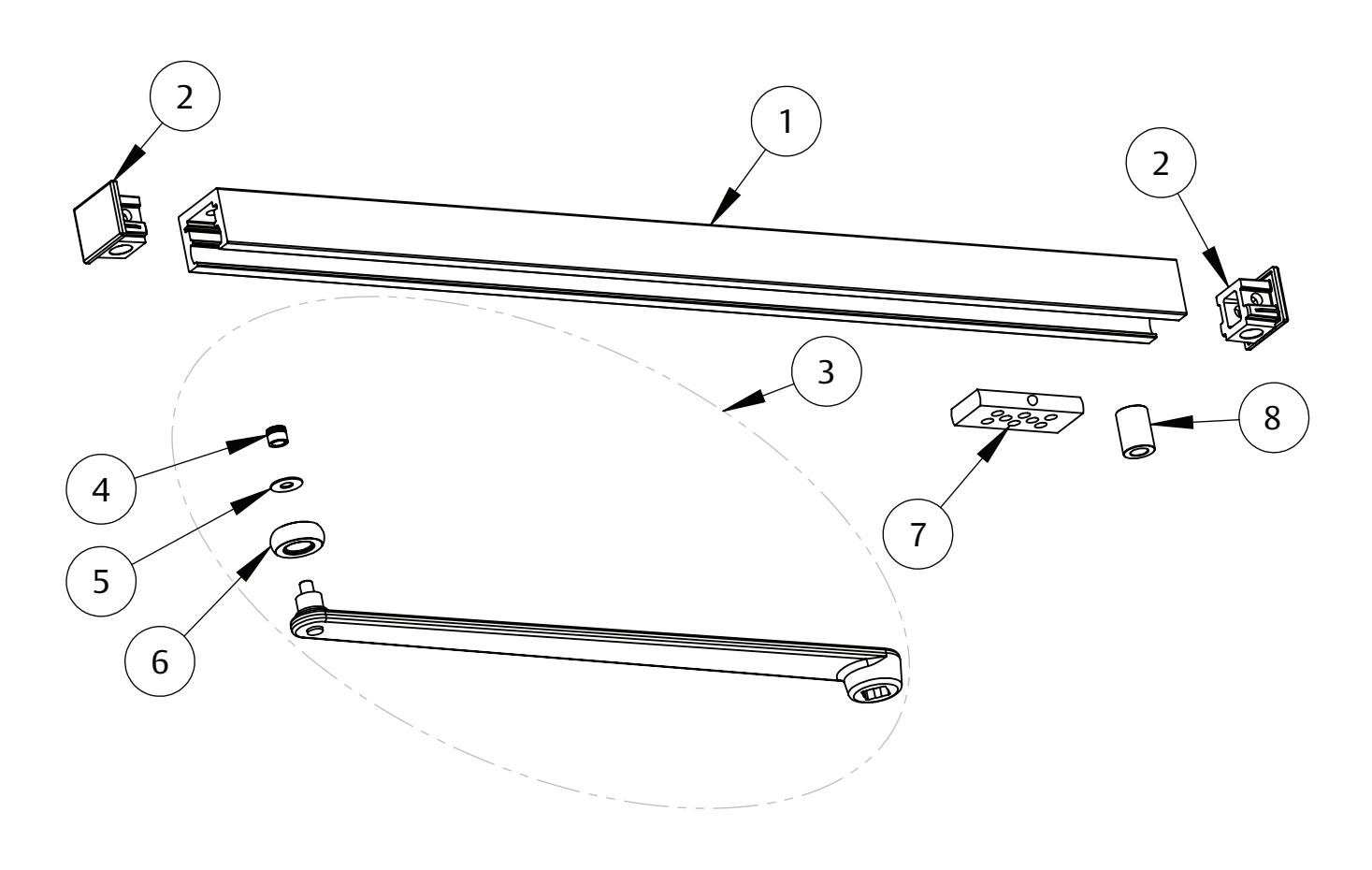

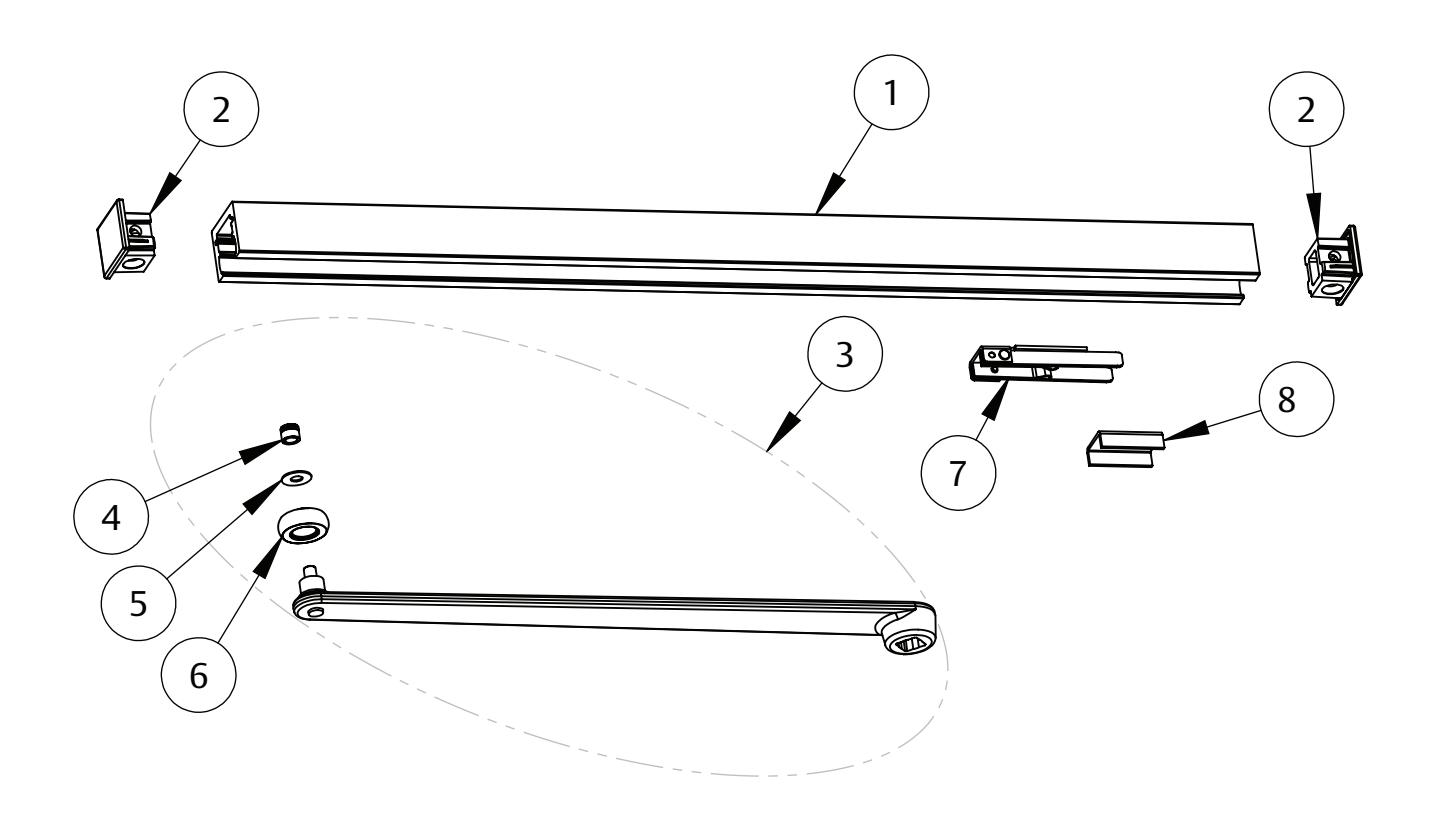

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0159* | Channel push |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing asssembly | |
| 7 | 63-2063 | Spring slide assembly |
| 8 | 63-0678 | Spring support |
| 63-3482* | Screw pack |
* Finish required

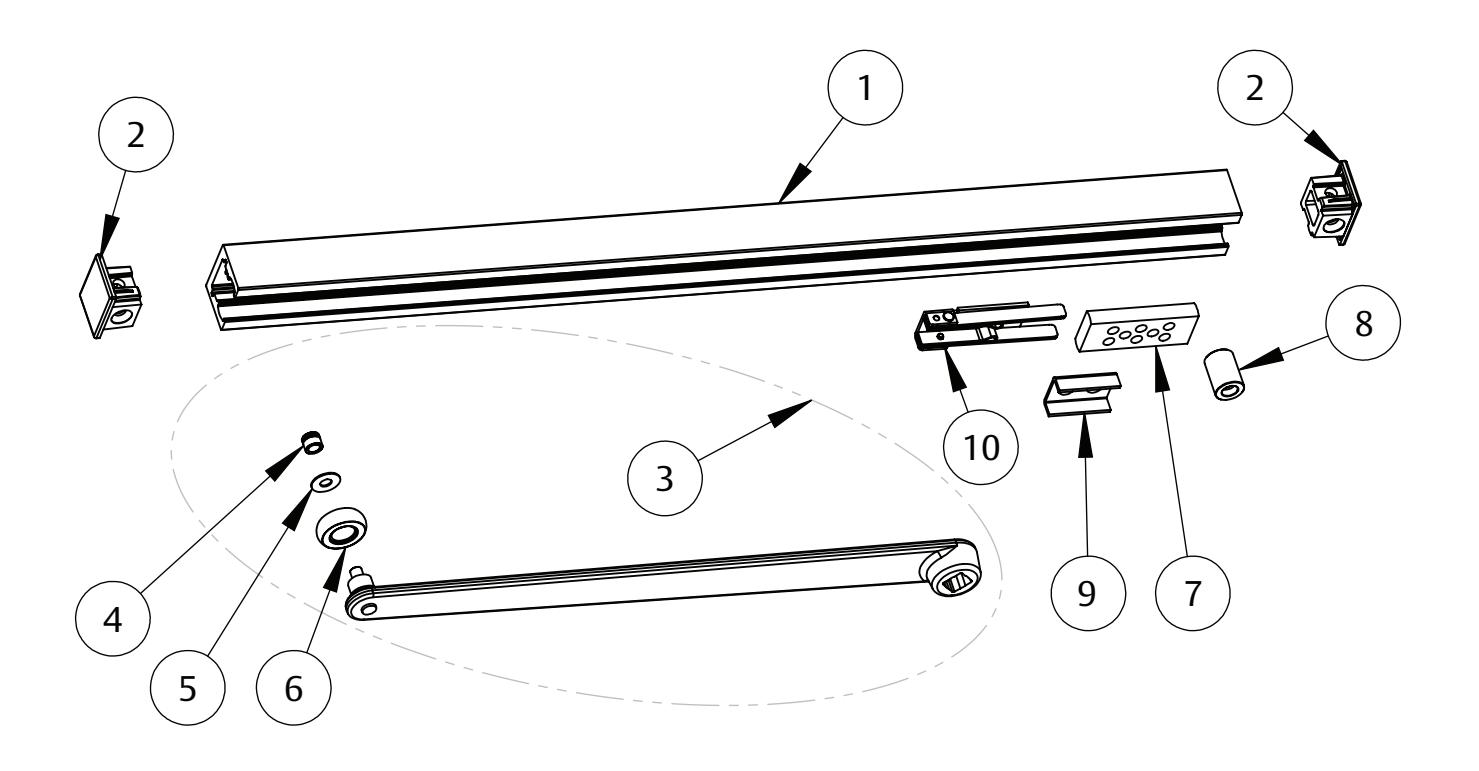

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0159* | Channel push |
| 2 | 63-0682* | End cap |
| 3 | 63-3901* | Main arm assembly (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing asssembly | |
| 7 | 63-0377 | Bumper |
| 8 | 63-0396 | Bumper stop |
| 9 | 63-0678 | Spring support |
| 10 | 63-2063 | Spring slide assembly |
| 63-3482* | Screw pack |
* Finish required

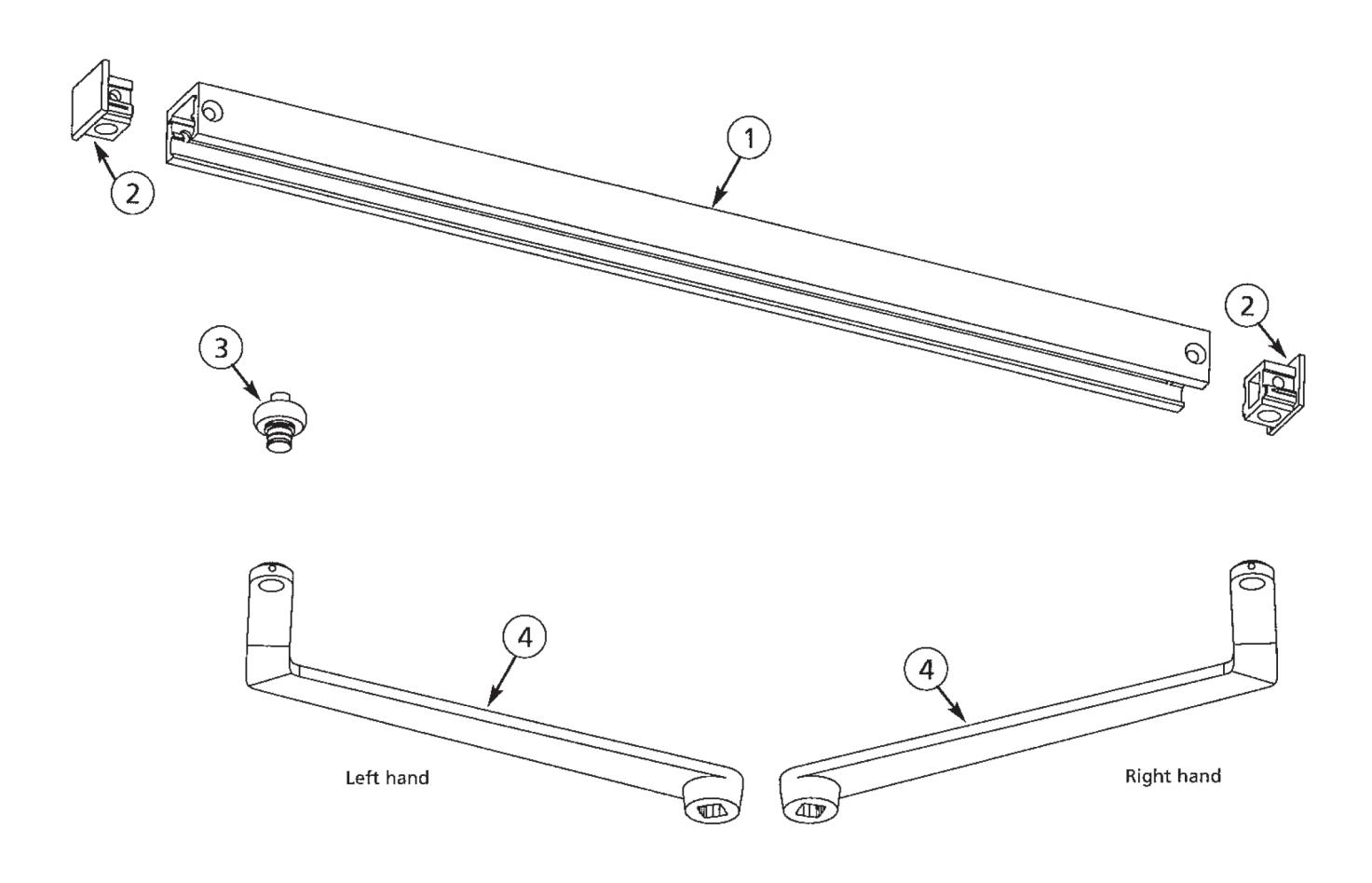

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3905 | Roller assembly |
| 63-0627* | Double egress arm, LH | |
| 4 | 63-0628* | Double egress arm, RH |
| 63-3482* | Screw pack |
* Finish required

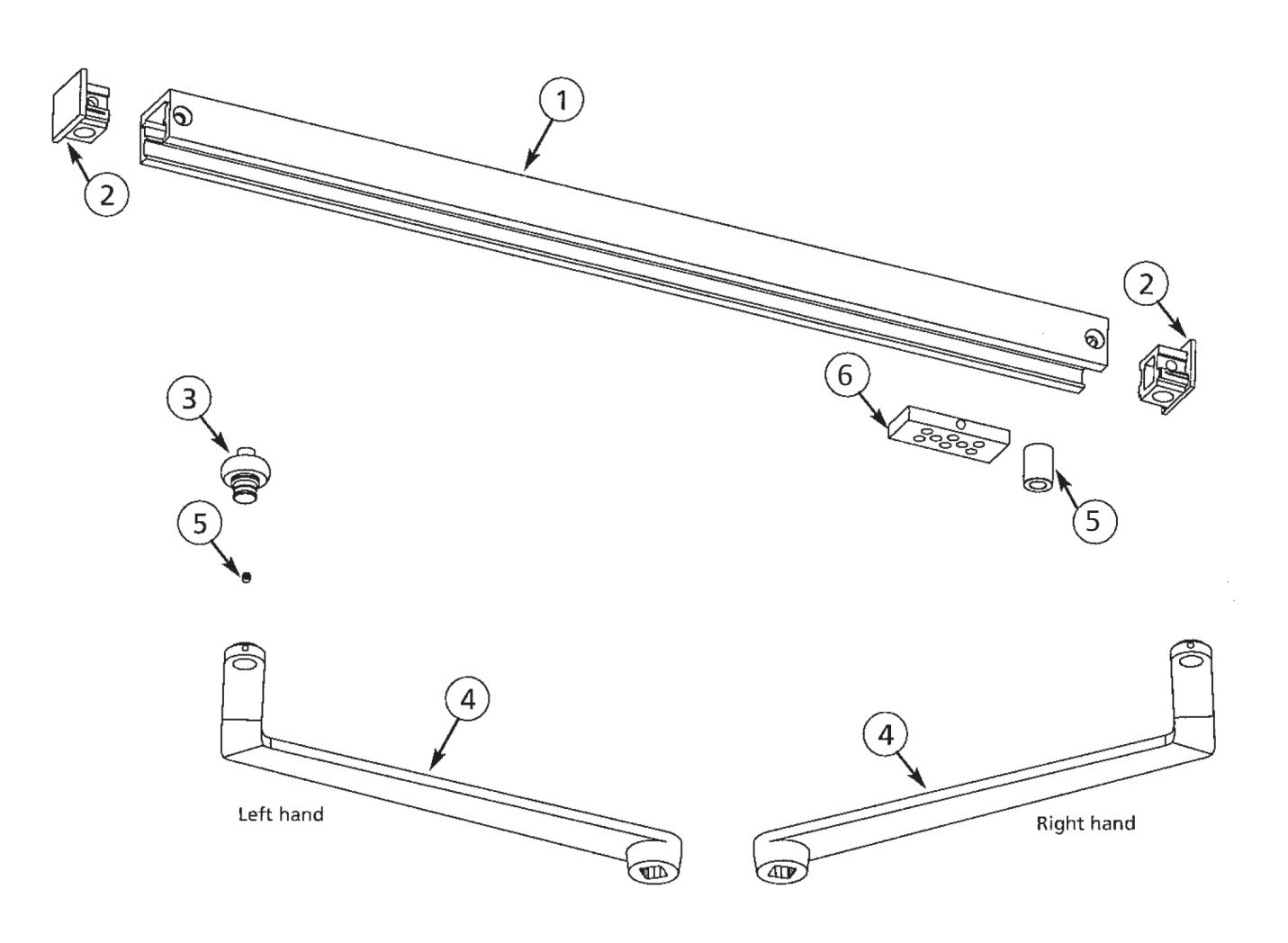

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3905 | Roller assembly |
| 63-0627* | Double egress arm, LH | |
| 4 | 63-0628* | Double egress arm, RH |
| 5 | 63-0396 | Bumper stop |
| 6 | 63-0377 | Bumper |
| 63-3482* | Screw pack |
* Finish required
| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 63-3656* | Double egress arm, LH (includes 4, 5, 6) | |
| 3 | 63-3657* | Double egress arm, RH (includes 4, 5, 6) |
| 4 | Roller bushing | |
| 5 | Washer | |
| 6 | Roller & bearing assembly | |
| 7 | 63-2063 | Spring slide assembly |
| 8 | 63-0678 | Spring support |
| 63-3482* | Screw pack |
* Finish required

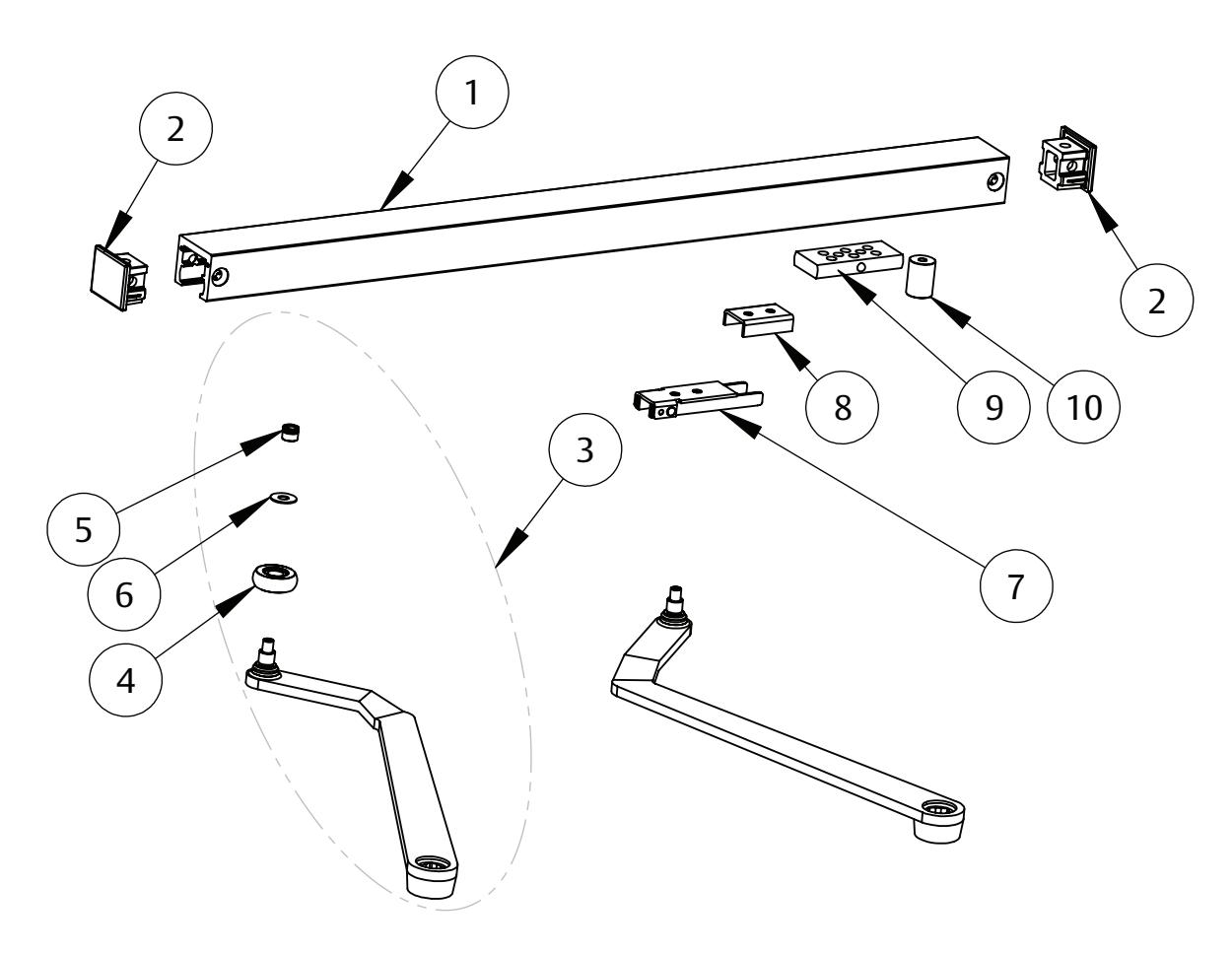

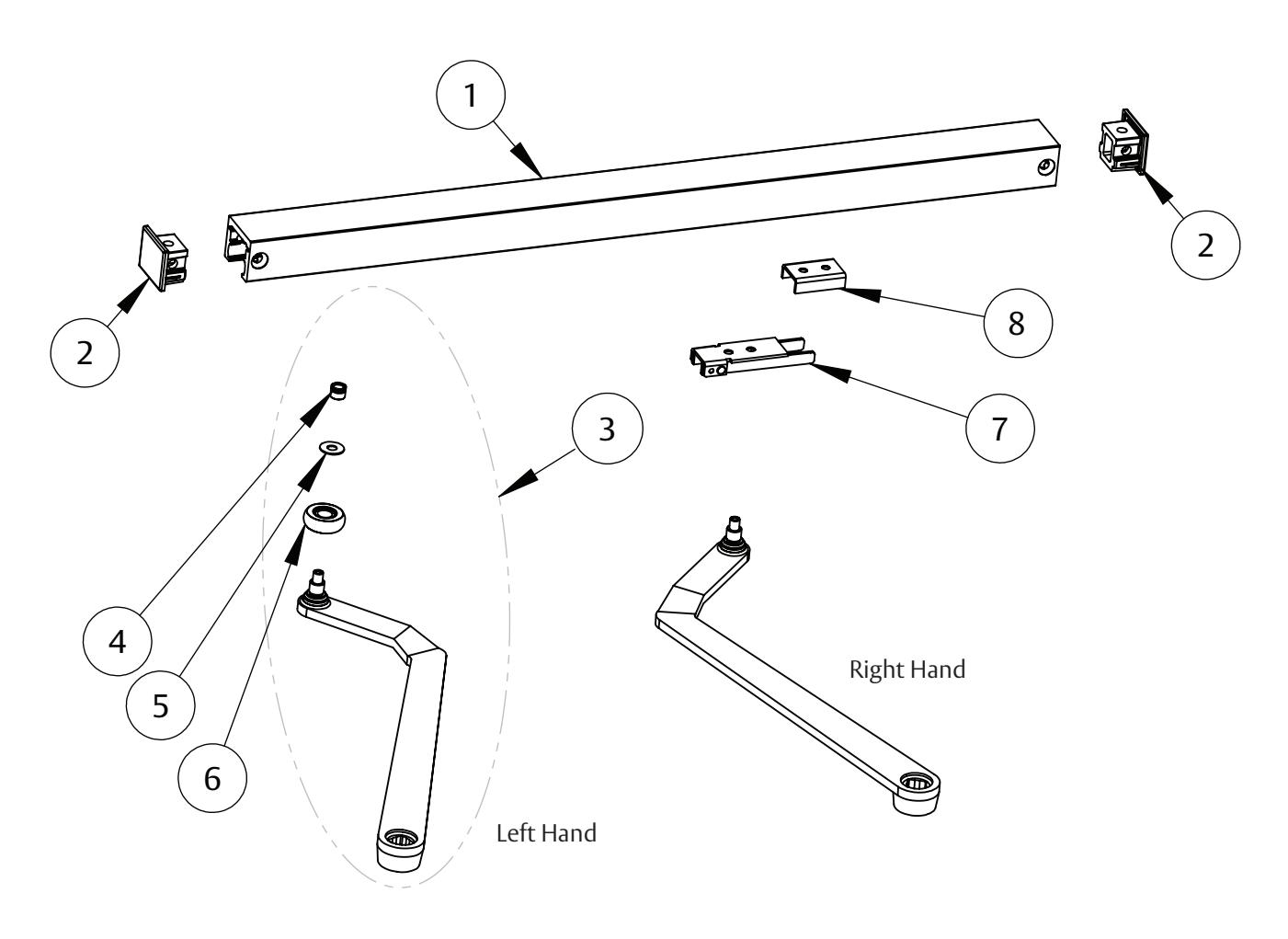

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 63-3656* | Double egress arm, LH (includes 4, 5, 6) | |
| 3 | 63-3657* | Double egress arm, RH (includes 4, 5, 6) |
| 4 | Roller & bearing assembly | |
| 5 | Roller bushing | |
| 6 | Washer | |
| 7 | 63-2063 | Spring slide assembly |
| 8 | 63-0678 | Spring support |
| 9 | 63-0377 | Bumper |
| 10 | 63-0396 | Bumper stop |
| 63-3482* | Screw pack |
* Finish required

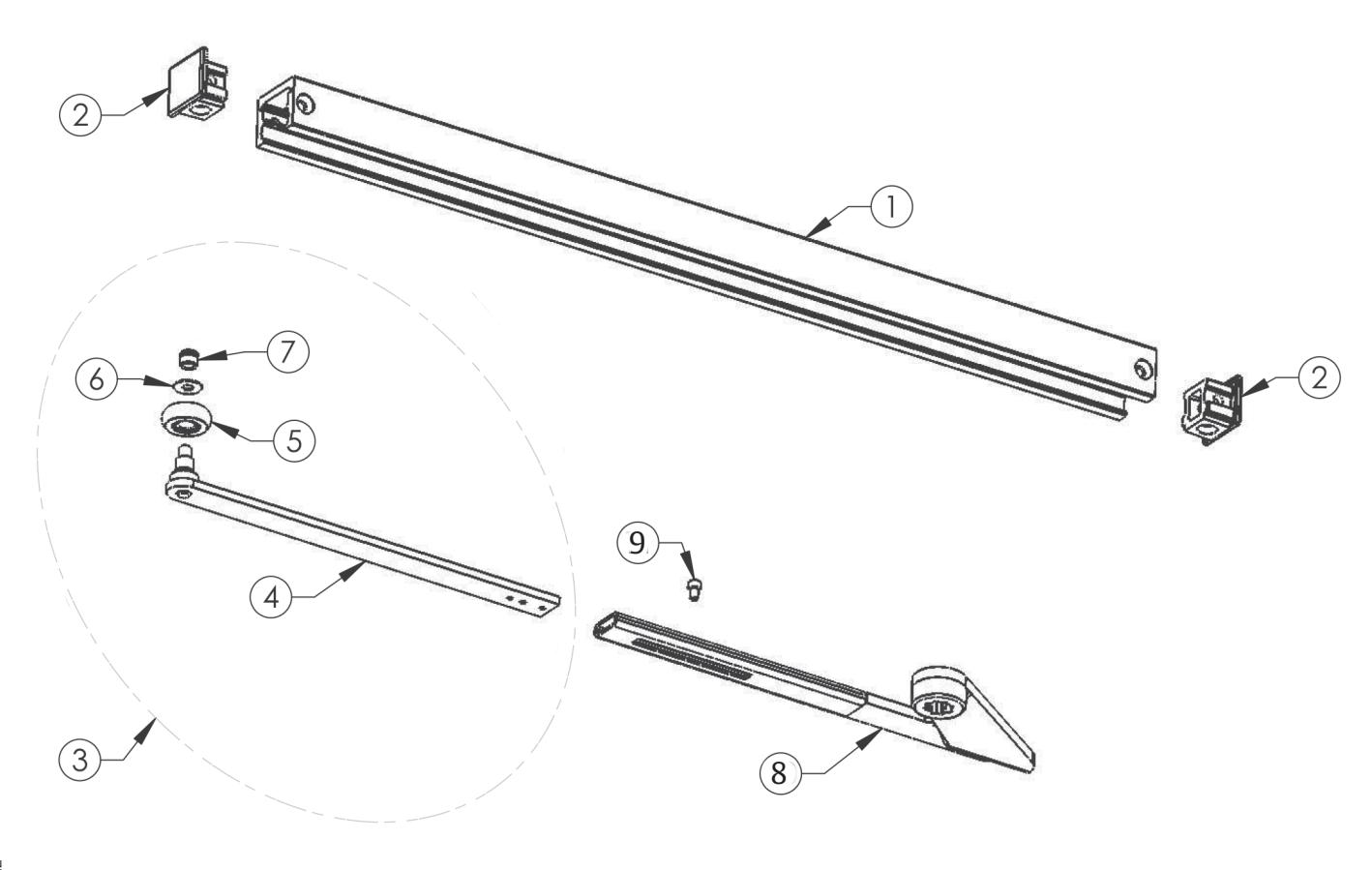

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-4206* |
Arm and roller assembly (includes 4, 5,
6, 7) |
| 4 | 63-4276* | Arm and stud assembly |
| 5 | Roller assembly | |
| 6 | Washer | |
| 7 | Bushing | |
| 63-3056* | Double egress arm, RH | |
| 8 | 63-3057* | Double egress arm, LH |
| 9 | 01-1463 | Adjusting rod screw |
| 63-4212* | Screw pack |
* Finish required
- Use With 351 Series Door Closer Only -

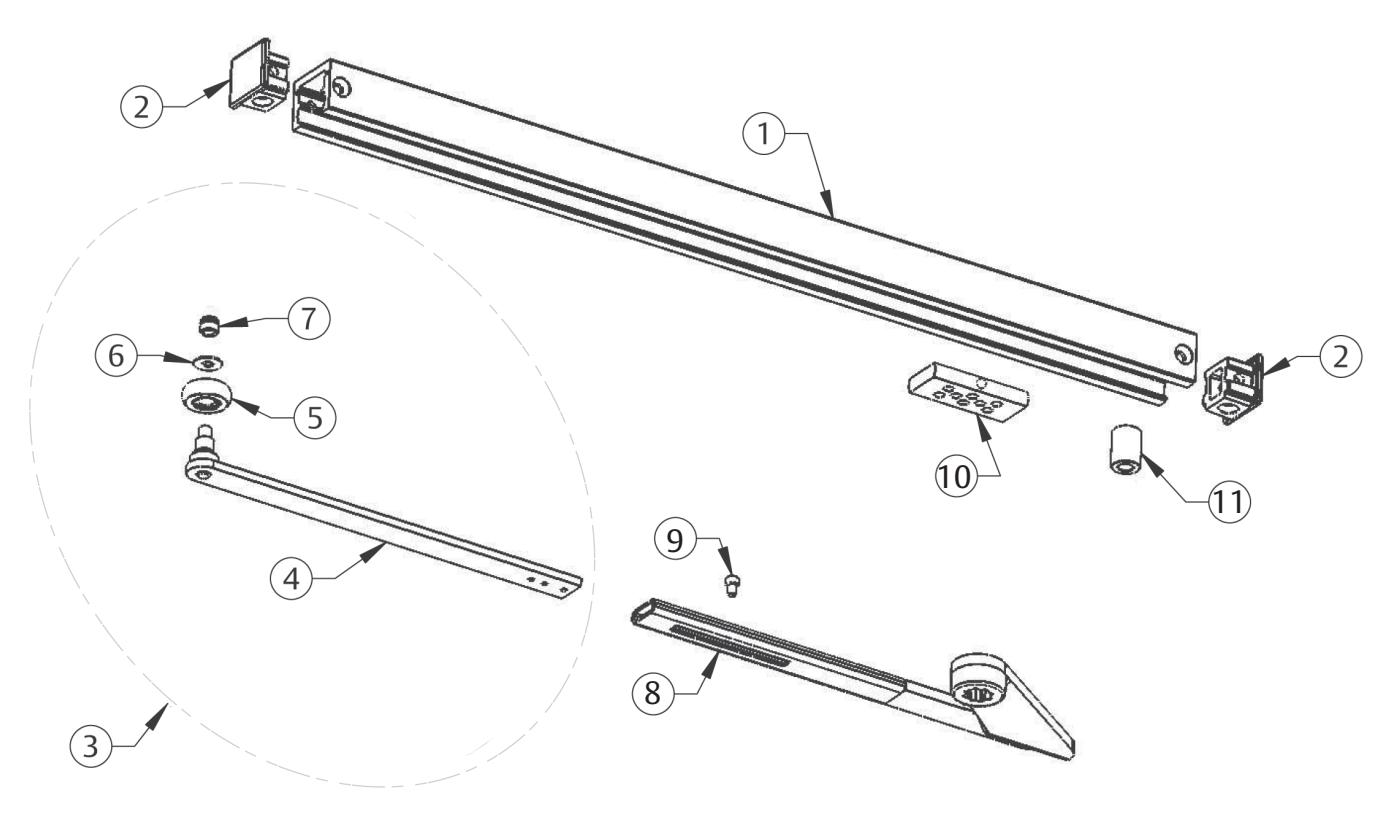

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-4206* | Arm and roller assembly (includes 4, 5, 6, 7) |
| 4 | 63-4276* | Arm and stud assembly |
| 5 | Roller assembly | |
| 6 | Washer | |
| 7 | Bushing | |
| 63-3056* | Double egress arm, RH | |
| 8 | 63-3057* | Double egress arm, LH |
| 9 | 01-1463 | Adjusting rod screw |
| 10 | 63-0377 | Bumper |
| 11 | 63-0396 | Bumper Stop |
| 63-4212* | Screw pack |
* Finish required

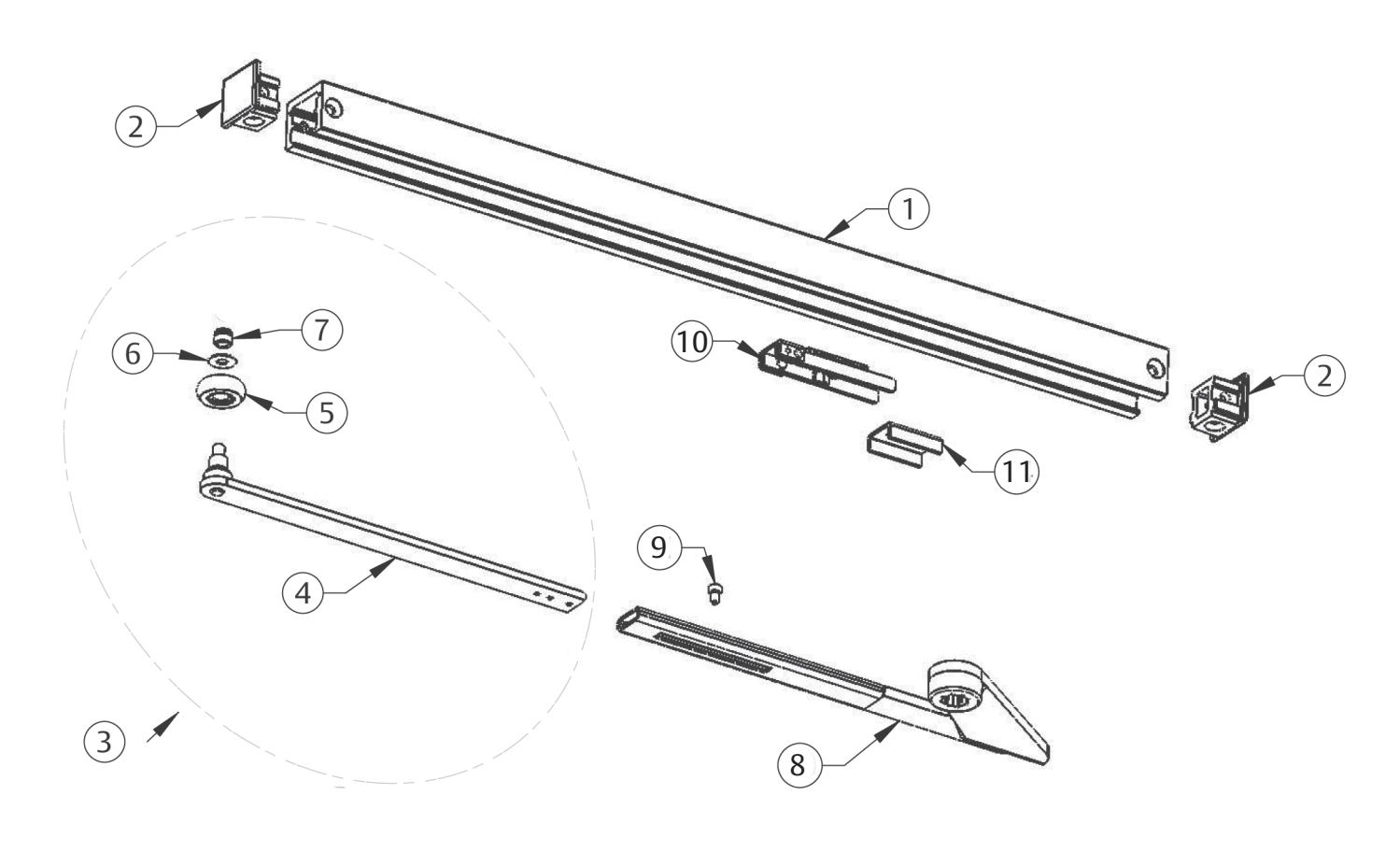

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-4206* | Arm and roller assembly (includes 4, 5, 6, 7) |
| 4 | 63-4276* | Arm and stud assembly |
| 5 | Roller assembly | |
| 6 | Washer | |
| 7 | Bushing | |
| 63-3056* | Double egress arm, RH | |
| 8 | 63-3057* | Double egress arm, LH |
| 9 | 01-1463 | Adjusting rod screw |
| 10 | 63-2063 | Spring slide assembly |
| 11 | 63-0678 | Spring support |
| 63-4212* | Screw pack |
* Finish required

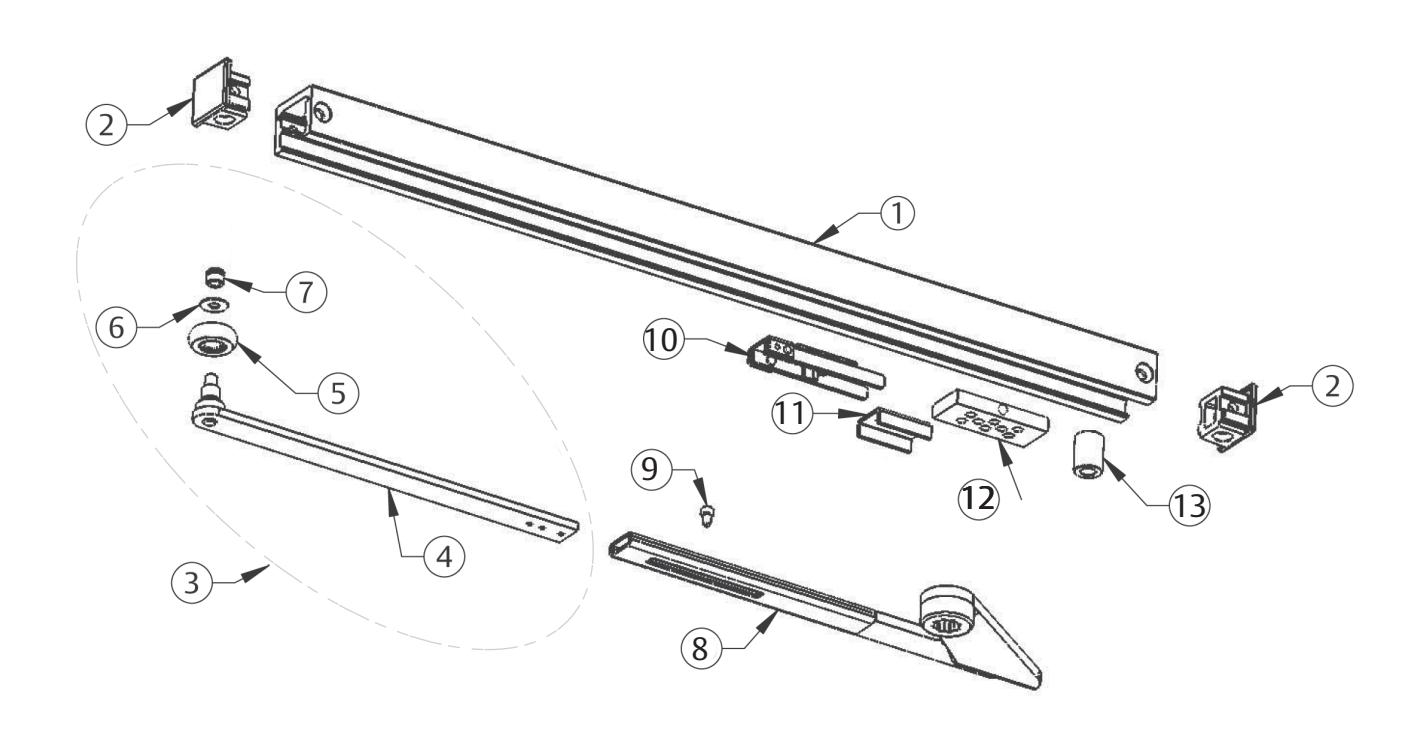

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-4206* | Arm and roller assembly (includes 4, 5, 6, 7) |
| 4 | 63-4276* | Arm and stud assembly |
| 5 | Roller assembly | |
| 6 | Washer | |
| 7 | Bushing | |
| 63-3056* | Double egress arm, RH | |
| 8 | 63-3057* | Double egress arm, LH |
| 9 | 01-1463 | Adjusting rod screw |
| 10 | 63-2063 | Spring slide assembly |
| 11 | 63-0678 | Spring support |
| 12 | 63-0377 | Bumper |
| 13 | 63-0396 | Bumper stop |
| 63-4212* | Screw pack |
* Finish required

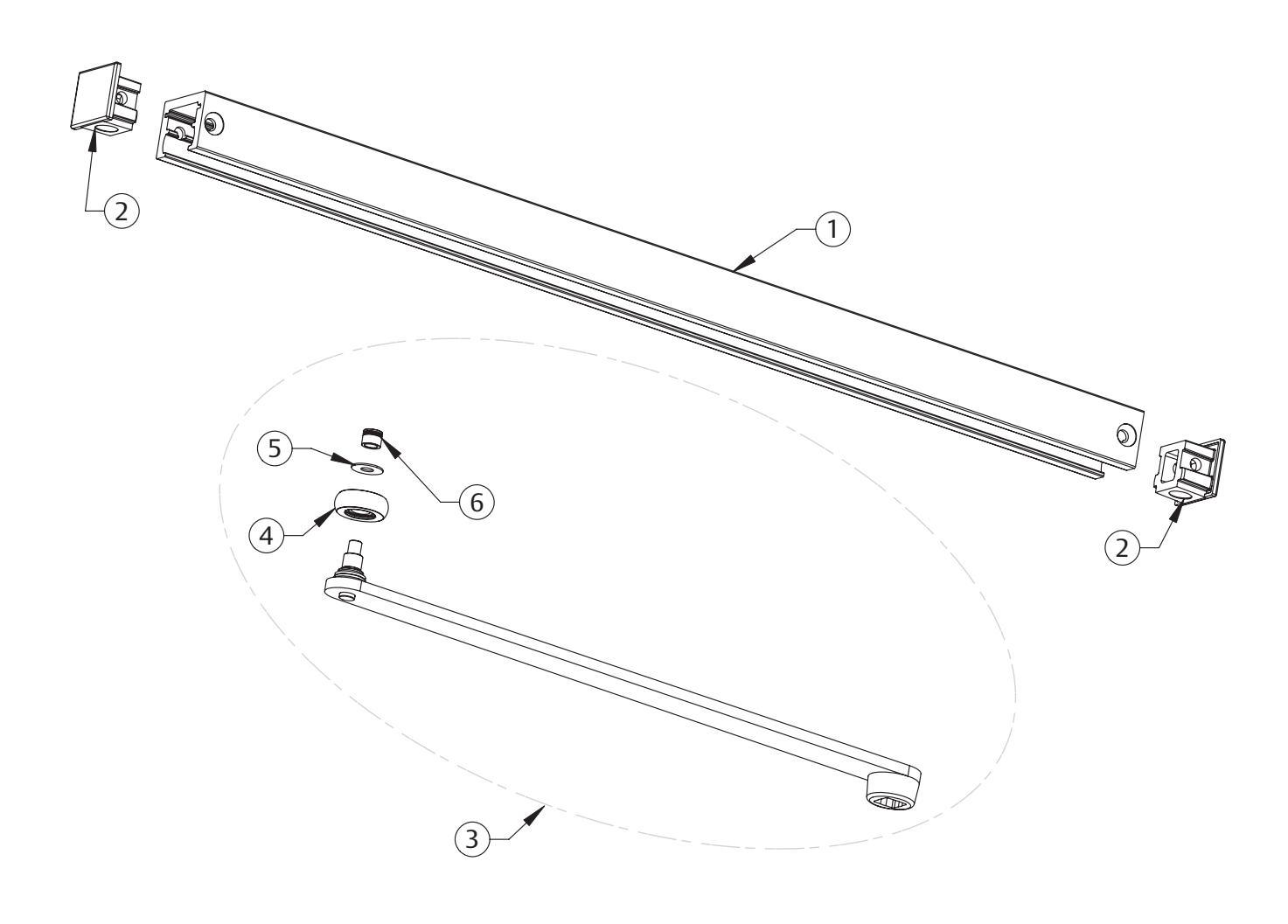

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-0157* | Channel pull |
| 2 | 63-0682* | End cap |
| 3 | 63-3408* | Main arm pkg (includes items 4, 5, 6) |
| 4 | Roller assembly | |
| 5 | Washer | |
| 6 | Bushing | |
| 63-4212* | Screw pack |
* Finish required

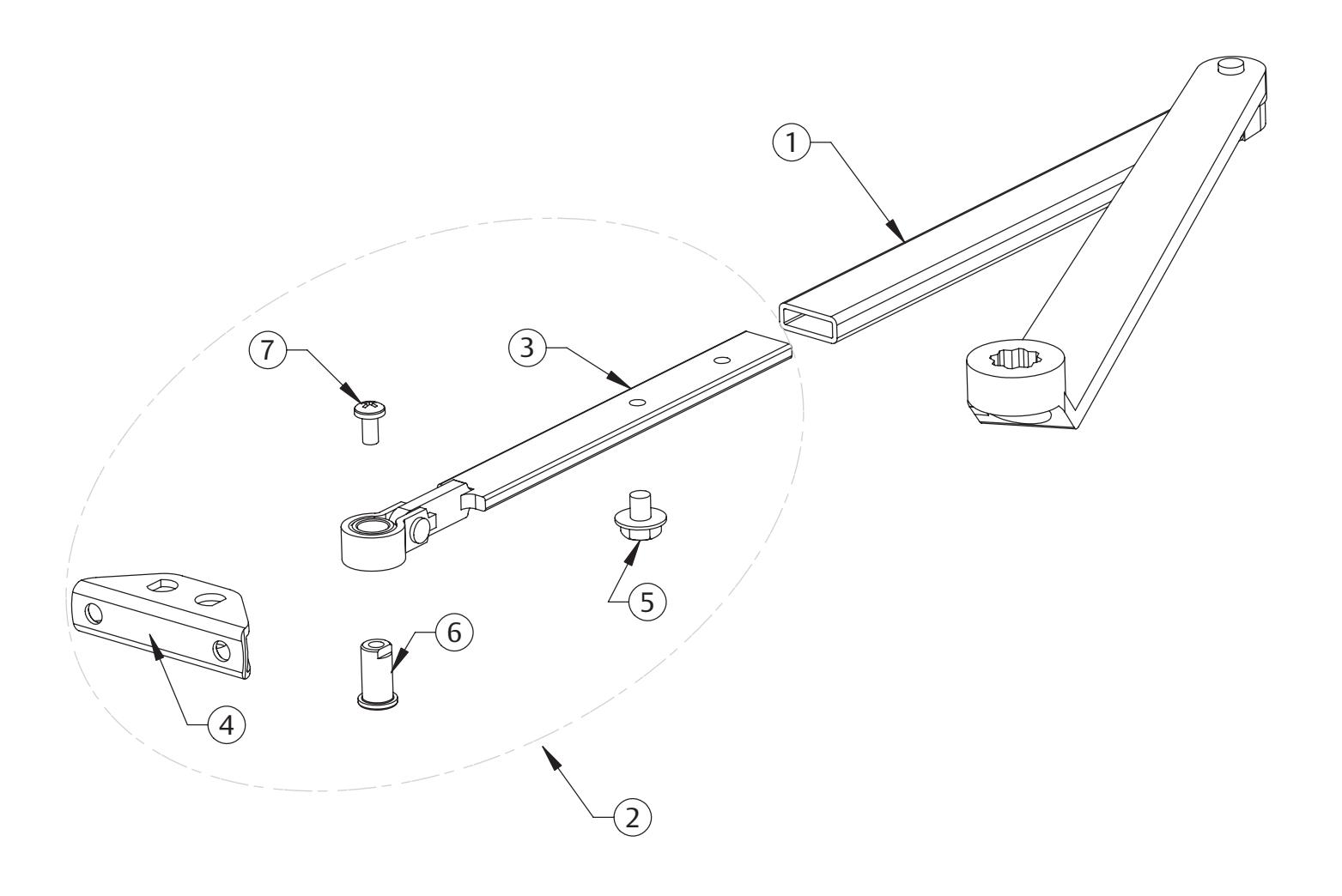

| Item | Part No. | Description |
|---|---|---|
| 1 | 63-2607* | Main Arm & Link Assembly |
| 2 | 63-2216* | Foot assembly (includes 3, 4, 5, 6, 7) |
| 3 | 63-2212* | Rod & link assembly |
| 4 | 64-0023* | Foot bracket |
| 5 | 61-0308* | Swivel Arm Screw |
| 6 | 64-0025* | Foot Pivot |
| 7 | 01-1140* | Screw |
| 63-3684* | Screw pack |
* Finish required
SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
