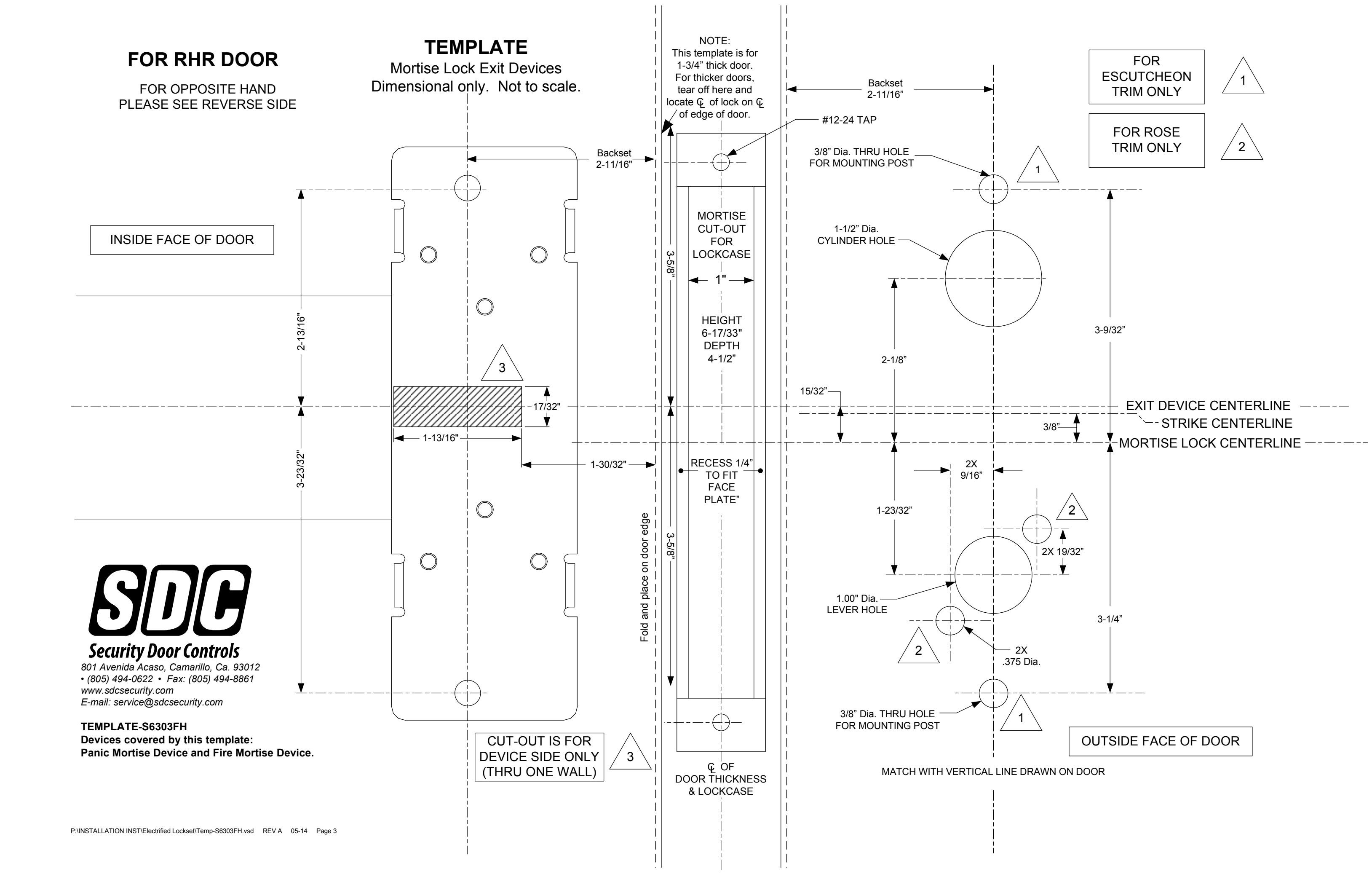

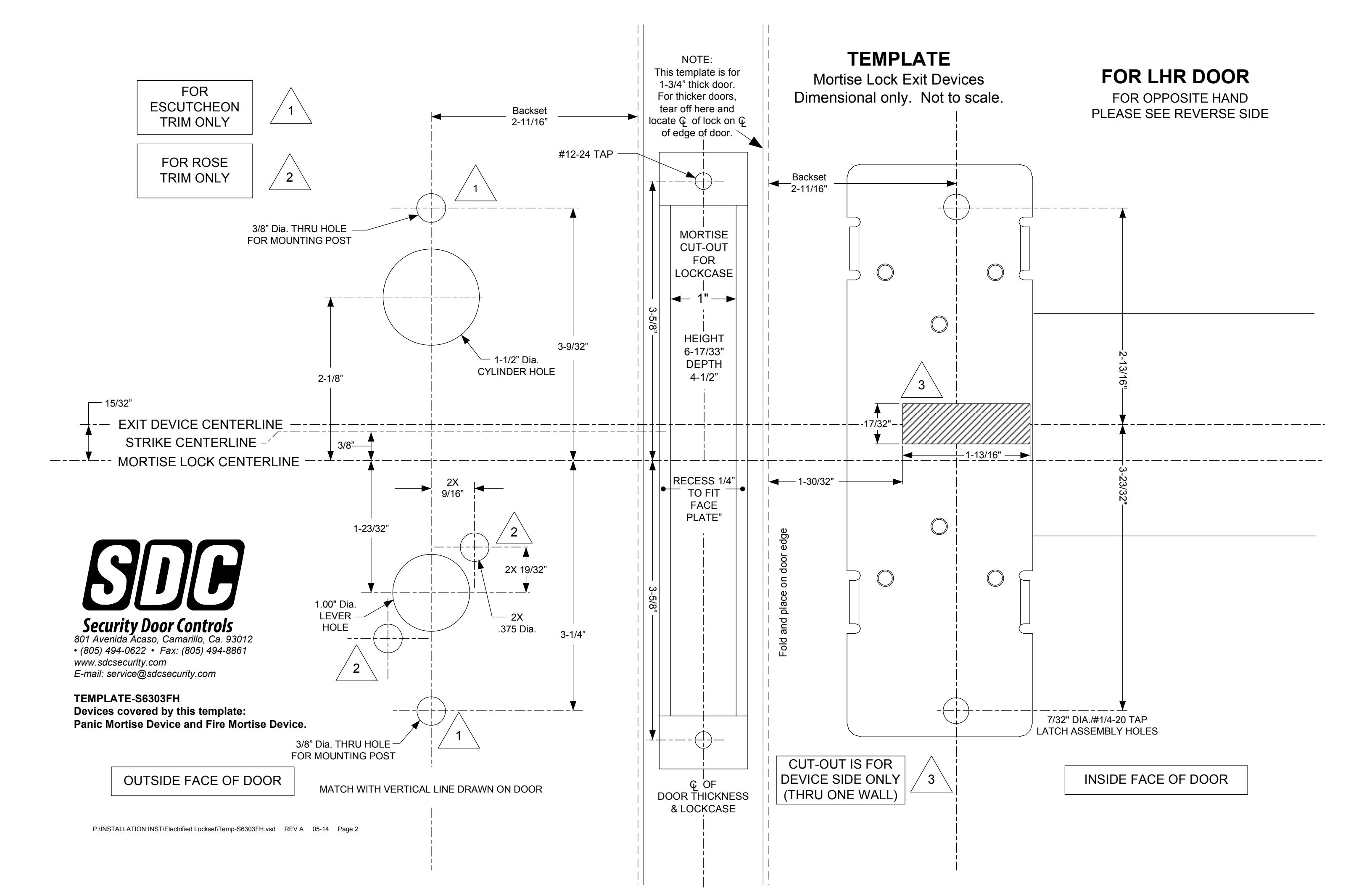

S6303F Template

SECURITY DOOR CONTROLS

801 Avenida Acaso, Camarillo, CA 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

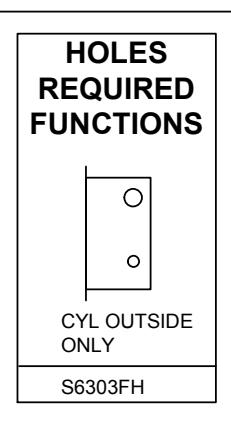

HITOWER S6303FHTEMPLATE 1¾" - 2" FRAMES

IMPORTANT

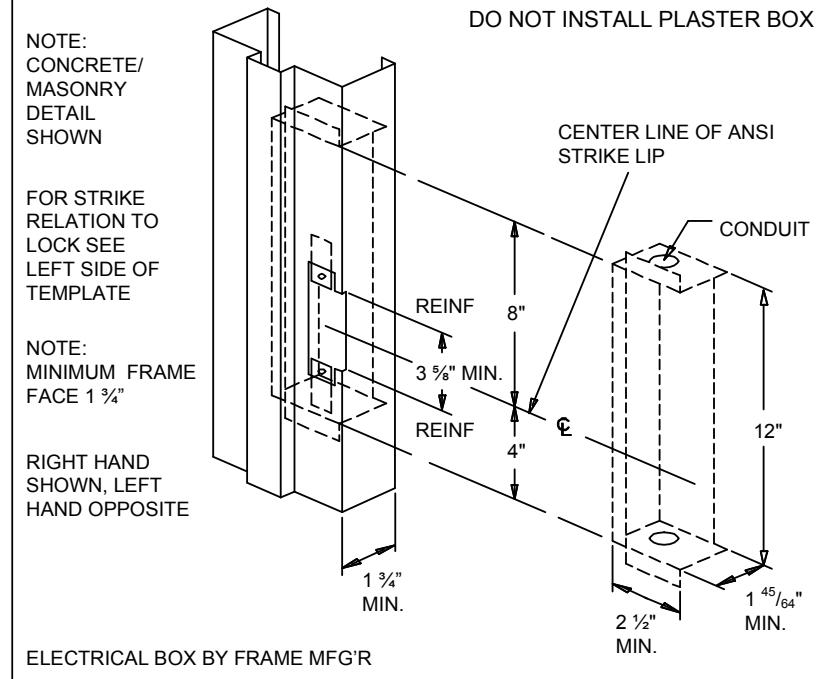

Details show space requirements for electric controller box. Allowances for different wall construction materials must be taken into consideration. Install conduit connectors in top of box before welding to frame.

NOTE:

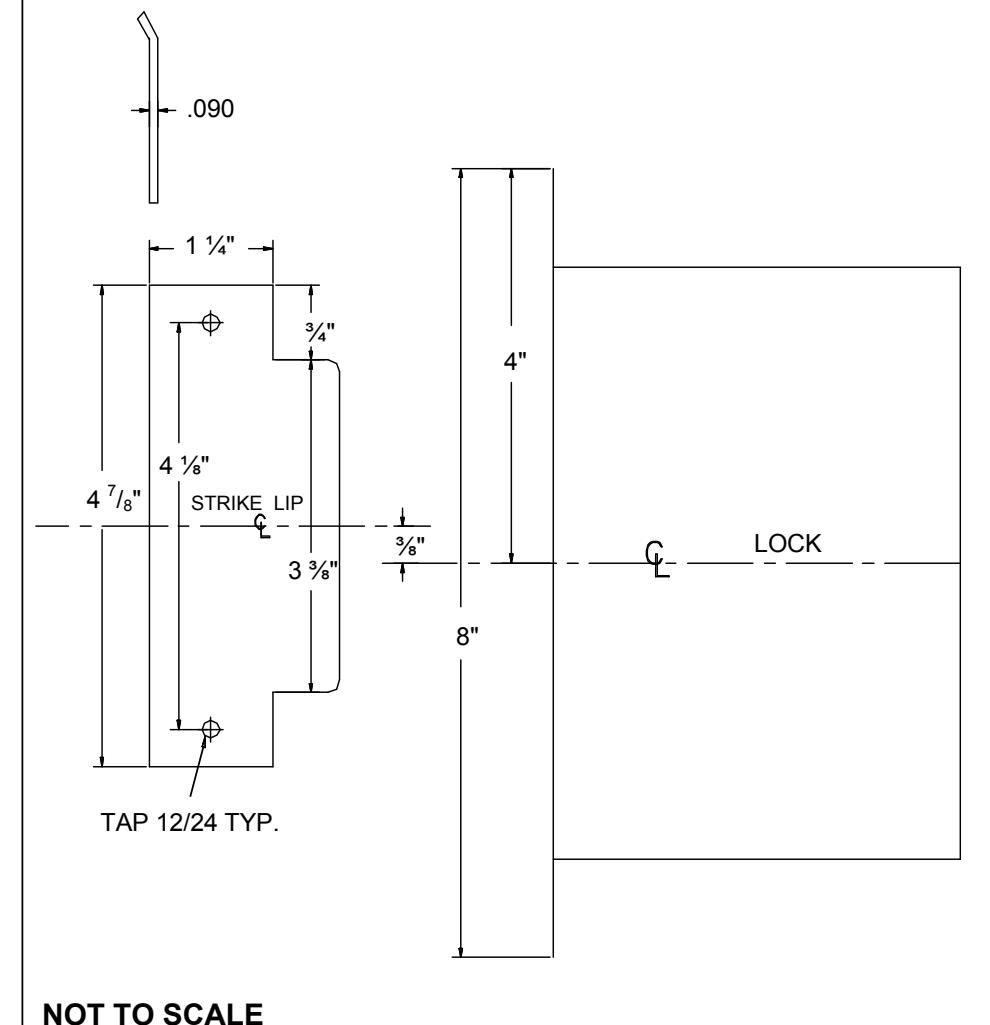

THE 3-⅝" CLEARANCE BETWEEN THE STRIKE REINFORCEMENT TABS IS CRITICAL.*MAXIMUM THICKNESS OF TABS .125

UL LISTED BOX AS SHOWN AVAILABLE FROM SECURITY DOOR CONTROLSPART #7500EB-S
